Fig. 62: I/P Module Components
Courtesy of GENERAL MOTORS CORP.

9. When deploying an I/P module, refer to the following instructions:

z

Place the J 39401-B (2) in the center of the cleared area. See Special Tools and Equipment .

z

Fill the deployment fixture (2) with water or sand.

z

Mount the I/P module (1) in the deployment fixture (2) with the vinyl/plastic trim facing up.

z

To mount, use 4 M 6 bolts (6), nuts (8), and washers (7) to properly secure the I/P module (1) to the
deployment fixture (2).

z

Tighten all fasteners prior to deployment.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



10. Inspect the J 38826 and the appropriate pigtail adapter for damage. Replace as needed. See Special Tools

and Equipment .

11. Short the 2 SIR deployment harness (1) leads together using one banana plug seated into the other.

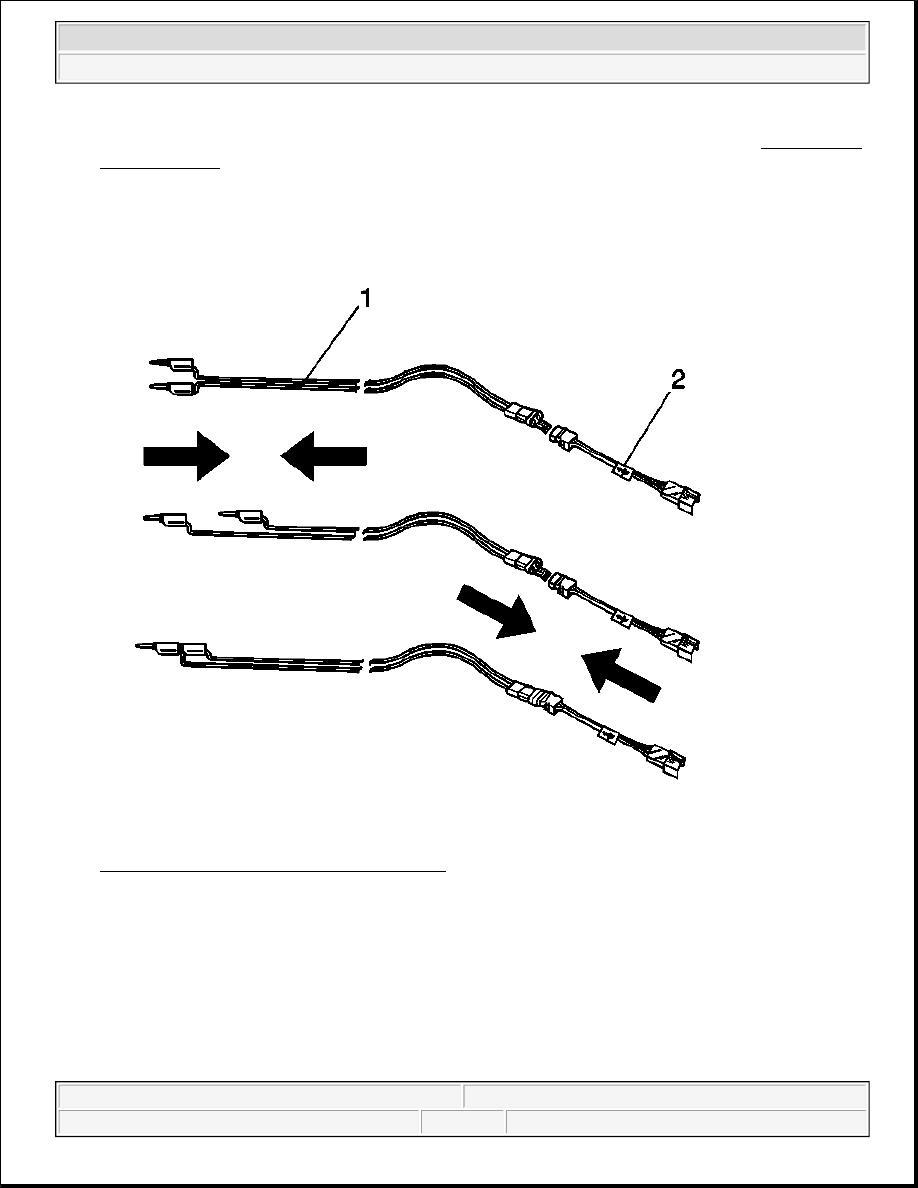

Fig. 63: SIR Deployment Harness & Adapter
Courtesy of GENERAL MOTORS CORP.

12. Connect the appropriate pigtail adapter (2) to the SIR deployment harness (1).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



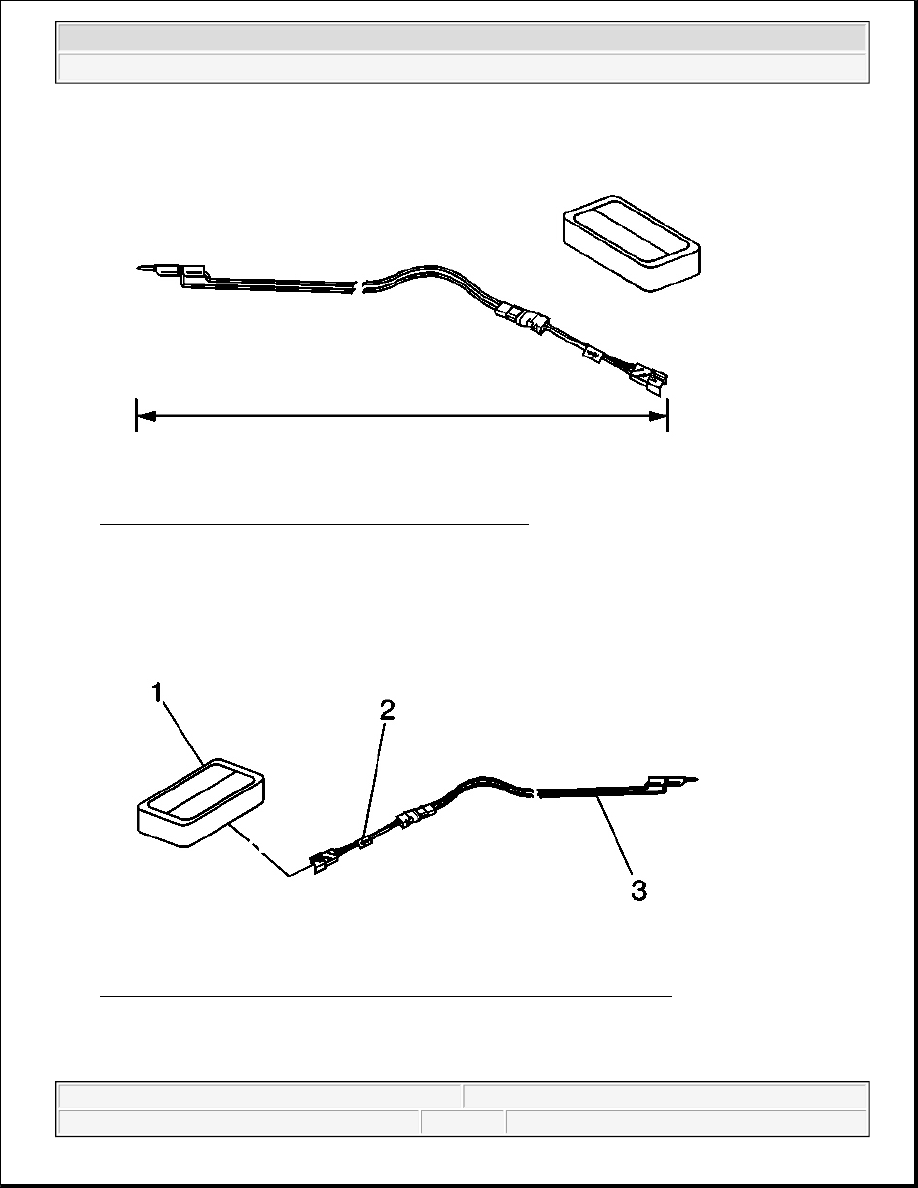

Fig. 64: Extending SIR Deployment Harness & Adapter
Courtesy of GENERAL MOTORS CORP.

13. Extend the SIR deployment harness and adapter to full length from the deployment fixture.

Fig. 65: Connecting Inflator Module To SIR Deployment Harness Adapter
Courtesy of GENERAL MOTORS CORP.

14. Connect the inflator module (1) to the adapter (2) on the SIR deployment harness (3).

15. Place a 12 V minimum/2 A minimum power source, i.e. vehicle battery, near the shorted end of the SIR



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



deployment harness.

16. Clear the area of people.

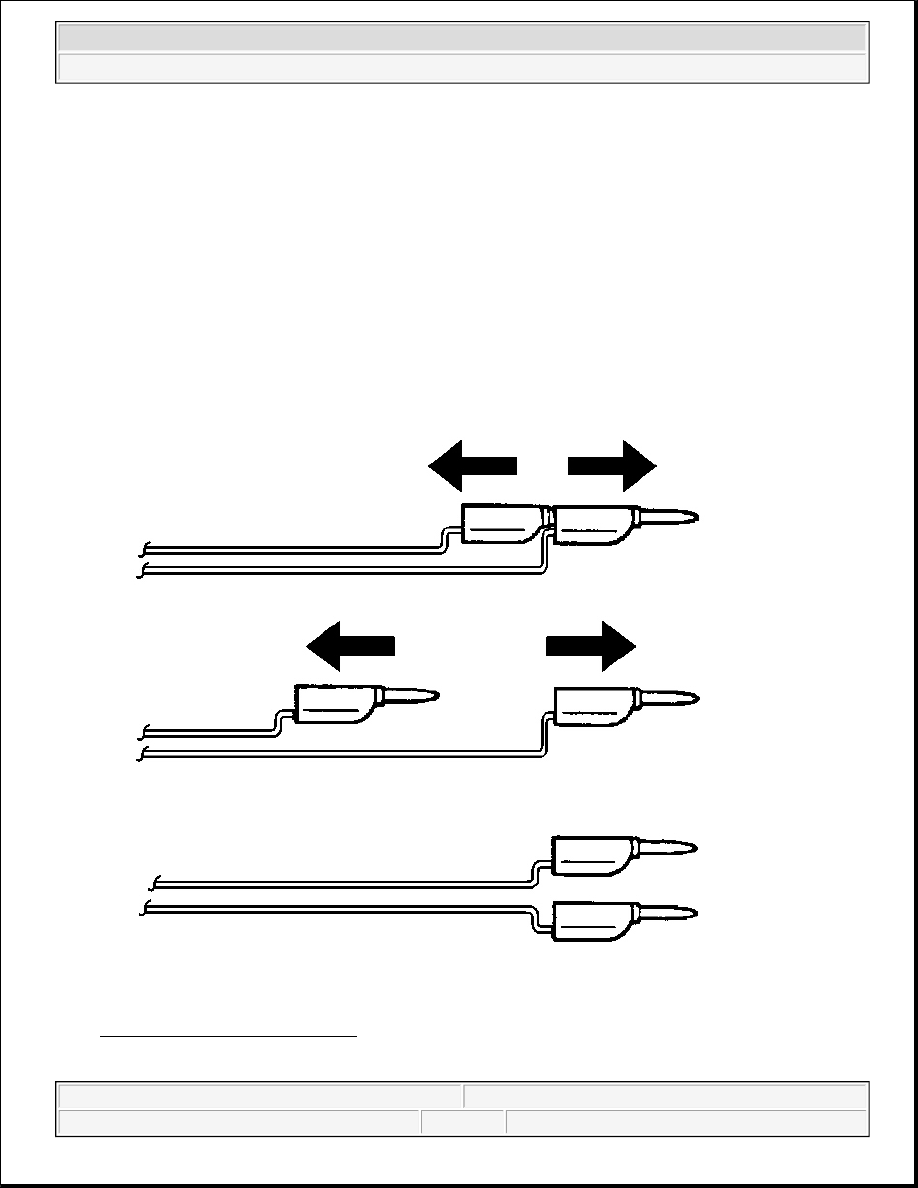

Fig. 66: Separating Banana Plugs
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

The rapid expansion of gas involved with deploying an inflator
module is very loud. Notify all people in the immediate area that an
inflator module will be deployed.

z

When the inflator module deploys, the deployment fixture may jump
vertically. This is a normal reaction of the inflator module due to the
force of the rapid expansion of gas inside the inflator module.
