5. Install the trim panel to the substraight. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Right in Instrument Panel, Gauges and Console.

INFLATABLE RESTRAINT INSTRUMENT PANEL (I/P) MODULE DISABLE SWITCH
REPLACEMENT

Removal Procedure

1. Remove the instrument panel trim bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P)

Cluster in Instrument Panel, Gauges and Console.

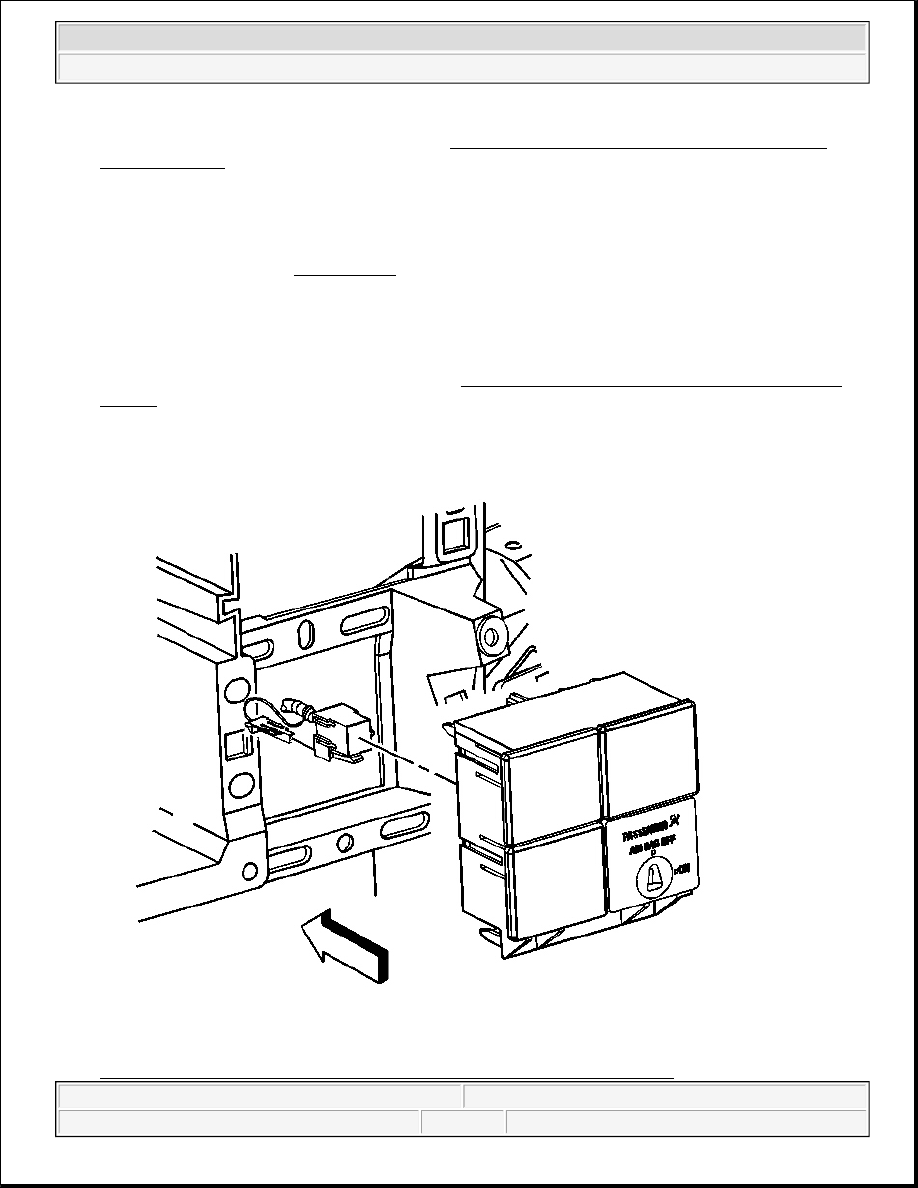

Fig. 57: Inflatable Restraint Instrument Panel (I/P) Module Disable Switch

CAUTION: Refer to SIR Caution in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Remove the I/P module switch from the lower right opening of the switch plate panel.

3. Disconnect the I/P module switch electrical connector.

Installation Procedure

1. Connect the I/P module switch electrical connector.

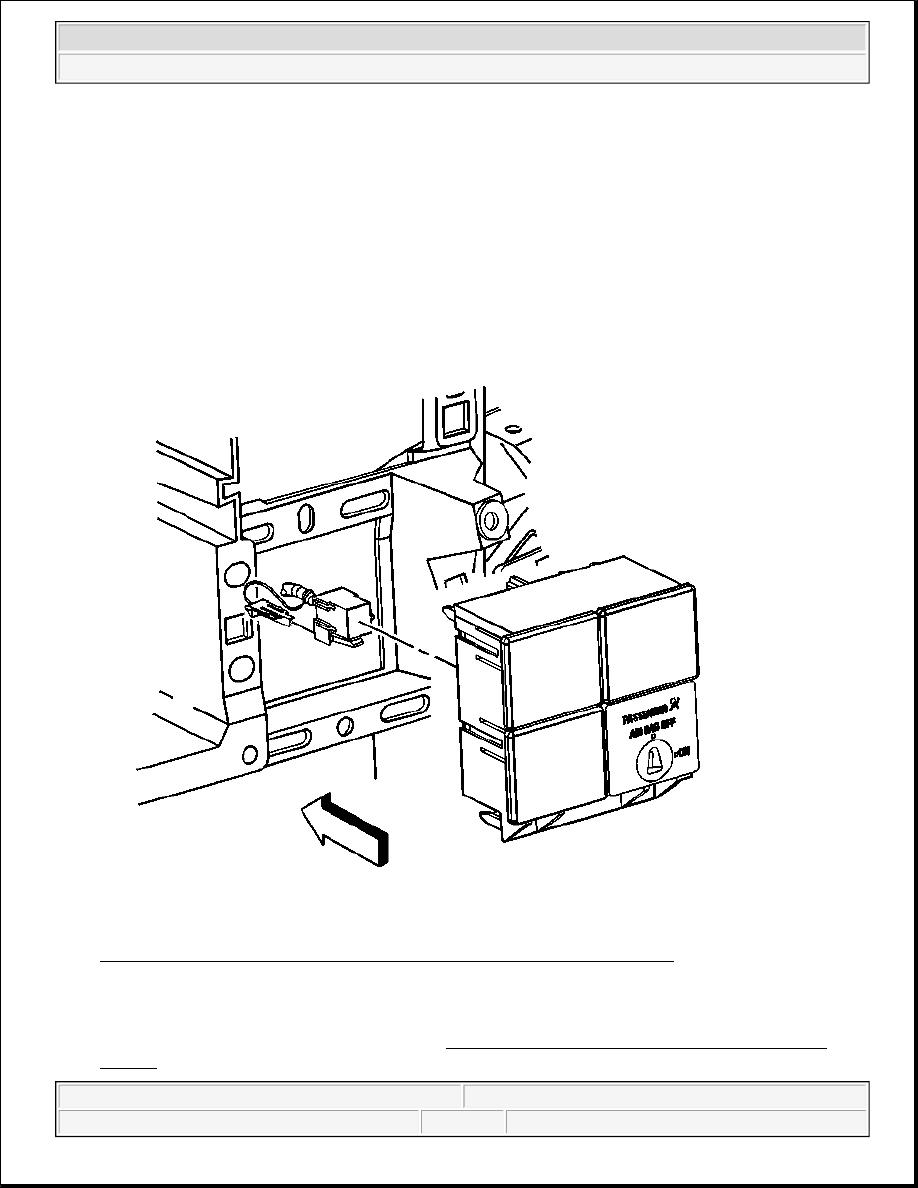

Fig. 58: Inflatable Restraint Instrument Panel (I/P) Module Disable Switch
Courtesy of GENERAL MOTORS CORP.

2. Install the I/P module switch into the lower right opening of the switch plate panel.

3. Install the instrument panel trim bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P)

Cluster in Instrument Panel, Gauges and Console.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



REPAIRS AND INSPECTIONS REQUIRED AFTER A COLLISION

Accident With or Without Inflator Module Deployment - Component Inspections

After any collision, inspect the following components as indicated. If you detect any damage, replace the
component. If you detect any damage to the mounting points or mounting hardware, repair or replace the
mounting points and mounting hardware as needed.

z

The steering column - Perform the steering column accident damage checking procedures. Refer to
Steering Column Accident Damage Inspection in Steering Wheel and Column.

z

The I/P knee bolsters and mounting points - Inspect the knee bolsters for bending, twisting, buckling, or
any other type of damage.

z

The I/P brackets, braces, etc.- Inspect for bending, twisting, buckling, or any other type of damage.

z

The seat belts - Perform the seat belt operational and functional checks. Refer to Operational and
Functional Checks
 in Seat Belts.

z

The I/P cross car beam - Inspect for bending, twisting, buckling, or any other type of damage.

z

The I/P mounting points and brackets - Inspect for bending, twisting, buckling, or any other type of
damage.

z

The seats and seat mounting points - Inspect for bending, twisting, buckling, or any other type of damage.

Accident With Frontal Air Bag Deployment - Component Replacement and Inspections

After a collision involving air bag deployment, replace the following components. If you detect any damage to
the mounting points or mounting hardware, repair or replace the mounting points and mounting hardware as
needed.

z

Inflatable restraint I/P module

z

Inflatable restraint steering wheel module

z

Inflatable restraint steering wheel module coil

z

Inflatable restraint sensing and diagnostic module (SDM)

z

Inflatable restraint electronic frontal sensor (EFS)

Perform additional inspections on the following components.

z

Steering wheel module coil and the coil wiring pigtail - Inspect for melting, scorching, or other damage
due to excessive heat.

z

Mounting points or mounting hardware for the I/P module, steering wheel module, SDM, and EFS sensor
- Inspect for any damage and repair or replace each component as needed.

CAUTION: Proper operation of the SIR sensing system requires that any repairs to

the vehicle structure return the vehicle structure to the original production
configuration. Not properly repairing the vehicle structure could cause
non-deployment in a collision or deployment for conditions less severe
than intended.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Sensor Replacement Guidelines

The SIR/side air bag sensor replacement policy requires replacing sensors in the area of accident damage. The
area of accident damage is defined as the portion of the vehicle which is crushed, bent, or damaged due to a
collision. An example of this would be a moderate collision where the front of the vehicle impacts a tree, if the
vehicle has an SIR sensor mounted forward of the radiator, replace the SIR sensor.

z

Replace the sensor whether or not the air bags have deployed.

z

Replace the sensor even if the sensor appears to be undamaged.

Sensor damage which is not visible, such as slight bending of the mounting bracket or cuts in the wire
insulation, can cause improper operation of the SIR/side air bag sensing system. Do not try to determine
whether the sensor is undamaged. Replace the sensor. Also, if you follow a Diagnostic Trouble Code (DTC)
table and a malfunctioning sensor is indicated, replace the sensor.

INFLATOR MODULE HANDLING AND SCRAPPING

Live (Undeployed) Inflator Modules

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and

Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2
