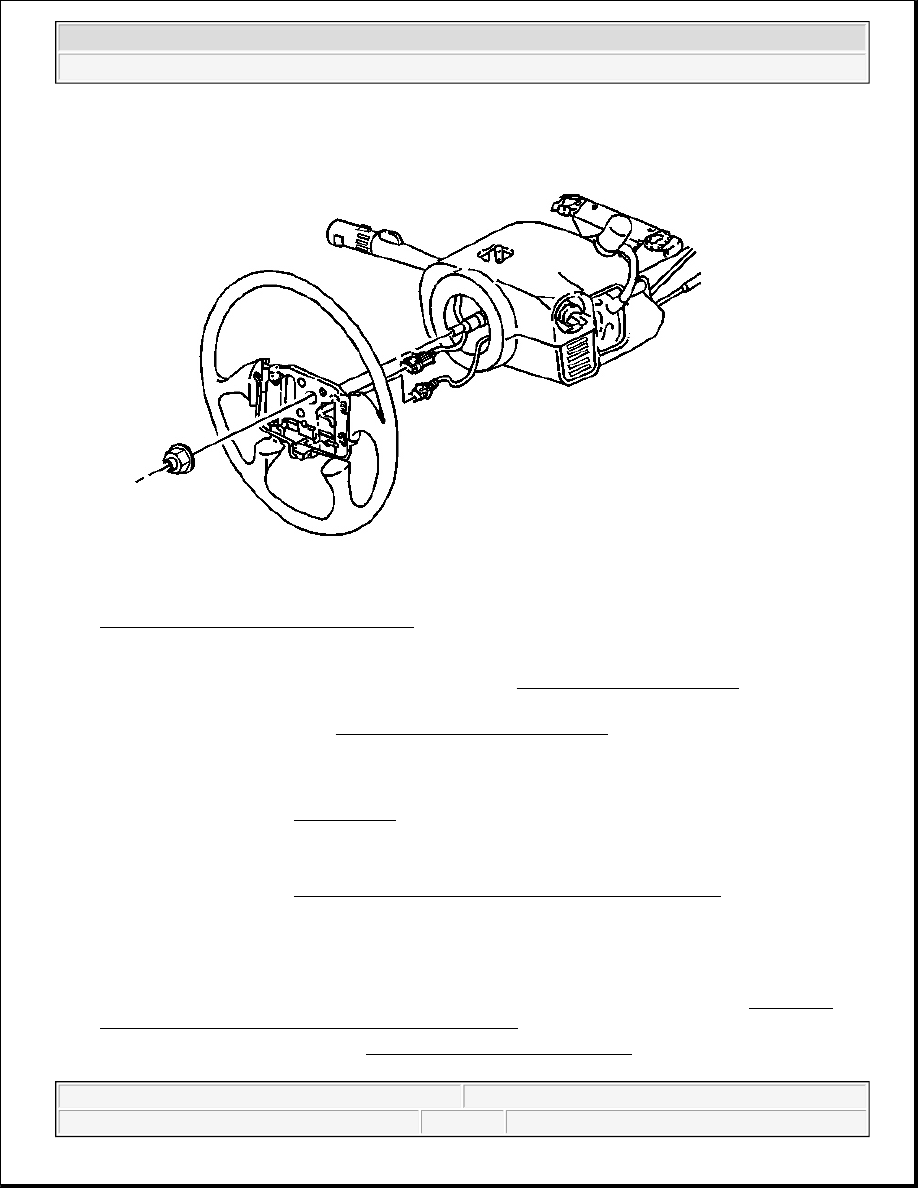

Fig. 53: Steering Wheel & Steering Shaft
Courtesy of GENERAL MOTORS CORP.

12. Install the steering wheel onto the steering shaft. Refer to Steering Wheel Replacement in Steering

Wheel and Column.

13. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .

INFLATABLE RESTRAINT INSTRUMENT PANEL MODULE REPLACEMENT

Removal Procedure

1. Remove trim panel replacement-I/P accessory right- from the I/P substraight (1). Refer to Trim Plate

Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gauges and Console.

2. Disable the SIR system (2). Refer to SIR Disabling and Enabling Zones .

CAUTION: Refer to SIR Caution in Cautions and Notices.

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and

Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



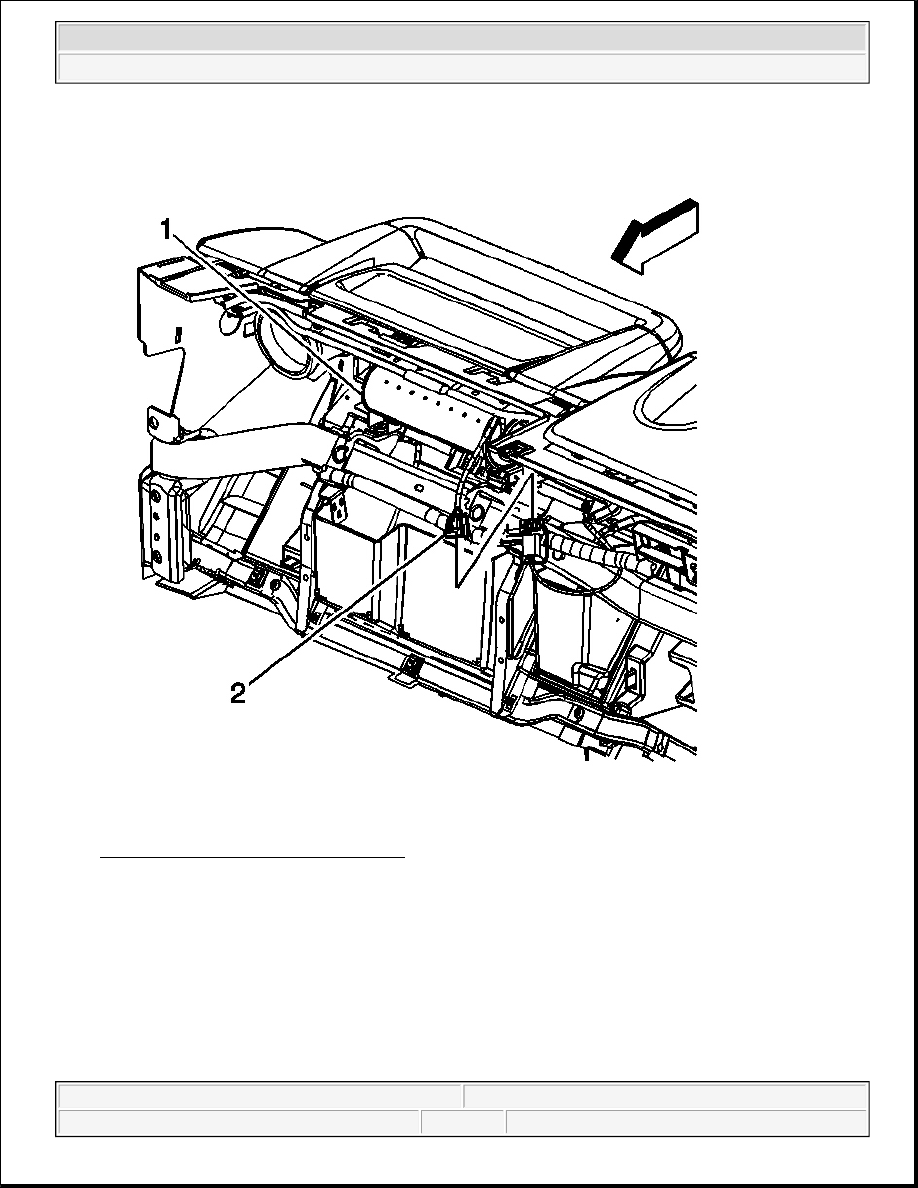

Fig. 54: Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP.

3. Remove the connector from the I/P.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Fig. 55: Removing Inflatable Restraint I/P Module Retaining Bolts
Courtesy of GENERAL MOTORS CORP.

4. Remove the inflatable restraint I/P module retaining bolts.

5. Ensure that you keep a firm hold on the I/P module.

Installation Procedure

1. Install the inflatable restraint I/P module (1) to the mounting bracket through the front of the instrument

panel.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Fig. 56: Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (2) to the inflatable restraint I/P module.

Tighten: Tighten the fasteners to 10 N.m (89 lb in).

3. Enable the SIR system. Refer to SIR Disabling and Enabling Zones .

4. Install the yellow connector to the I/P.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
