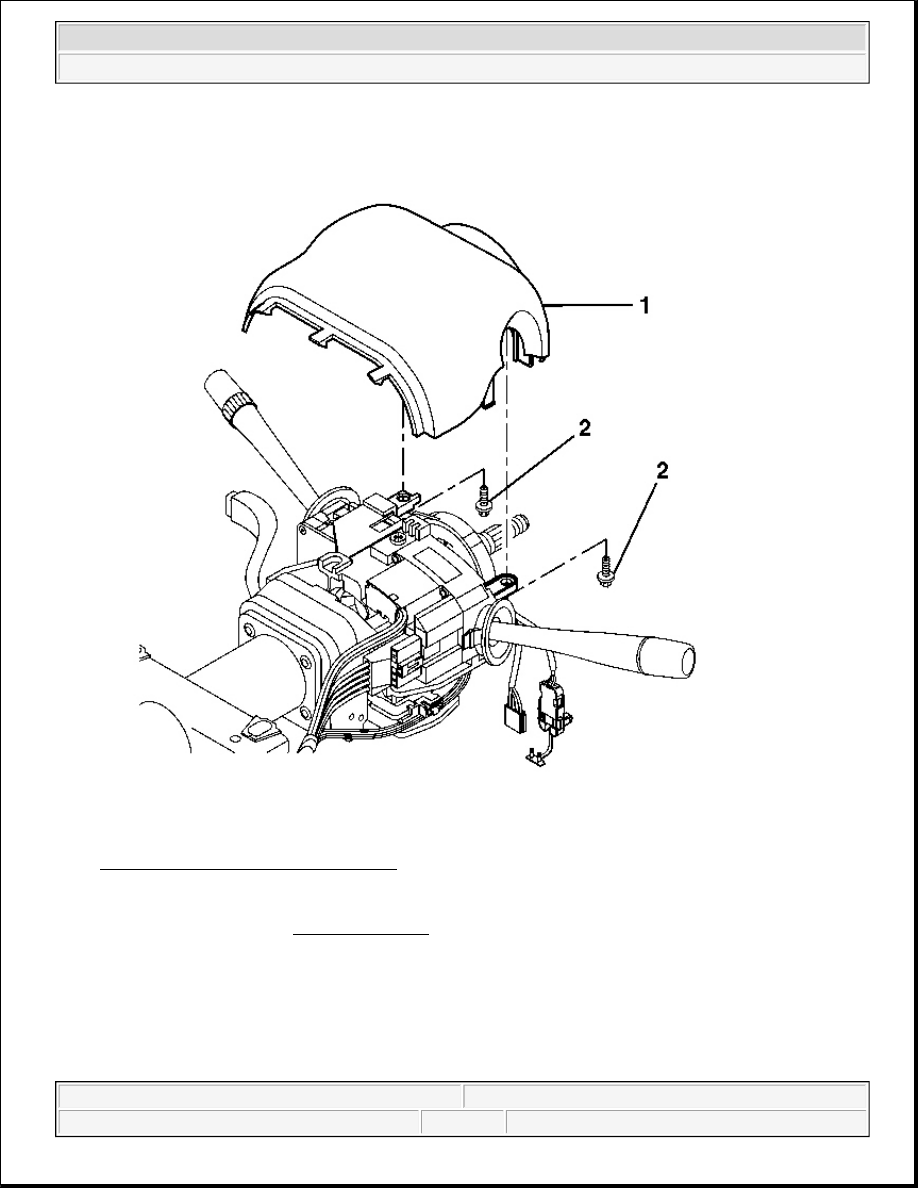

Fig. 49: Identifying Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.

7. Install the upper trim cover (1) and secure by using 2 TORX(R) head screws (2).

Tighten: Tighten the screws to 1.5 N.m (13 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

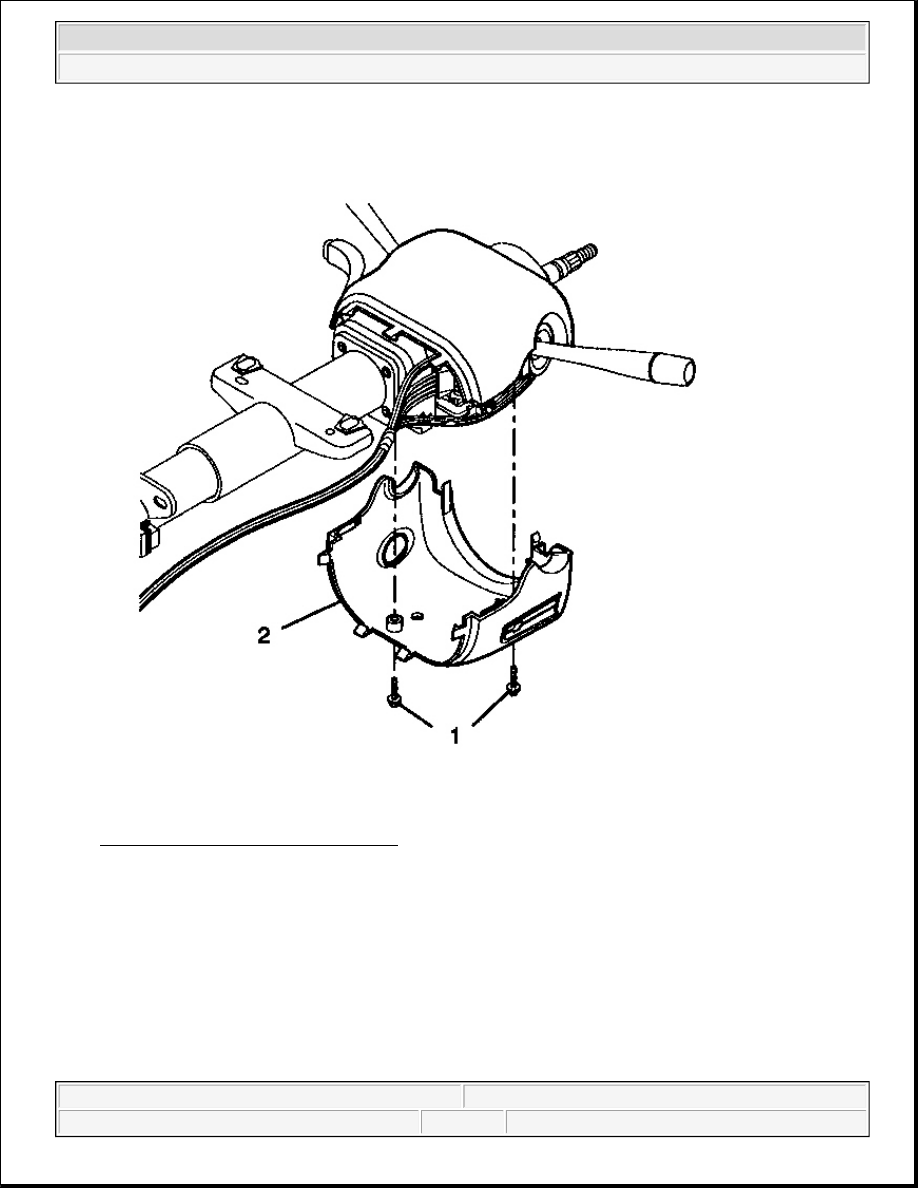

Fig. 50: Identifying Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.

8. Install the lower trim cover (2) and secure by using 2 TORX(R) head screws (1).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

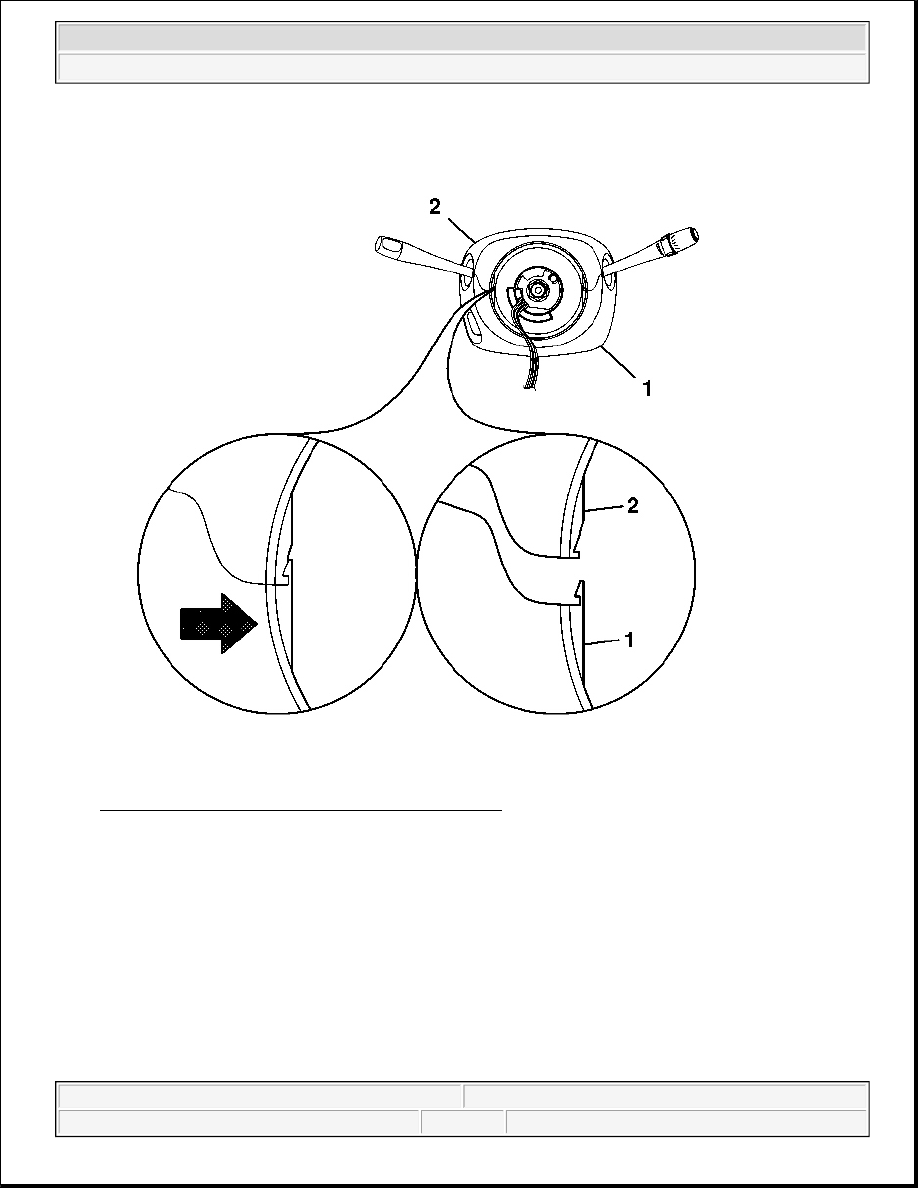

Fig. 51: Engaging Upper & Lower Trim Cover Tabs
Courtesy of GENERAL MOTORS CORP.

9. Verify that the tabs on the lower trim cover (1) engage with the tabs on the upper trim cover (2). Snap the

tabs together.

Tighten: Tighten the screws to 1.5 N.m (13 lb in).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

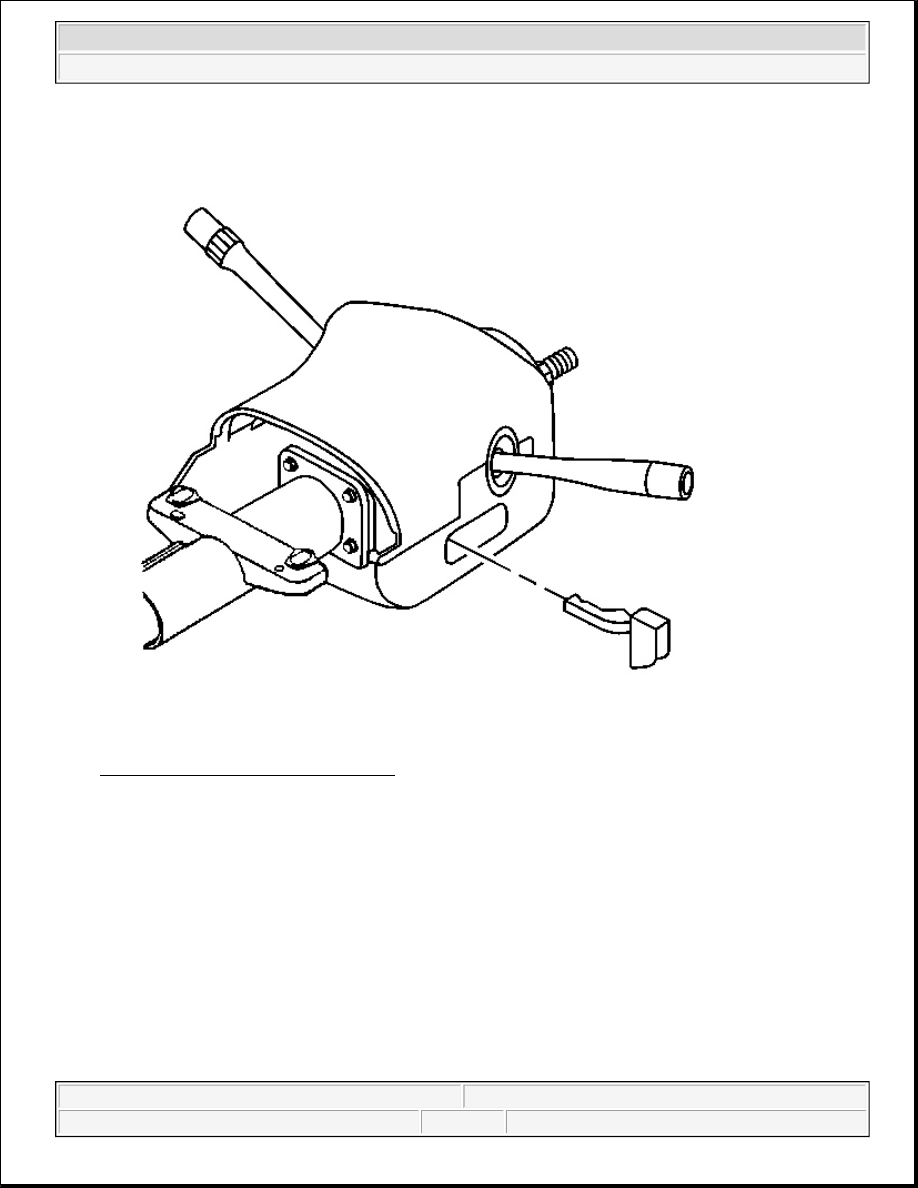

Fig. 52: Tilt Lever & Steering Column
Courtesy of GENERAL MOTORS CORP.

10. On vehicles with a tilt column, align the tilt lever into the steering column.

11. Slide the tilt lever handle into the steering column until the handle locks into position.
