17. Separate the 2 banana plugs on the SIR deployment harness.

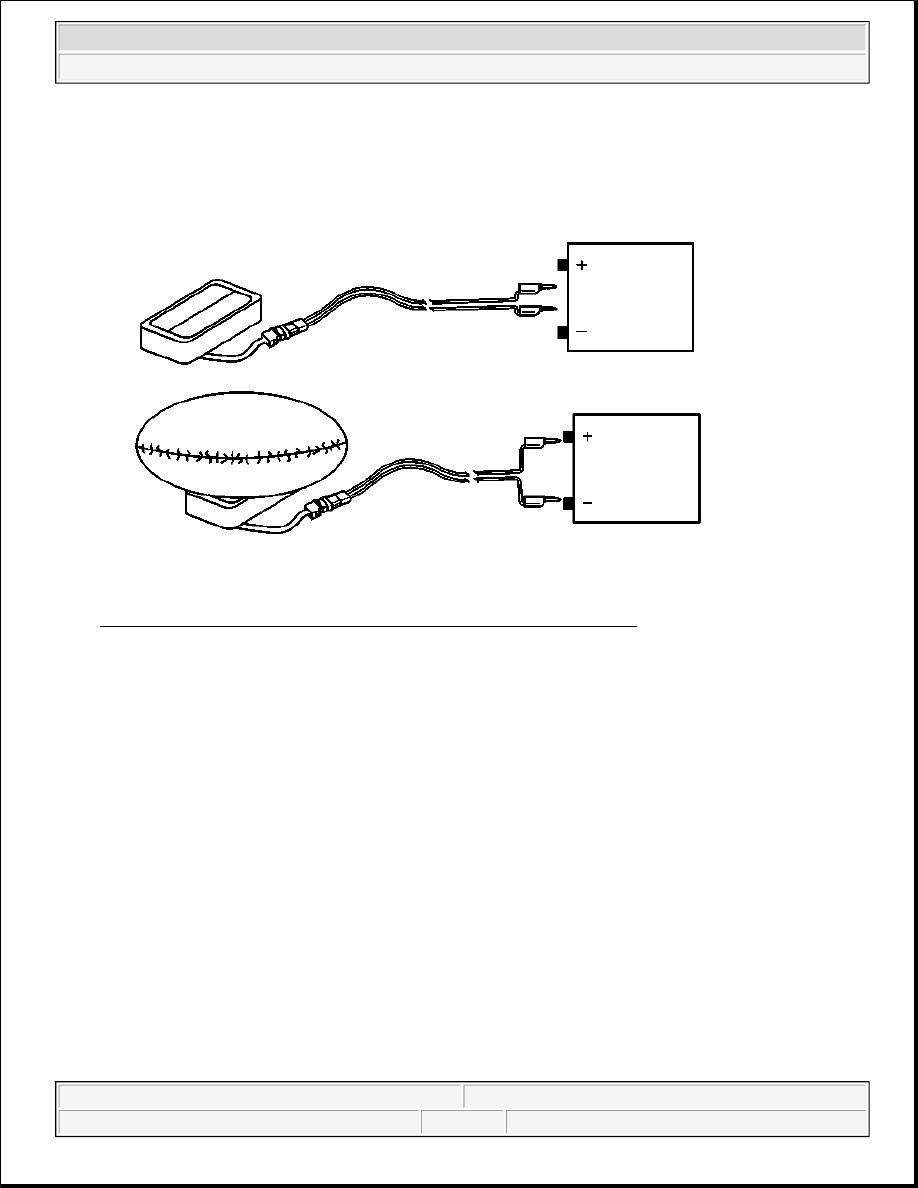

Fig. 67: Connecting SIR Deployment Harness Wires To Power Source
Courtesy of GENERAL MOTORS CORP.

18. Connect the SIR deployment harness wires to the power source. Inflator module deployment will occur

when contact is made.

19. Disconnect the SIR deployment harness from the power source.

2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

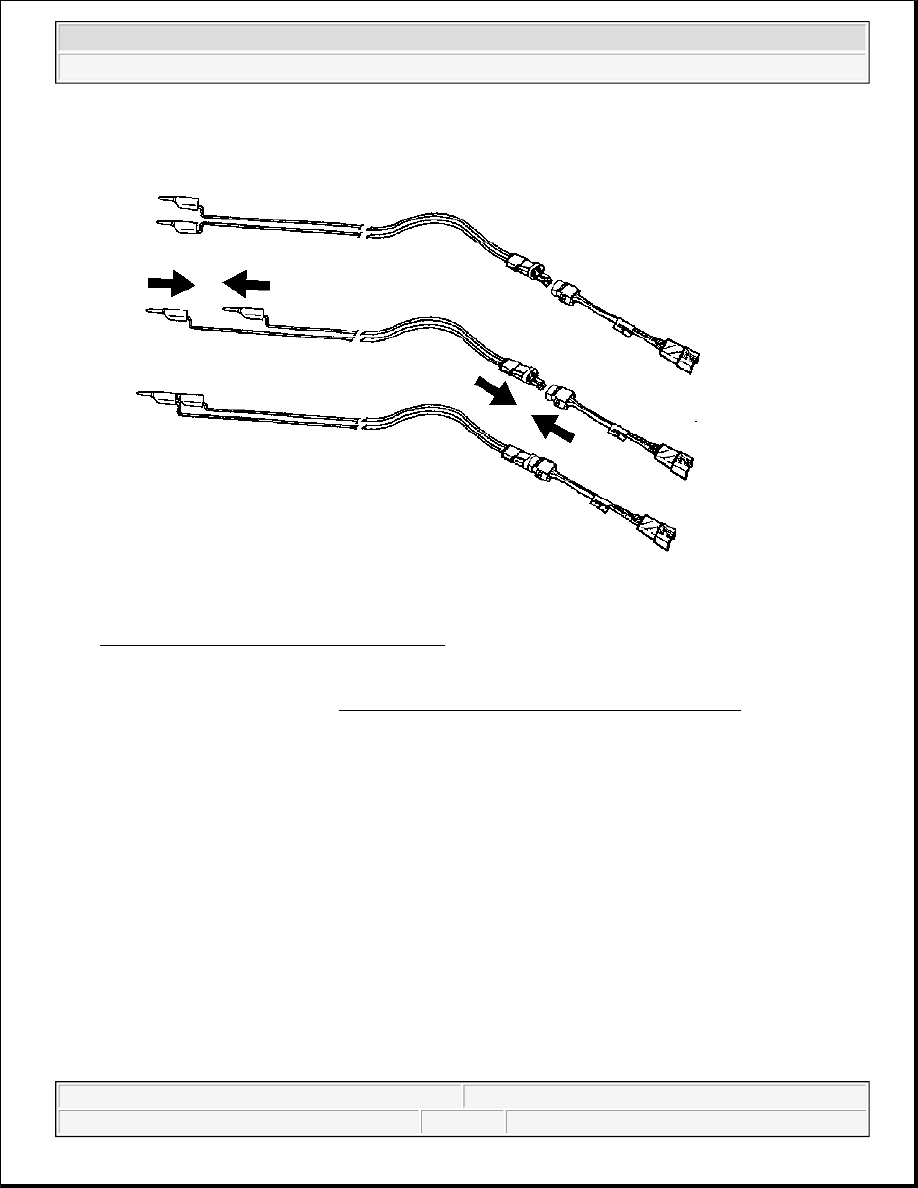

Fig. 68: Shorting Deployment Harness Leads
Courtesy of GENERAL MOTORS CORP.

20. Seat 1 banana plug into the other in order to short the deployment harness leads.

21. If the inflator module did not deploy, disconnect the adapter and discontinue the procedure. Contact the

Technical Assistance Group for further assistance. Otherwise, proceed to the following steps.

CAUTION: Refer to SIR Deployed Inflator Modules Are Hot Caution in Cautions

and Notices.

2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

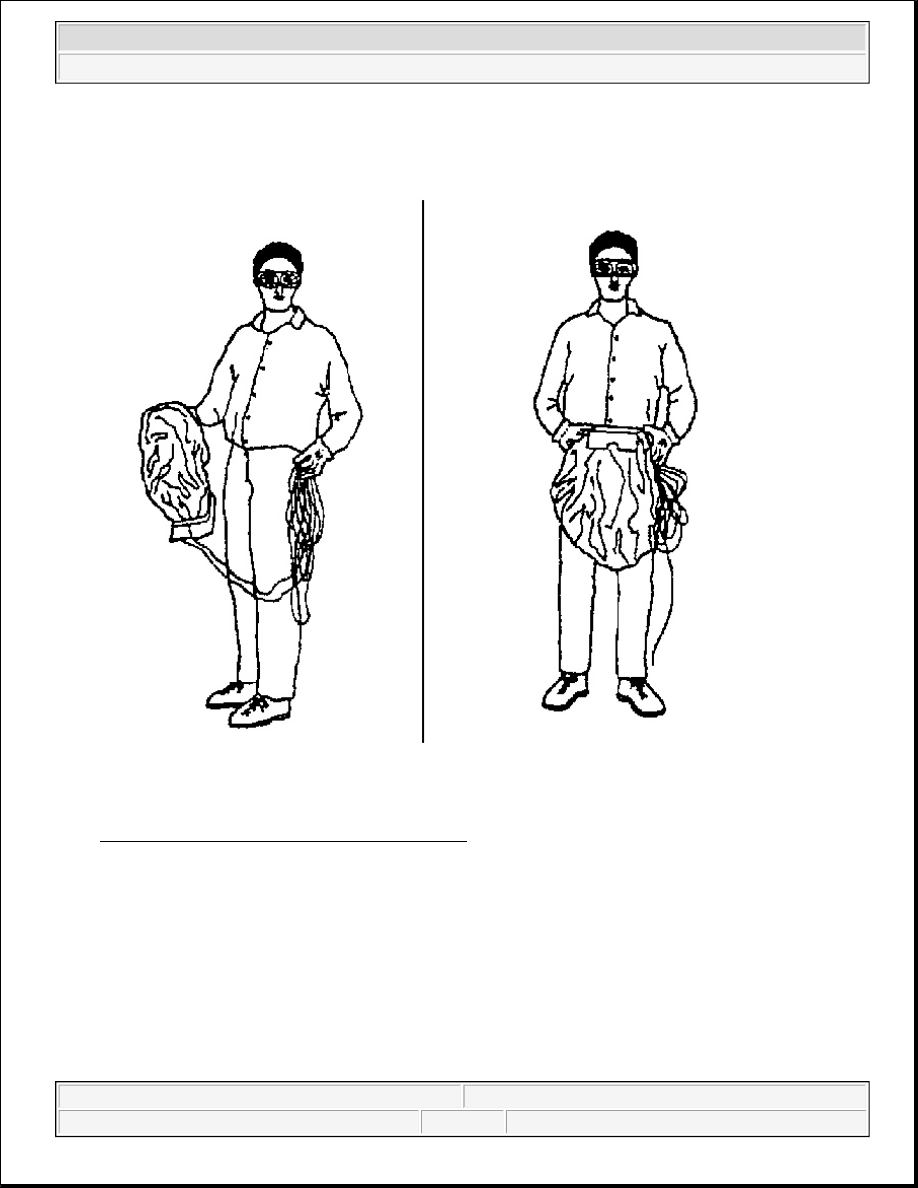

Fig. 69: Disposing Of Deployed Inflator Module
Courtesy of GENERAL MOTORS CORP.

22. Put on a pair of shop gloves.

23. Disconnect the pigtail adapter from the inflator module as soon as possible.

24. Dispose of the deployed inflator module through normal refuse channels.

25. Wash hands with a mild soap.

Deployment Inside Vehicle-Vehicle Scrapping Procedures

Deploy inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for
parts. This includes but is not limited to the following situations:

2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

The vehicle has completed its useful life.

Irreparable damage occurs to the vehicle in a non-deployment type accident.

Irreparable damage occurs to the vehicle during a theft.

The vehicle is being salvaged for parts to be used on a vehicle with a different VIN as opposed to
rebuilding as the same VIN.

CAUTION: Refer to SIR Inflatable Module Deployment Outside Vehicle Caution in

Cautions and Notices.

2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2
