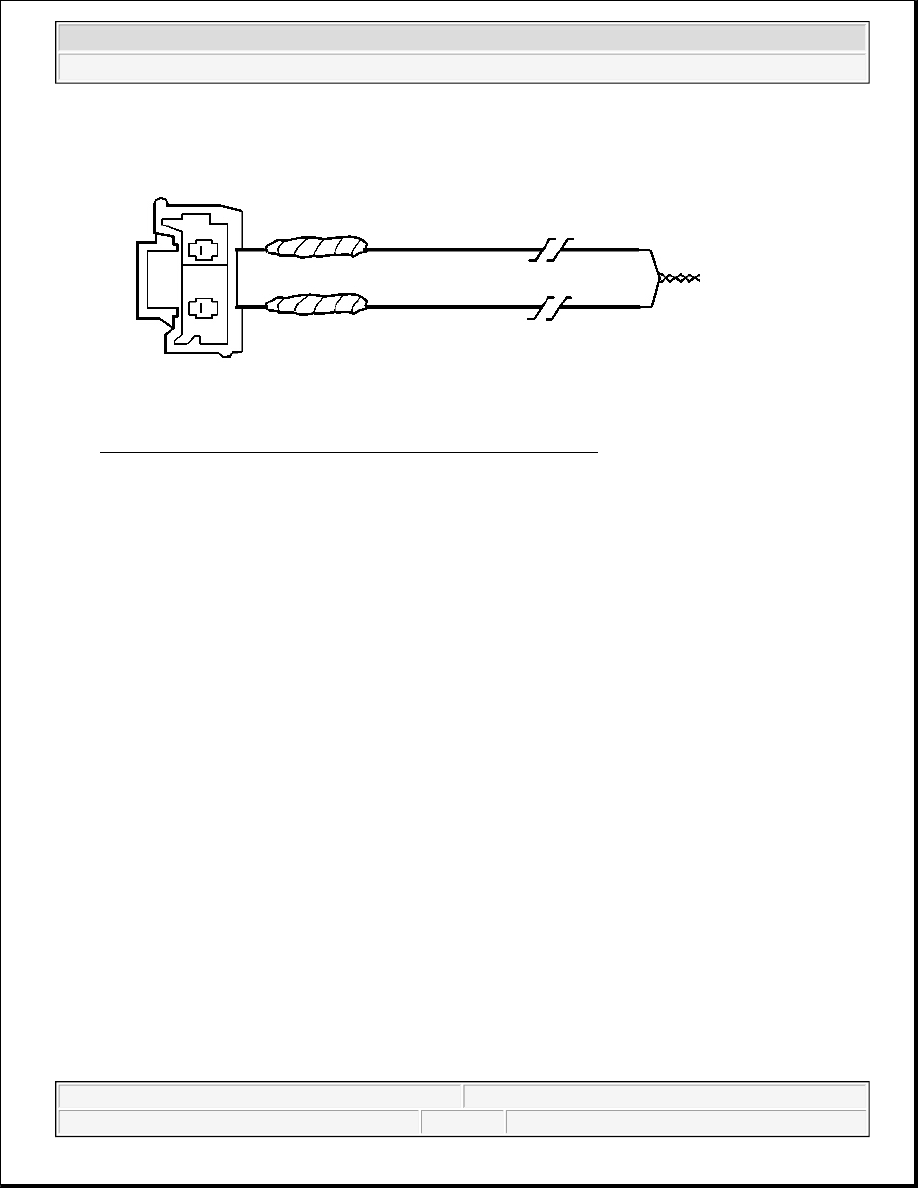

Fig. 75: View Of Insulated Connector Wire To Deployment Wire
Courtesy of GENERAL MOTORS CORP.

15. Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.

16. Inspect that the connection is secure.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

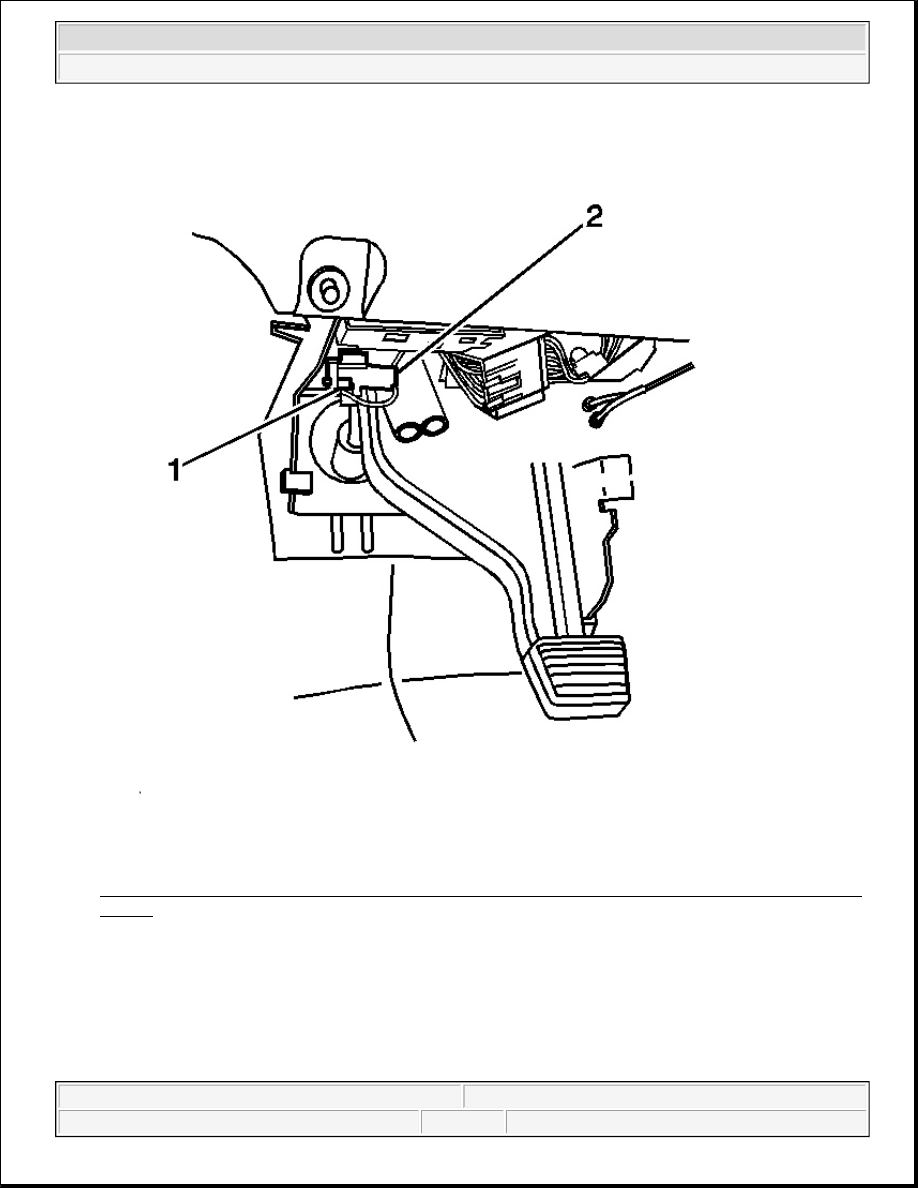

Fig. 76: Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector -
Zone 7
Courtesy of GENERAL MOTORS CORP.

17. Connect the deployment harness to the steering wheel module connector.

18. Route the deployment harness out of the vehicle's driver side.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

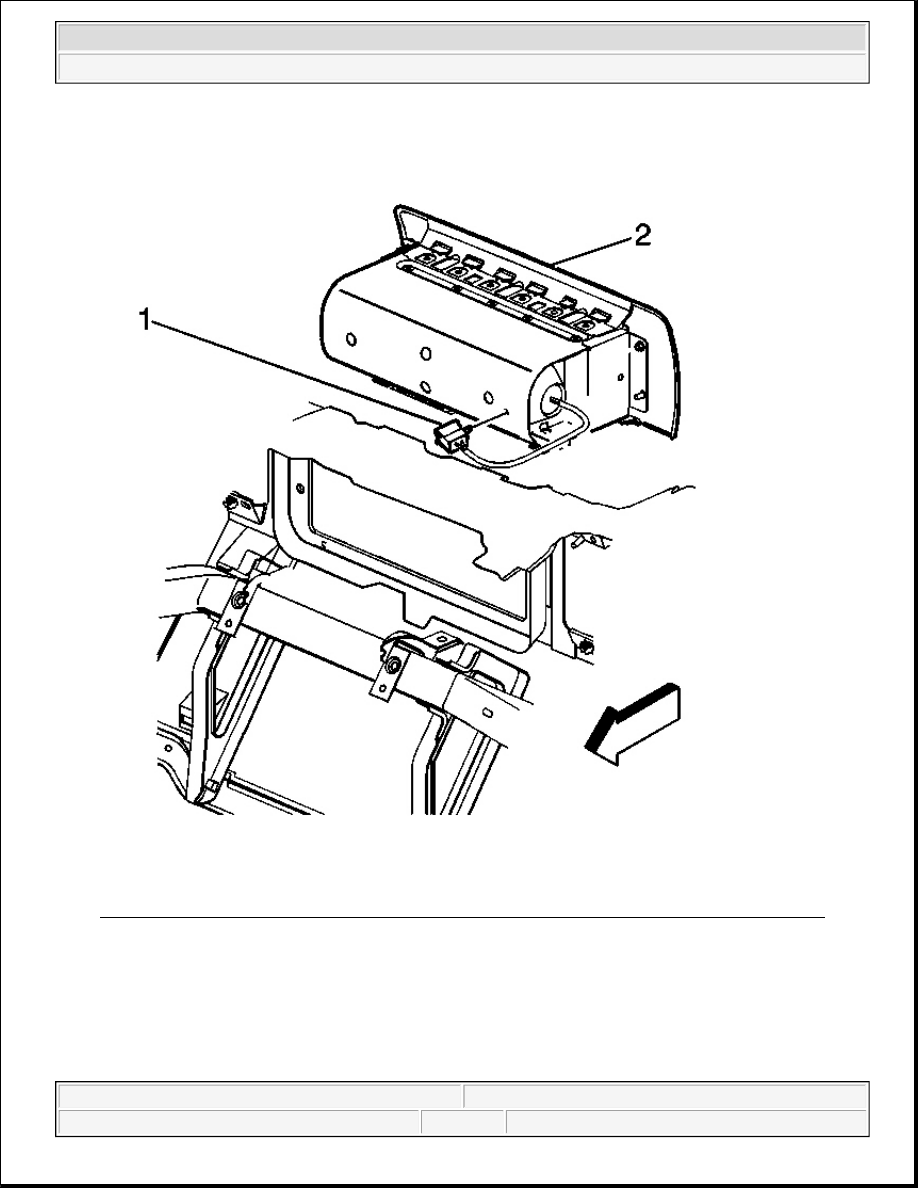

Fig. 77: Connector Position Assurance (CPA) & I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.

19. Disconnect the inflatable restraint I/P module connector (1) located behind the I/P module (2).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

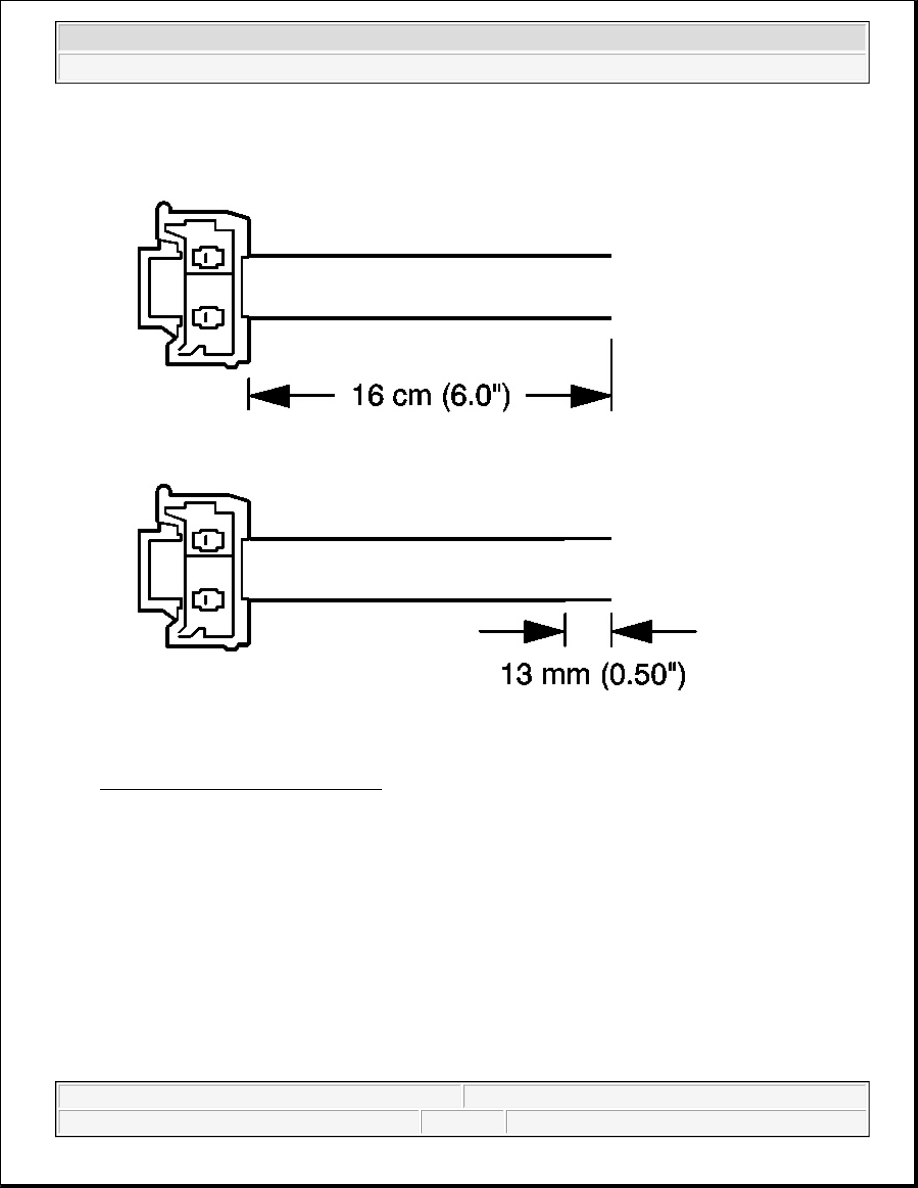

Fig. 78: Measuring Connector Wires
Courtesy of GENERAL MOTORS CORP.

20. Cut the I/P module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the

connector.

21. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
