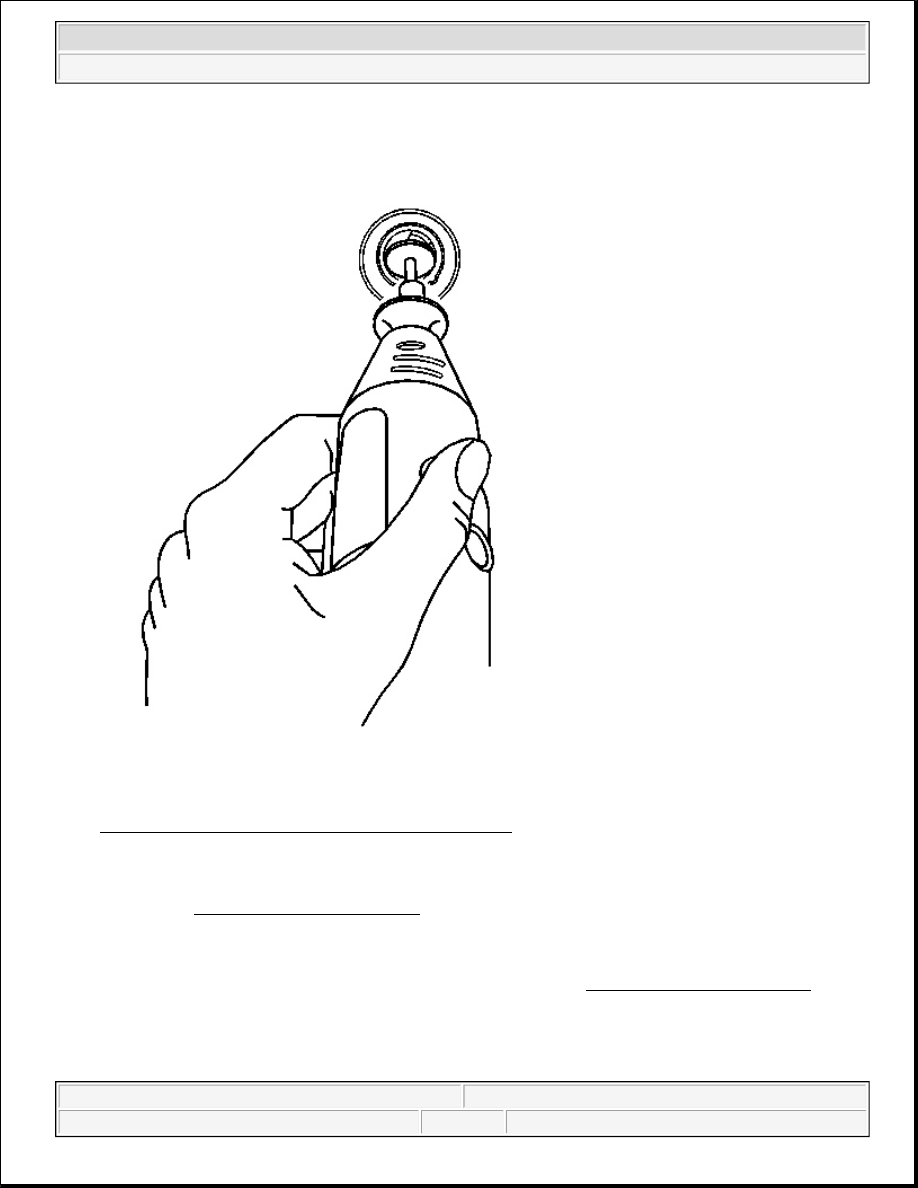

Fig. 7: Removing Cigar Housing Using Grinding Tool
Courtesy of GENERAL MOTORS CORP.

5. If J 42059 tool fails to release the lighter socket from the retainer, perform the following alternate

method: See Special Tools and Equipment .

1. Insert a small grinding tool with a cutoff wheel into the socket.

2. Remove the plastic latches in the 3 mm (0.11 in) square windows.

3. Use the J 42059 as directed above to remove the socket. See Special Tools and Equipment .

6. Remove the electrical connector from the socket.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



1. Connect the electrical connectors to the receptacle.

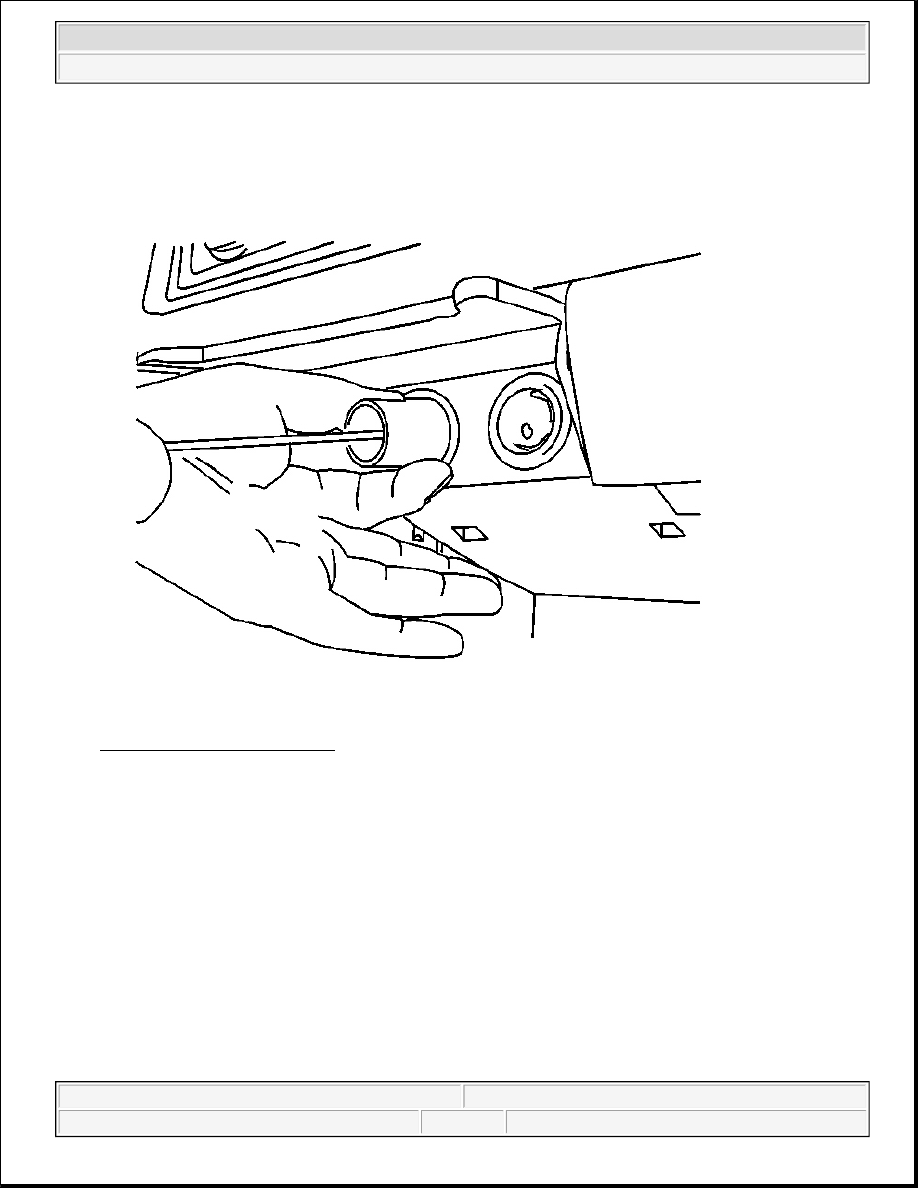

Fig. 8: Receptacle & Assembly
Courtesy of GENERAL MOTORS CORP.

2. Insert the plastic ring into the opening and snap the plastic ring into place.

3. Insert the receptacle through the plastic ring and gently turn by hand until the receptacle ring is sealed.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



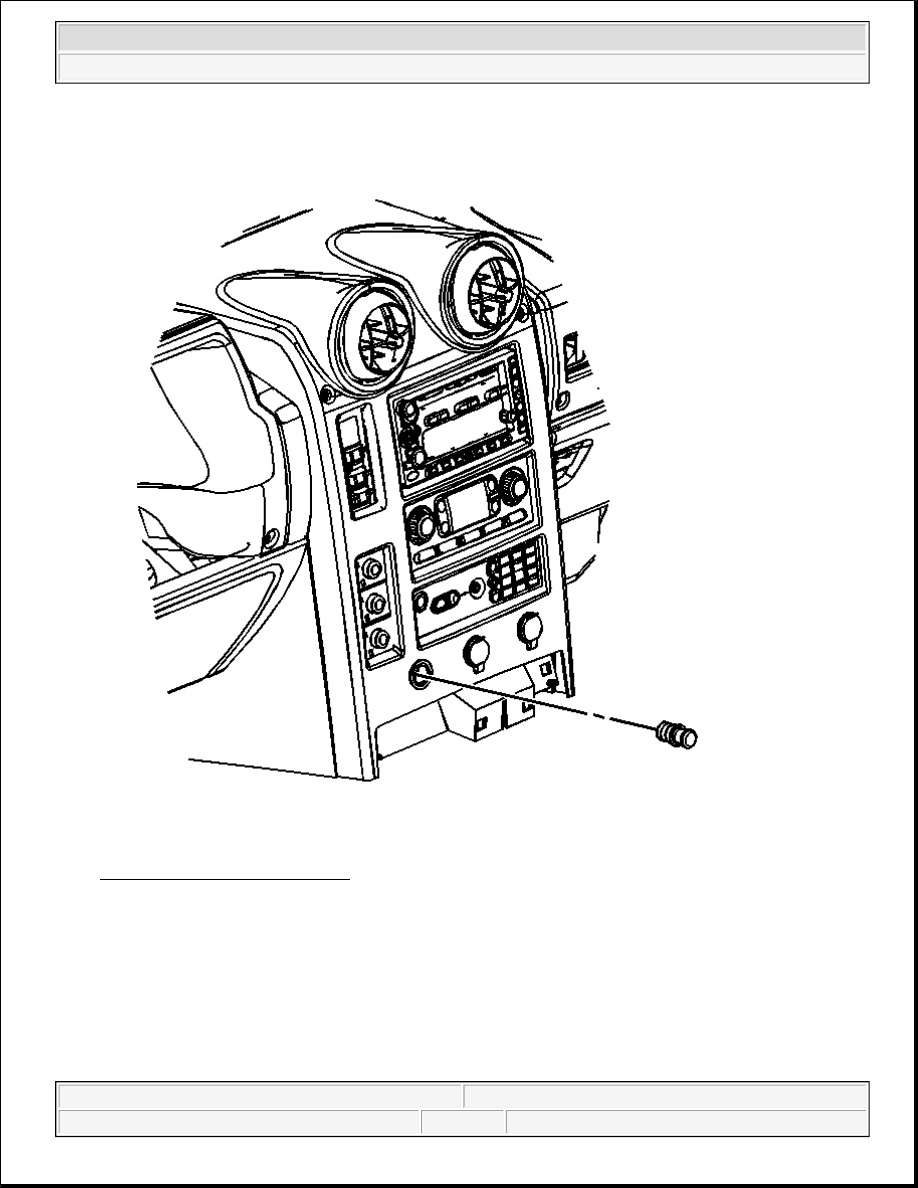

Fig. 9: Identifying Cigar Lighter
Courtesy of GENERAL MOTORS CORP.

4. Close receptacle covers or insert the cigar lighter.

5. Install the power port/lighter socket fuse.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



Special Tools

Illustration

Tool Number/Description

J 42059

Cigar Lighter Socket Remover
