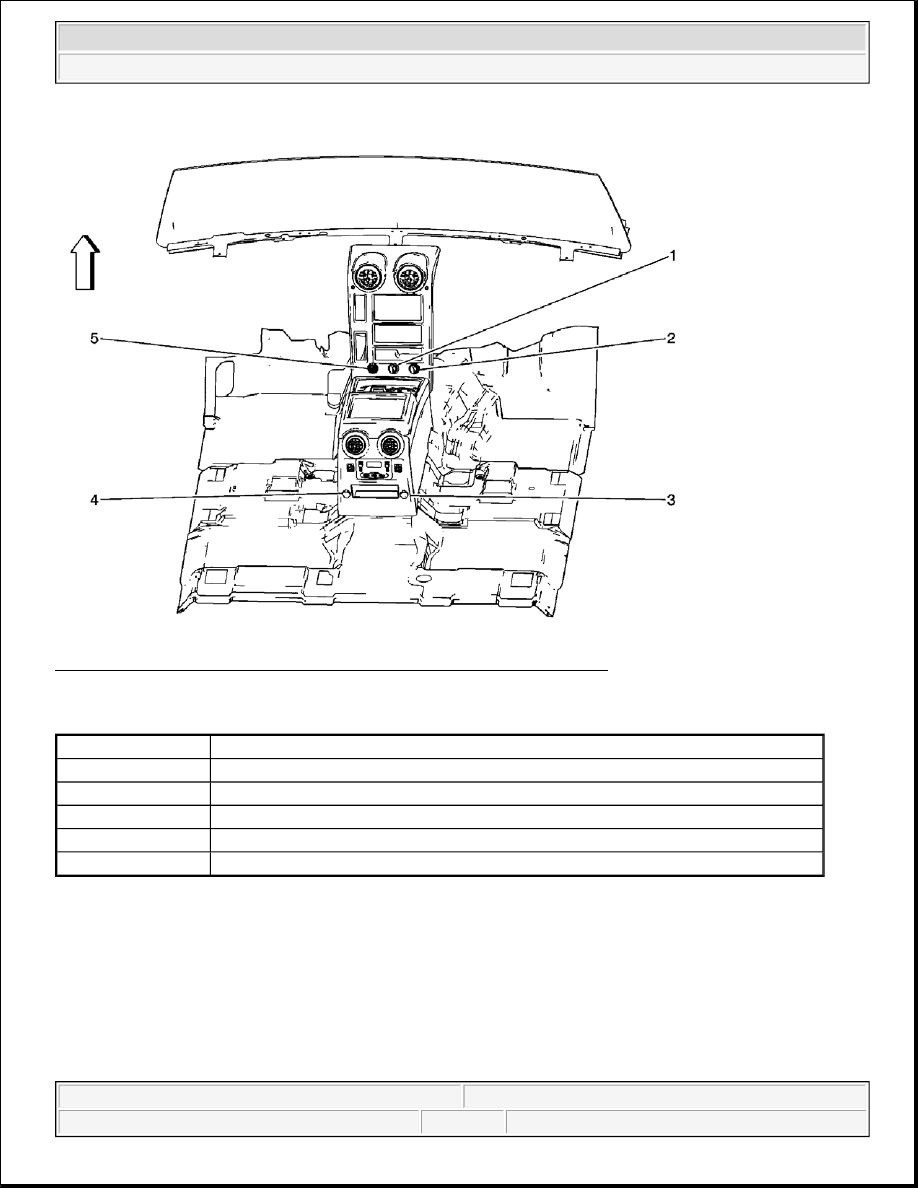

Fig. 2: Auxiliary Power Outlets - Front/Rear Console Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Auxiliary Power Outlet - Front 1

2

Auxiliary Power Outlet - Front 2

3

Auxiliary Power Outlet - Console

4

Auxiliary Power Outlet - Console

5

Cigar Lighter



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



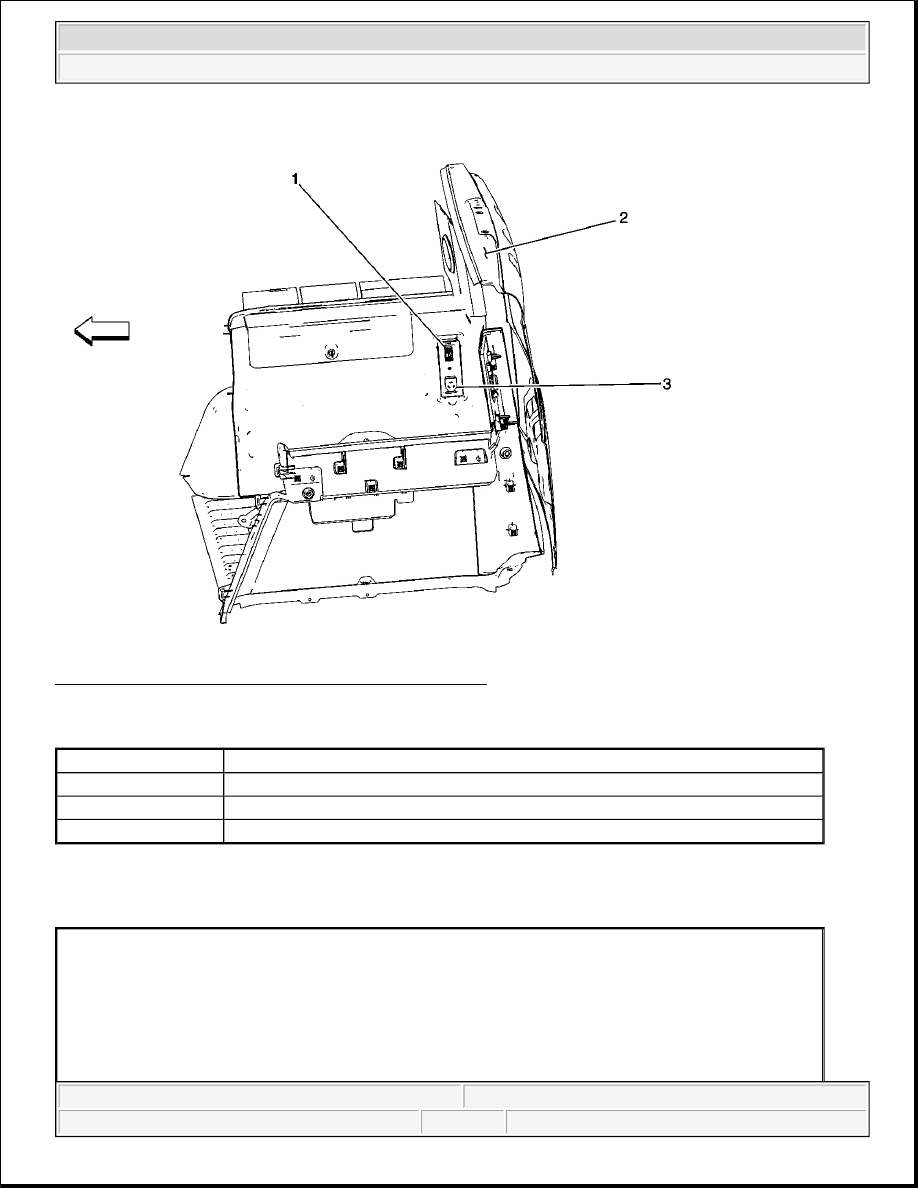

Fig. 3: Auxiliary Power Outlet - Rear Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

POWER OUTLET CONNECTOR END VIEWS

Accessory Power Outlet Terminal Identification - Console

Callout

Component Name

1

Accessory Inflator Switch

2

Liftgate

3

Auxiliary Power Outlet - Rear



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



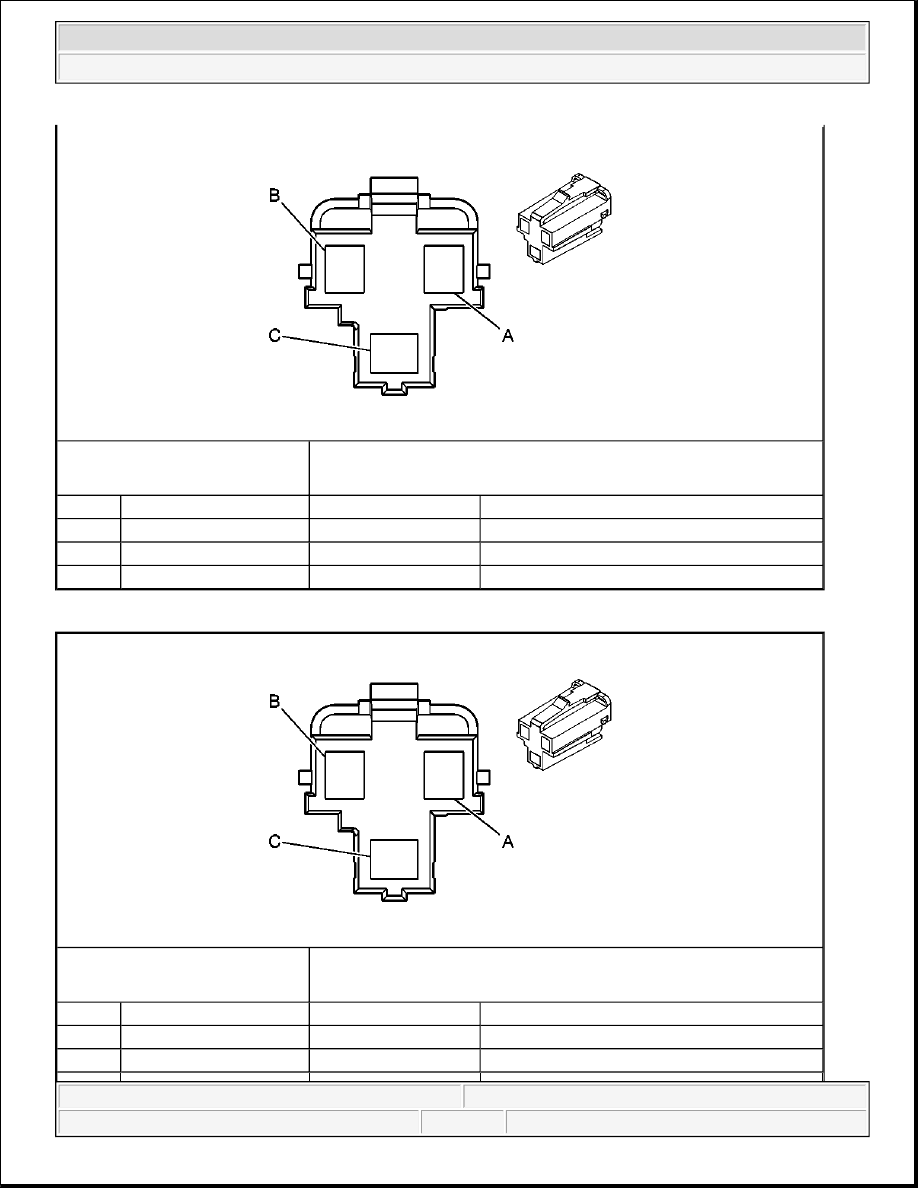

Accessory Power Outlet Terminal Identification - Left

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BLK)

Pin

Wire Color

Circuit No.

Function

A

OG

1040

Battery Positive Voltage

B

-

-

Not Used

C

BK

1050

Ground

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BLK)

Pin

Wire Color

Circuit No.

Function

A

OG

3040

Battery Positive Voltage

B

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



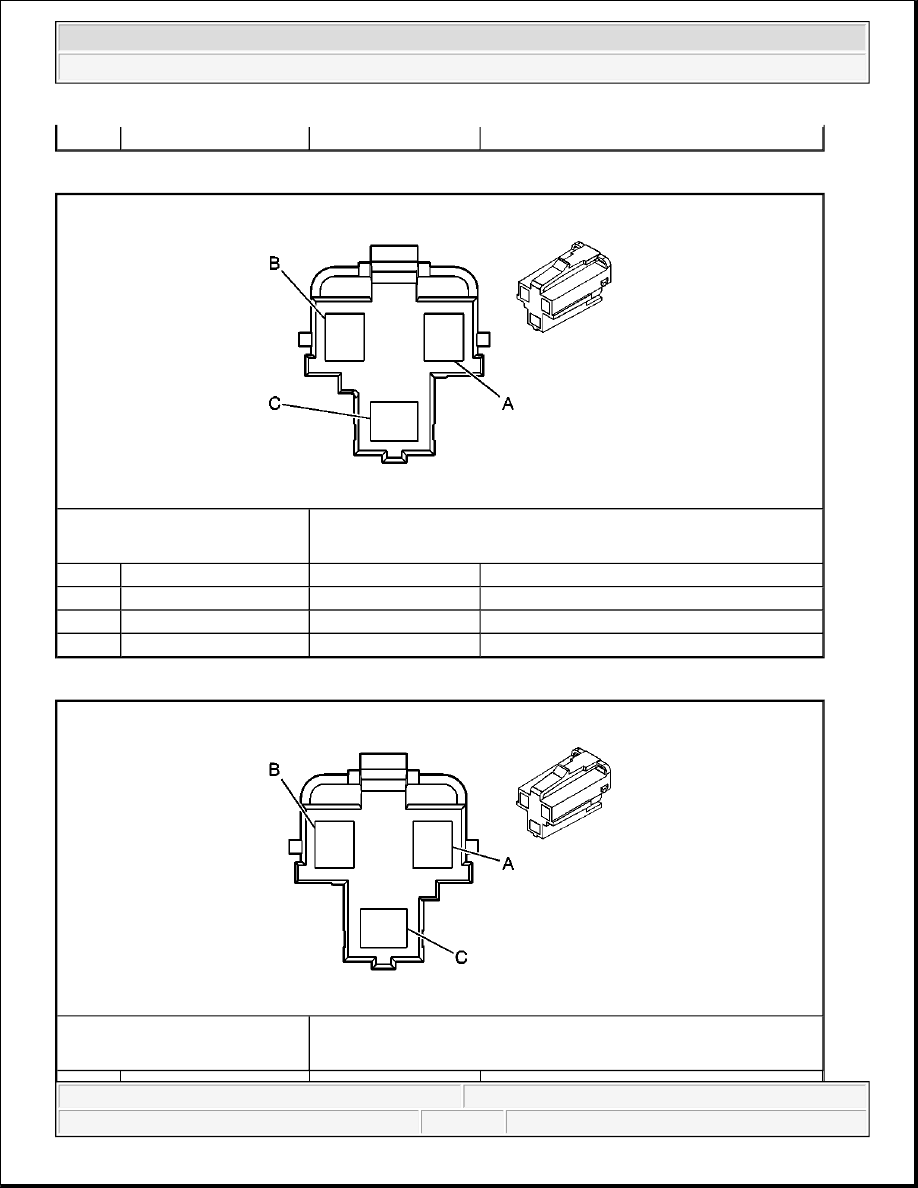

Accessory Power Outlet Terminal Identification - Rear

Cigar Lighter Terminal Identification

C

BK

1050

Ground

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BLK)

Pin

Wire Color

Circuit No.

Function

A

OG

3040

Battery Positive Voltage

B

-

-

Not Used

C

BK

1450

Ground

Connector Part Information

z

12176445

z

3-Way F Metri-Pack 280 Series Flexlock (NAT)
