Hummer H2. Manual - part 201

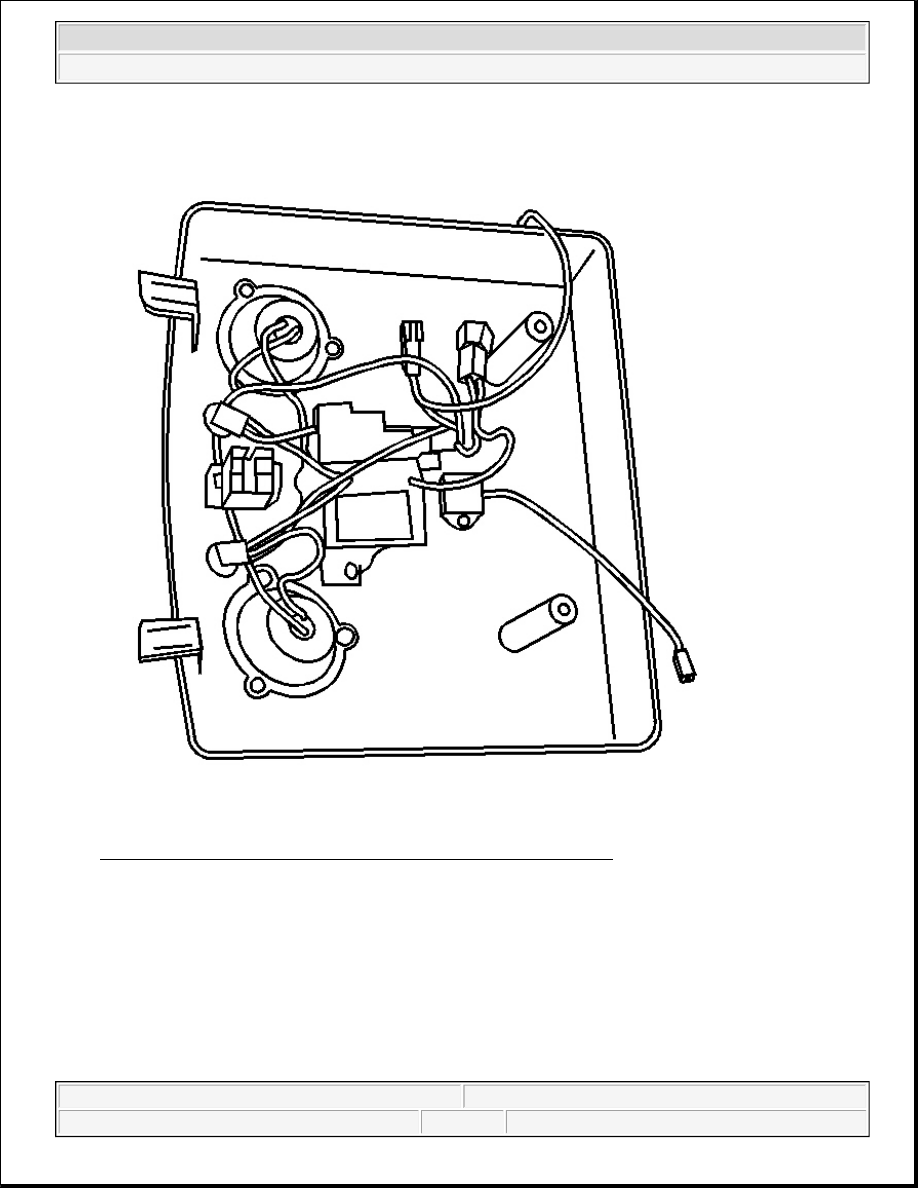

Fig. 6: Button & Module Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the button and module assembly to the overhead console (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2

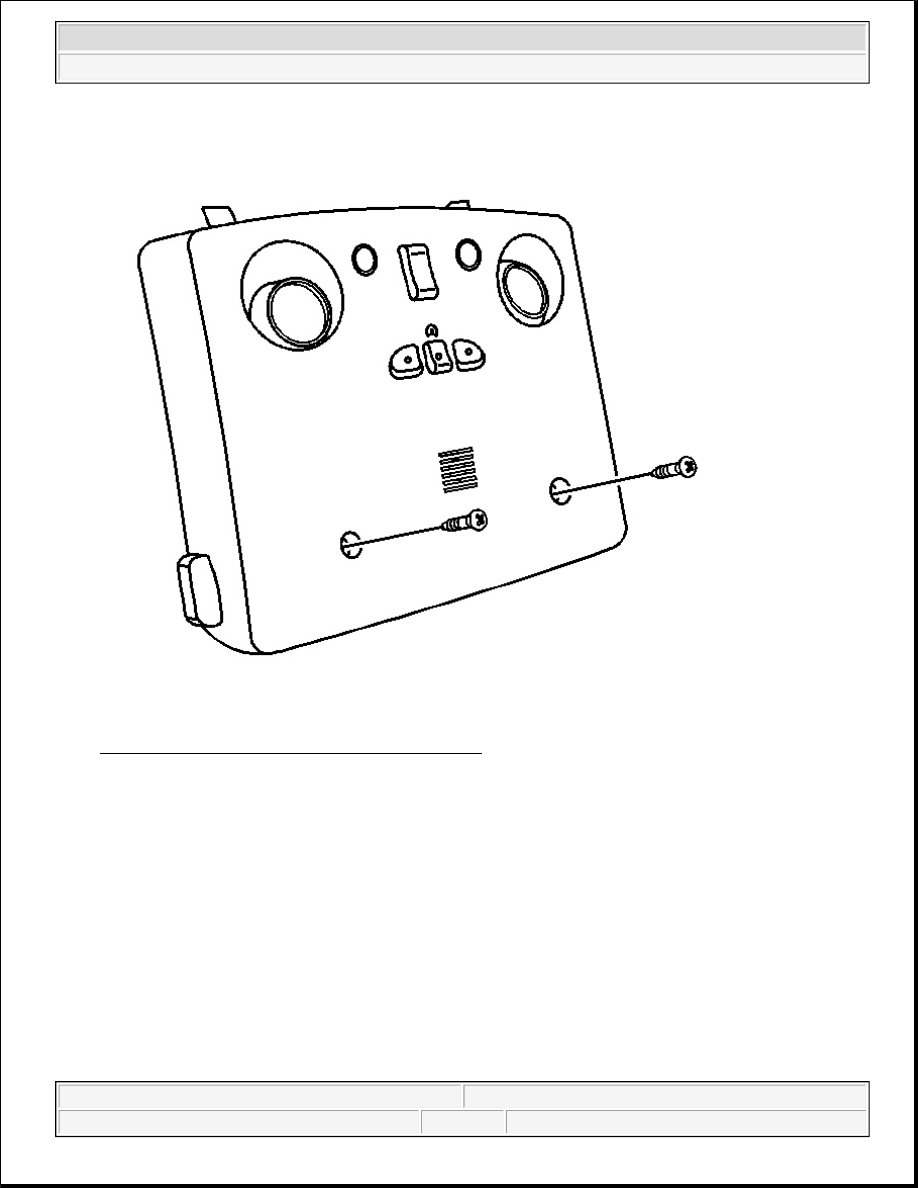

Fig. 7: Garage Door Module Screws
Courtesy of GENERAL MOTORS CORP.

2. Align the module and screws into the overhead console.

Tighten: Tighten the screws to 8 N.m (7 lb in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2

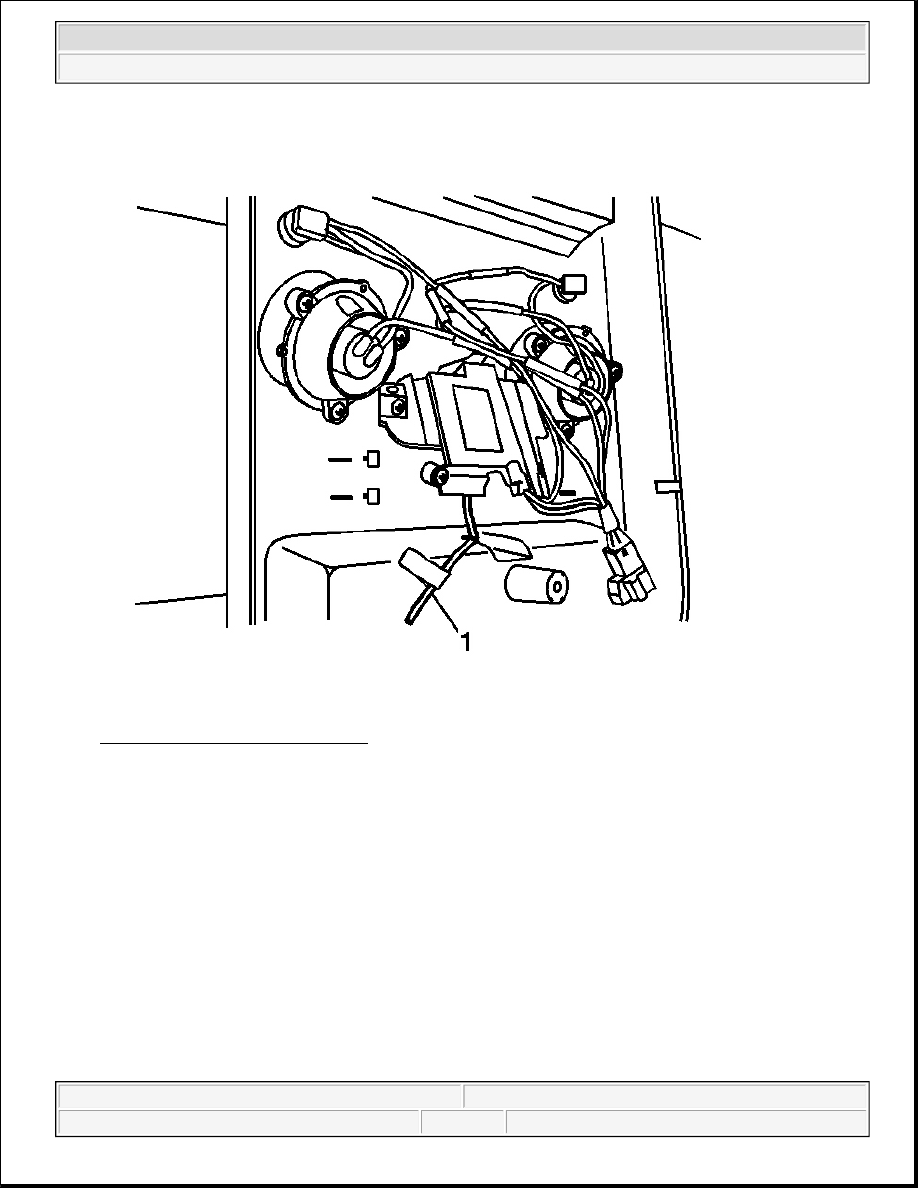

Fig. 8: Connecting Individual Connectors To Garage Door Module
Courtesy of GENERAL MOTORS CORP.

3. Connect the individual connectors to the garage door module.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2

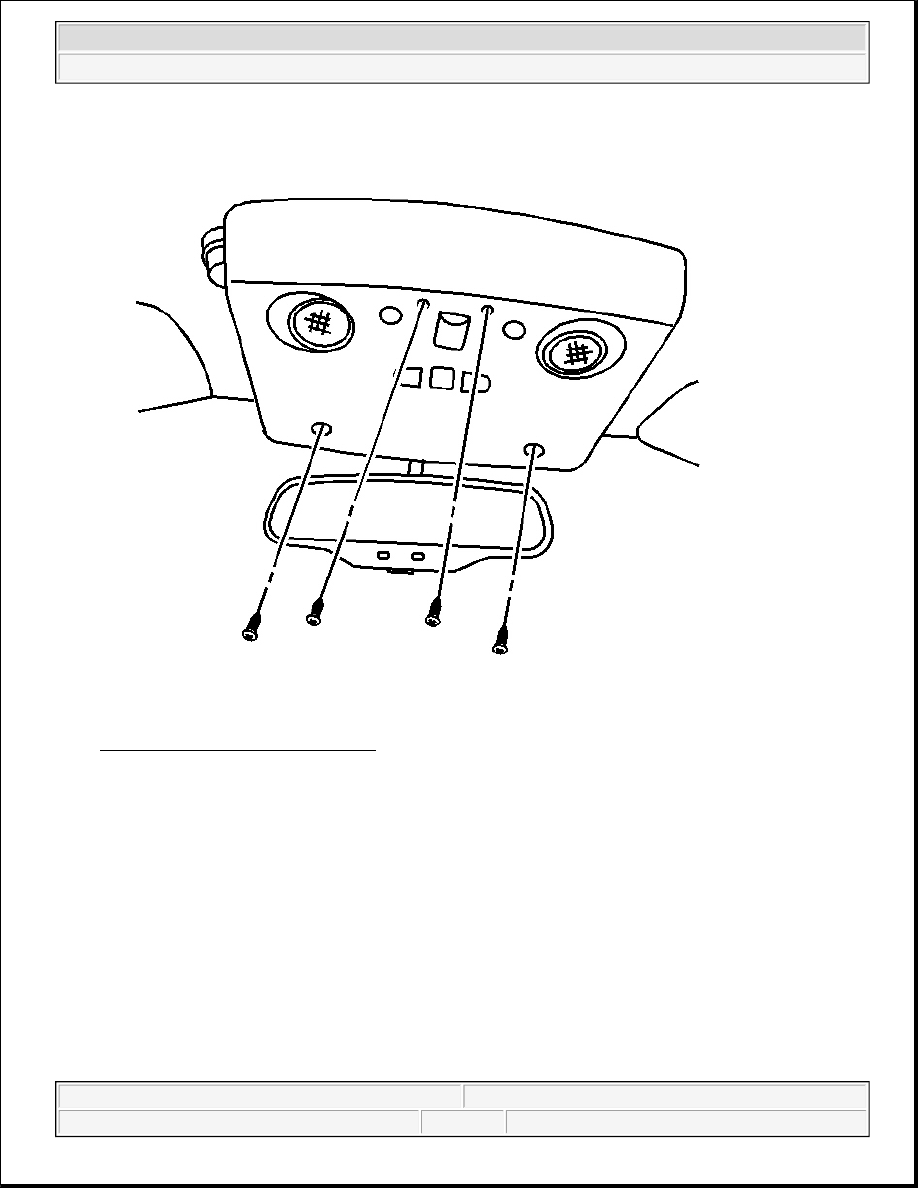

Fig. 9: Fastening Overhead Console To Headliner
Courtesy of GENERAL MOTORS CORP.

4. Fasten the overhead console to the headliner.

GARAGE DOOR OPENER PROGRAMMING - UNIVERSAL

Garage Door Opener Programming

The GDO is programmed by using the customer's hand-held transmitter(s).

IMPORTANT: Do not use the garage door opener (GDO) with any garage door opener that

does not have the stop and reverse safety feature. This includes any garage
door opener model manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage door you are
programming.
