2004 ACCESSORIES & EQUIPMENT

Garage Door Opener - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

GARAGE DOOR OPENER SCHEMATICS

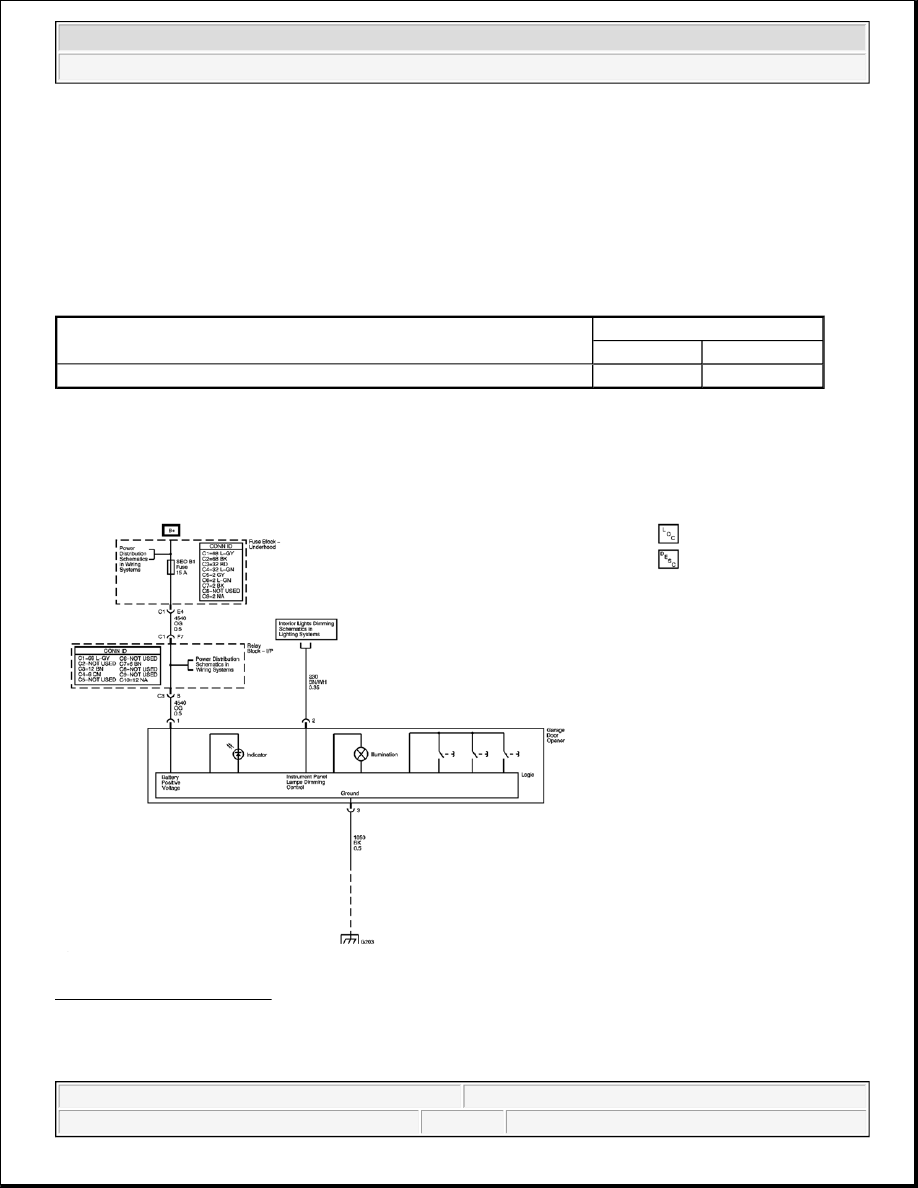

Fig. 1: Garage Door Opener
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

Application

Specification

Metric

English

Transmitter Module Retaining Screws

2 N.m

18 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



GARAGE DOOR OPENER COMPONENT VIEWS

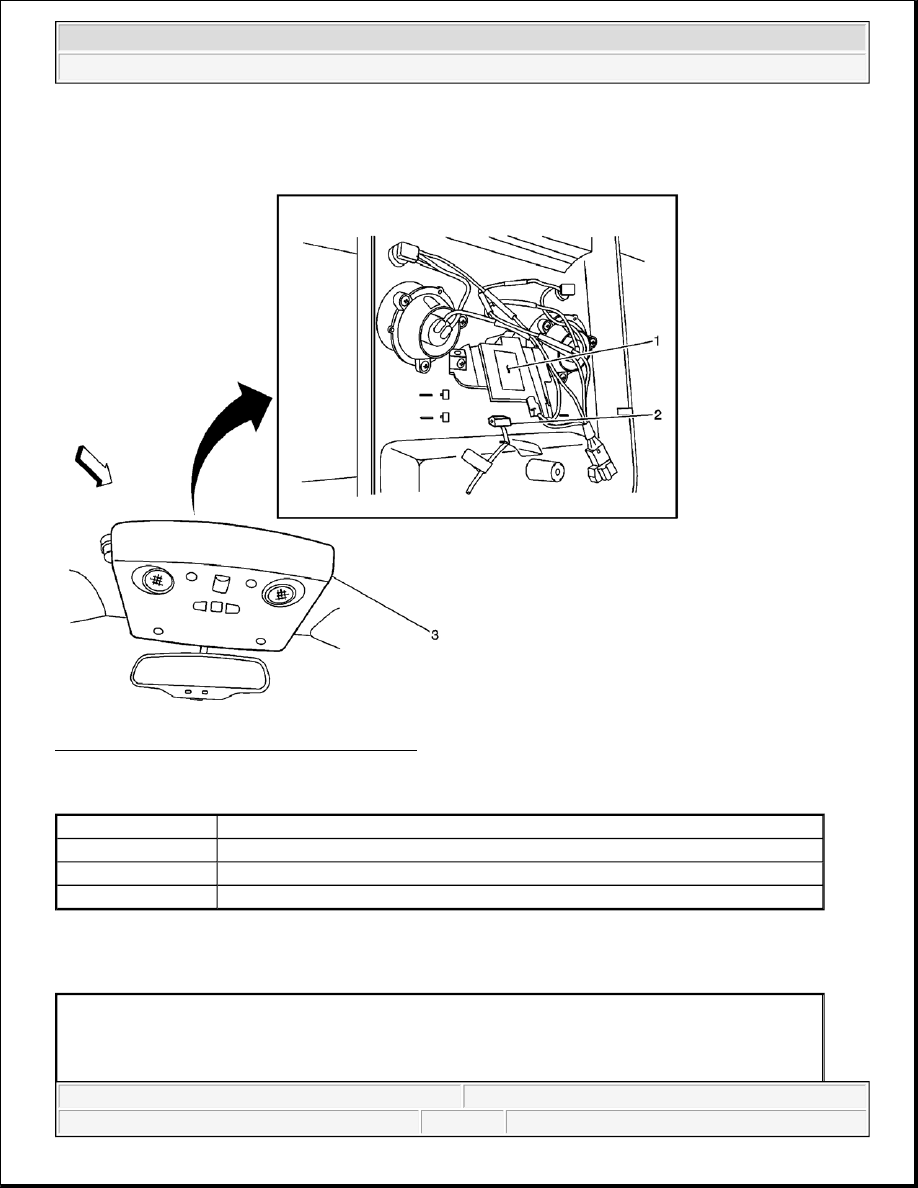

Fig. 2: Garage Door Opener Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

GARAGE DOOR OPENER CONNECTOR END VIEWS

Garage Door Opener - Terminal Identification

Callout

Component Name

1

Garage Door Opener

2

Noise Cancellation Microphone

3

Overhead Console



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - GARAGE DOOR OPENER

Begin the system diagnosis by reviewing the system Description and Operation. Reviewing the Description and
Operation information will help you determine the correct symptom diagnostic procedure to use when a
malfunction exists. Reviewing the Description and Operation information will also help you determine if the
condition described by the customer is normal operation. Refer to Symptoms - Garage Door Opener in order
to identify the correct procedure for diagnosing the system and where the procedure is located.

SYMPTOMS - GARAGE DOOR OPENER

Visual/Physical Inspection

z

Inspect for aftermarket devices which could affect the operation of the garage door opener. Refer to
Checking Aftermarket Accessories in Wiring Systems.

z

Inspect the easily accessible or visible system components for obvious damage or conditions which could
cause the symptom.

Intermittent

Faulty electrical connections or wiring may be the cause of intermittent conditions. Refer to Testing for

Connector Part Information

z

12162335

z

3-Way F Molex Edge Card (NA)

Pin

Wire Color

Circuit No.

Function

1

OG

4540

Battery Positive Voltage

2

BN/WH

230

Instrument Panel Lamps Dimming Control

3

BK

1050

Ground

IMPORTANT: Review the system description and operation in order to familiarize yourself

with the system functions. Refer to Garage Door Opener Description and
Operation .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



Intermittent Conditions and Poor Connections in Wiring Systems.

Symptom List

Refer to Garage Door Opener Inoperative in order to diagnose the symptom.

GARAGE DOOR OPENER INOPERATIVE

Garage Door Opener Inoperative

Step

Action

Yes

No

1

Did you review the Garage Door Opener Description and
Operation and perform the necessary inspections?

Go to

Step 2

Go to Garage Door

Opener Description and

Operation

2

Operate each button on the garage door opener one at a
time.Do all 3 buttons illuminate the LED?

IMPORTANT:

If the vehicle is equipped with a valet switch, verify that the
switch is in the OFF position.

Go to

Step 4

Go to Step 3

3

Do any buttons illuminate the LED?

Go to

Step 9

Go to Step 5

4

1. Place the J 41540 HomeLink Tester, adjacent to the

GDO as indicated. See Special Tools and Equipment .

2. Operate each button on the garage door opener.

Does the J 41540 verify each button when pressed? See
Special Tools and Equipment .

Go to

Step 9

Go to Step 8

5

Test the Switched Ignition Voltage circuit for an open, high
resistance or a short to ground. Refer to Circuit Testing and
Wiring Repairs in Wiring Systems.
Did you find and correct the condition?

Go to

Step 11

Go to Step 6

6

Test the Inadvertent Power Supply circuit for an open, high
resistance or short to ground. Refer to Circuit Testing and
Wiring Repairs in Wiring Systems.
Did you find and correct the condition?

Go to

Step 11

Go to Step 7

7

Test the ground circuit for an open or high resistance. Refer to
Circuit Testing and Wiring Repairs in Wiring Systems.
Did you find and correct the condition?

Go to

Step 11

Go to Step 8

8

Inspect for poor connection at the harness connector. Refer to
Testing for Intermittent Conditions and Poor Connections
and Connector Repairs in Wiring Systems.
Did you find and correct the condition?

Go to

Step 11

Go to Step 9

9

Replace the garage door opener.
Did you complete the replacement?

Go to

Step 10

or

Program the garage door opener. Refer to Garage Door
