REPAIR INSTRUCTIONS

GARAGE DOOR OPENER REPLACEMENT

Removal Procedure

10

Opener Programming - Universal .
Did you complete the procedure?

Go to

Step 11

or

11

Operate the system in order to verify the repair.
Does the garage door opener operate properly for the
customer?

System

OK

Advise the customer to

call HomeLink(tm) at 1-

800-355-3515



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



Fig. 3: Removing Overhead Console To Expose Garage Door Opener Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the overhead console to expose the garage door opener panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



Fig. 4: Garage Door Module Screws
Courtesy of GENERAL MOTORS CORP.

2. Remove the screws from the garage door module.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



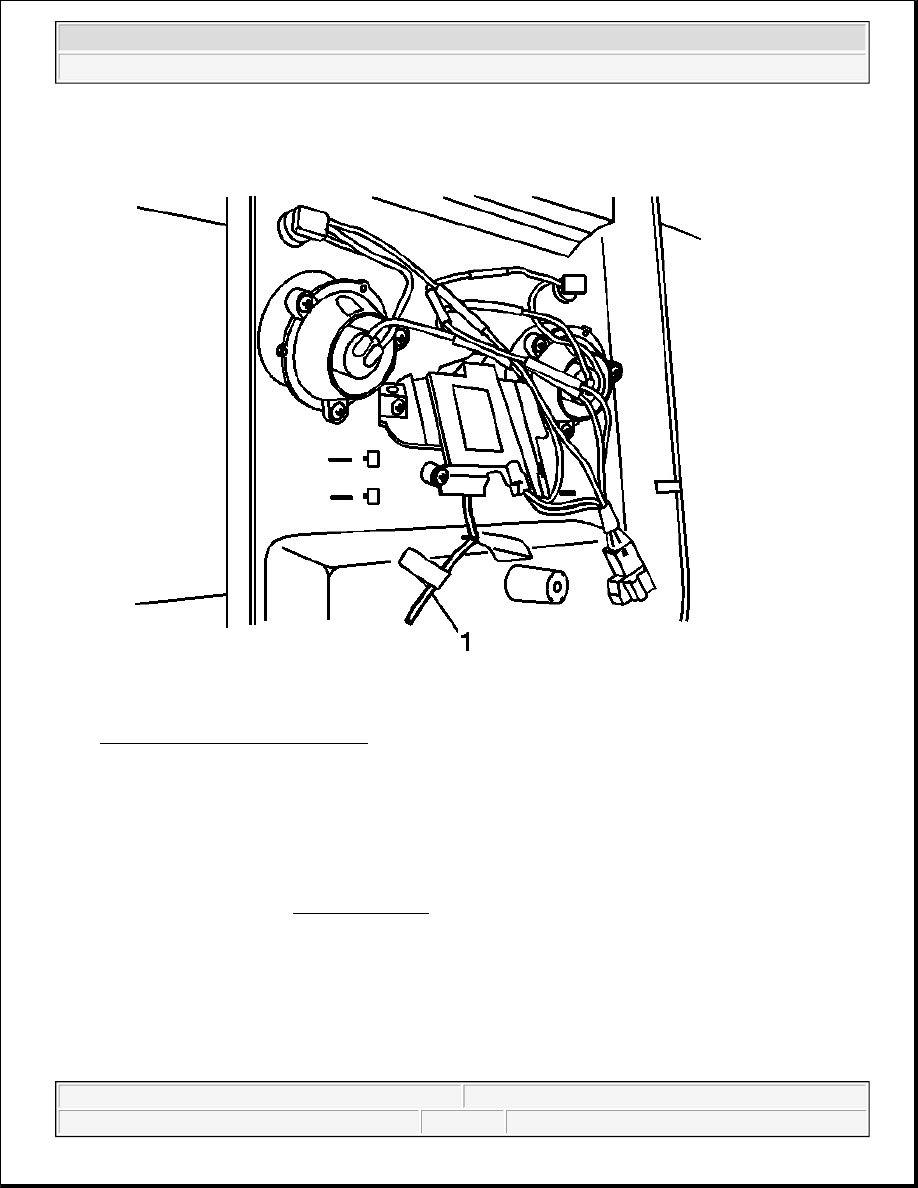

Fig. 5: Button & Module Assembly
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the electrical connector from the garage door opener.

4. Remove the button and module assembly from the over head console.

Installation Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2
