CIGAR LIGHTER HOUSING OR 12 VOLT ACCESSORY POWER RECEPTACLE REPLACEMENT

Tools Required

J 42059 Cigar Lighter Socket Remover. See Special Tools and Equipment .

Removal Procedure

1. Remove the power port/lighter socket fuse.

Pin

Wire Color

Circuit No.

Function

A

OG

640

Battery Positive Voltage

B

-

-

Not Used

C

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2

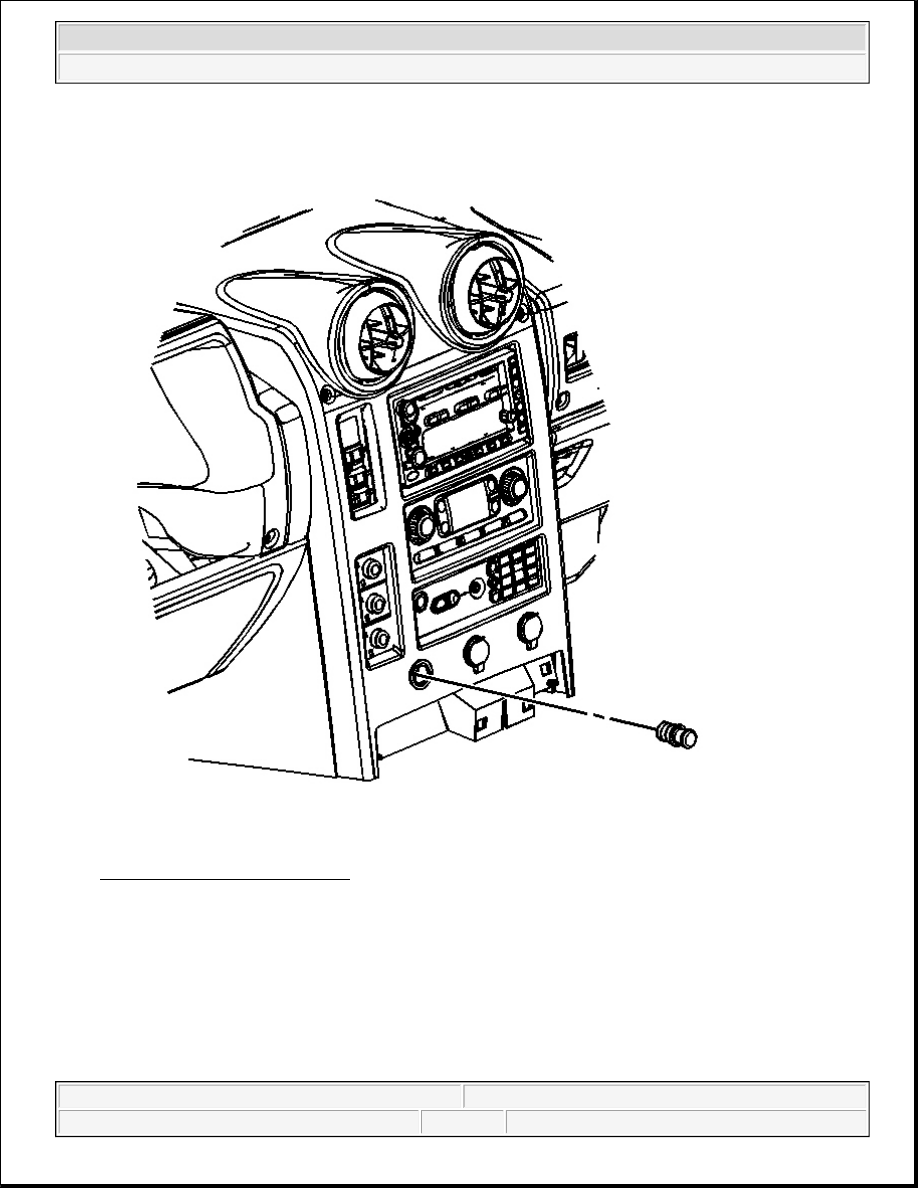

Fig. 4: Identifying Cigar Lighter
Courtesy of GENERAL MOTORS CORP.

2. Lift up the front cover of the power receptacle or remove the cigar lighter.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2

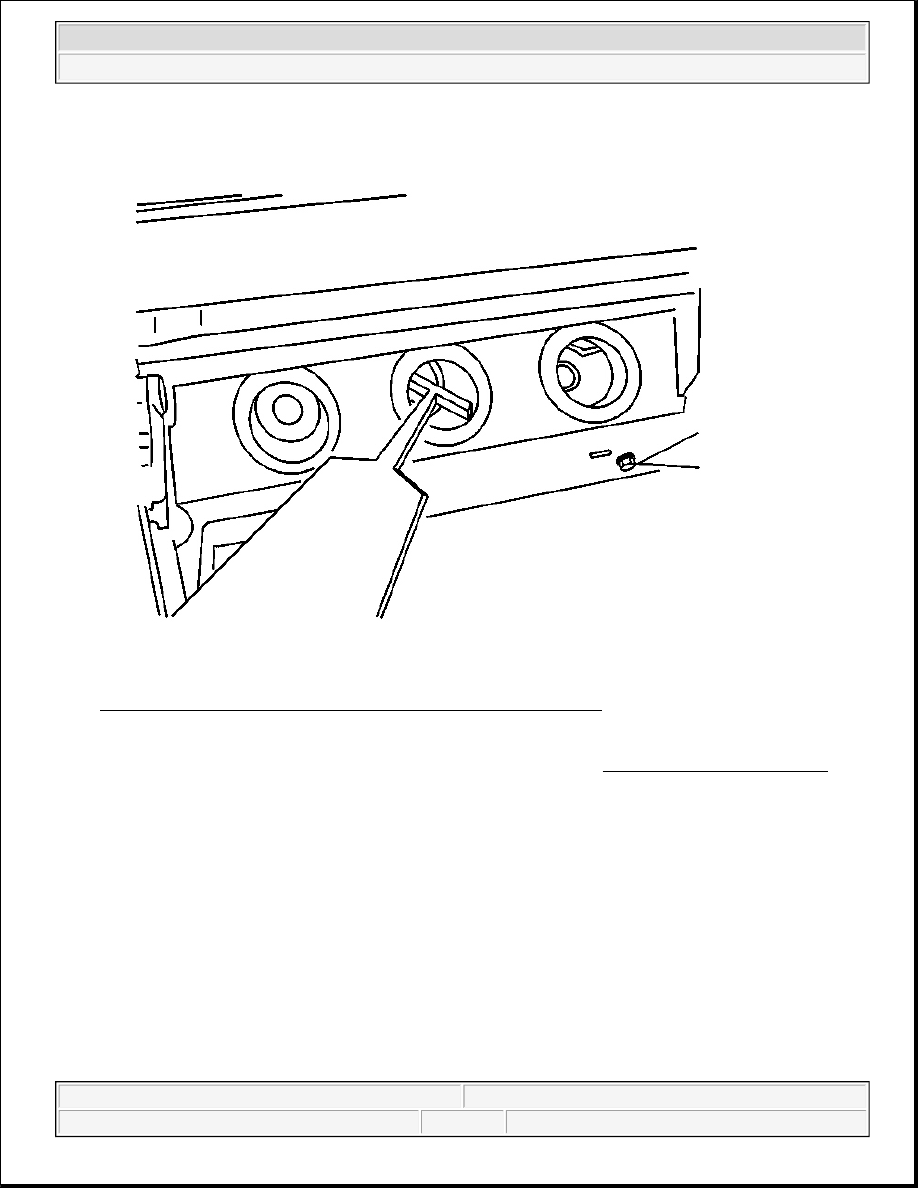

Fig. 5: Inserting J 42059 Into Slots On Sides Of Receptacle Sleeve
Courtesy of GENERAL MOTORS CORP.

3. Insert J 42059 into the slots on the sides of the receptacle sleeve. See Special Tools and Equipment .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2

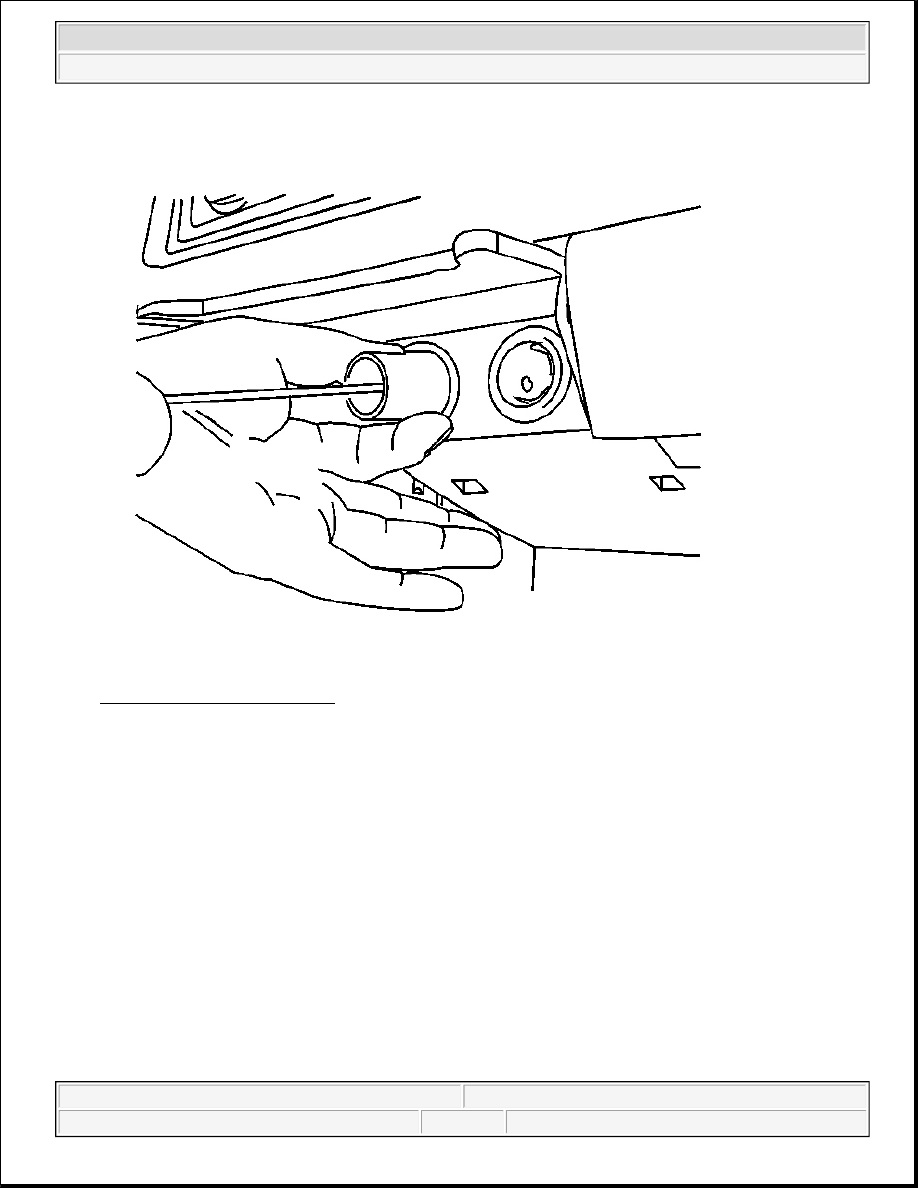

Fig. 6: Receptacle & Assembly
Courtesy of GENERAL MOTORS CORP.

4. Hold the plastic ring in place. Pull the receptacle out of the assembly in order to remove the outlet.
