Hummer H2. Manual - part 206

2004 ACCESSORIES & EQUIPMENT

Retained Accessory Power - Hummer H2

SCHEMATIC AND ROUTING DIAGRAMS

RETAINED ACCESSORY POWER (RAP) SCHEMATICS

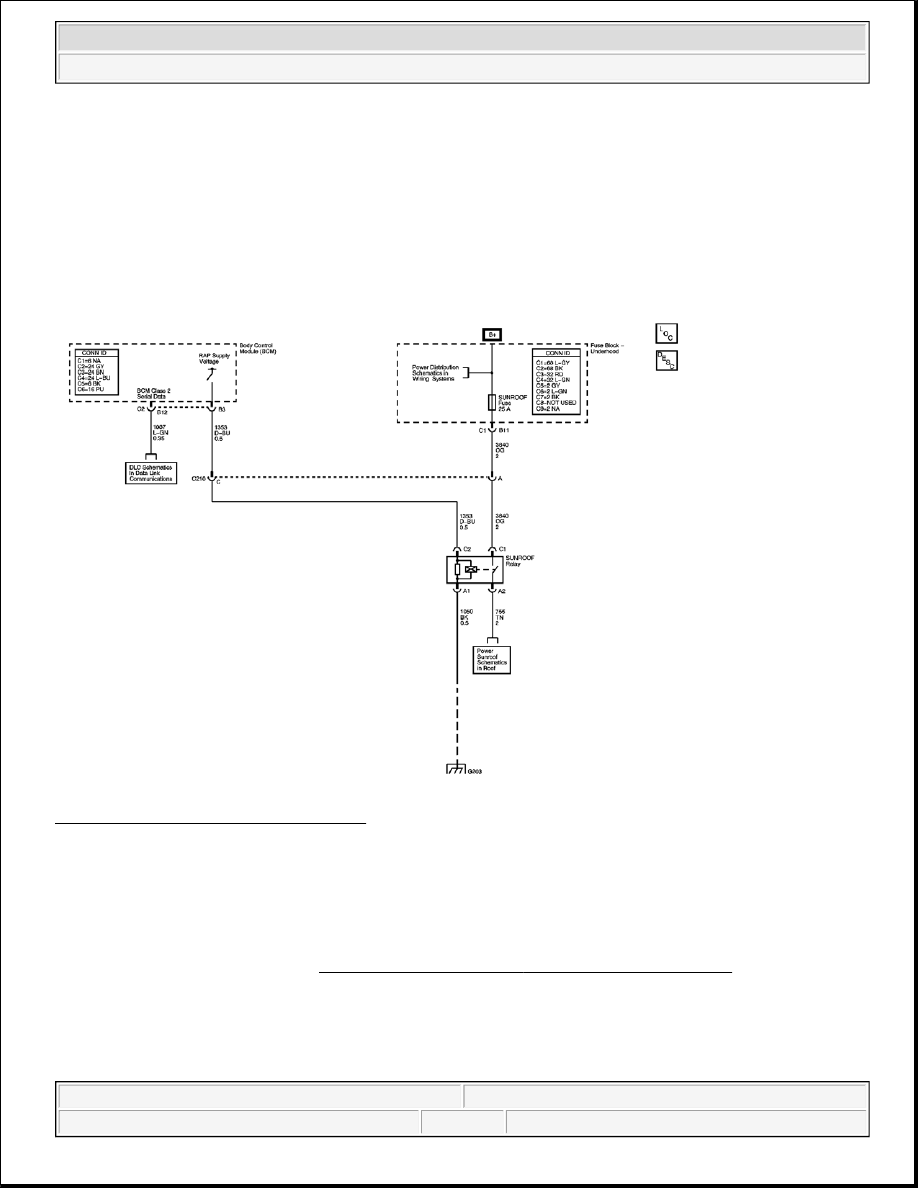

Fig. 1: Retained Accessory Power (RAP)
Courtesy of GENERAL MOTORS CORP.

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - RETAINED ACCESSORY POWER

Begin the system diagnosis with the Diagnostic System Check - Retained Accessory Power . The diagnostic
system check will provide the following information:

z

The identification of the control modules which command the system

z

The ability of the control modules to communicate through the serial data circuit



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Retained Accessory Power - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Retained Accessory Power - Hummer H2



z

The identification of any stored diagnostic trouble codes DTCs and their status

The use of the Diagnostic System Check will identify the correct procedure for diagnosing the system and
where the procedure is located.

DIAGNOSTIC SYSTEM CHECK - RETAINED ACCESSORY POWER

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2: Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a
total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular
condition.

3: This step tests for valid system power moding in all ignition switch positions.

5: The presence of DTCs which begin with "U" indicate some other module is not communicating. The
specified procedure will compile all the available information before tests are performed.

Diagnostic System Check - Retained Accessory Power

Step

Action

Yes

No

Schematic Reference:Data Link Connector (DLC) Schematics in Data Link Communications

1

Install a scan tool.
Does the scan tool power up?

Go to Step 2

Go to Scan Tool Does Not

Power Up in Data Link

Communications

2

1. Turn ON the ignition, with the

engine OFF.

2. Attempt to establish communication

with the body control module.

Does the scan tool communicate with the
body control module?

Go to Step 3

Go to Scan Tool Does Not

Communicate with Class 2

Device in Data Link

Communications

3

1. Access the class 2 power mode

IMPORTANT:

Open the driver door and leave it open
during this test. This will disable the RAP
power mode and eliminate this power
mode from the power mode parameter
list.

IMPORTANT:

The engine may start during the
following step. Turn OFF the engine as
soon as you have observed the Crank
power mode.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Retained Accessory Power - Hummer H2



SCAN TOOL DATA LIST

BCM Scan Tool Data List

DDM Scan Tool Data List

parameter in the diagnostic circuit
check menu on the scan tool.

2. Rotate the ignition switch through all

positions while observing the class 2
power mode parameter.

Does the class 2 power mode parameter
reading match the ignition switch position
for all switch positions?

Go to Step 4

Go to Power Mode

Mismatch in Body Control

System

4

Select the body control module display
DTCs function on the scan tool.
Does the scan tool display any DTCs?

Go to Step 5

Go to Step 7

5

Does the scan tool display any DTCs which
begin with a "U"?

Go to Diagnostic

Trouble Code (DTC)

List in Data Link

Communications

Go to Step 6

6

Does the scan tool display DTC B1000 or
B1440?

Go to Diagnostic

Trouble Code (DTC)

List in Body Control

System

Go to Step 7

7

Test the Courtesy Lamps for proper
operation after closing and opening each
door. Refer to Interior Lighting Systems
Description and Operation in Lighting
Systems.
Do the Courtesy Lamps operate properly?

Go to Symptoms -

Retained Accessory

Power

Go to Symptoms -

Lighting Systems in

Lighting Systems

Scan Tool Parameter

Data List

Units Displayed

Typical Data Value

Operating Conditions: Ignition ON, Engine OFF

Ignition 0

Inputs

On/Off

On

Ignition 1

Inputs

On/Off

On

Ignition Accessory

Inputs

Active/Inactive

Active

Left Rear/Rear Cargo Door Ajar Switch

Inputs

On/Off

Off

RAP Relay

Outputs

On/Off

On

Right Rear Door Ajar Sw.

Inputs

On/Off

Off

Scan Tool Parameter

Data List

Units Displayed

Typical Data Value

Operating Conditions: Ignition ON, Engine OFF

Door Ajar Switch

Inputs

On/Off

Off



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Retained Accessory Power - Hummer H2



FPDM Scan Tool Data List

SCAN TOOL DATA DEFINITIONS

Door Ajar Switch

Input from the respective door indicating door status.

Ignition 0

Input to the control module from the ignition switch indicating the Ignition 0 position. Switch closed in
ignition switch positions UNLOCK, ACC, ON, and START.

Ignition 1

Input to the control module from the ignition switch indicating the Ignition 1 position. Switch closed in
ignition switch positions ON and START.

Ignition Accessory

Input to the control module from the ignition switch indicating the Ignition Accessory position. Switch
closed in ignition switch positions ACC and ON.

Left Rear/Rear Cargo Door Ajar Switch

Input from the left rear door/rear cargo showing the state of it.

RAP Relay

Output indicates the RAP Relay state that the control module has commanded.

Right Rear Door Ajar Sw.

Input from the right rear door indicating door status.

SYMPTOMS - RETAINED ACCESSORY POWER

Visual/Physical Inspection

Scan Tool Parameter

Data List

Units Displayed

Typical Data Value

Operating Conditions: Ignition ON, Engine OFF

Door Ajar Switch

Inputs

On/Off

Off

IMPORTANT: Review the system operation in order to familiarize yourself with the system

functions. Refer to Retained Accessory Power (RAP) Description and
Operation .
