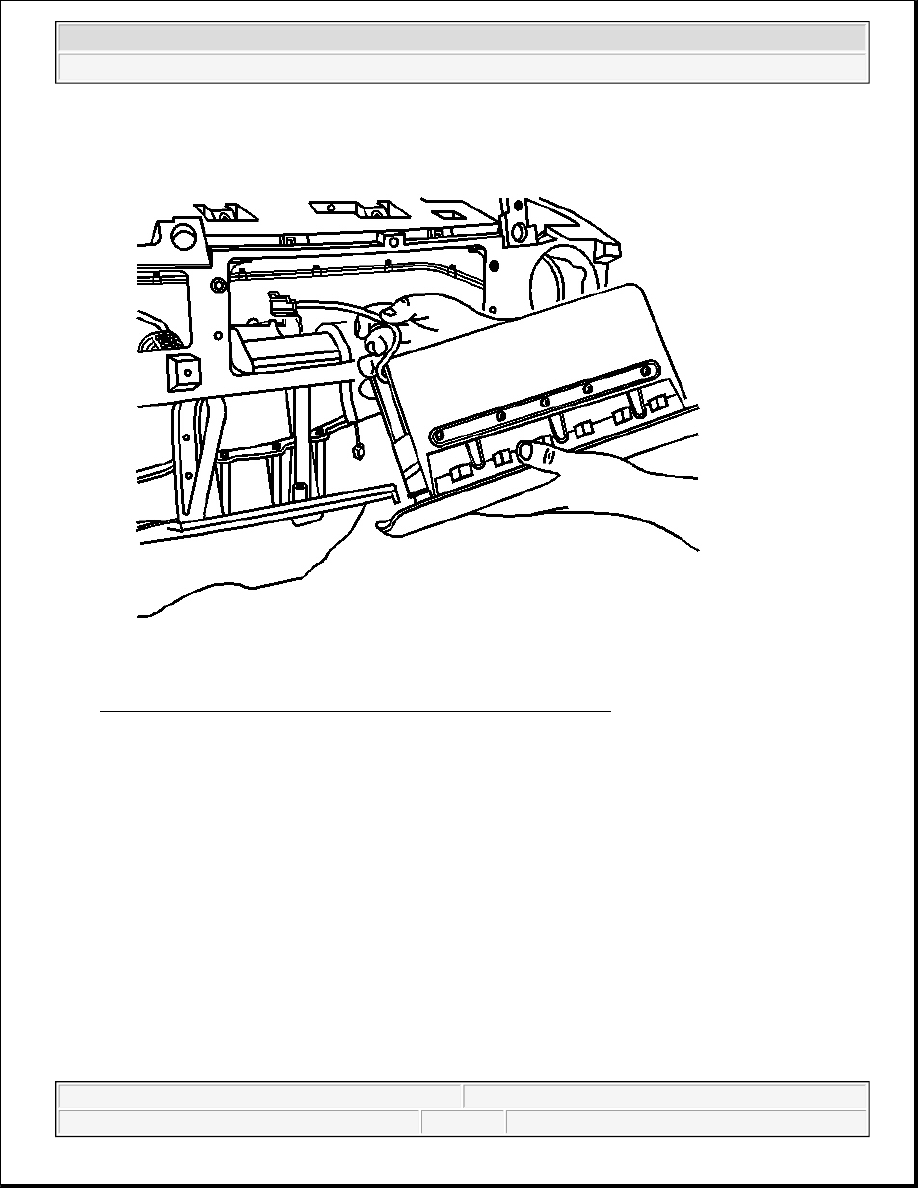

Fig. 55: Removing Inflatable Restraint I/P Module Retaining Bolts
Courtesy of GENERAL MOTORS CORP.

4. Remove the inflatable restraint I/P module retaining bolts.

5. Ensure that you keep a firm hold on the I/P module.

Installation Procedure

1. Install the inflatable restraint I/P module (1) to the mounting bracket through the front of the instrument

panel.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



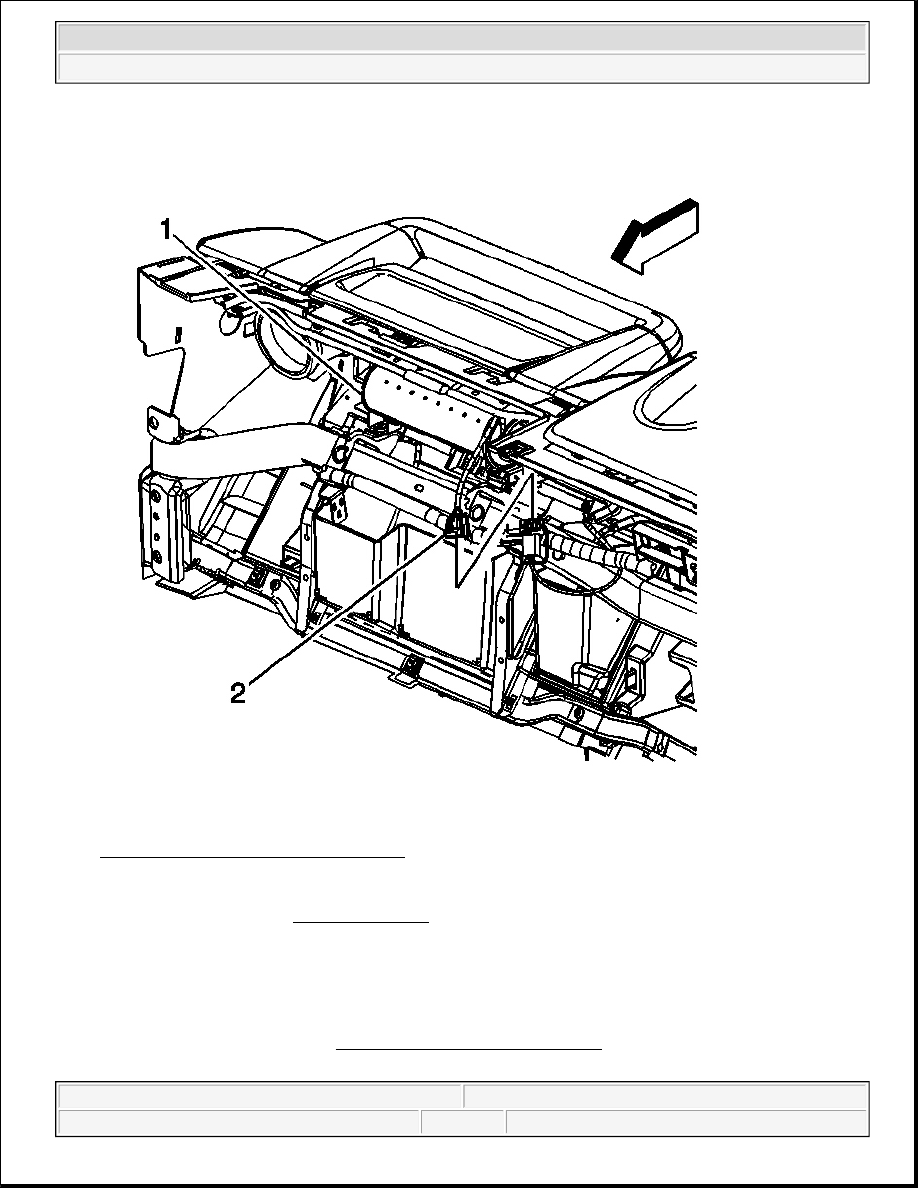

Fig. 56: Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (2) to the inflatable restraint I/P module.

Tighten: Tighten the fasteners to 10 N.m (89 lb in).

3. Enable the SIR system. Refer to SIR Disabling and Enabling Zones .

4. Install the yellow connector to the I/P.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



5. Install the trim panel to the substraight. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Right in Instrument Panel, Gauges and Console.

INFLATABLE RESTRAINT INSTRUMENT PANEL (I/P) MODULE DISABLE SWITCH
REPLACEMENT

Removal Procedure

1. Remove the instrument panel trim bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P)

Cluster in Instrument Panel, Gauges and Console.

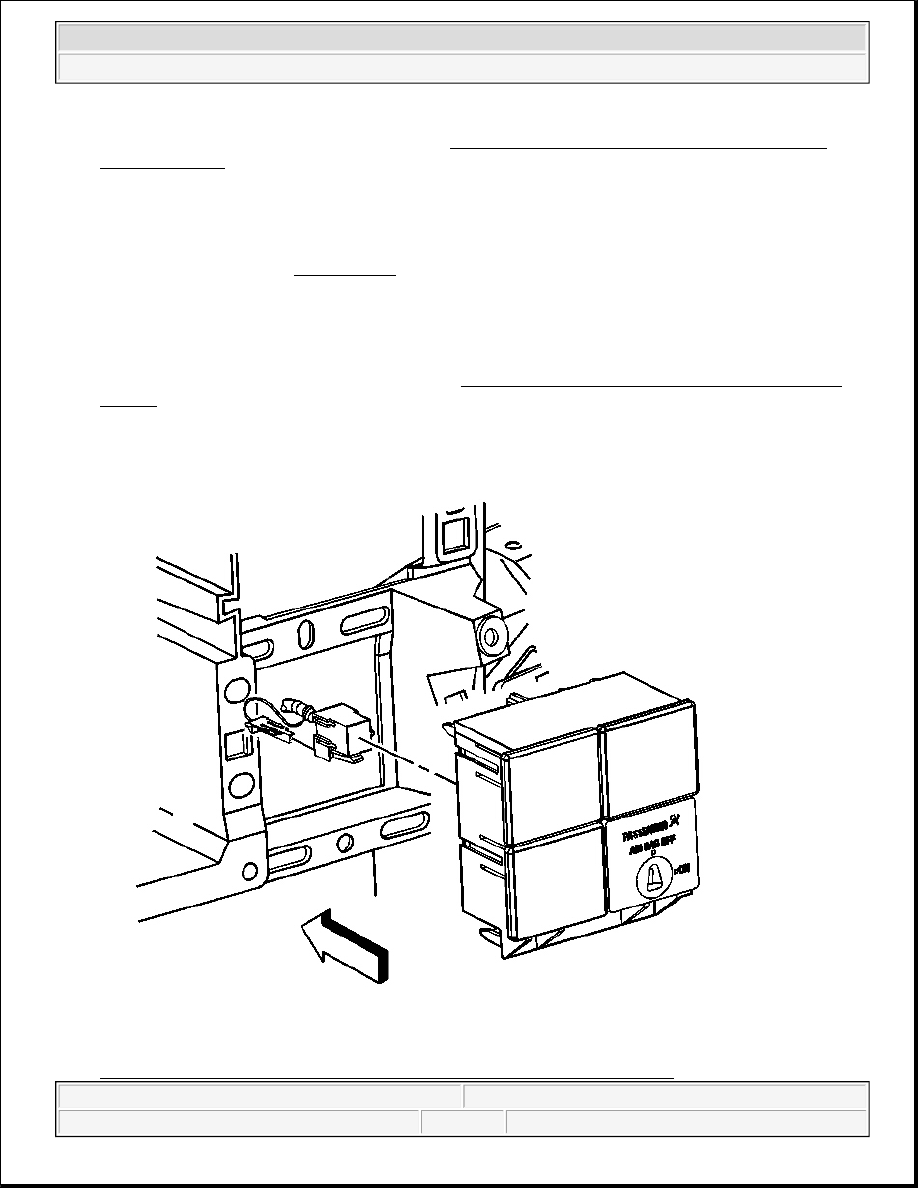

Fig. 57: Inflatable Restraint Instrument Panel (I/P) Module Disable Switch

CAUTION: Refer to SIR Caution in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Remove the I/P module switch from the lower right opening of the switch plate panel.

3. Disconnect the I/P module switch electrical connector.

Installation Procedure

1. Connect the I/P module switch electrical connector.

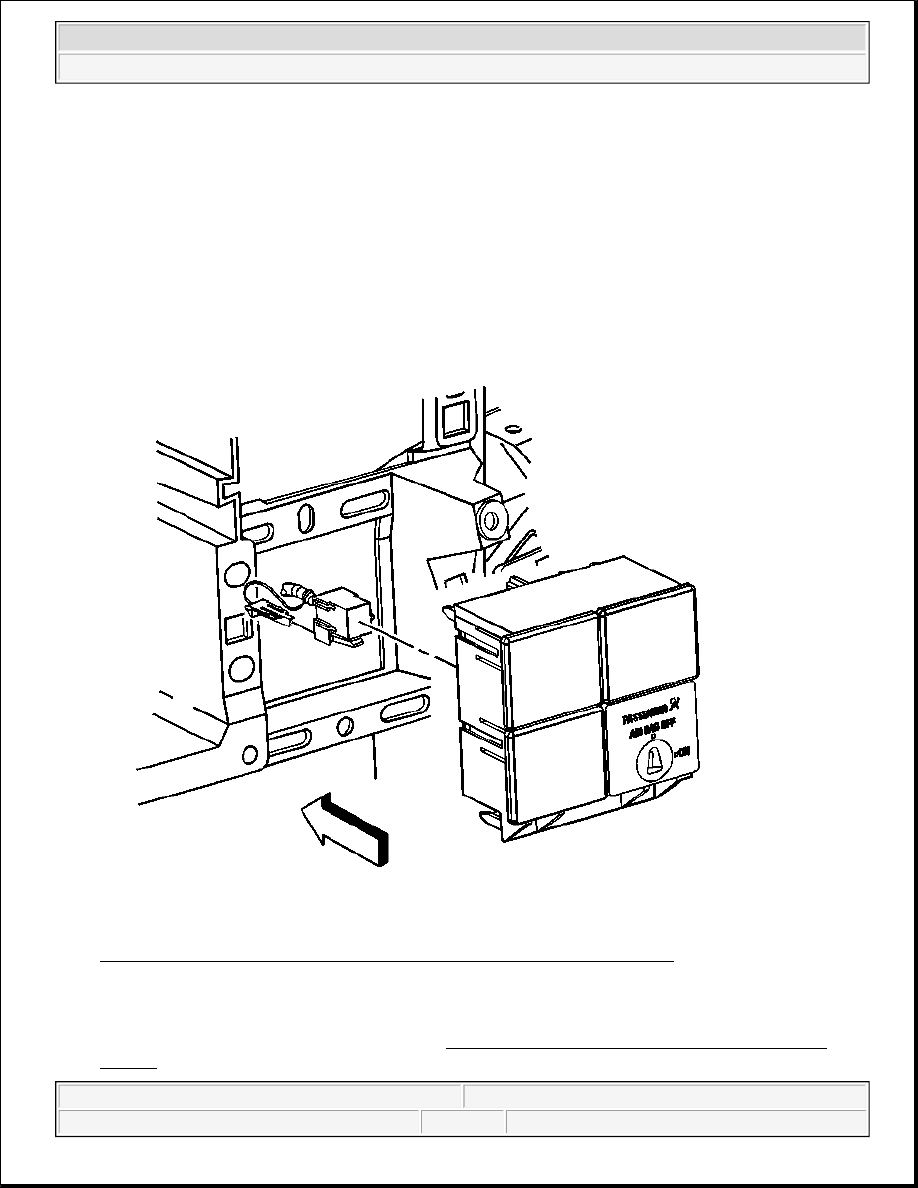

Fig. 58: Inflatable Restraint Instrument Panel (I/P) Module Disable Switch
Courtesy of GENERAL MOTORS CORP.

2. Install the I/P module switch into the lower right opening of the switch plate panel.

3. Install the instrument panel trim bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P)

Cluster in Instrument Panel, Gauges and Console.
