Hummer H2. Manual - part 2045

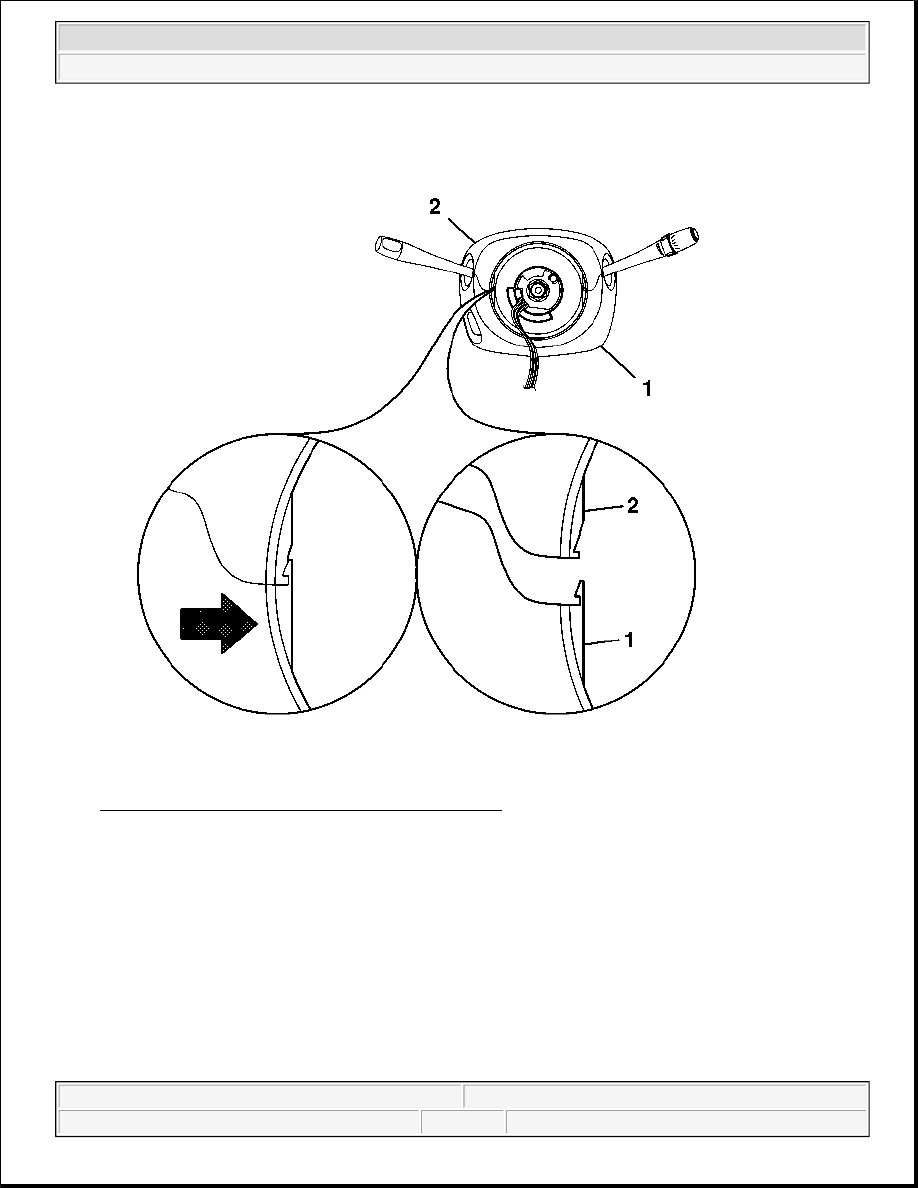

Fig. 51: Engaging Upper & Lower Trim Cover Tabs
Courtesy of GENERAL MOTORS CORP.

9. Verify that the tabs on the lower trim cover (1) engage with the tabs on the upper trim cover (2). Snap the

tabs together.

Tighten: Tighten the screws to 1.5 N.m (13 lb in).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



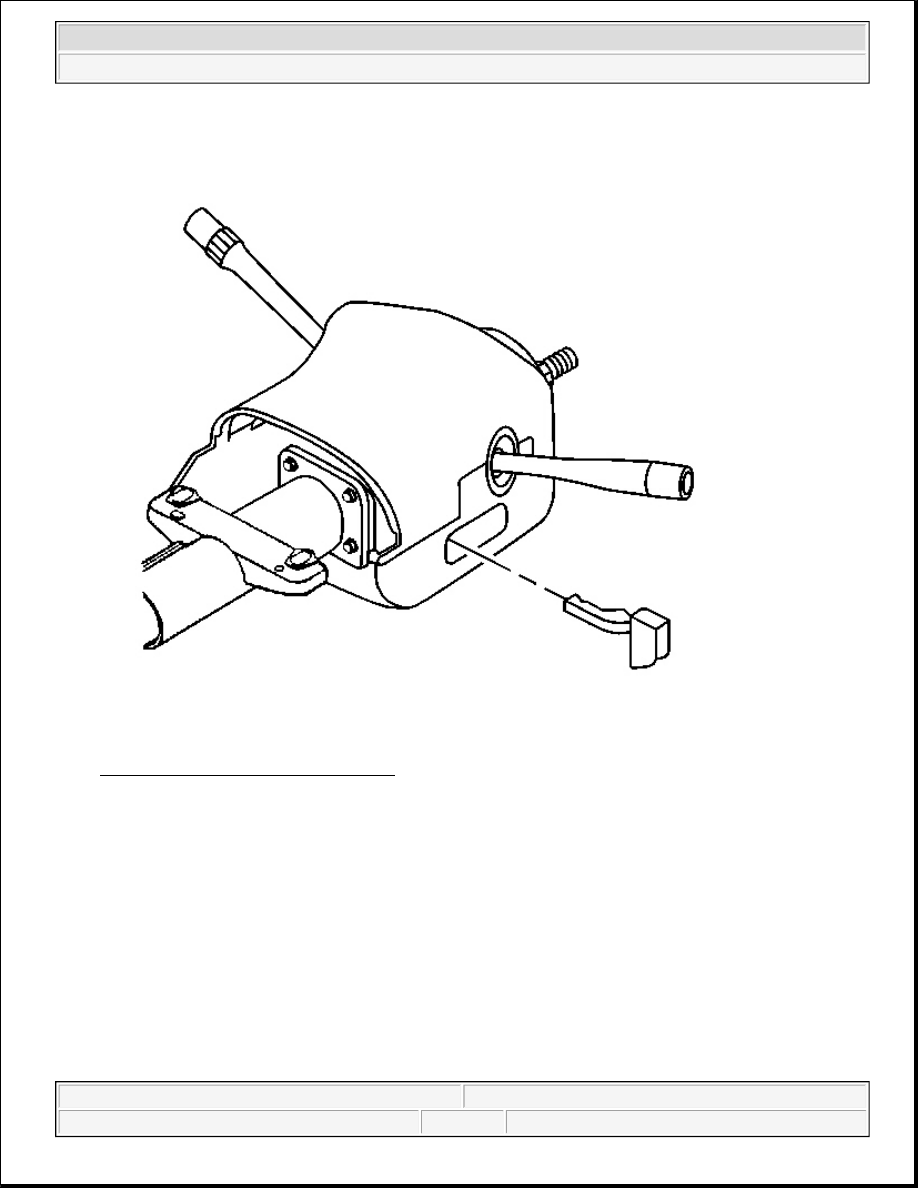

Fig. 52: Tilt Lever & Steering Column
Courtesy of GENERAL MOTORS CORP.

10. On vehicles with a tilt column, align the tilt lever into the steering column.

11. Slide the tilt lever handle into the steering column until the handle locks into position.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



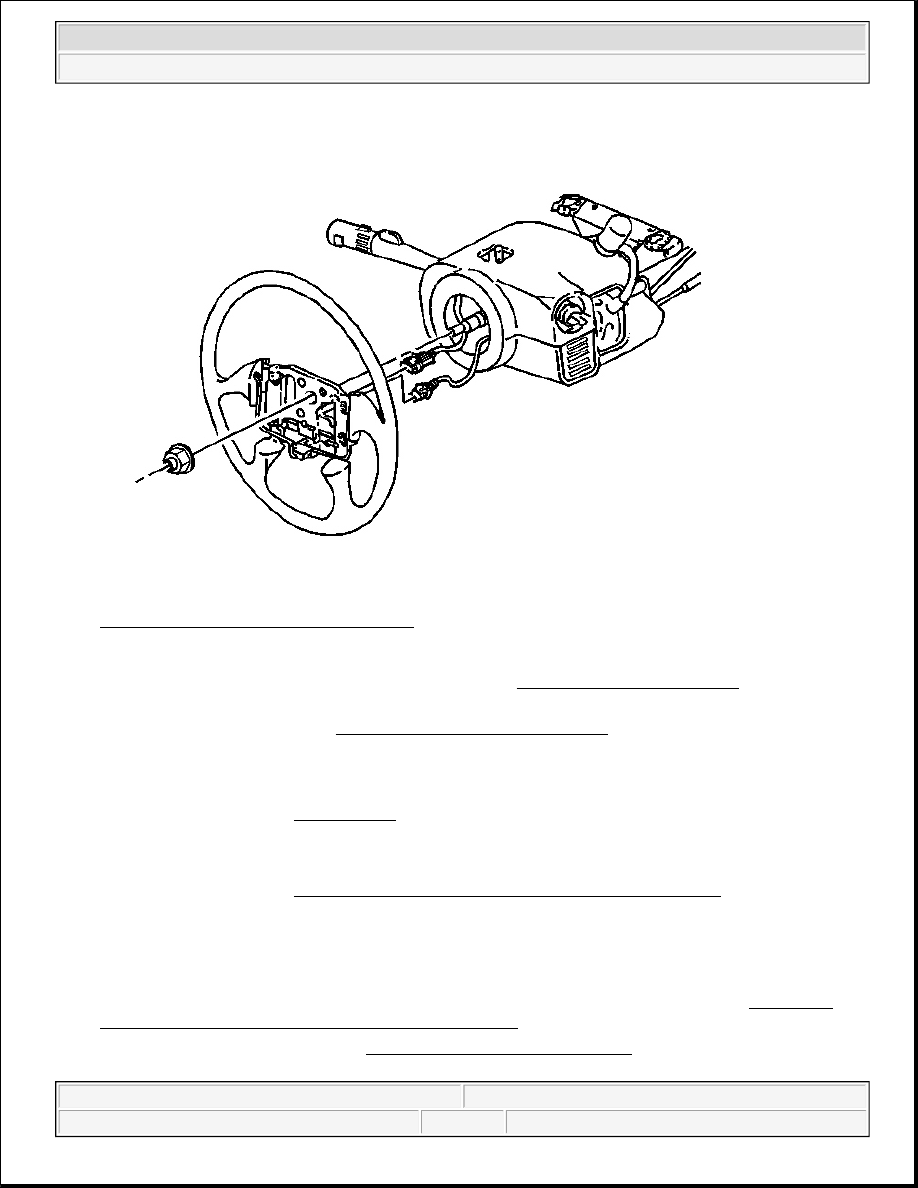

Fig. 53: Steering Wheel & Steering Shaft
Courtesy of GENERAL MOTORS CORP.

12. Install the steering wheel onto the steering shaft. Refer to Steering Wheel Replacement in Steering

Wheel and Column.

13. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .

INFLATABLE RESTRAINT INSTRUMENT PANEL MODULE REPLACEMENT

Removal Procedure

1. Remove trim panel replacement-I/P accessory right- from the I/P substraight (1). Refer to Trim Plate

Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gauges and Console.

2. Disable the SIR system (2). Refer to SIR Disabling and Enabling Zones .

CAUTION: Refer to SIR Caution in Cautions and Notices.

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and

Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



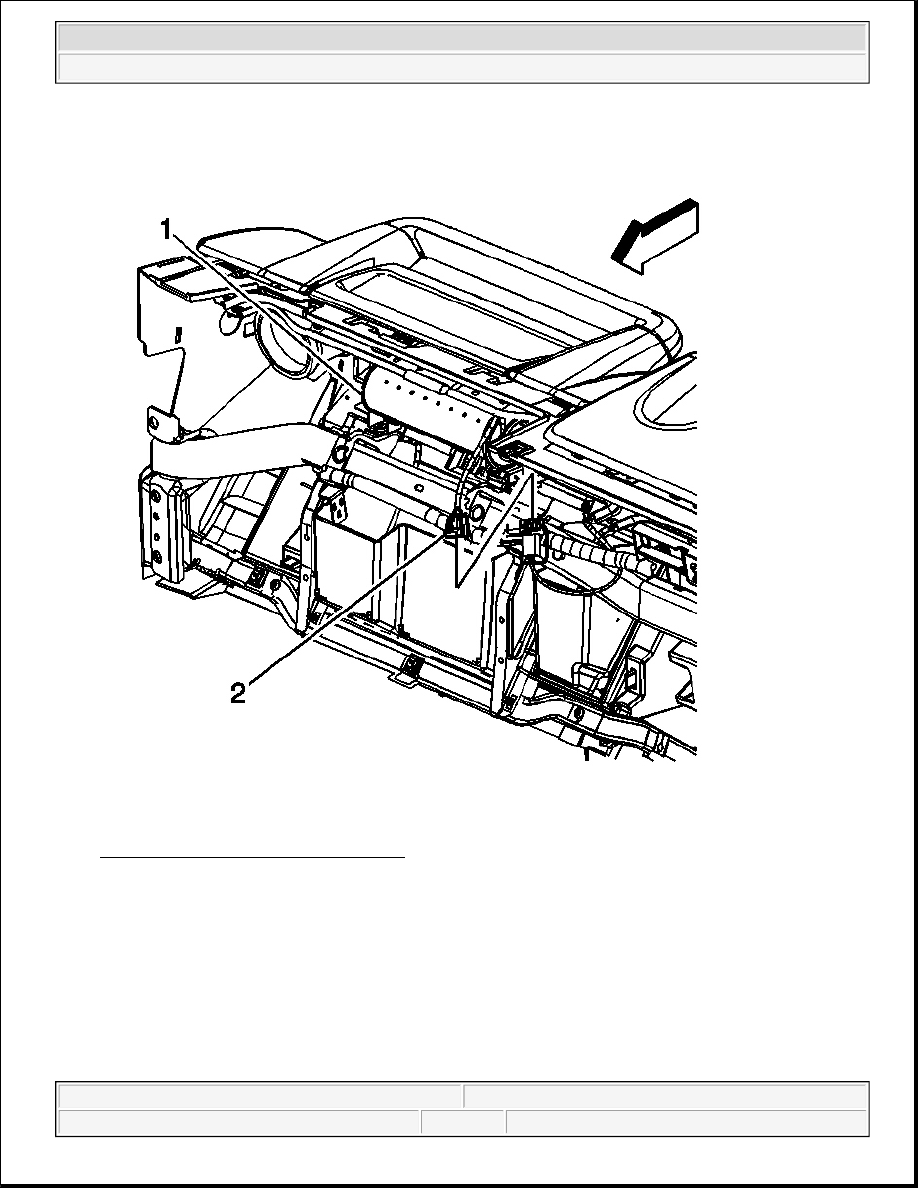

Fig. 54: Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP.

3. Remove the connector from the I/P.
