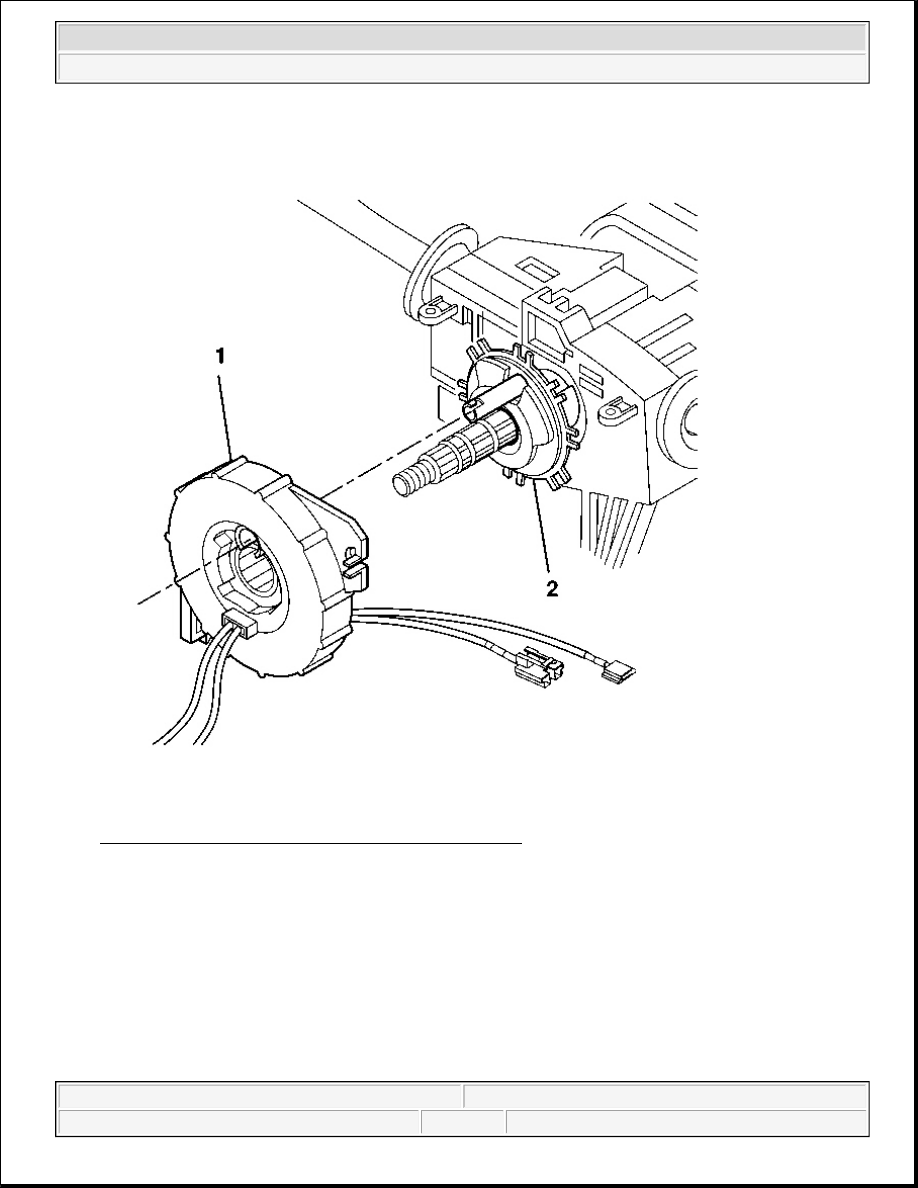

Fig. 47: Aligning SIR Coil Assembly With Horn Tower
Courtesy of GENERAL MOTORS CORP.

3. Align the SIR coil assembly (1) with the horn tower on the turn signal cancel cam assembly (2).

4. Slide the SIR coil (4) onto the steering shaft assembly (2).

5. Firmly seat the retaining ring (3) into the groove on the steering shaft assembly (2).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

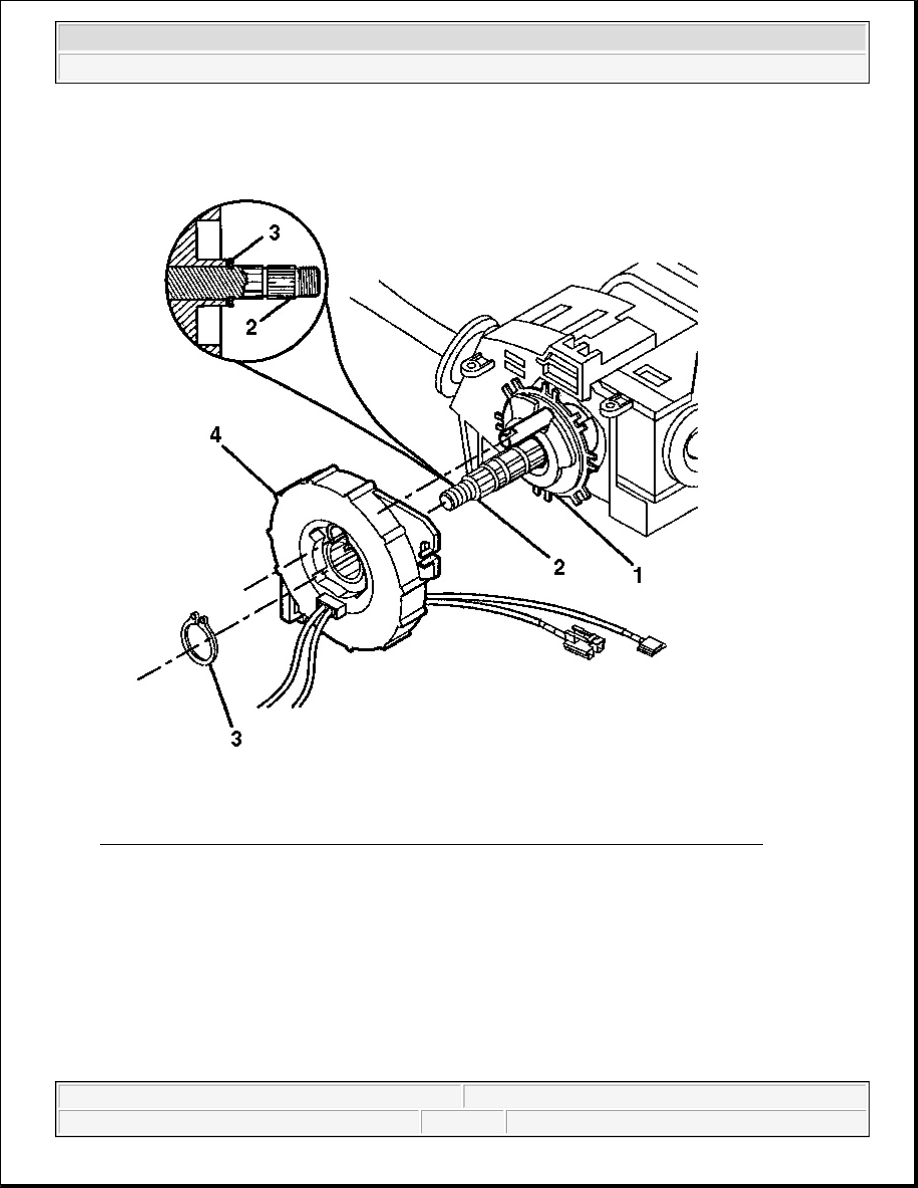

Fig. 48: Seating The Retaining Ring Into The Groove On The Steering Shaft Assembly
Courtesy of GENERAL MOTORS CORP.

6. Remove and discard the centering tab from the new SIR coil (4).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

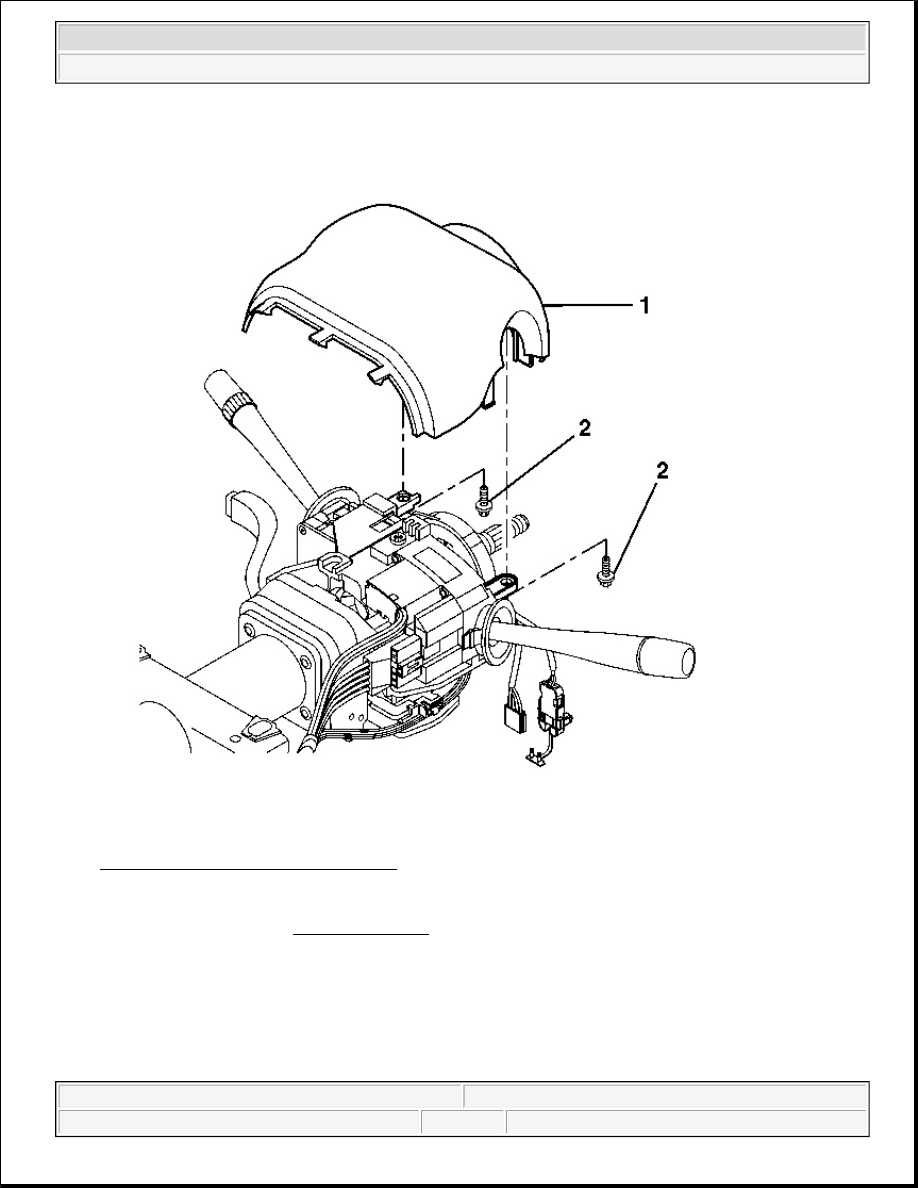

Fig. 49: Identifying Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.

7. Install the upper trim cover (1) and secure by using 2 TORX(R) head screws (2).

Tighten: Tighten the screws to 1.5 N.m (13 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

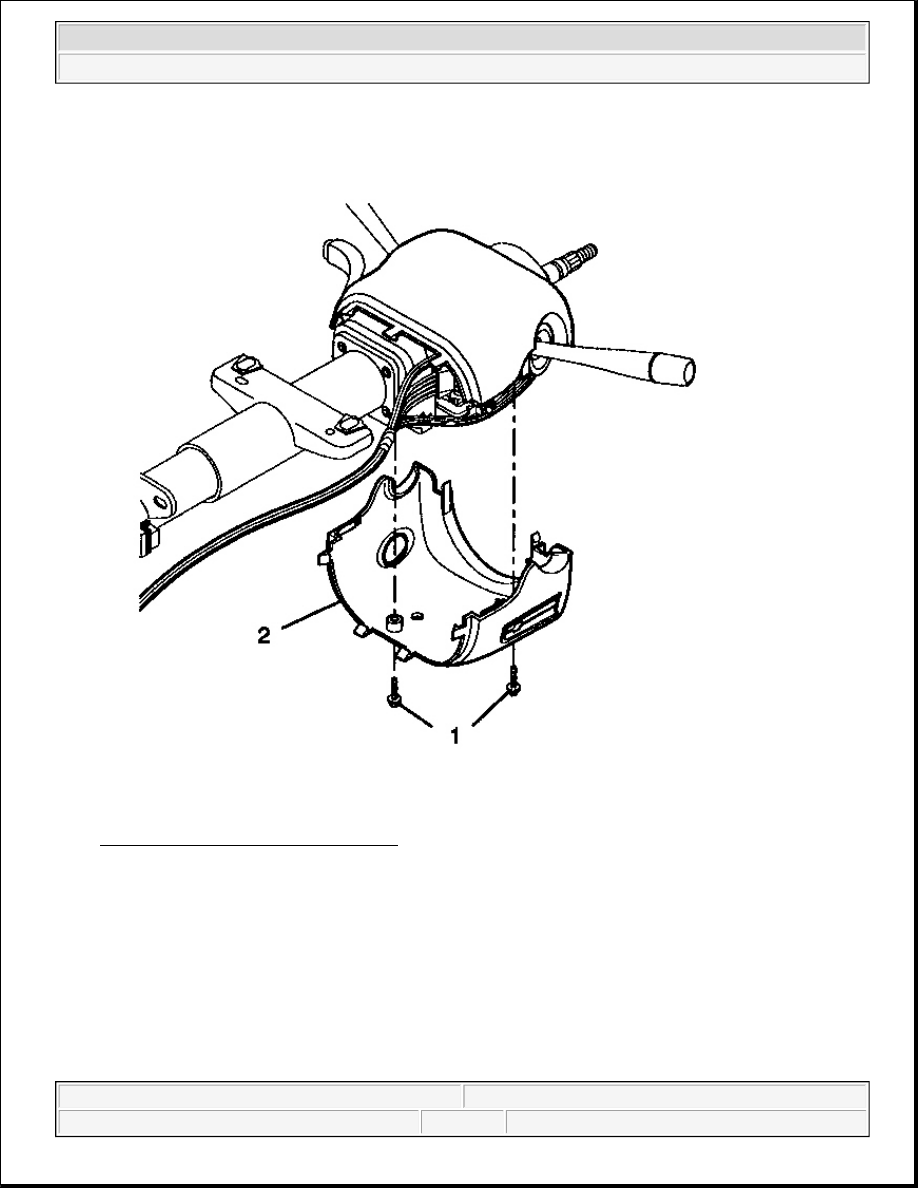

Fig. 50: Identifying Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.

8. Install the lower trim cover (2) and secure by using 2 TORX(R) head screws (1).
