REPAIRS AND INSPECTIONS REQUIRED AFTER A COLLISION

Accident With or Without Inflator Module Deployment - Component Inspections

After any collision, inspect the following components as indicated. If you detect any damage, replace the
component. If you detect any damage to the mounting points or mounting hardware, repair or replace the
mounting points and mounting hardware as needed.

z

The steering column - Perform the steering column accident damage checking procedures. Refer to
Steering Column Accident Damage Inspection in Steering Wheel and Column.

z

The I/P knee bolsters and mounting points - Inspect the knee bolsters for bending, twisting, buckling, or
any other type of damage.

z

The I/P brackets, braces, etc.- Inspect for bending, twisting, buckling, or any other type of damage.

z

The seat belts - Perform the seat belt operational and functional checks. Refer to Operational and
Functional Checks in Seat Belts.

z

The I/P cross car beam - Inspect for bending, twisting, buckling, or any other type of damage.

z

The I/P mounting points and brackets - Inspect for bending, twisting, buckling, or any other type of
damage.

z

The seats and seat mounting points - Inspect for bending, twisting, buckling, or any other type of damage.

Accident With Frontal Air Bag Deployment - Component Replacement and Inspections

After a collision involving air bag deployment, replace the following components. If you detect any damage to
the mounting points or mounting hardware, repair or replace the mounting points and mounting hardware as
needed.

z

Inflatable restraint I/P module

z

Inflatable restraint steering wheel module

z

Inflatable restraint steering wheel module coil

z

Inflatable restraint sensing and diagnostic module (SDM)

z

Inflatable restraint electronic frontal sensor (EFS)

Perform additional inspections on the following components.

z

Steering wheel module coil and the coil wiring pigtail - Inspect for melting, scorching, or other damage
due to excessive heat.

z

Mounting points or mounting hardware for the I/P module, steering wheel module, SDM, and EFS sensor
- Inspect for any damage and repair or replace each component as needed.

CAUTION: Proper operation of the SIR sensing system requires that any repairs to

the vehicle structure return the vehicle structure to the original production
configuration. Not properly repairing the vehicle structure could cause
non-deployment in a collision or deployment for conditions less severe
than intended.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Sensor Replacement Guidelines

The SIR/side air bag sensor replacement policy requires replacing sensors in the area of accident damage. The
area of accident damage is defined as the portion of the vehicle which is crushed, bent, or damaged due to a
collision. An example of this would be a moderate collision where the front of the vehicle impacts a tree, if the
vehicle has an SIR sensor mounted forward of the radiator, replace the SIR sensor.

z

Replace the sensor whether or not the air bags have deployed.

z

Replace the sensor even if the sensor appears to be undamaged.

Sensor damage which is not visible, such as slight bending of the mounting bracket or cuts in the wire
insulation, can cause improper operation of the SIR/side air bag sensing system. Do not try to determine
whether the sensor is undamaged. Replace the sensor. Also, if you follow a Diagnostic Trouble Code (DTC)
table and a malfunctioning sensor is indicated, replace the sensor.

INFLATOR MODULE HANDLING AND SCRAPPING

Live (Undeployed) Inflator Modules

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and

Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



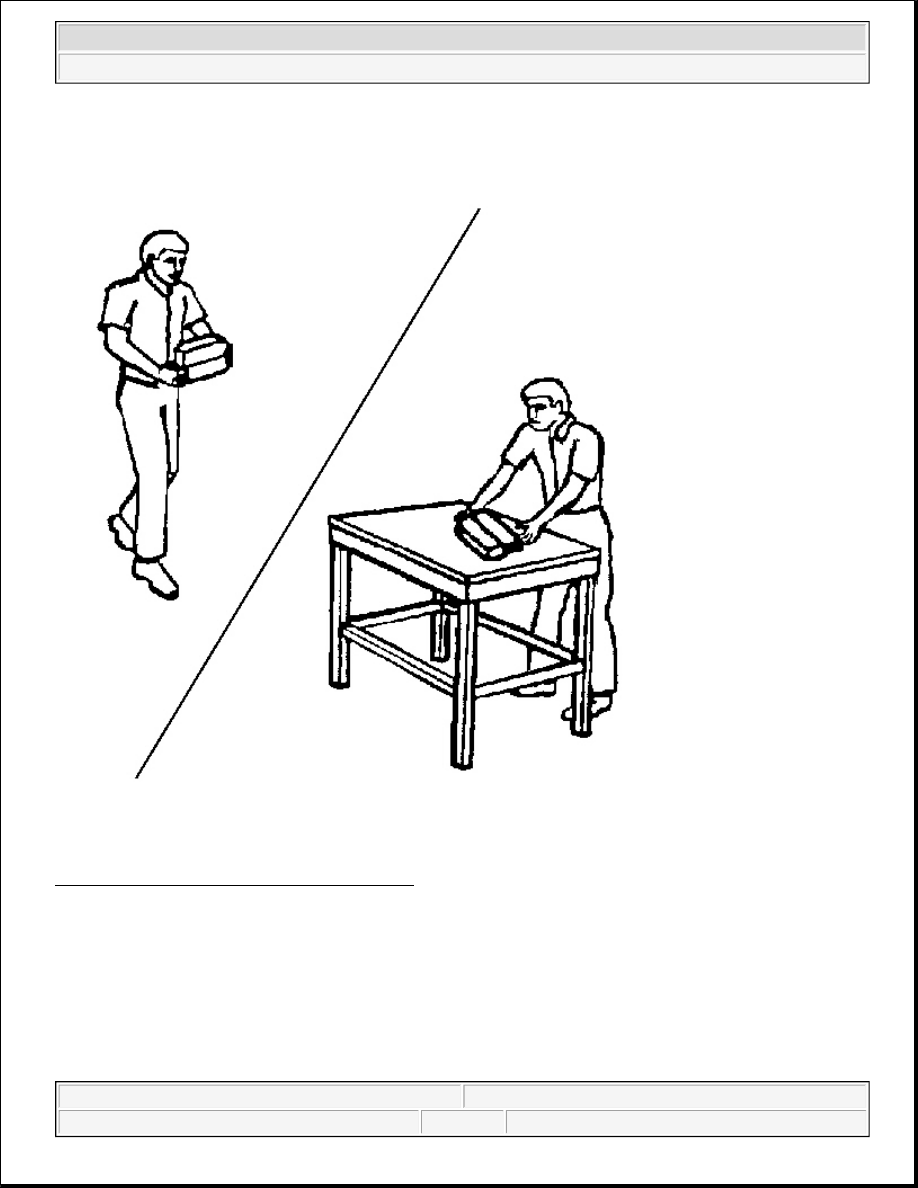

Fig. 59: Handling Undeployed Inflator Module
Courtesy of GENERAL MOTORS CORP.

Use special care when handling or storing live, undeployed, inflator modules. Inflator module deployment
produces a rapid generation of gas. This may cause the inflator module, or an object in front of the inflator
module, to project through the air in the event of an unlikely deployment.

Scrapping Procedures

During the course of a vehicle's useful life, certain situations may arise which will require the disposal of a live,



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



undeployed, inflator module. Do not dispose of a live, undeployed, inflator module through normal disposal
channels until the inflator module has been deployed. The following information covers the proper procedures
for disposing of a live, undeployed, inflator module.

Do not deploy an inflator module in the following situations:

z

After replacement of an inflator module under warranty. The inflator module may need to be returned
undeployed to the manufacturer.

z

If the vehicle is the subject of a product liability report (GM-1241) related to the SIR system. When a
vehicle is the subject of a product liability report, do not alter the SIR system in any manner.

z

If the vehicle is involved in a campaign affecting the inflator modules. Follow the instructions in the
Campaign Service Bulletin for proper SIR handling procedures.

Deployment Procedures

Inflator modules can be deployed inside or outside of the vehicle. The method used depends upon the final
disposition of the vehicle. Review the following procedures in order to determine which will work best in a
given situation.

Deployment Outside Vehicle-IP Module and Steering Wheel Module

Deploy inflator modules outside of the vehicle when the vehicle will be returned to service. Situations that
require deployment outside of the vehicle include the following:

z

Using the SIR diagnostics, you determine that the inflator module is malfunctioning.

z

The inflator module is cosmetically damaged (scratched or ripped).

z

The inflator module pigtail, if equipped, is damaged.

z

The inflator module connector is damaged.

z

The inflator module connector terminals are damaged.

Deployment and disposal of a malfunctioning inflator module is subject to any required retention period.

Tools Required

z

J 38826 SIR Deployment Harness. See Special Tools and Equipment .

z

J 39401-B SIR Deployment Fixture. See Special Tools and Equipment .

z

An appropriate pigtail adaptor

1. Turn OFF the ignition.

2. Remove the ignition key.

CAUTION: Refer to SIR Inflator Module Disposal Caution in Cautions and Notices.
