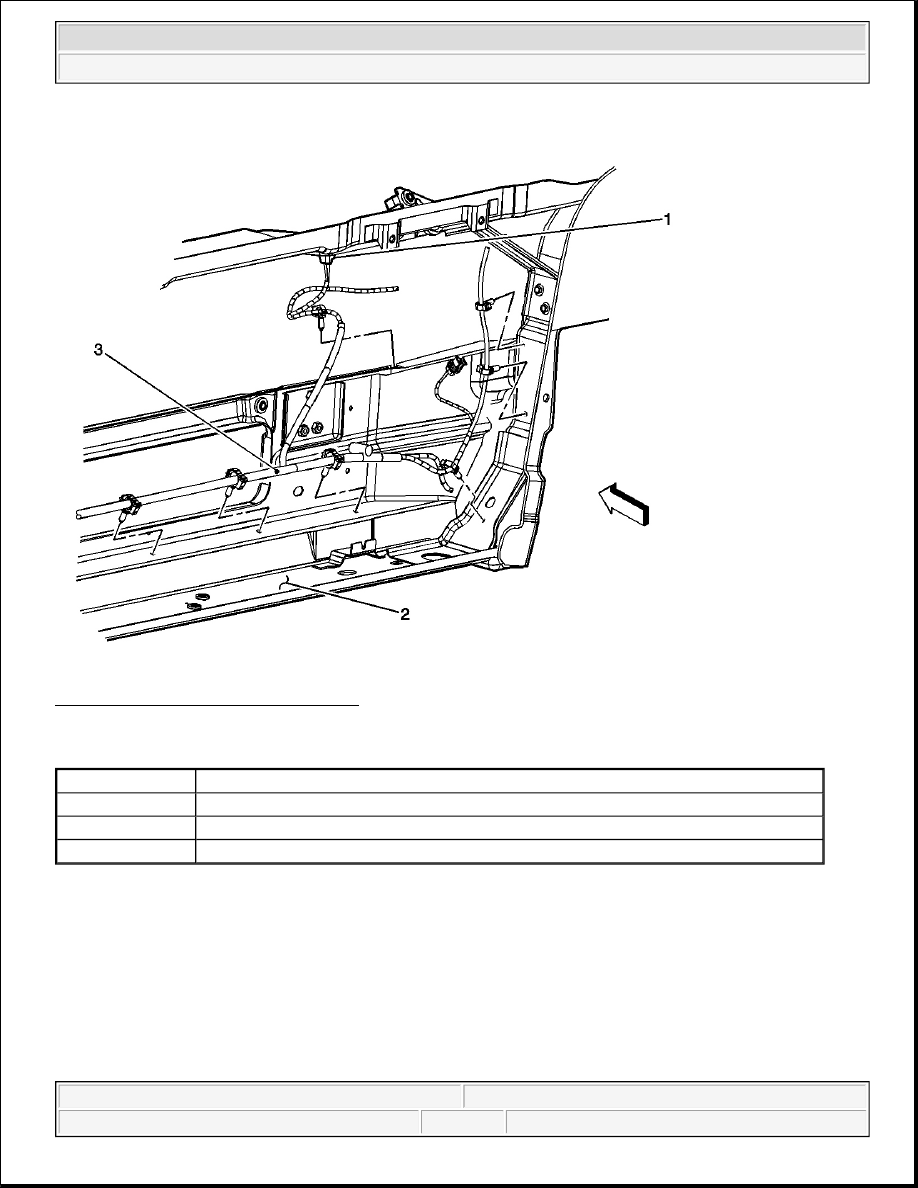

Fig. 101: Splice S100 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 101

Callout

Component Name

1

Forward Lamp Harness

2

Radiator Support

3

S100

4

Horn Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



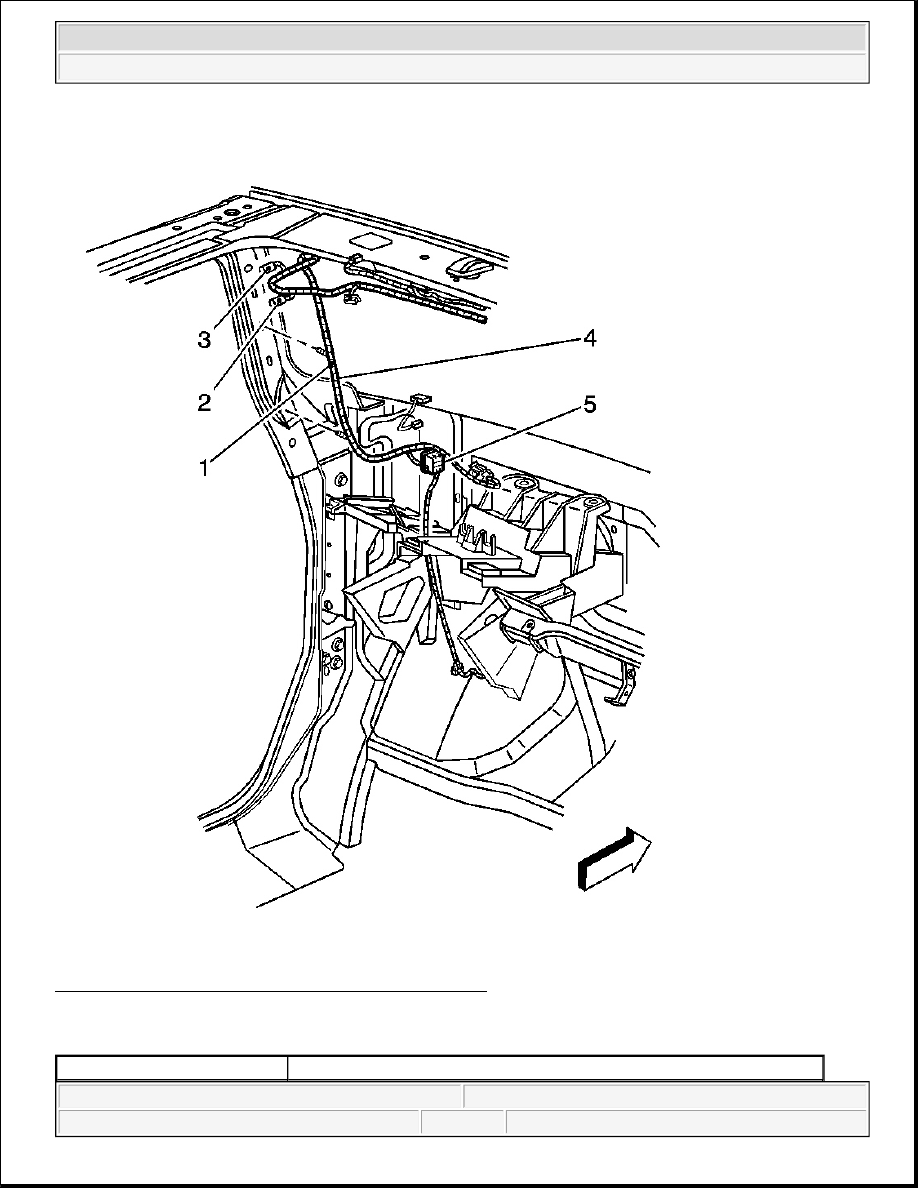

Fig. 102: Splice S101 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 102

Callout

Component Name

1

Ambient Temperature Sensor - Mirror

2

Radiator Support

3

S101



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



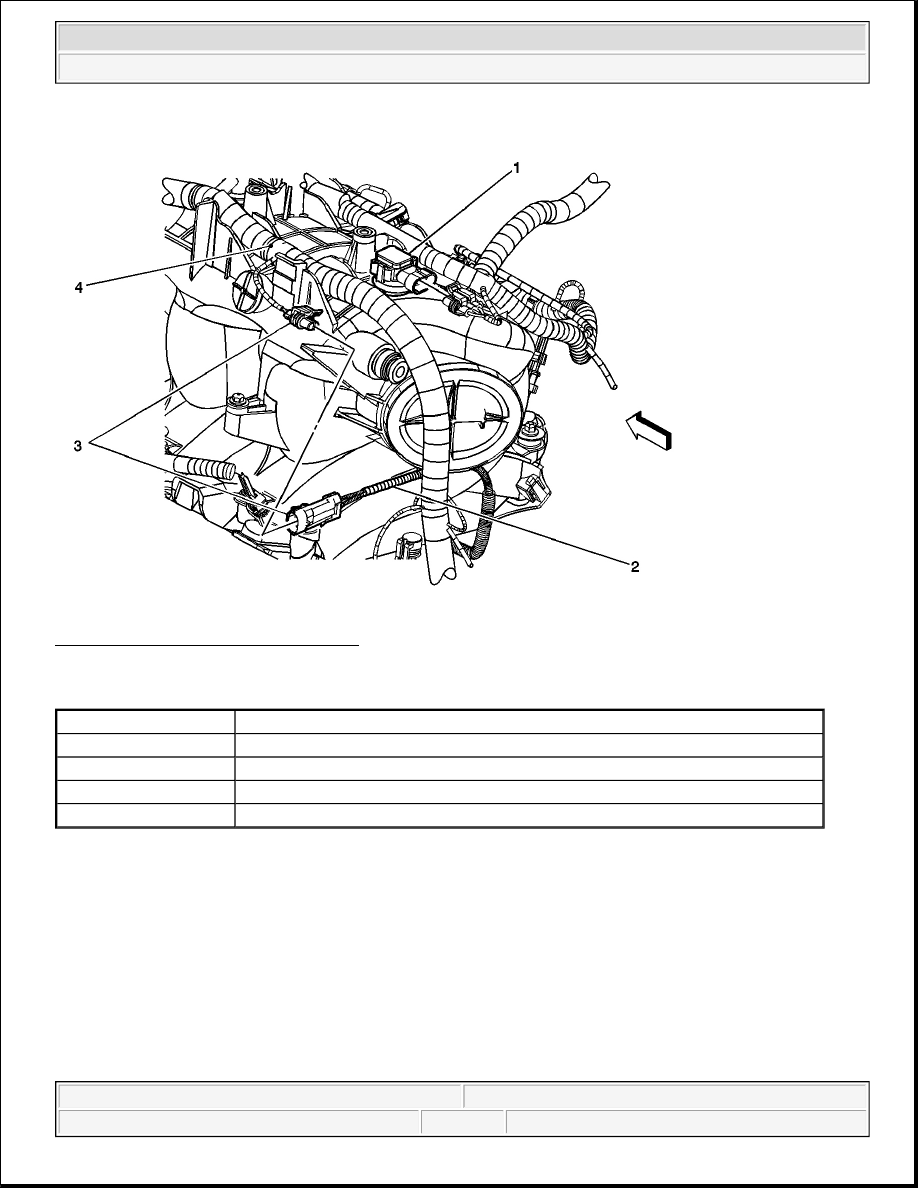

Fig. 103: Splice S102 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 103

Callout

Component Name

1

MAP Sensor

2

Knock Sensor Pigtail

3

C115-Knock Sensors Inline

4

Engine Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



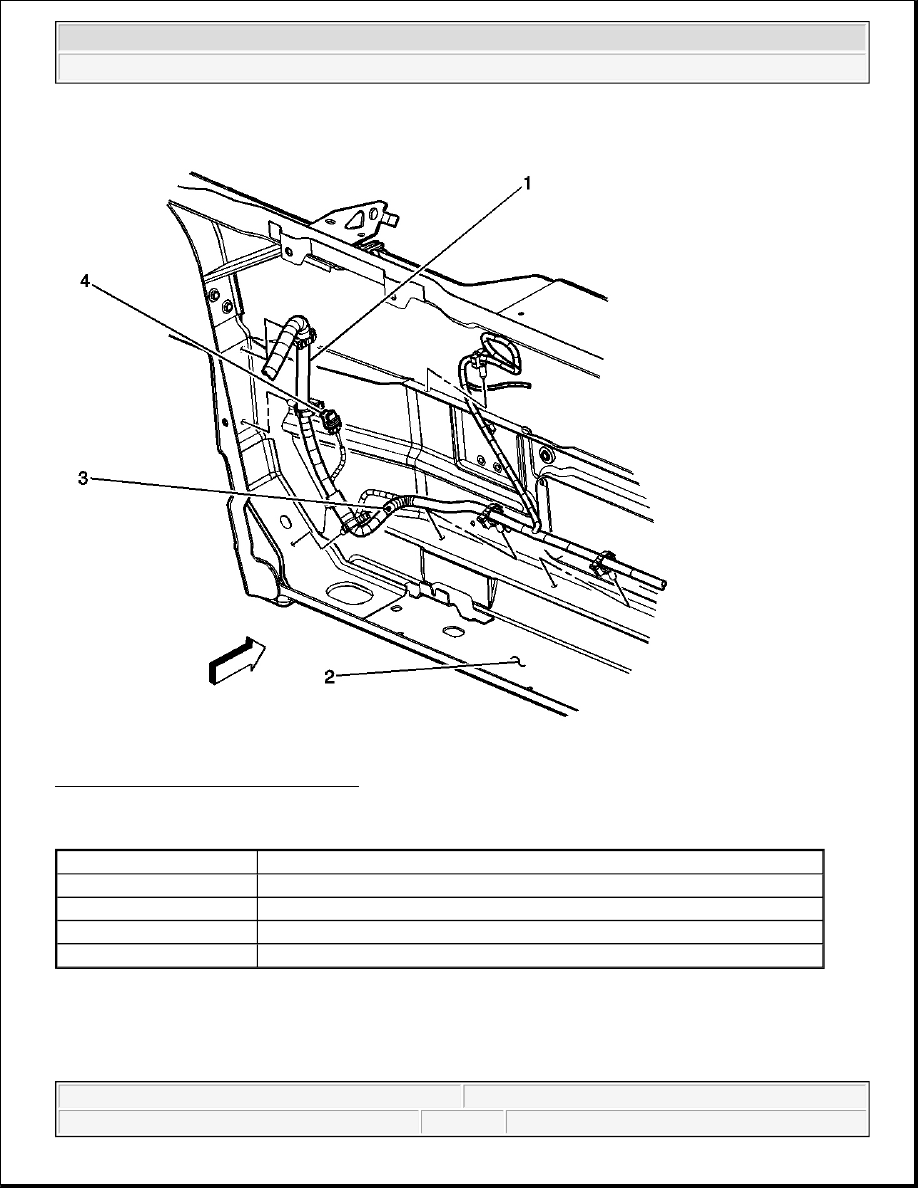

Fig. 104: Splices S301, S302 and S305 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 104

Callout

Component Name
