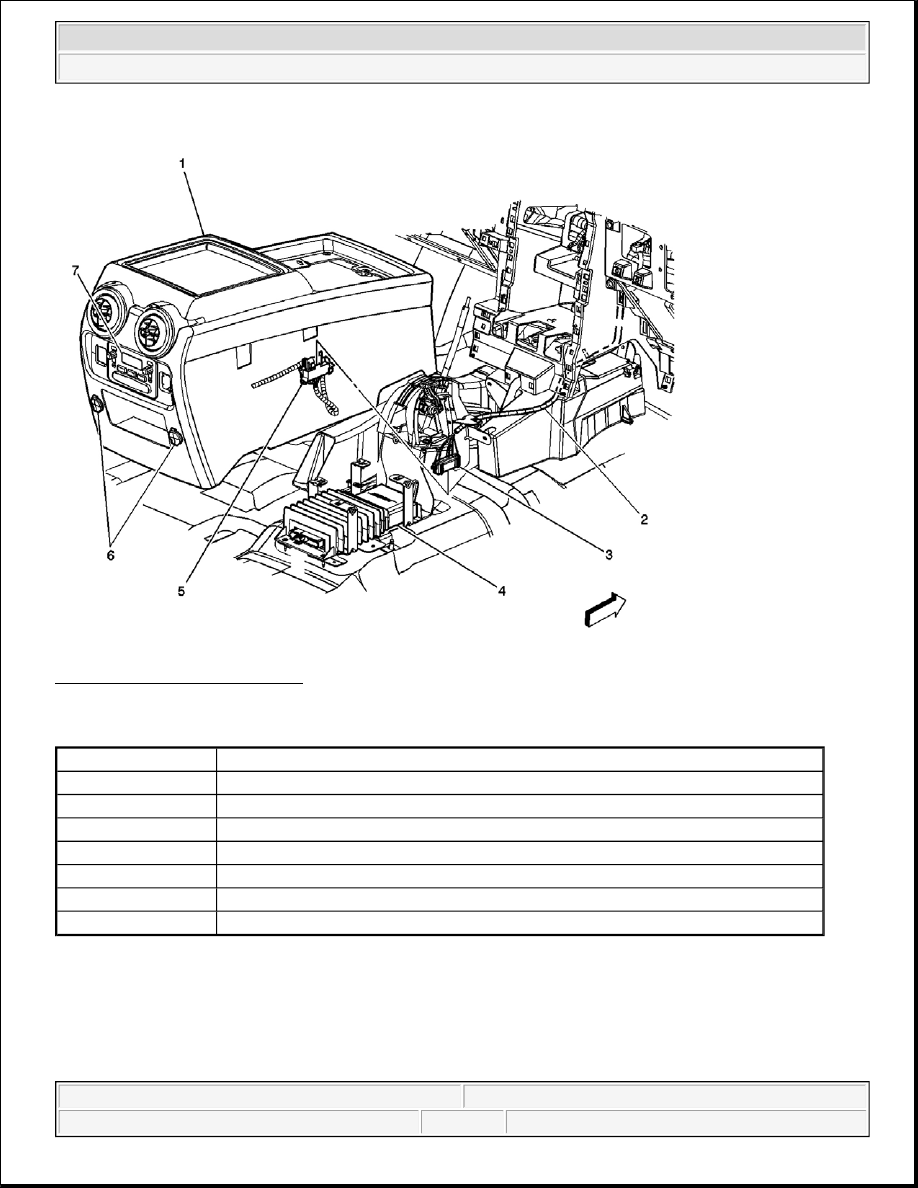

Fig. 93: C350 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 93

Callout

Component Name

1

Front Floor Console

2

I/P Harness

3

C350 - I/P Harness Side

4

Audio Amplifier

5

C350 - Console Harness Side

6

Accessory Power Outlets - Rear

7

Rear Seat Audio (RSA)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



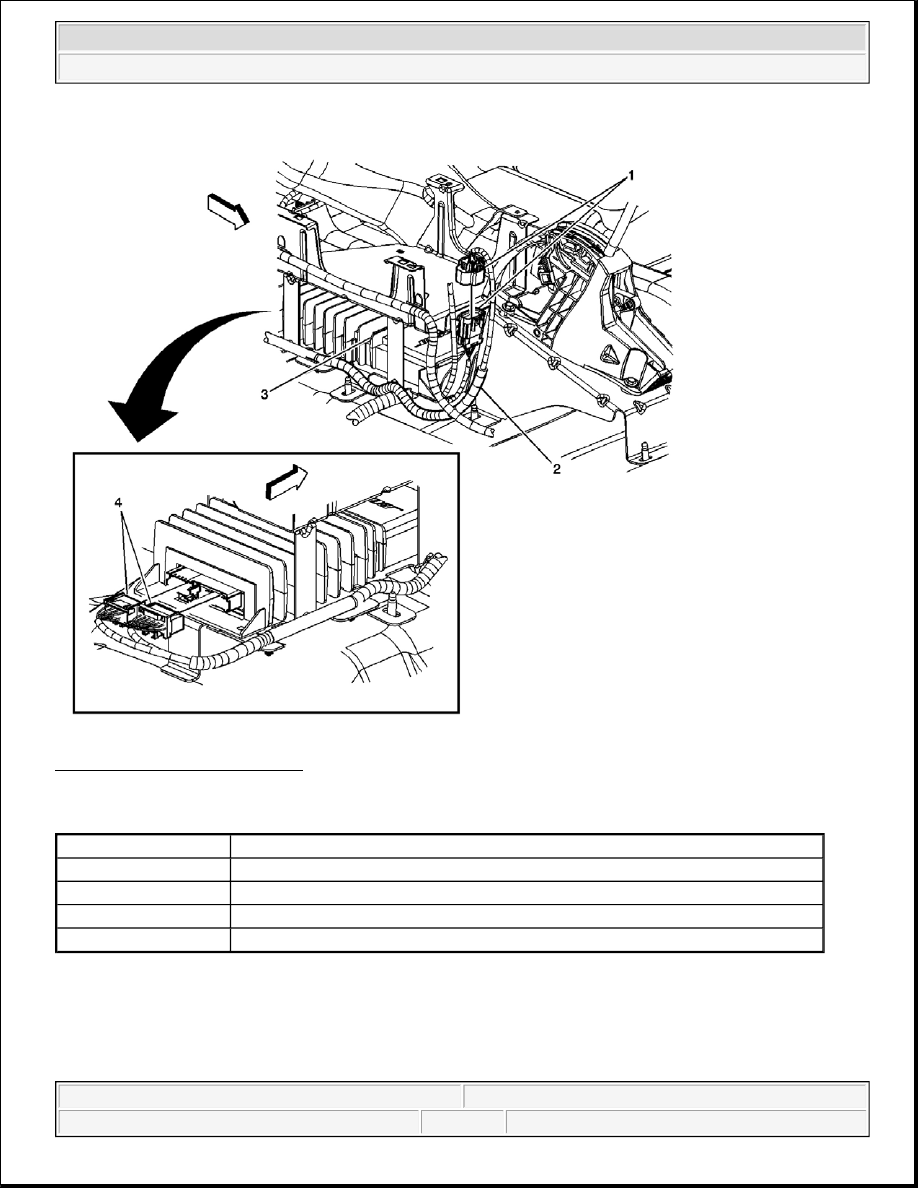

Fig. 94: C355 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 94

Callout

Component Name

1

C355

2

Body Harness

3

Audio Amplifier

4

Audio Amplifier Connectors



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



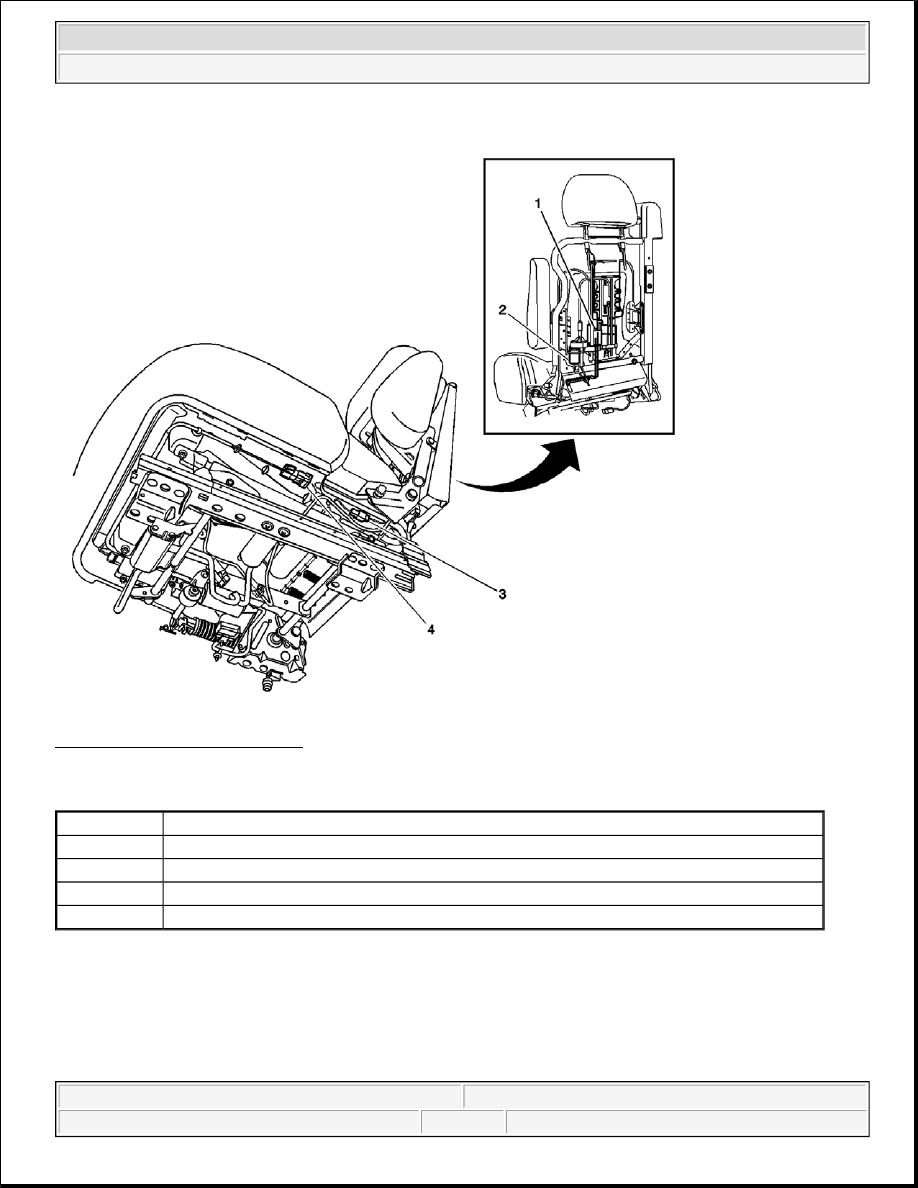

Fig. 95: C375, C376 and C377 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 95

Callout

Component Name

1

Seat Horizontal Motor - Front Passenger

2

Seat Front Vertical Motor - Front Passenger

3

Seat Rear Vertical Motor - Front Passenger

4

C376

5

C377

6

C375

7

Seat Recline Motor - Front Passenger

8

Seat Bolster/Lumbar Switch - Front Passenger

9

Seat Adjuster Switch - Front Passenger



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



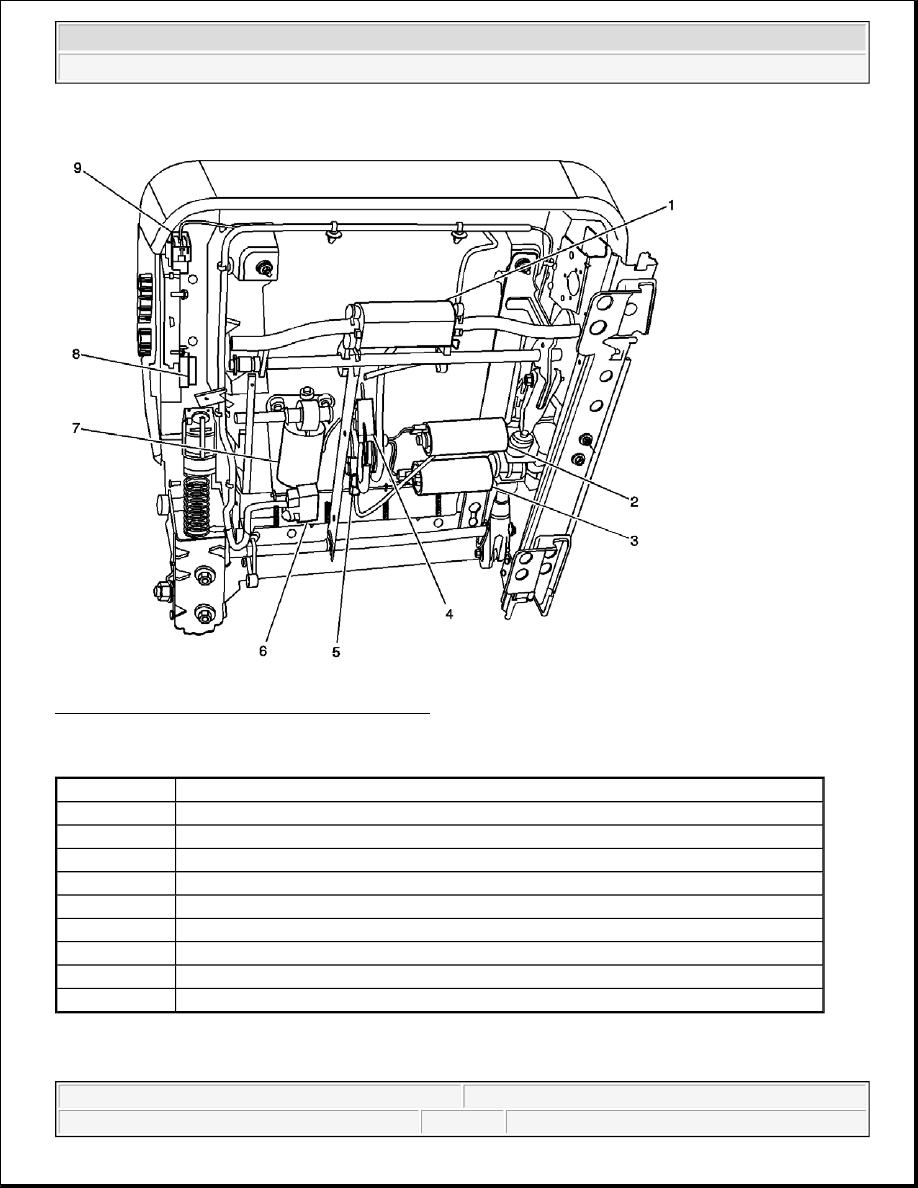

Fig. 96: C378 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 96

Callout

Component Name

1

Seat Bolster Motor - Passenger

2

Seat Lumbar Motor - Passenger

3

Heated Seat Element - Passenger Cushion Connector

4

C378



2004 Hummer H2
