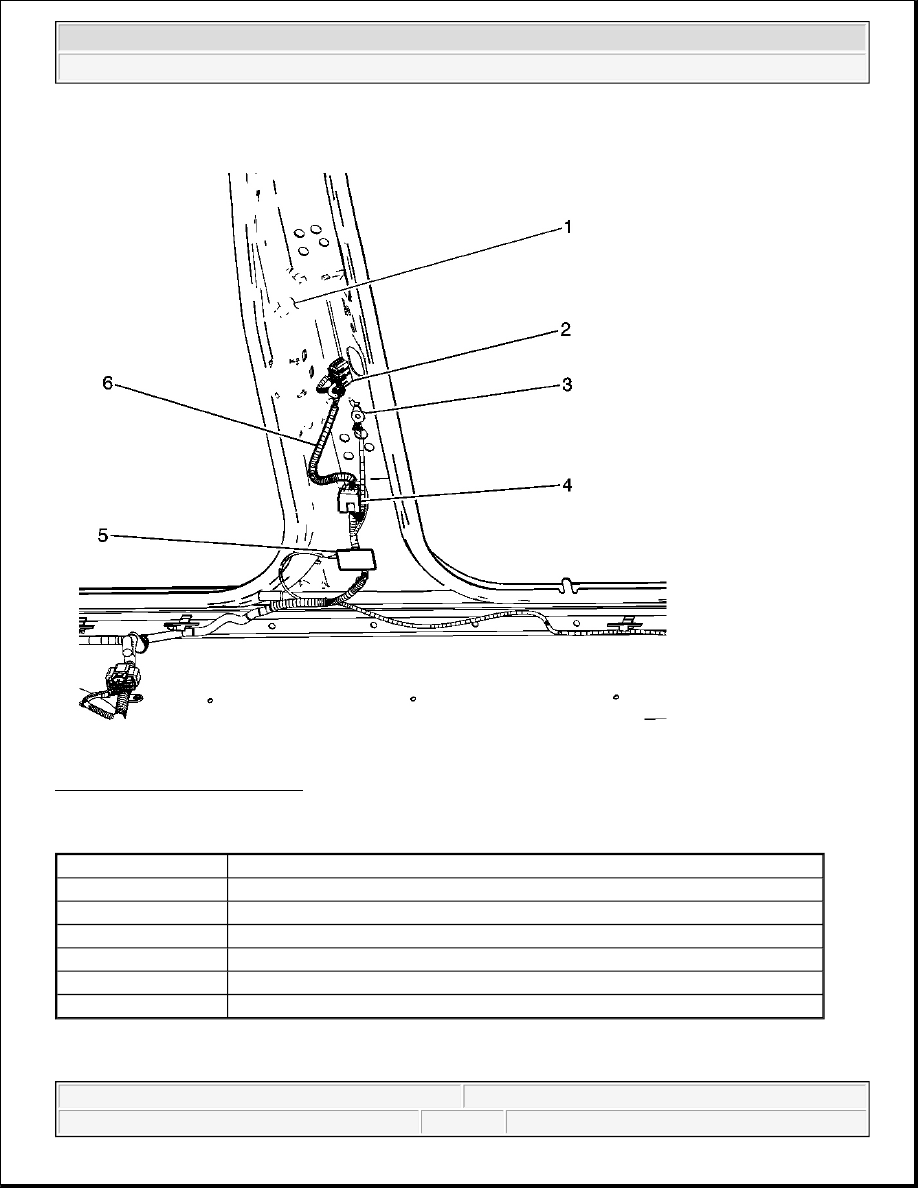

Fig. 97: C390 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 97

Callout

Component Name

1

RH B Pillar

2

C390

3

G306

4

Liftgate Relay

5

Courtesy Lamp - RH B Pillar

6

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



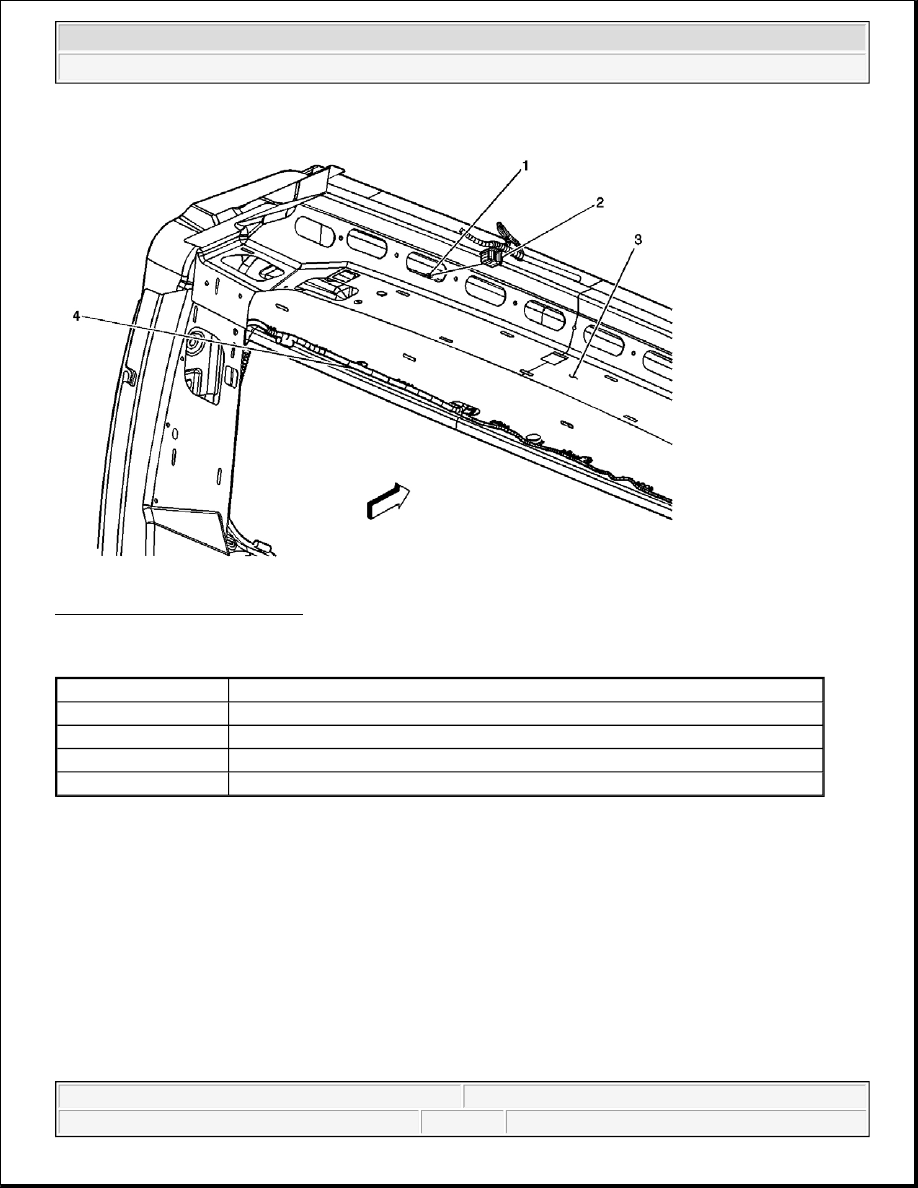

Fig. 98: C420 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 98

Callout

Component Name

1

C420 - Liftgate Harness Side

2

C420 - Body Harness Side

3

Liftgate

4

Liftgate Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



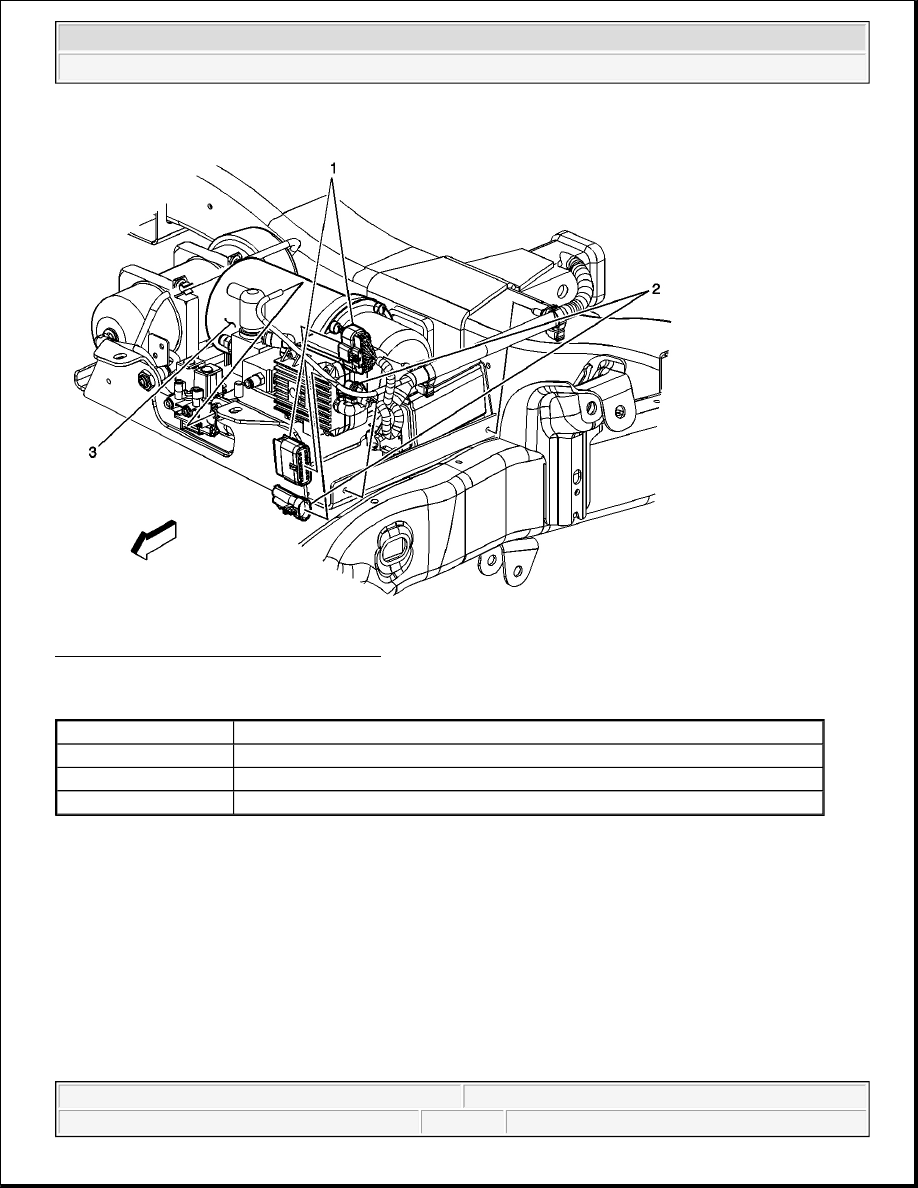

Fig. 99: C450 and C451 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 99

Callout

Component Name

1

C451

2

C450

3

Air Suspension Compressor



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



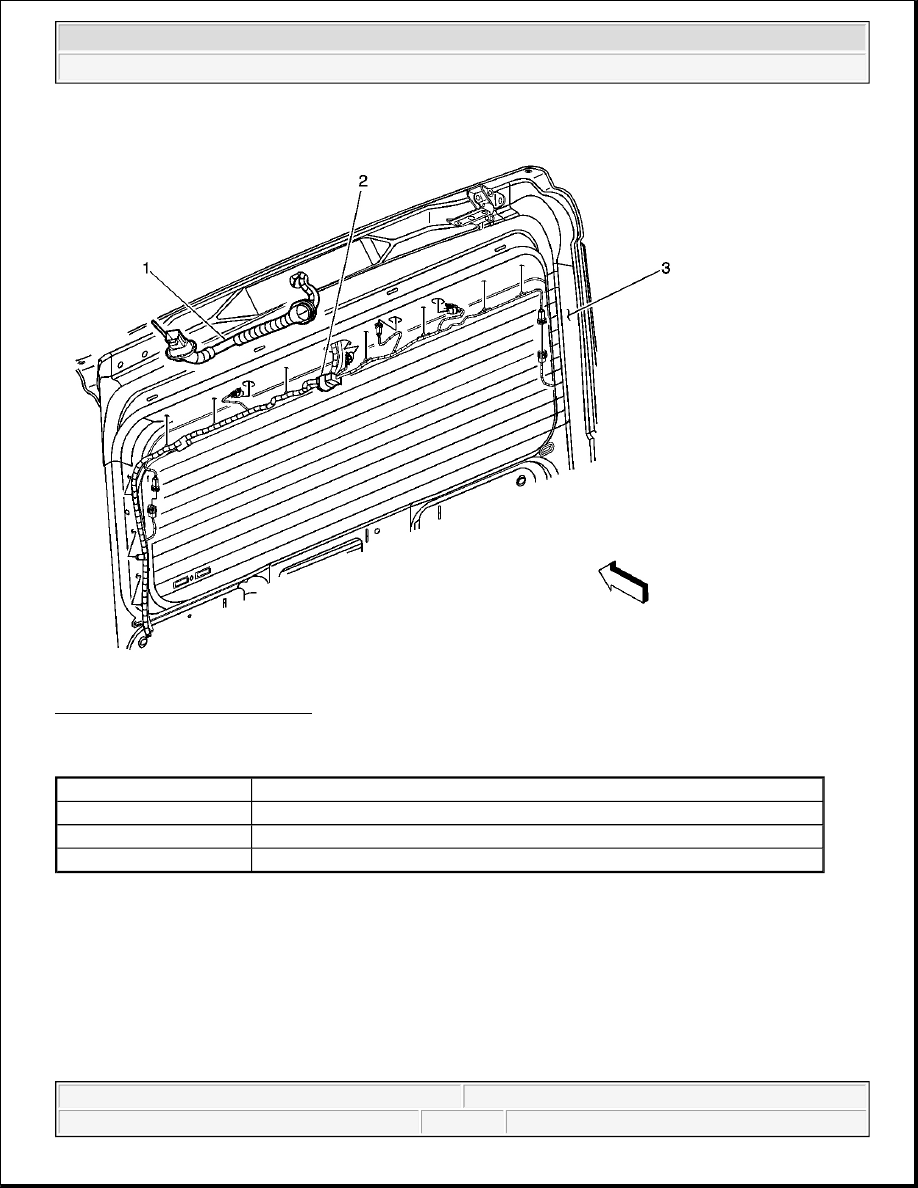

Fig. 100: C900 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 100

Callout

Component Name

1

Liftgate Jumper Harness

2

C900

3

Liftgate
