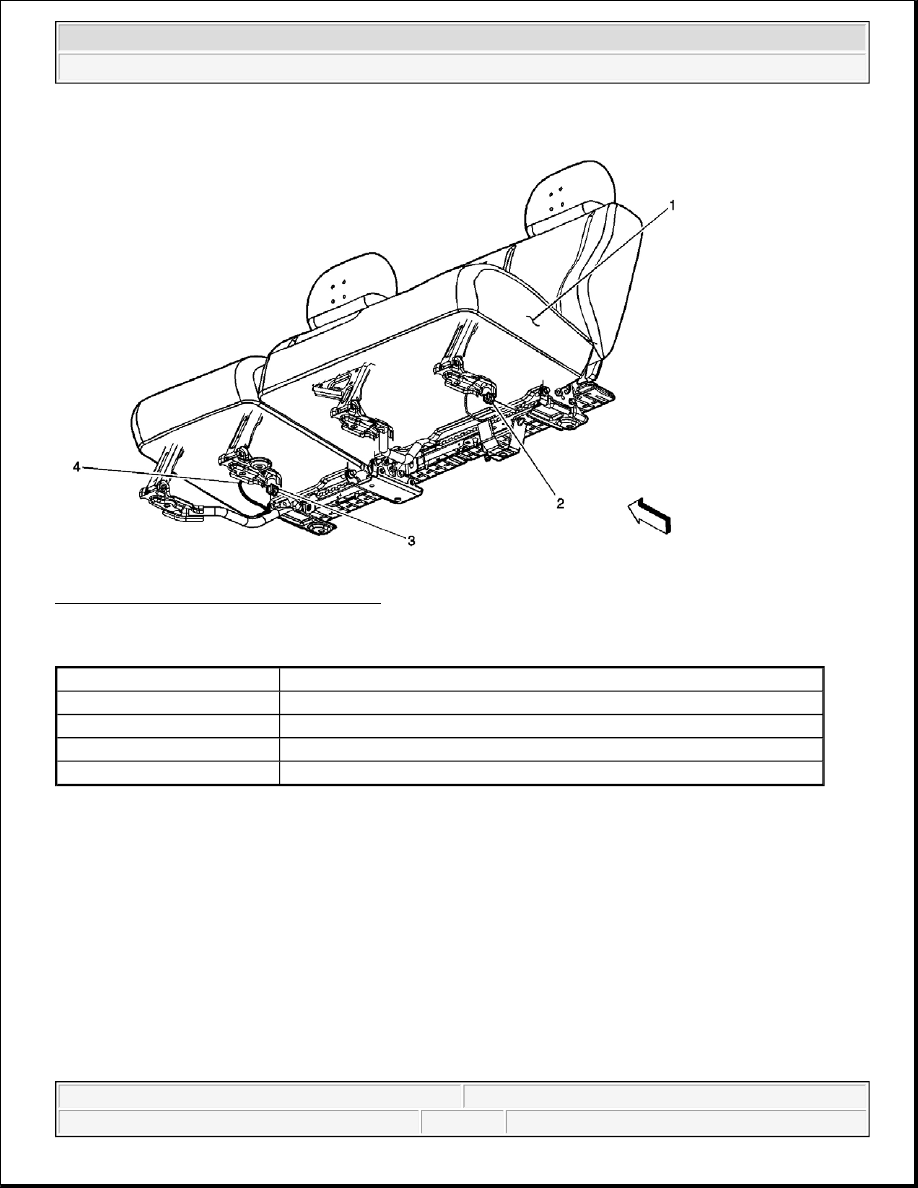

Fig. 89: C320 and C380 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 89

Callout

Component Name

1

Rear Seat Assembly

2

C320

3

C380

4

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



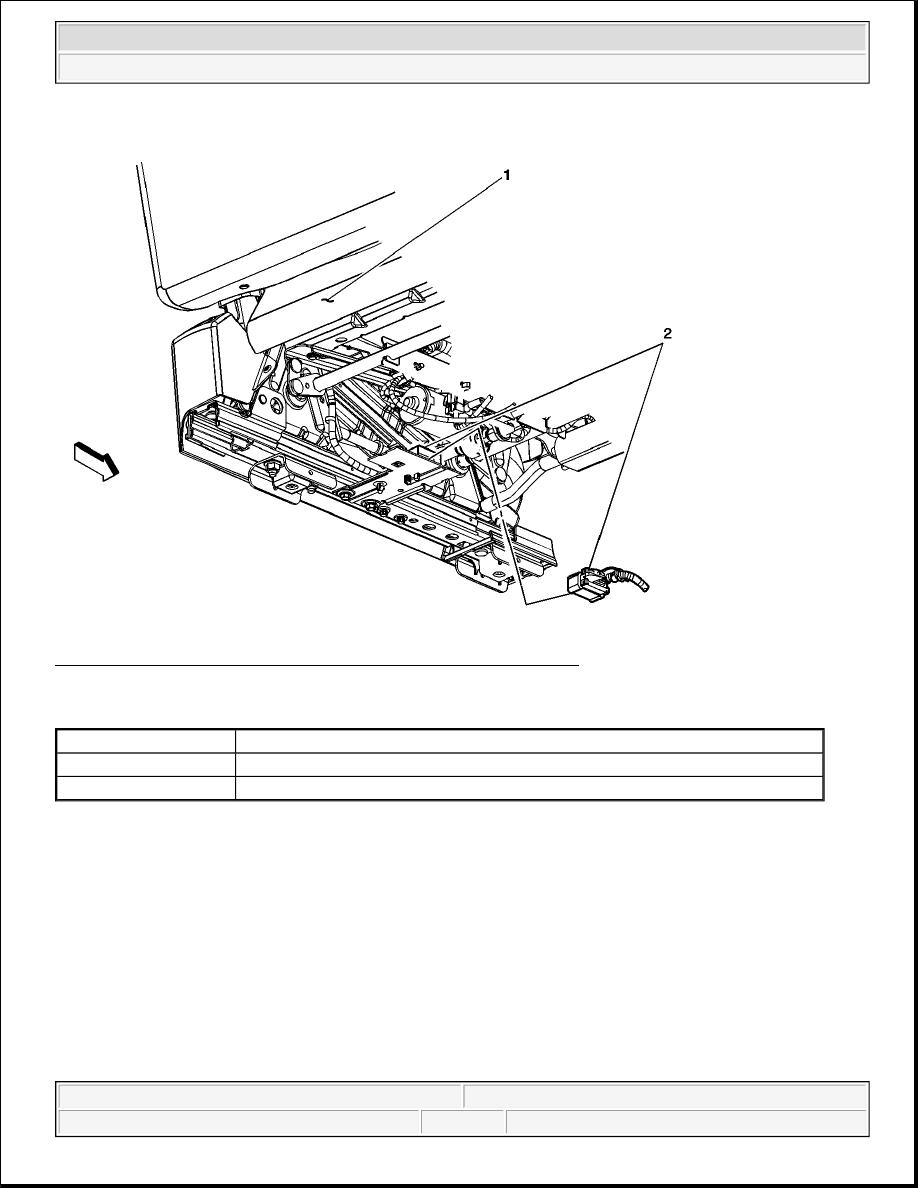

Fig. 90: C325 - Driver Shown - Passenger Similar Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 90

Callout

Component Name

1

Driver Seat

2

C325 - Driver Seat Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



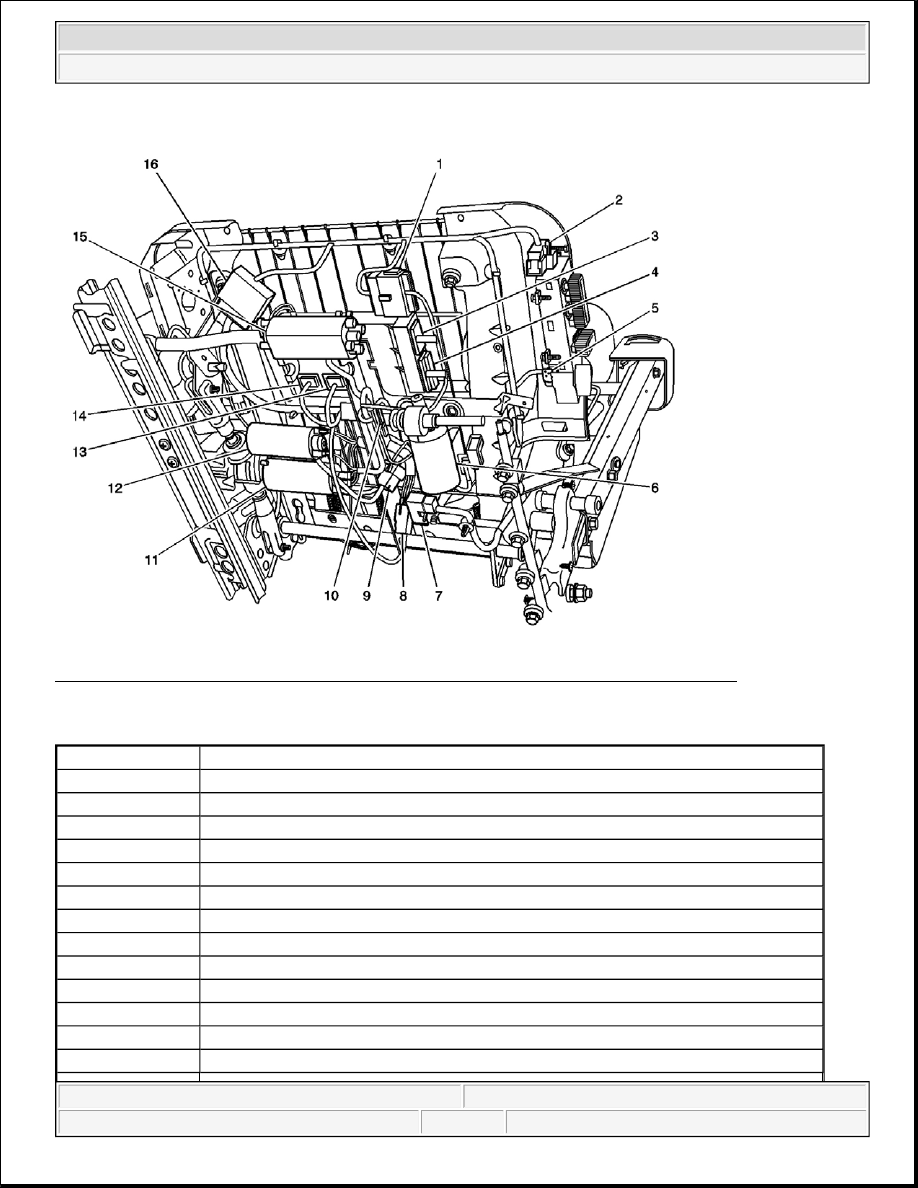

Fig. 91: C325, C326, C327, C328, C329 and C330 - Driver Seat Inlines Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 91

Callout

Component Name

1

C327

2

Seat Adjuster Switch - Driver

3

Memory Seat Module - C4

4

Memory Seat Module - C3

5

Seat Bolster/Lumbar Switch - Driver

6

Seat Recline Motor - Driver

7

C325

8

C329

9

C330

10

C328

11

Seat Rear Vertical Motor - Driver

12

Seat Front Vertical Motor - Driver

13

Memory Seat Module - C2



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



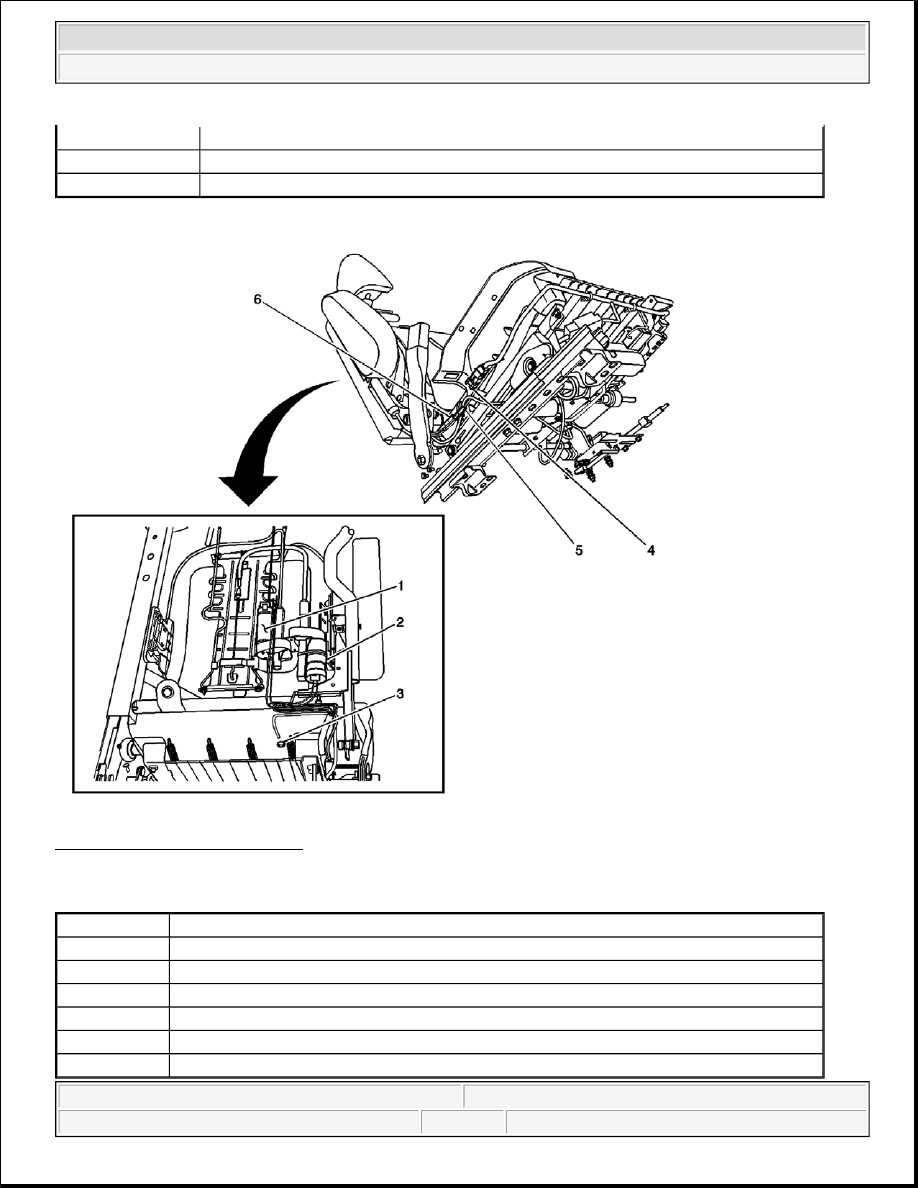

Fig. 92: C333 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 92

14

Memory Seat Module - C1

15

Seat Horizontal Motor - Driver

16

C326

Callout

Component Name

1

Seat Bolster Motor - Driver

2

Seat Lumbar Motor - Driver

3

Heated Seat Element - Driver Cushion

4

C333

5

Seat Belt Switch Connector

6

Heated Seat Element - Driver Cushion Connector
