Hummer H2. Manual - part 1367

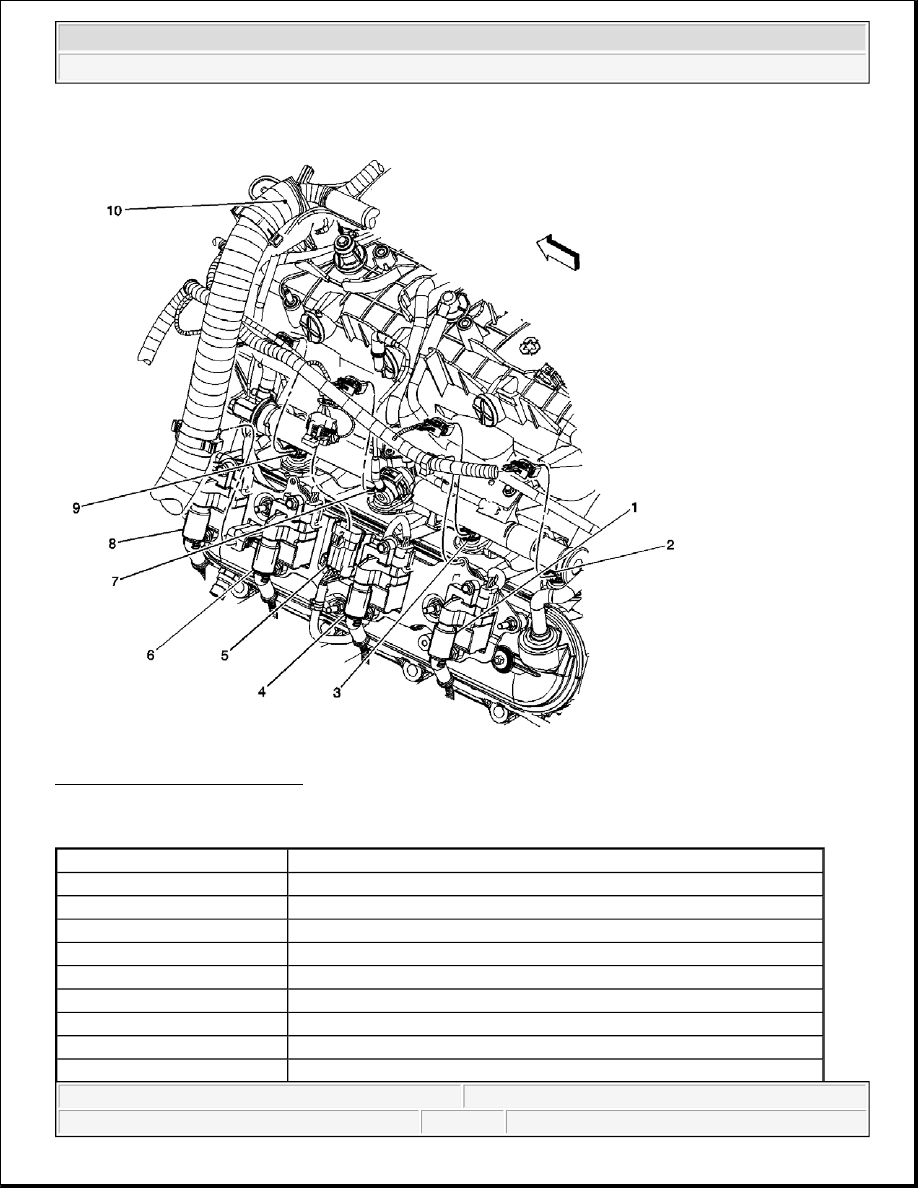

Fig. 81: C148 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 81

Callout

Component Name

1

Ignition Coil 7

2

Fuel Injector 7

3

Fuel Injector 5

4

Ignition Coil 5

5

Inline C148

6

Ignition Coil 3

7

Fuel Injector 3

8

Ignition Coil 1

9

Fuel Injector 1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



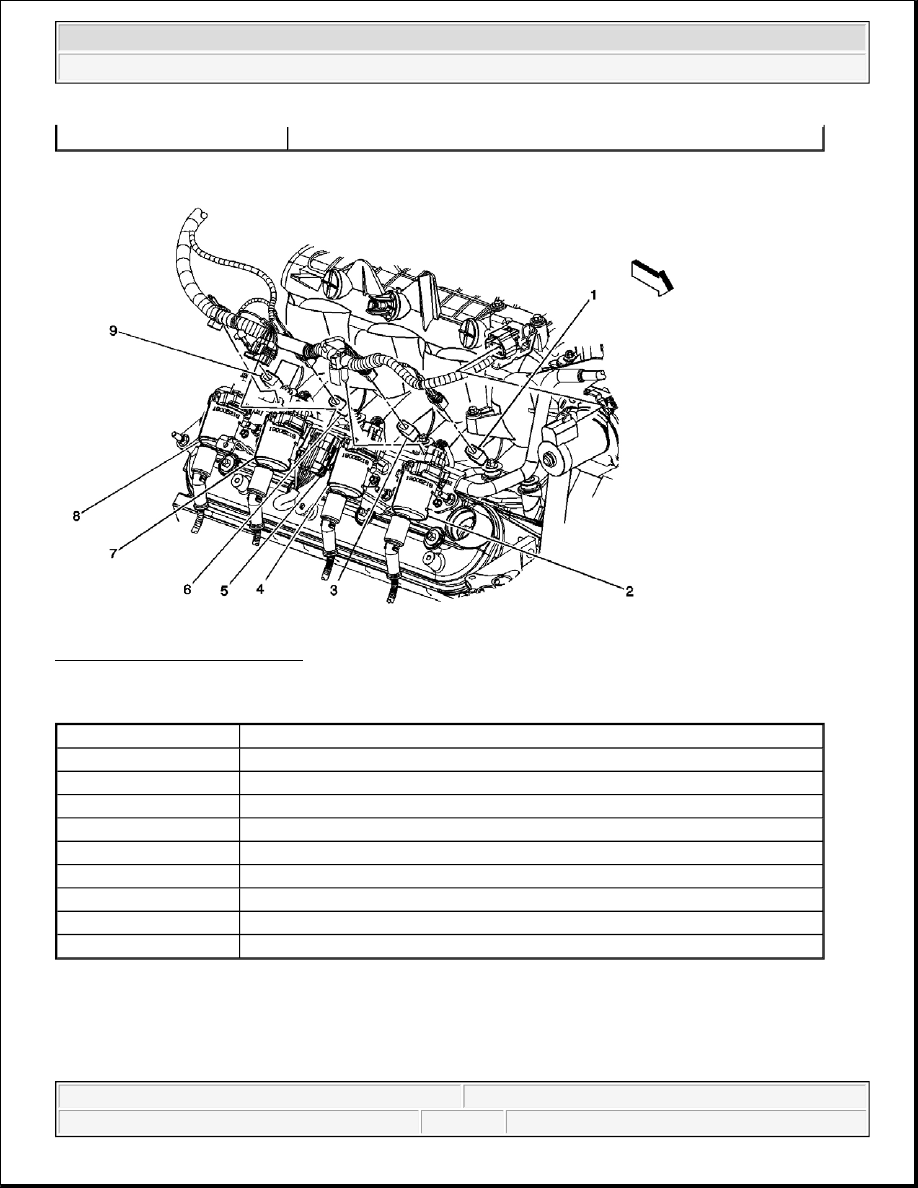

Fig. 82: C158 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 82

10

Engine Harness

Callout

Component Name

1

Fuel Injector 2

2

Ignition Coil 2

3

Fuel Injector 4

4

Ignition Coil 4

5

C158 - Ignition Coil Inline

6

Fuel Injector 6

7

Ignition Coil 6

8

Ignition Coil 8

9

Fuel Injector 8



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



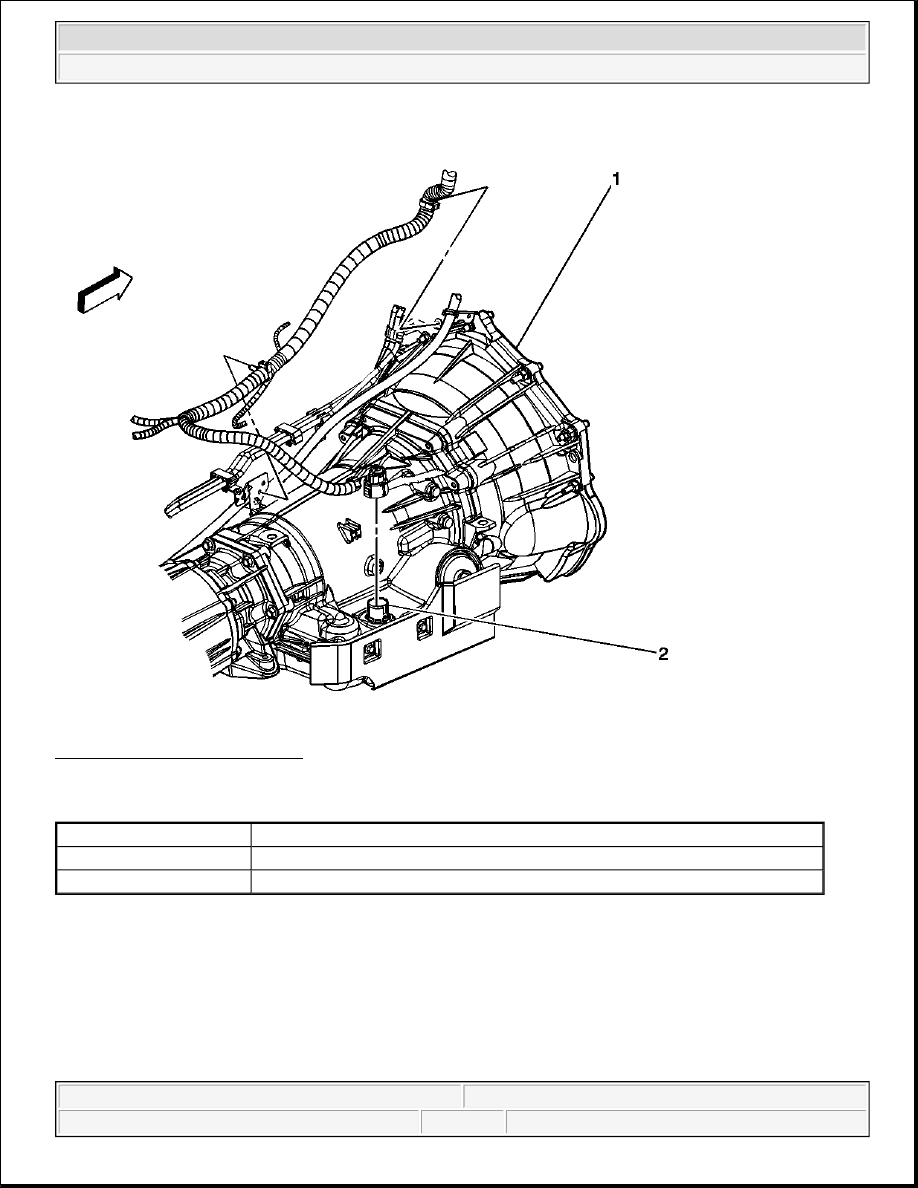

Fig. 83: C175 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 83

Callout

Component Name

1

Automatic Transmission

2

C175



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



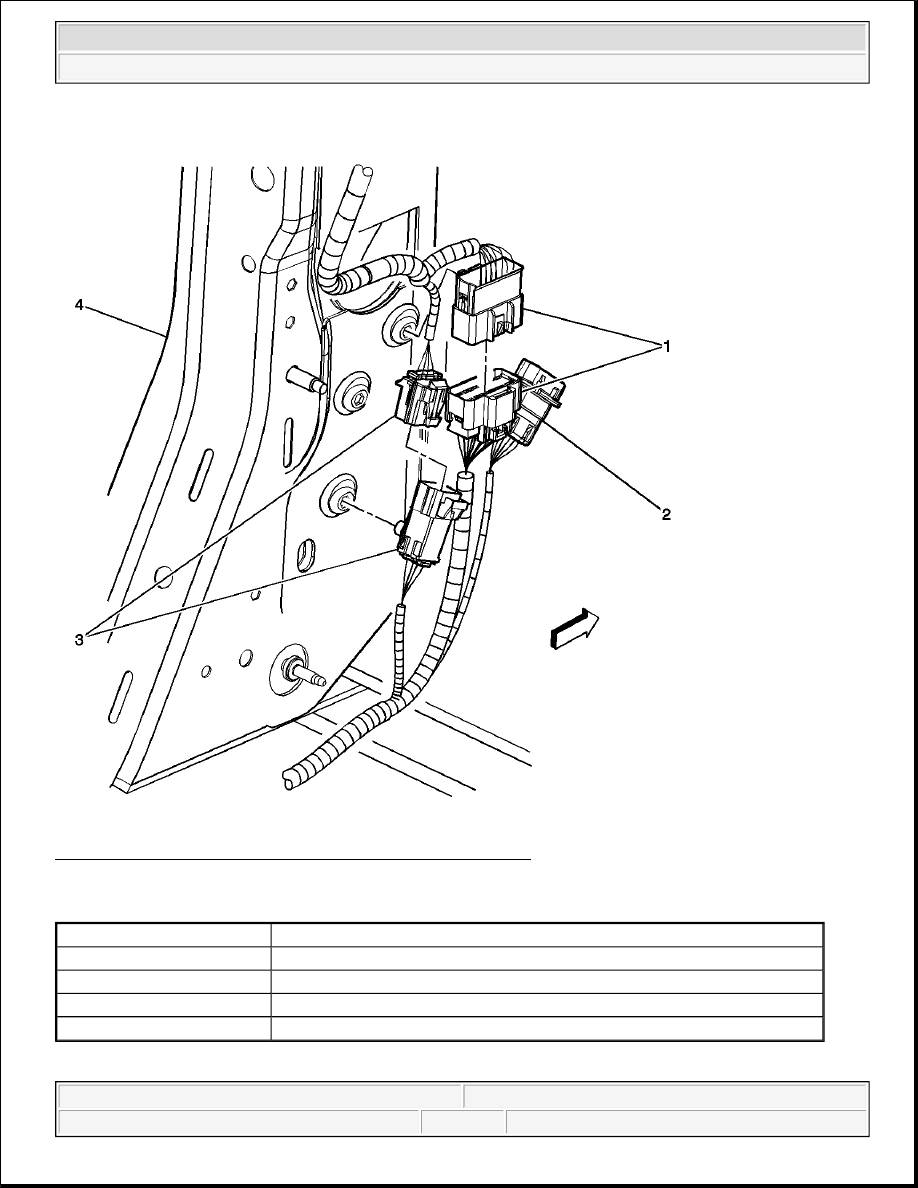

Fig. 84: C200, C201 and Splice Pack SP207 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 84

Callout

Component Name

1

C200

2

Splice Pack SP207

3

C201

4

Left Side Cowl Panel



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
