Hummer H2. Manual - part 1365

7

Noise Cancellation Microphone Connector

8

Vanity Mirror - Right Connector

9

Courtesy Reading Lamp - Center

10

Courtesy Reading Lamp - Rear

11

S300

12

Ambient Air Temperature Sensor Connector

13

Cellular Telephone Microphone Connector

14

S305

15

S301

16

S302 (CF5)

17

Sunroof Relay

18

Relay Block - I/P C4

19

Relay Block - I/P C3

20

C210



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



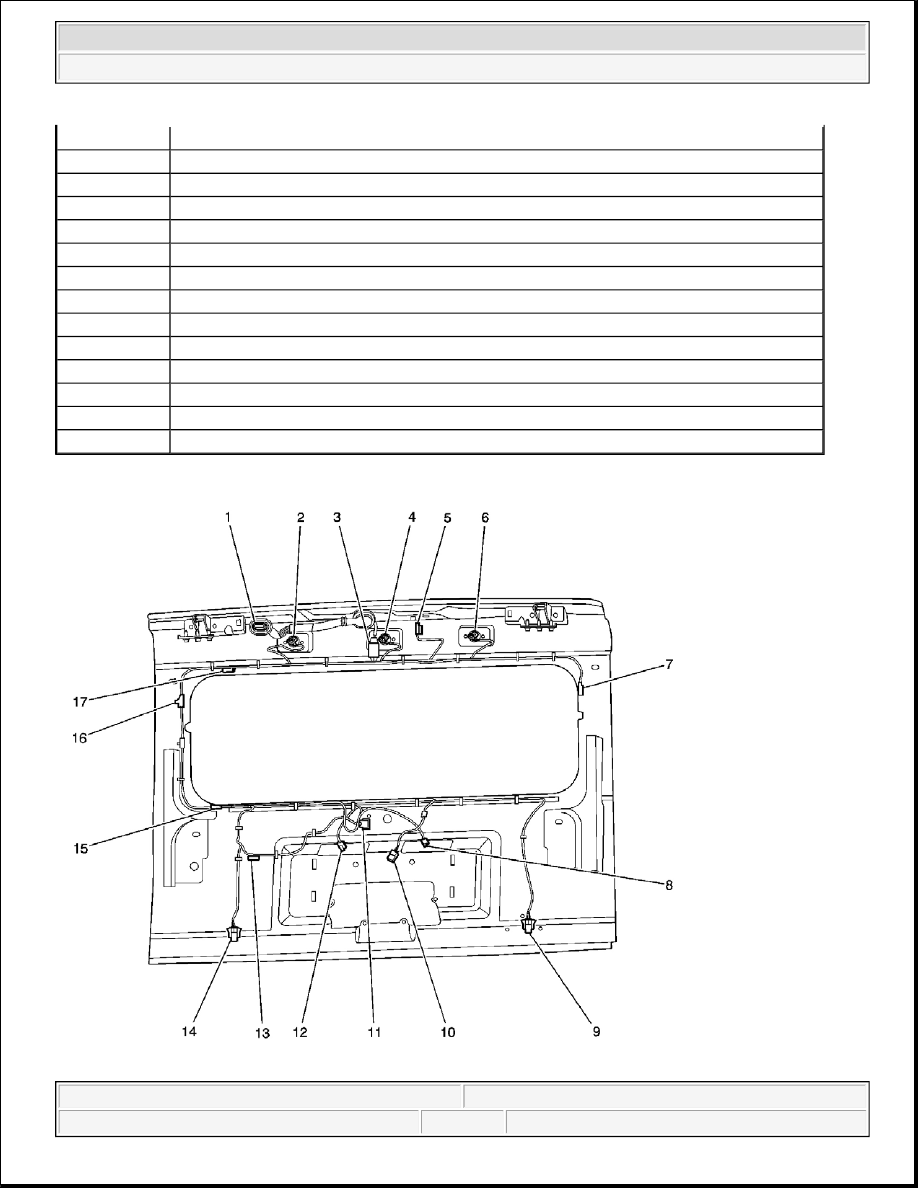

Fig. 74: Liftgate Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 74

Callout

Component Name

1

C420

2

Roof Lamp - Right Rear Connector

3

C900

4

Roof Lamp - Center Connector

5

CHMSL

6

Roof Lamp - Left Rear Connector

7

Rear Window Defogger Grid - Left Connector

8

License Lamp Connector

9

Liftgate Ajar Switch - Left Connector

10

Door Lock Actuator - Liftgate Connector

11

Rear Window Wiper Motor Connector

12

License Lamp Connector

13

S902

14

Liftgate Ajar Switch - Right Connector

15

S901

16

Defogger Grid - Right Connector

17

S900



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



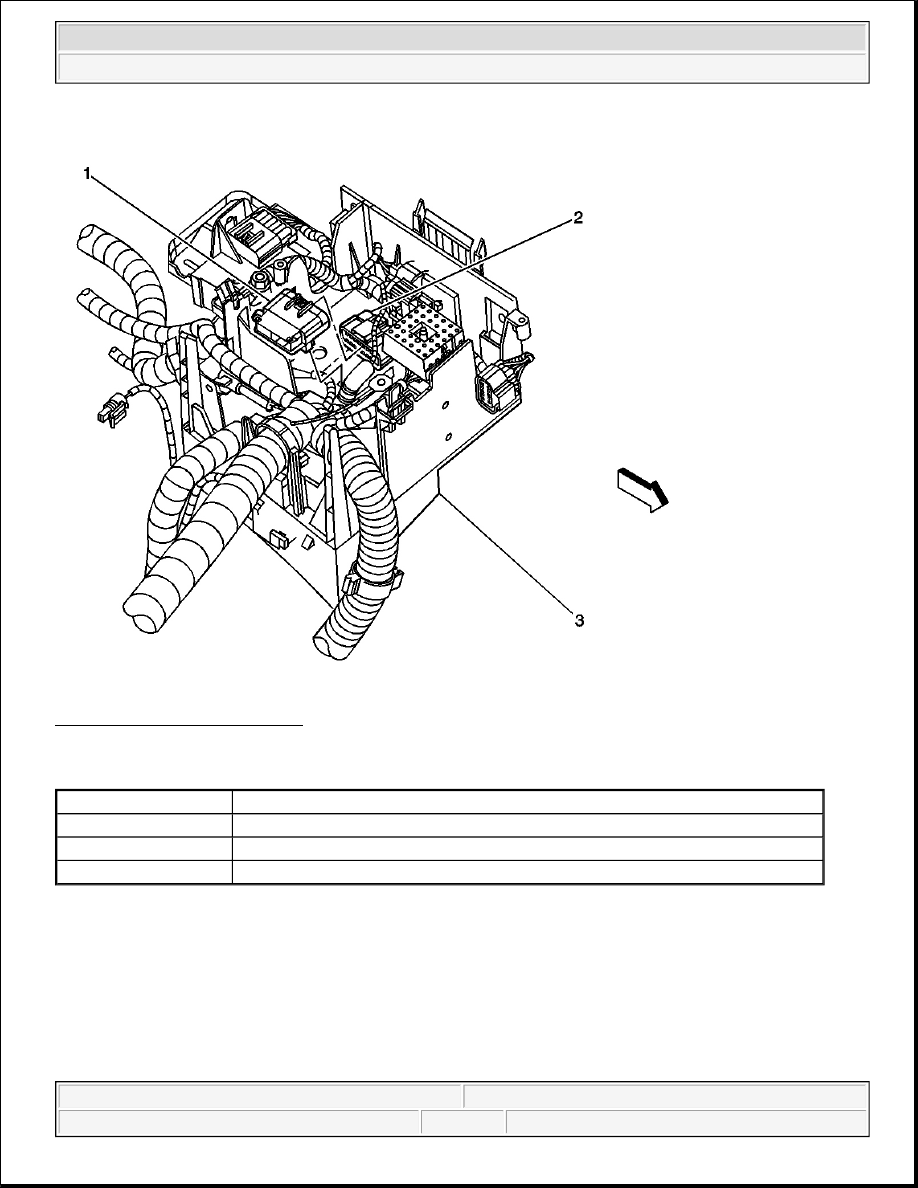

Fig. 75: C100 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 75

Callout

Component Name

1

C100 - Engine Harness Side

2

C100 - IP Harness Side

3

Fuse Block - Underhood



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



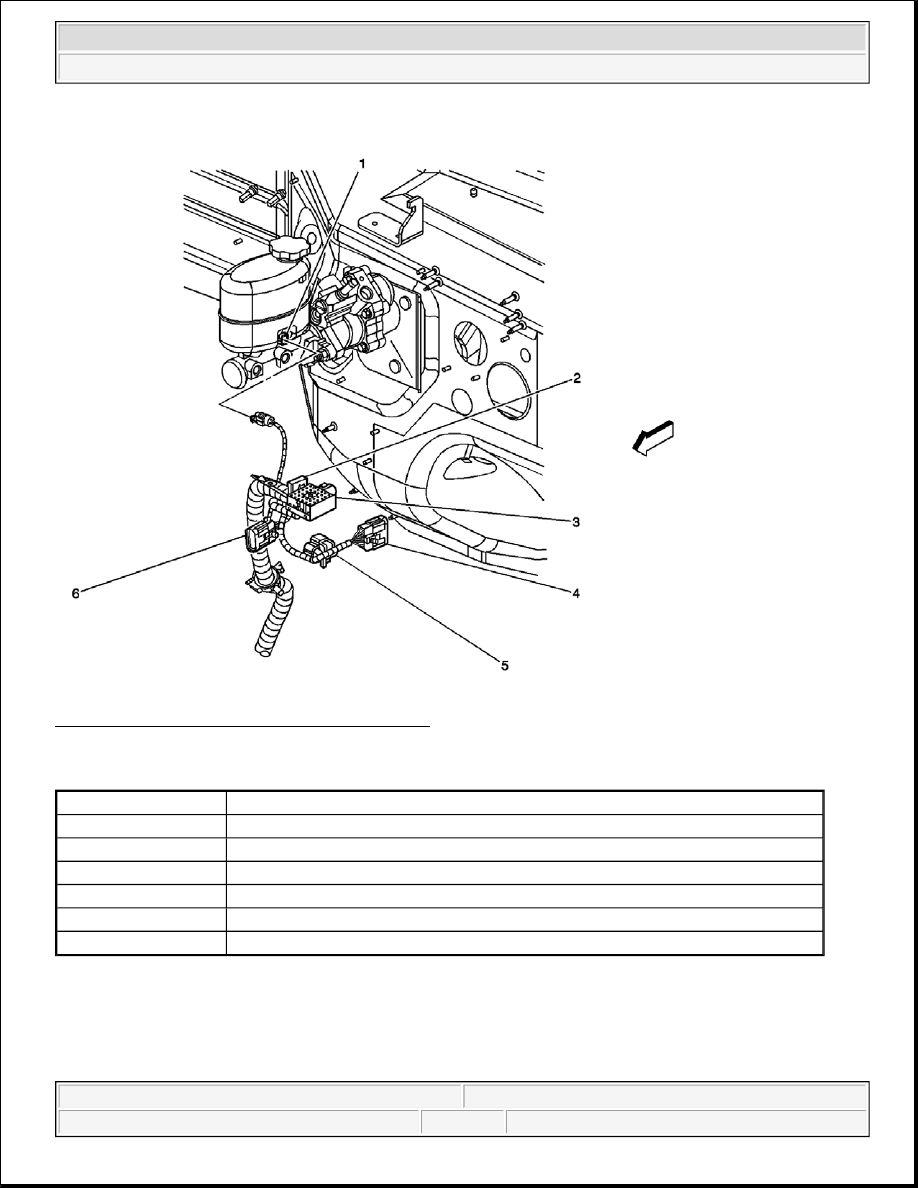

Fig. 76: C101, C104 and C106 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 76

Callout

Component Name

1

Brake Fluid Level Switch

2

Fuse Block - Underhood - C9

3

Fuse Block - Underhood - C3

4

C101 - Chassis Harness Side

5

C106 - Chassis Harness Side

6

C104 - Chassis Harness Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
