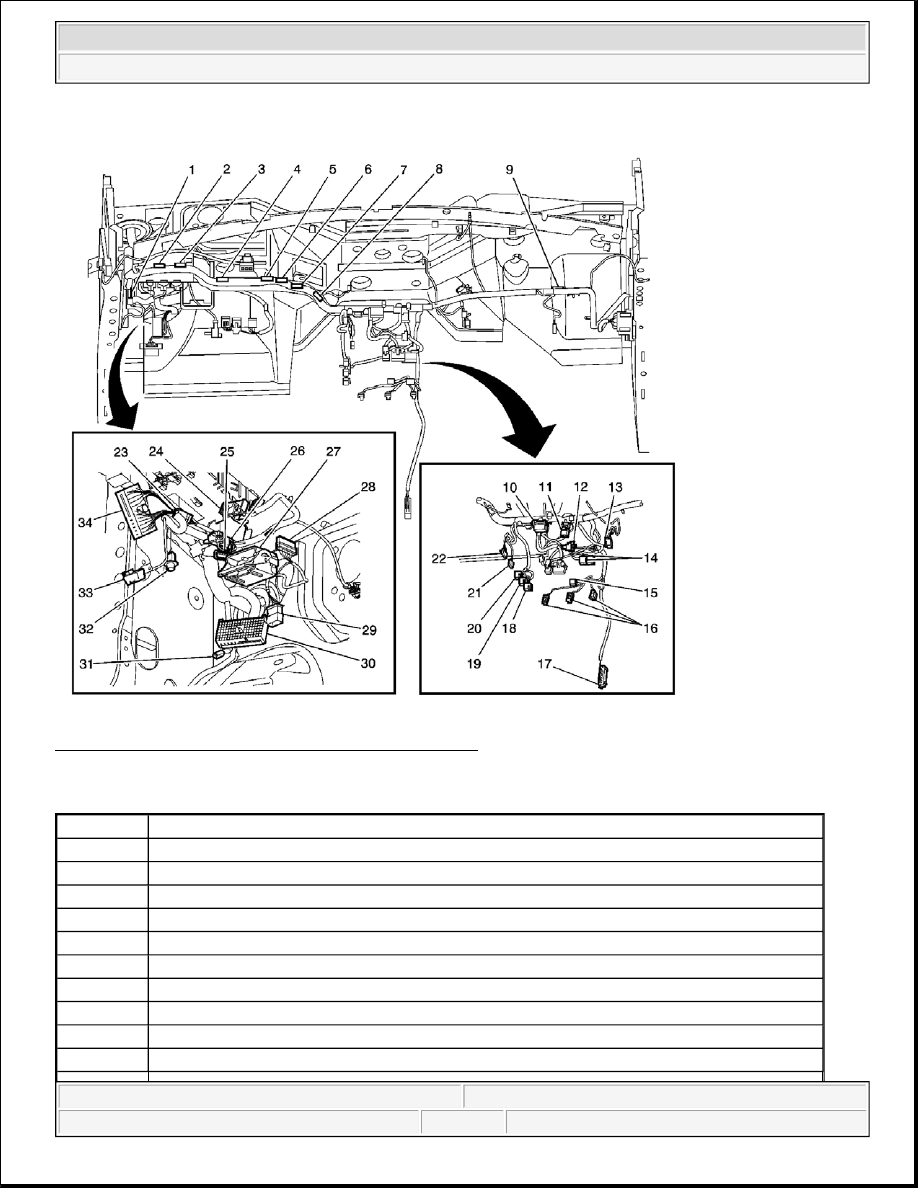

Fig. 69: I/P Harness Routing Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 69

Callout

Component Name

1

Splice S217

2

Splice S210

3

Splice S211

4

Splice S212

5

Splice S213

6

Splice S214

7

Splice S216

8

Splice S215

9

Splice S290

10

Radio C1 Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Radio C2 Connector

12

Longitudinal Accelerometer Connector

13

Inflatable Restraint I/P Module Disable Switch Connector

14

Vehicle Communication Interface Module (VCIM) Connectors

15

OnStar(R) Button Assembly Connector

16

Accessory Power Outlet/Cigar Lighter Connectors

17

C298 I/P to Body Harness

18

Ride Height Switch Connector

19

Tow/Haul Switch Connector

20

Traction Control Switch Connector

21

Transfer Case Shift Control Switch C2 Connector

22

Transfer Case Shift Control Switch C1 Connector

23

Splice Pack SP205

24

Transfer Case Shift Control Module Connectors

25

C203 I/P to Steering Column Harness

26

Splice Pack SP206

27

C202 I/P to Steering Column Harness

28

Stop Lamp Switch Connector

29

C210 I/P to Headliner Harness

30

Relay Block I/P C1

31

Park Brake Switch Connector

32

Footwell Courtesy Lamp - Left

33

Data Link Connector (DLC)

34

Fuse Block - I/P C1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



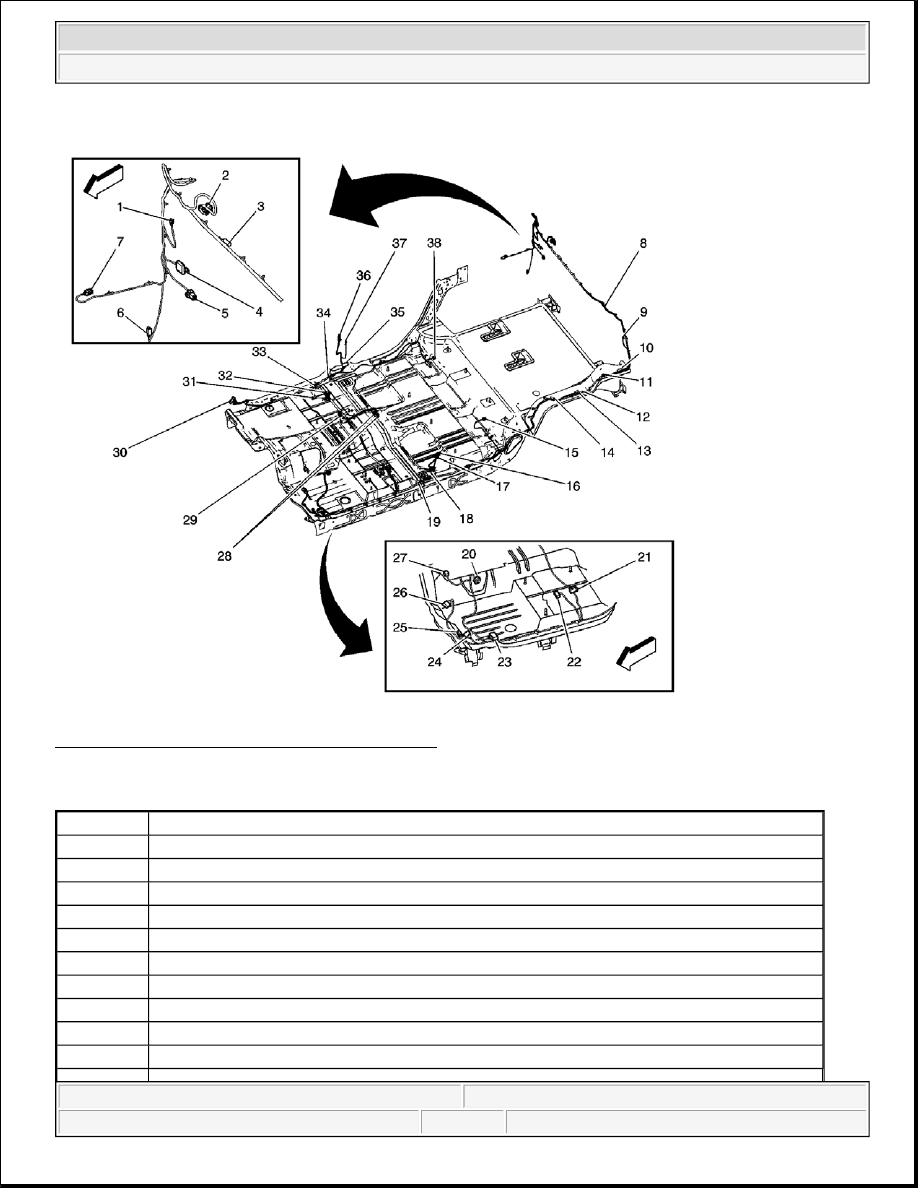

Fig. 70: Body Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 70

Callout

Component Name

1

Speaker Right D Pillar Twiddler Connector

2

C420

3

S480

4

Splice Pack SP410

5

Door Lock Switch Rear Cargo Connector

6

Accessory Power Outlet - Rear Connector

7

Marker Lamp-RR Connector

8

Clearance Lamp - RR Connector

9

Speaker - Left D Pillar Twiddler Connector

10

S411



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Marker Lamp - LR Connector

12

S412

13

C312 (C69)

14

S307 (C69)

15

C320 (ZM6)

16

G302

17

C310

18

Courtesy Lamp Right B Pillar Connector

19

S390

20

Fuse Block - I/P C4

21

C325 (ZM6)

22

Inflatable Restraint Sensing and Diagnostic Module Connector

23

Splice Pack SP207

24

C200

25

C201

26

Relay Block - I/P C10

27

Body Control Module (BCM) - C6

28

Audio Amplifier Connectors

29

C355

30

C298

31

G304

32

C375

33

Liftgate Door Lock Relay

34

S310

35

Courtesy Lamp Left B Pillar Connector

36

C390

37

G306

38

C380
