Callouts For Fig. 66

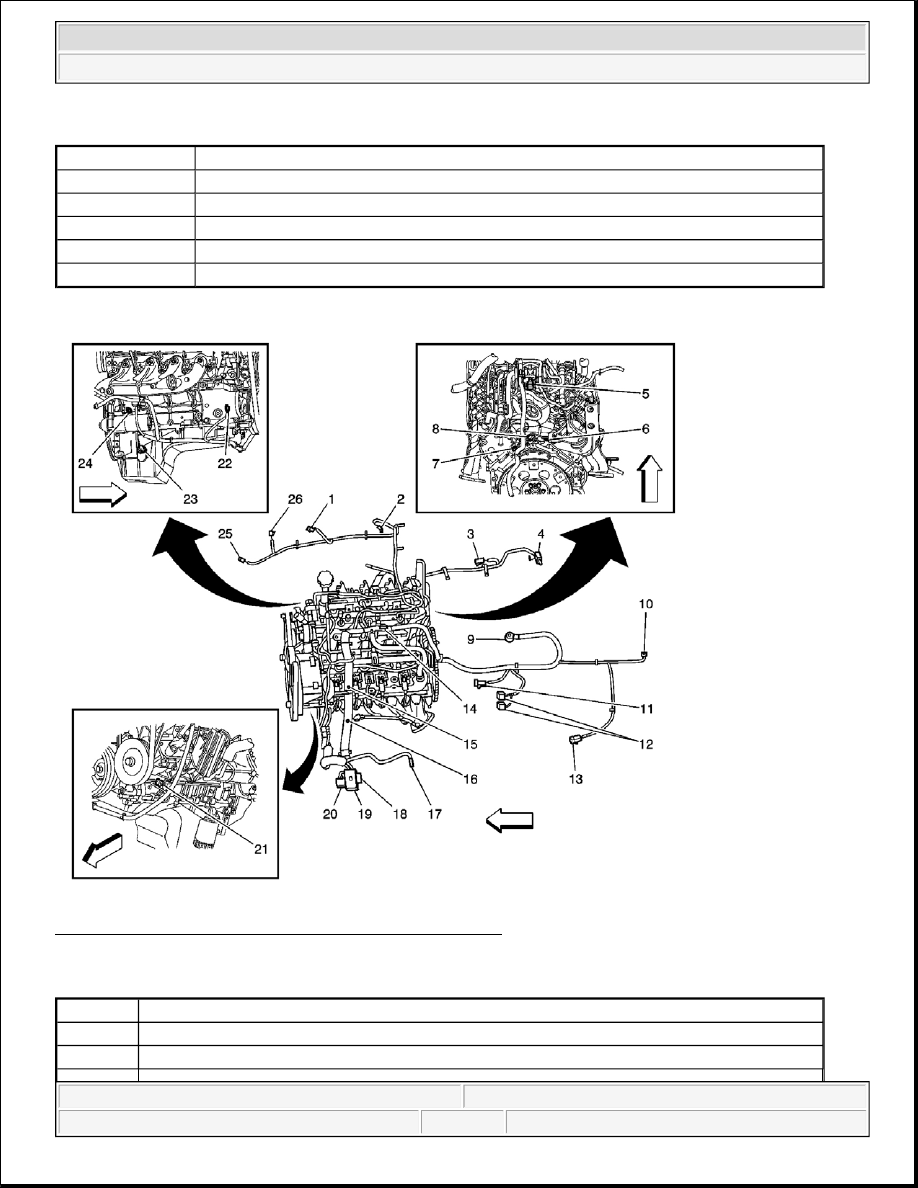

Fig. 67: Engine Harness Routing Component Views (6.0L)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 67

Callout

Component Name

1

Fuse Block - Underhood Center Block

2

Fuse Block - Underhood-C4 (GRN)

3

C103 - I/P Harness Side

4

Forward Lamp Harness

5

C103-Forward Lamp Harness Side

Callout

Component Name

1

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector

2

A/C Low Pressure Switch Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



3

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector

4

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector

5

Manifold Absolute Pressure (MAP) Sensor Connector

6

G103

7

G104

8

Camshaft Position (CMP) Sensor Connector

9

C175

10

Vehicle Speed Sensor (VSS) Connector

11

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector

12

Park/Neutral Position (PNP) Switch Connector

13

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector

14

S102

15

S103

16

S104

17

Throttle Actuator Control (TAC) Assembly Connector

18

C100

19

Fuse Block - Underhood C2

20

C106

21

G102

22

A/C Compressor Clutch Connector

23

Engine Oil Level Switch Connector

24

Crankshaft Position (CKP) Sensor Connector

25

A/C Refrigerant Pressure Sensor Connector

26

Coolant Level Switch Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



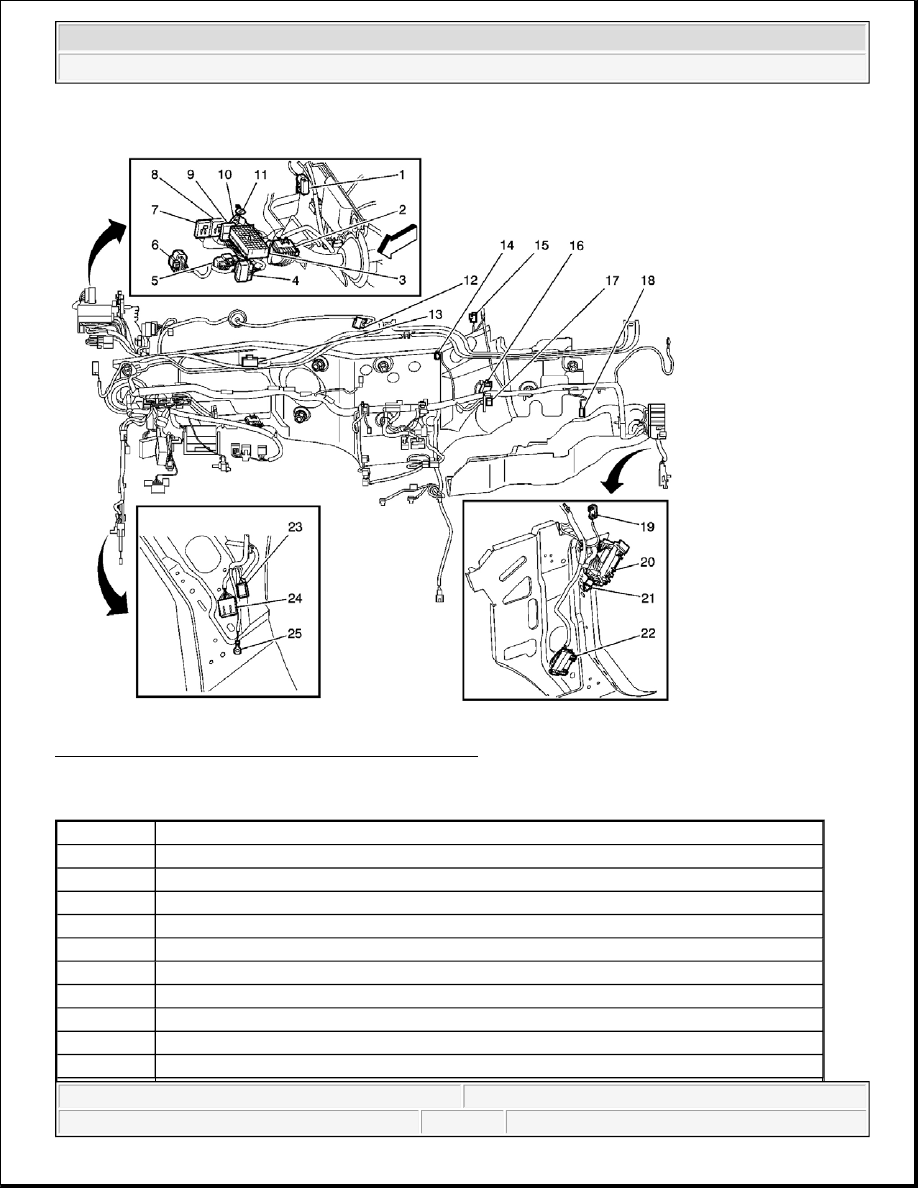

Fig. 68: I/P Harness Routing Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 68

Callout

Component Name

1

Throttle Actuator Control (TAC) Module Connector - C2

2

C102 I/P to Chassis Harness

3

Fuse Block - Underhood C1

4

C101 I/P to Chassis Harness

5

C100 I/P to Engine Harness

6

C103 I/P to Forward Lamp Harness

7

Fuse Block - Underhood C6

8

Fuse Block - Underhood C5

9

Fuse Block - Underhood C7

10

C104 I/P to Chassis Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Trailer Harness Feed

12

Windshield Wiper Motor and Module Connector

13

Instrument Panel Cluster (IPC) Connector

14

Air Temperature Sensor - Upper Right Connector

15

Ambient Light/Sunload Sensor Assembly Connector

16

Inflatable Restraint I/P Module Connector

17

Inflatable Restraint I/P Module Disable Switch Connector

18

I/P Compartment Lamp Connector

19

Speaker - RF Tweeter Connector

20

Junction Block - I/P

21

Courtesy Lamp - Right Footwell Connector

22

C298 I/P to Body Harness

23

C201 I/P to Body Harness

24

C200 I/P to Body Harness

25

G200
