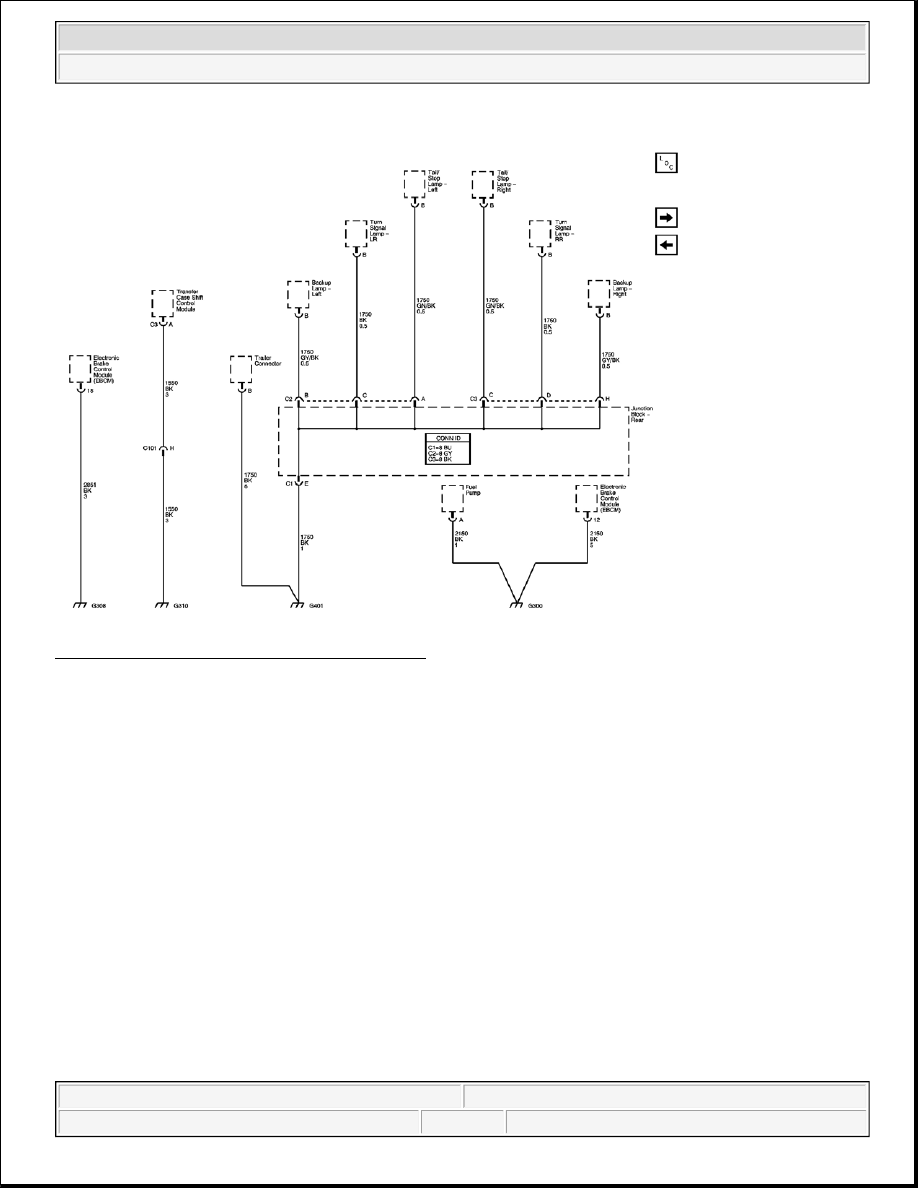

Fig. 63: G308, G310, G401, and G300 Schematic
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



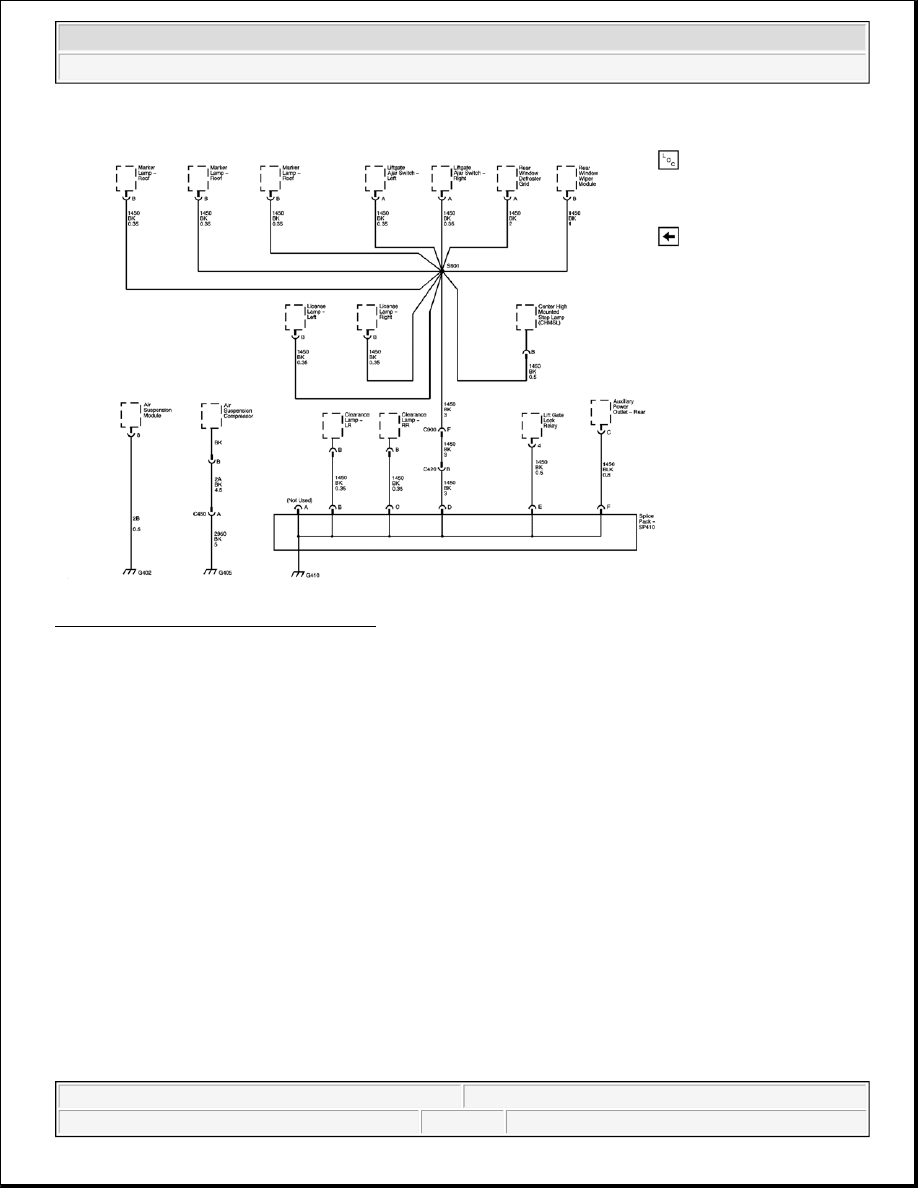

Fig. 64: G402, G405, and G410 Schematic
Courtesy of GENERAL MOTORS CORP.

HARNESS ROUTING COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



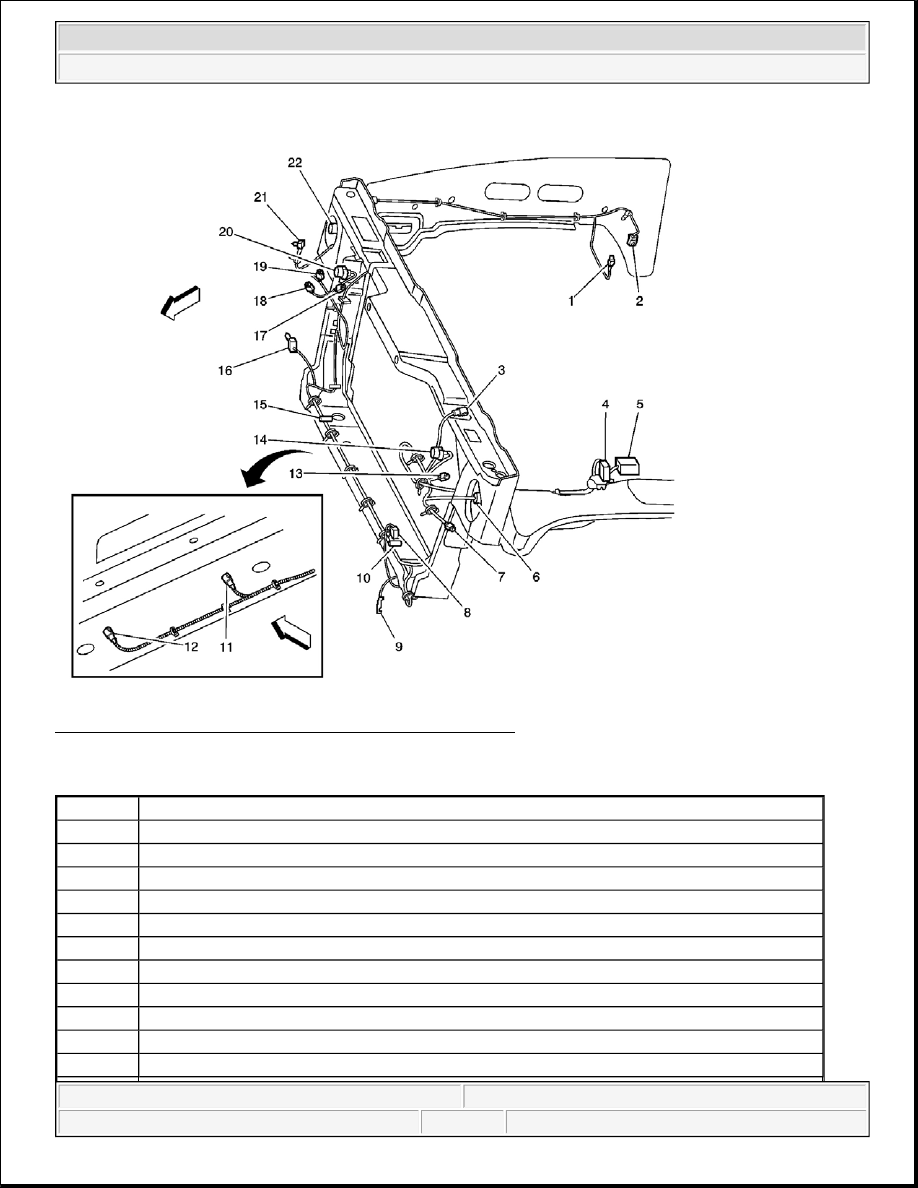

Fig. 65: Forward Lamp Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 65

Callout

Component Name

1

Washer Fluid Level Sensor Connector

2

Windshield Washer Fluid Pump Connector (Reversible)

3

Underhood Lamp Inline (If Equipped)

4

C103

5

Fuse Block - Underhood C4

6

Park/Turn Signal Lamp Connector - LF

7

Marker Lamp Connector - LF

8

Daytime Running Lamp (DRL) Connector - Left

9

G100

10

S101

11

Inflatable Restraint Front End Discriminating Sensor Connector - Left



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



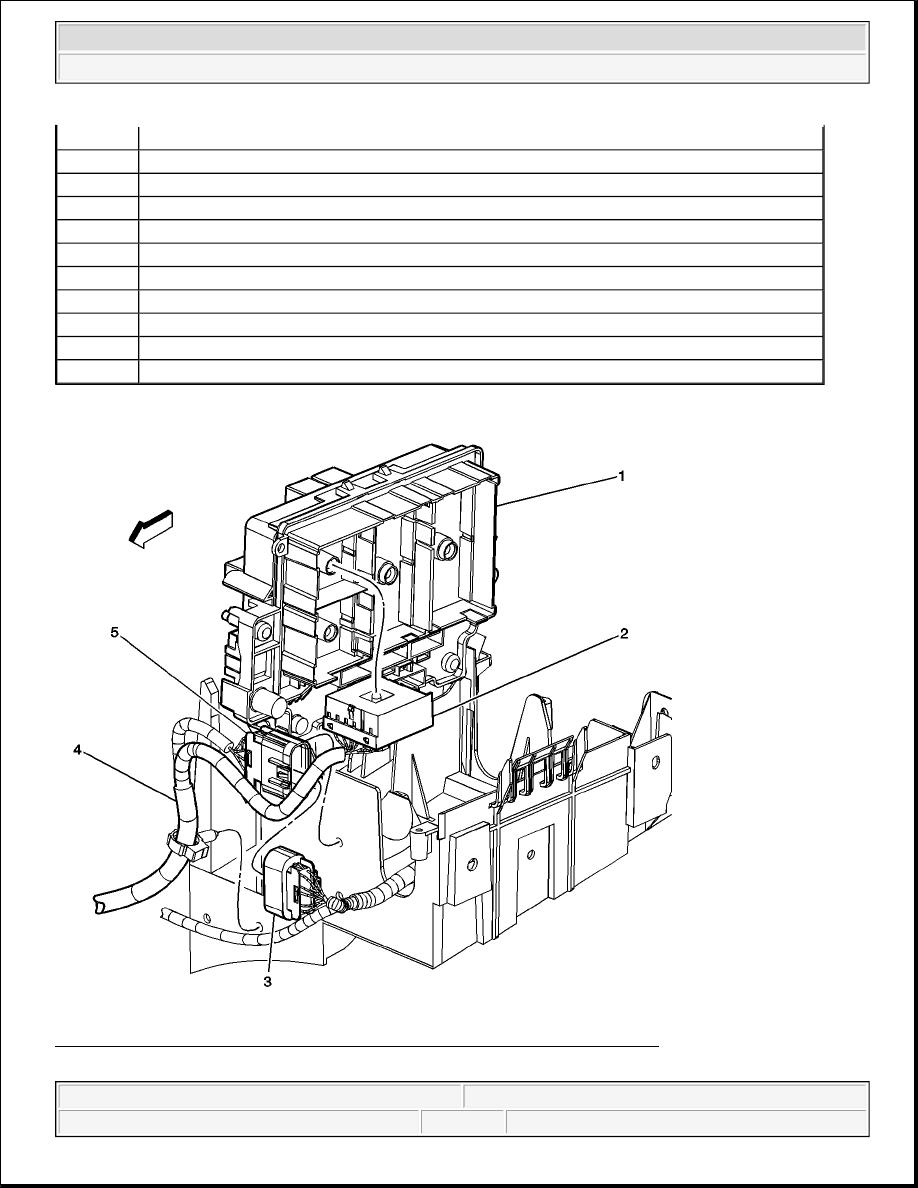

Fig. 66: Forward Lamp Harness to Fuse Block - Underhood Component Views
Courtesy of GENERAL MOTORS CORP.

12

Inflatable Restraint Front End Discriminating Sensor Connector - Right

13

Horn Connector - Left

14

Headlamp Connector - Left

15

S100

16

Daytime Running Lamp (DRL) Connector - Right

17

Horn Connector - Right

18

Ambient Air Temperature Sensor Connector - HVAC

19

Ambient Air Temperature Sensor Connector - Mirror

20

Headlamp Connector - Right

21

Marker Lamp Connector - Right

22

Park/Turn Signal Lamp Connector - RF
