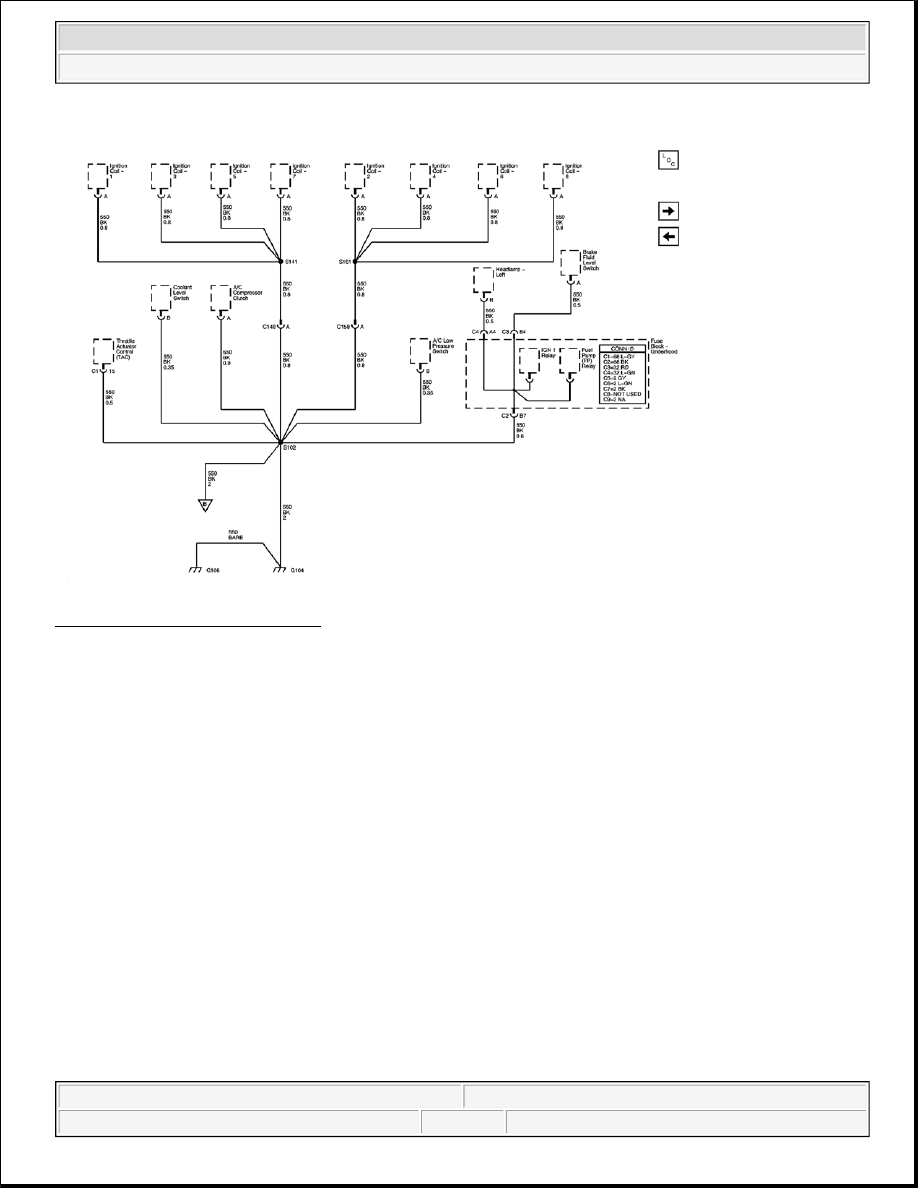

Fig. 55: BRAKE, 4WD, CRUISE, HVAC 1, and IGN 3 Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

GROUND DISTRIBUTION SCHEMATICS

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

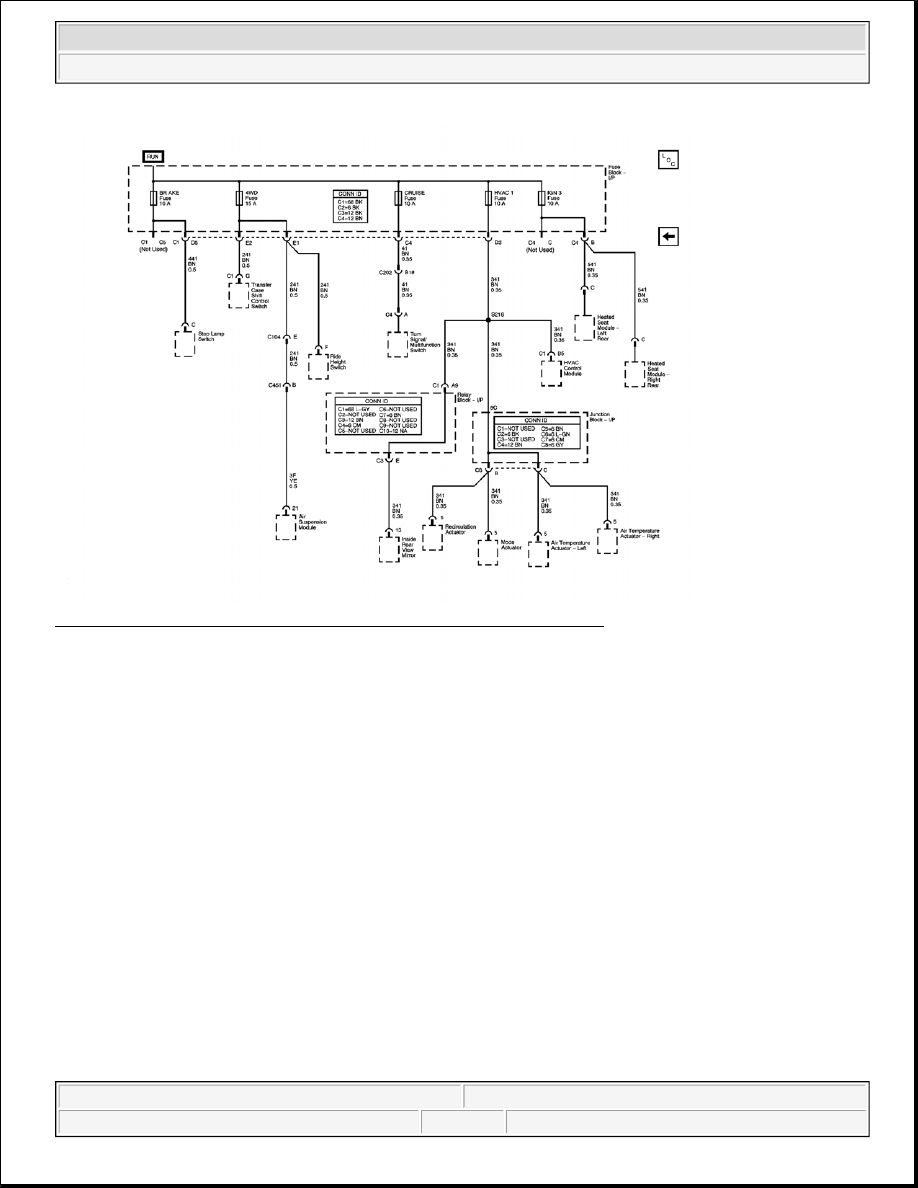

Fig. 56: G100 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

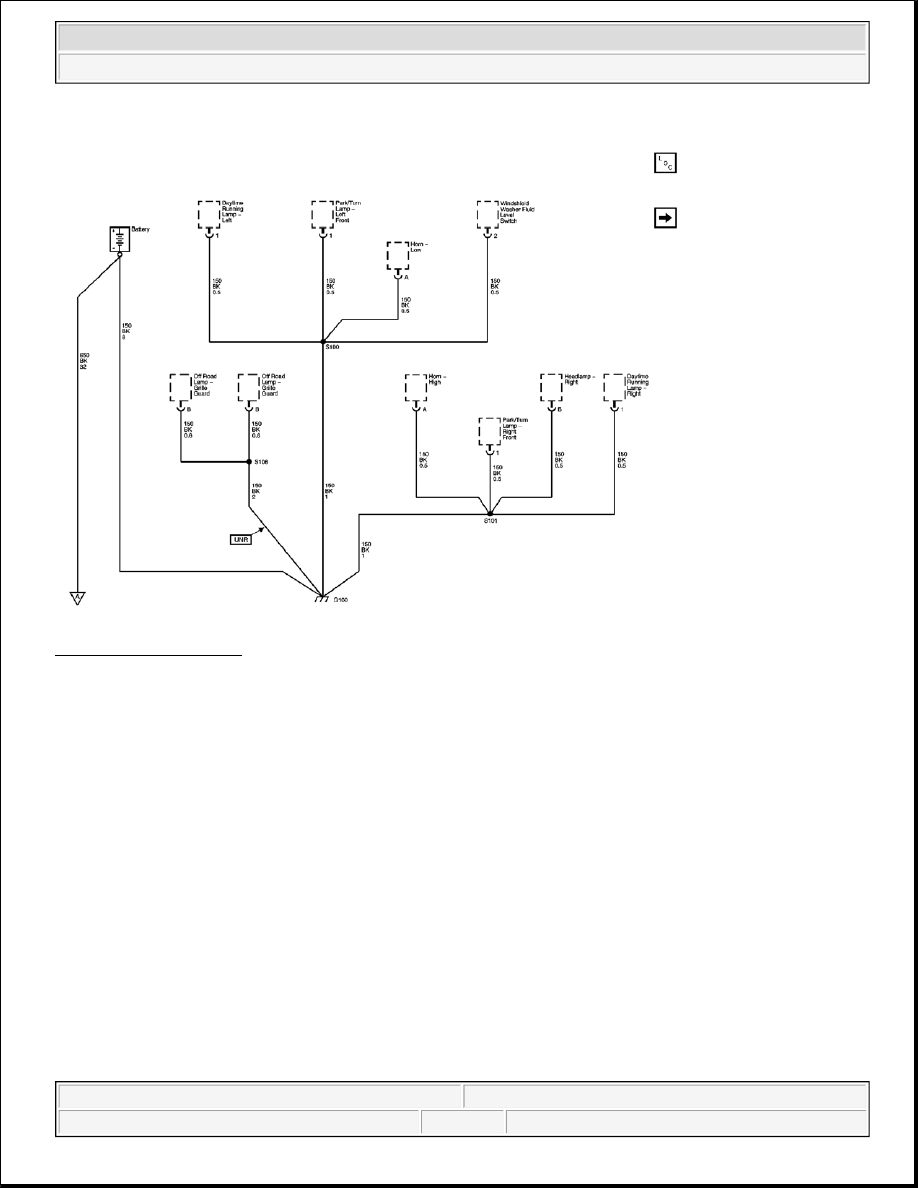

Fig. 57: G102 and G103 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

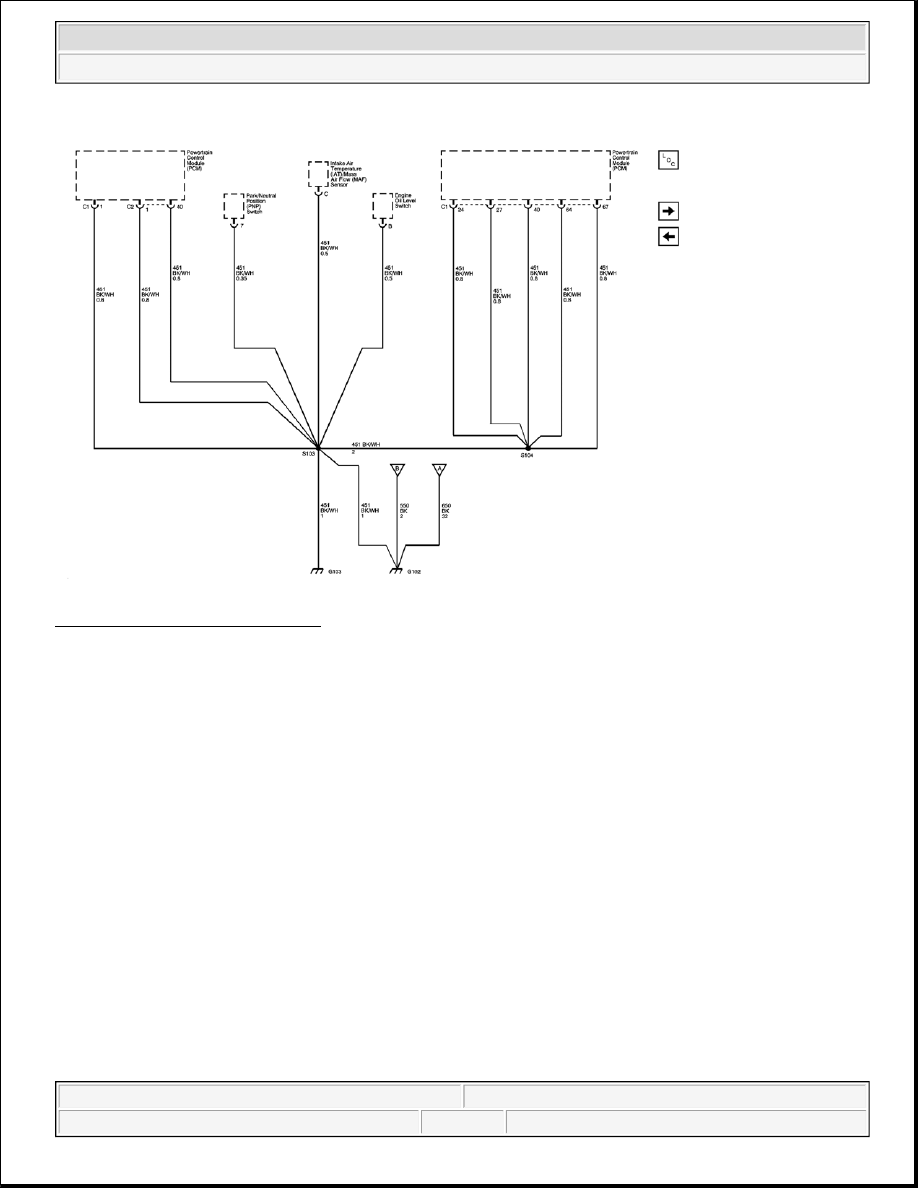

Fig. 58: G104 and G106 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2
