Hummer H2. Manual - part 1358

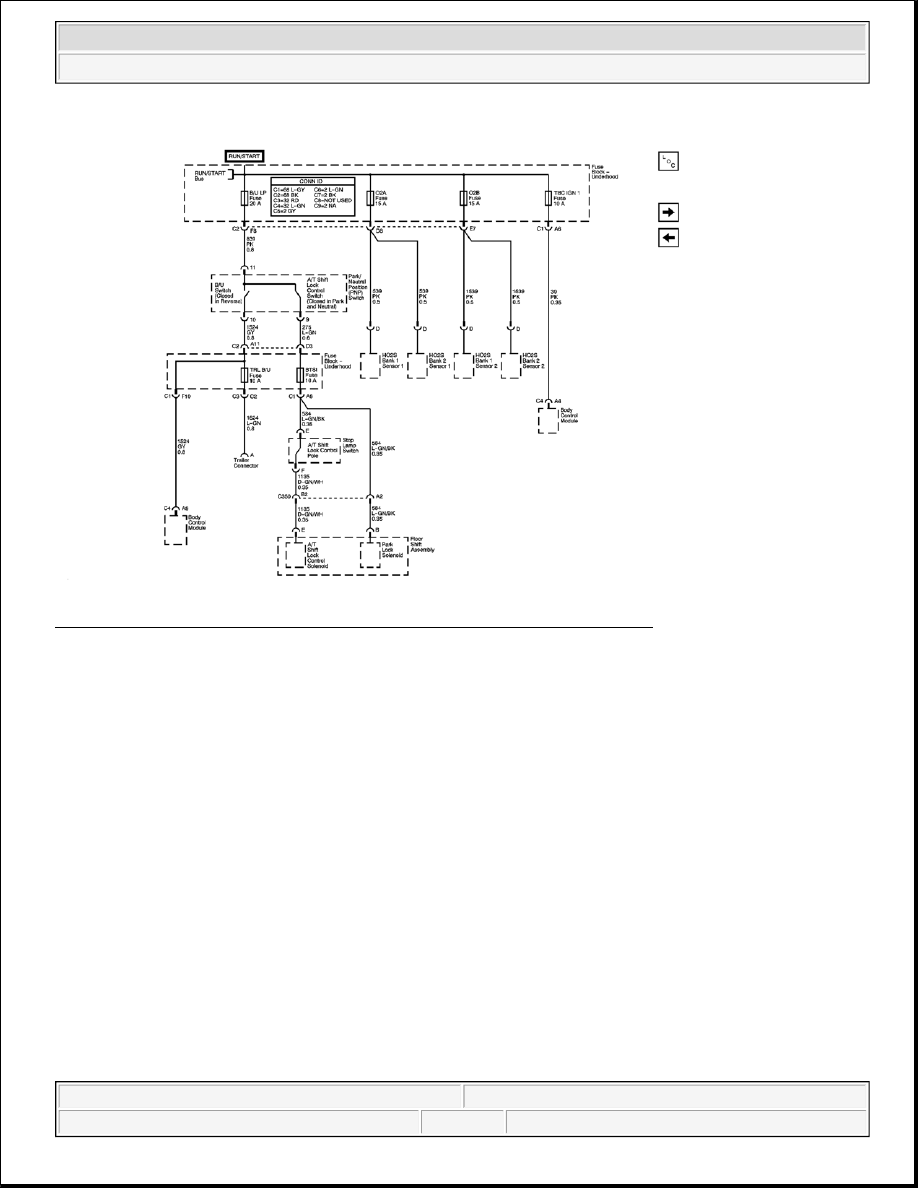

Fig. 51: B/U LP, O2A, O2B, TBC IGN1, TRL B/U, and BTSI Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

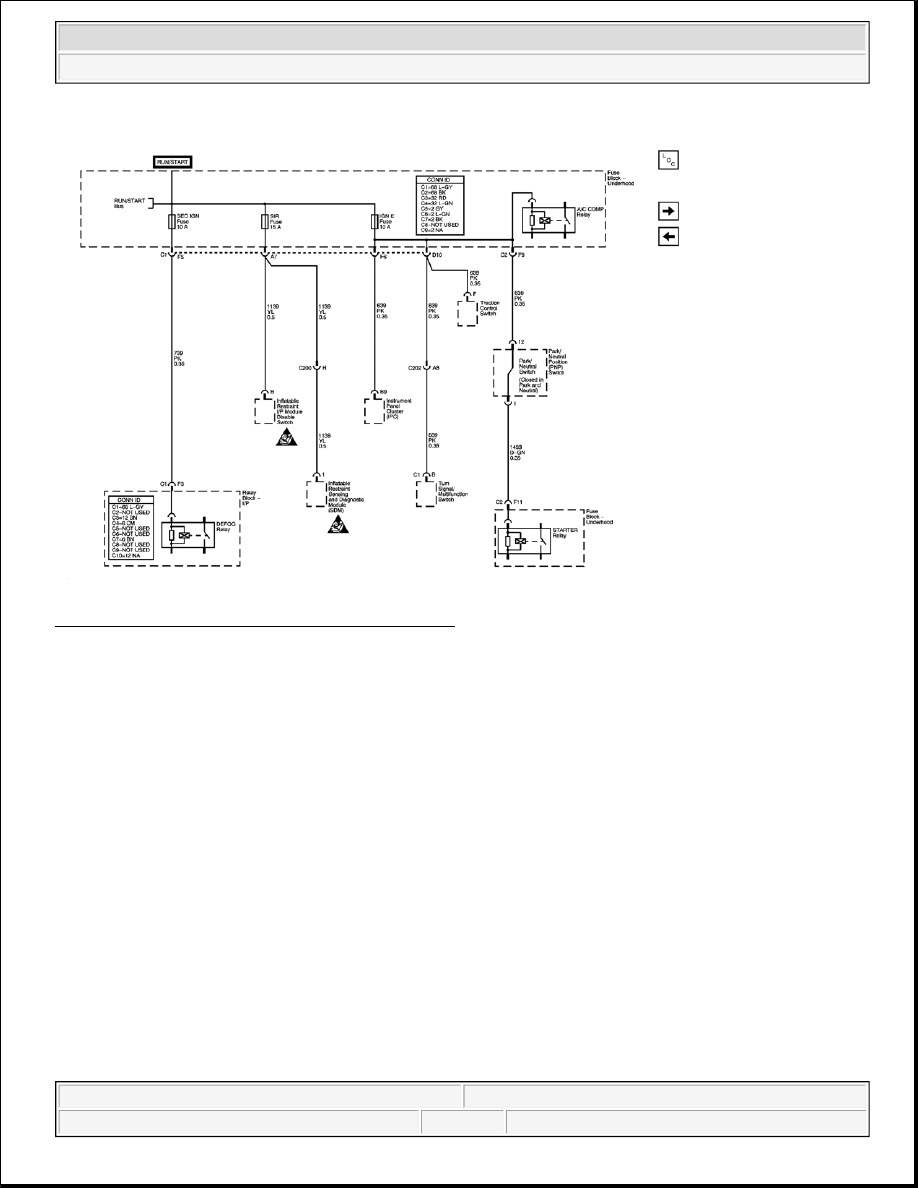

Fig. 52: SEO IGN, SIR, and IGN E Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

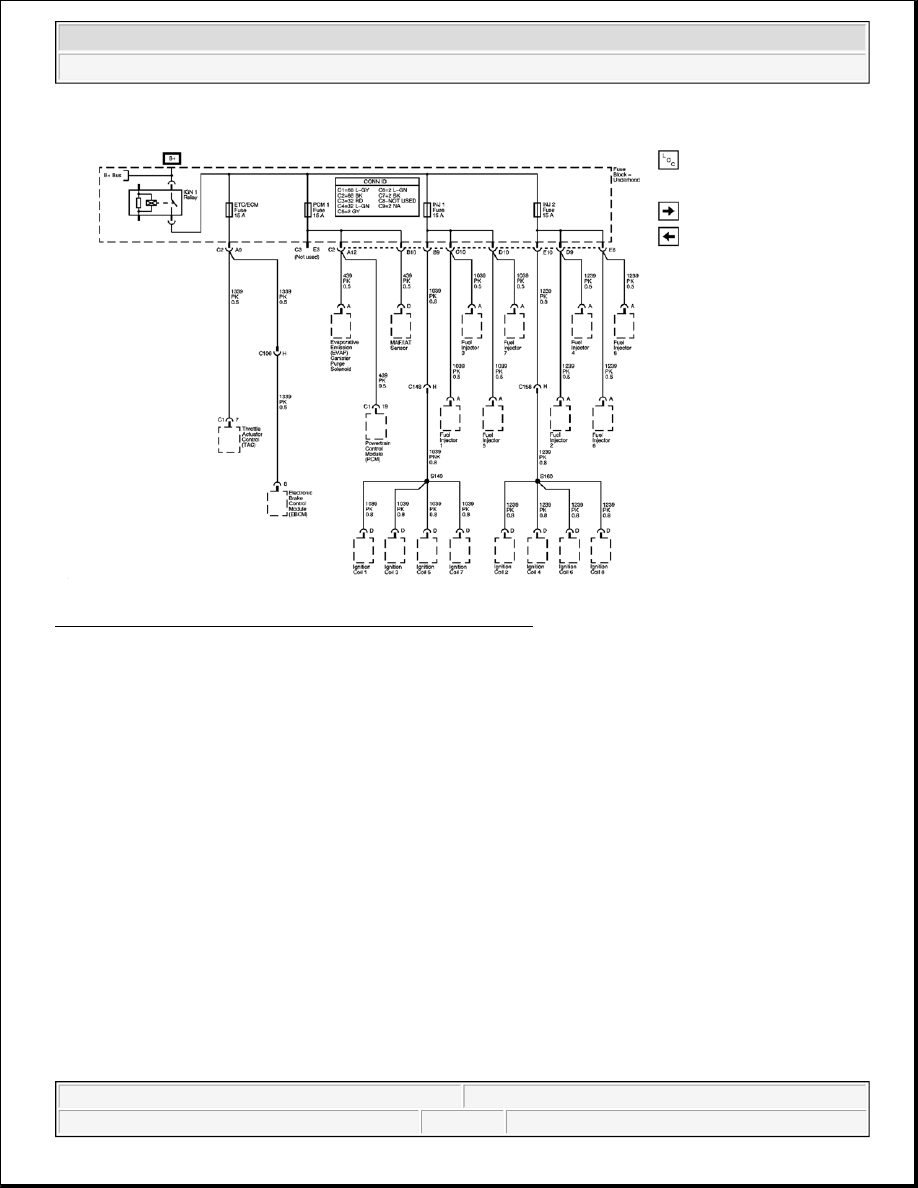

Fig. 53: ECT/ECM, PCM 1, INJ 1, and INJ 2 Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

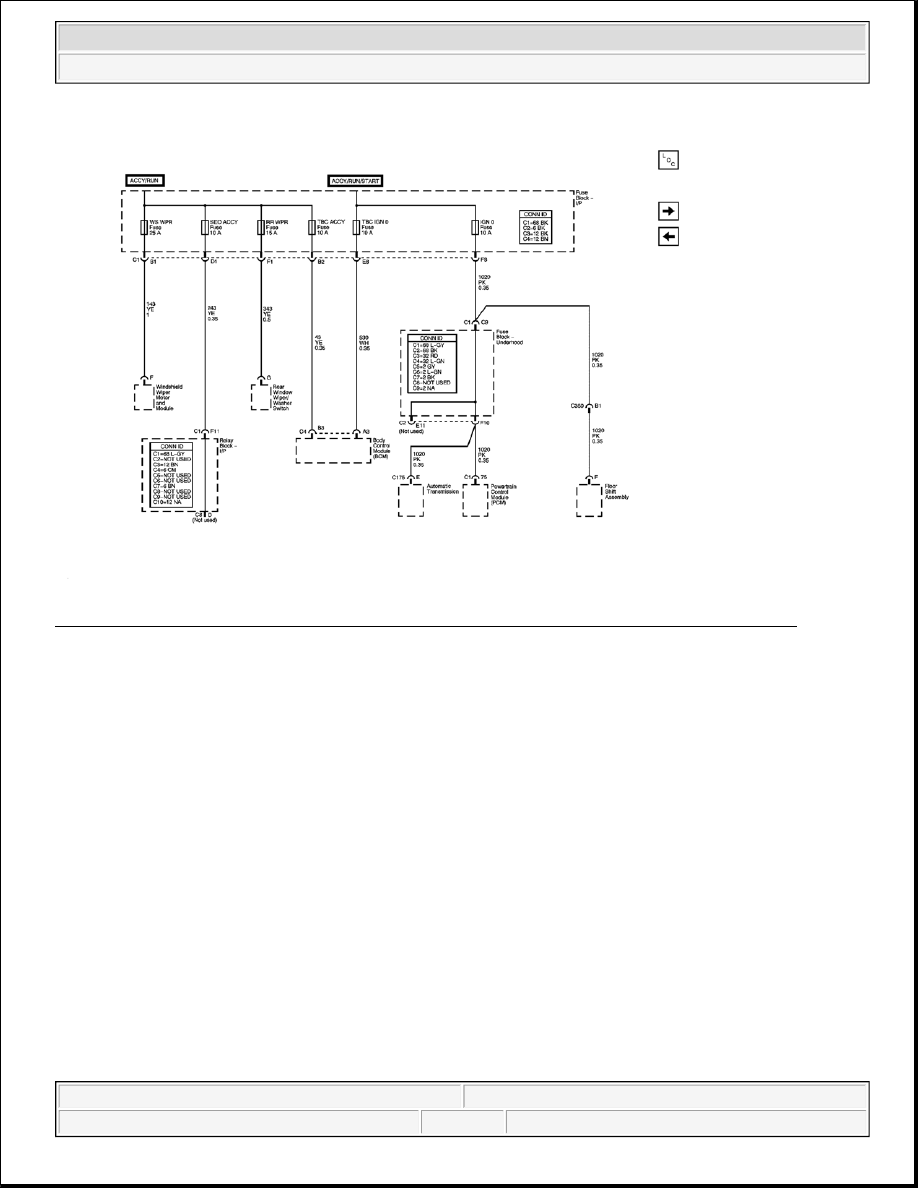

Fig. 54: WS WPR, SEO ACCY, RR WPR, TBC ACCY, TBC IGN 0, and IGN 0 Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
