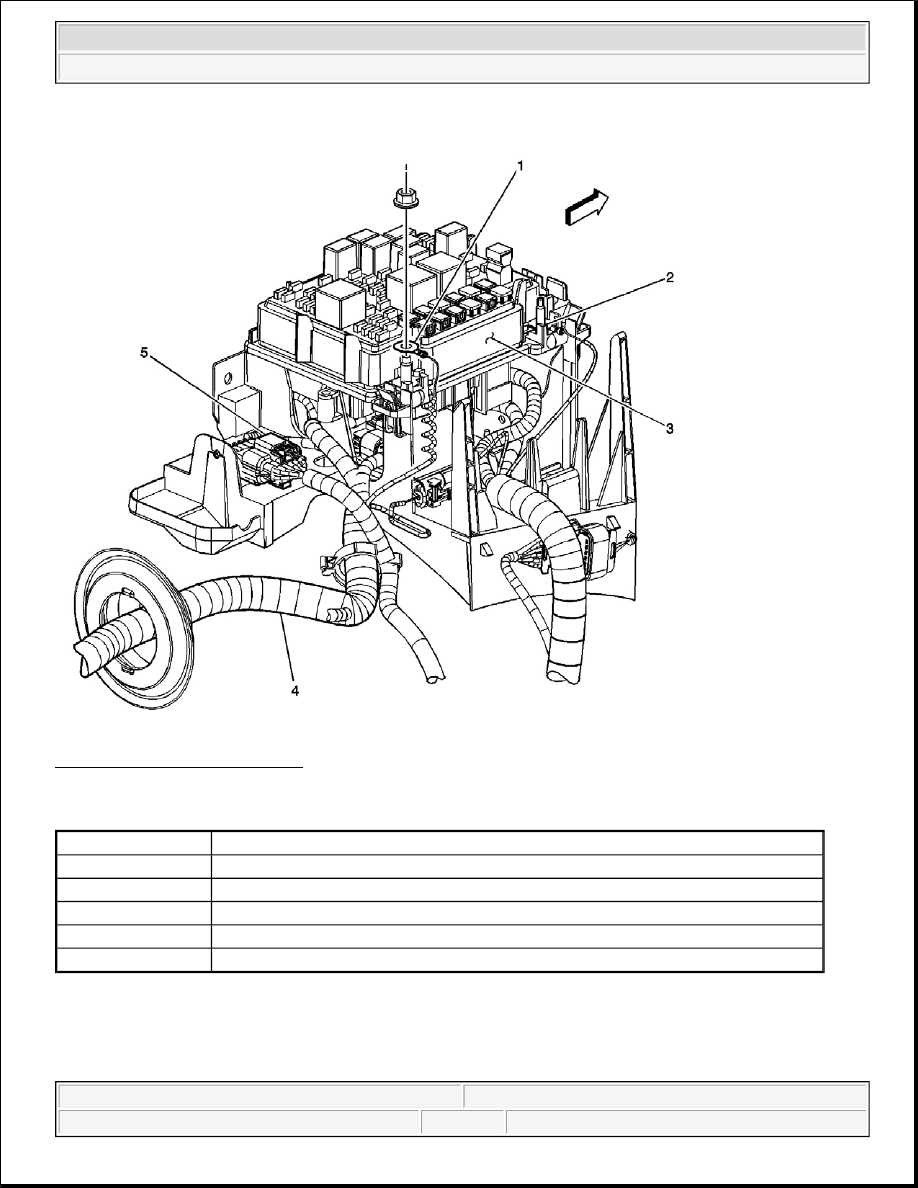

Fig. 77: C102 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 77

Callout

Component Name

1

Stud 2 - Trailer Lead Power Feed

2

Stud 1

3

Fuse Block - Underhood

4

IP Harness

5

C102



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



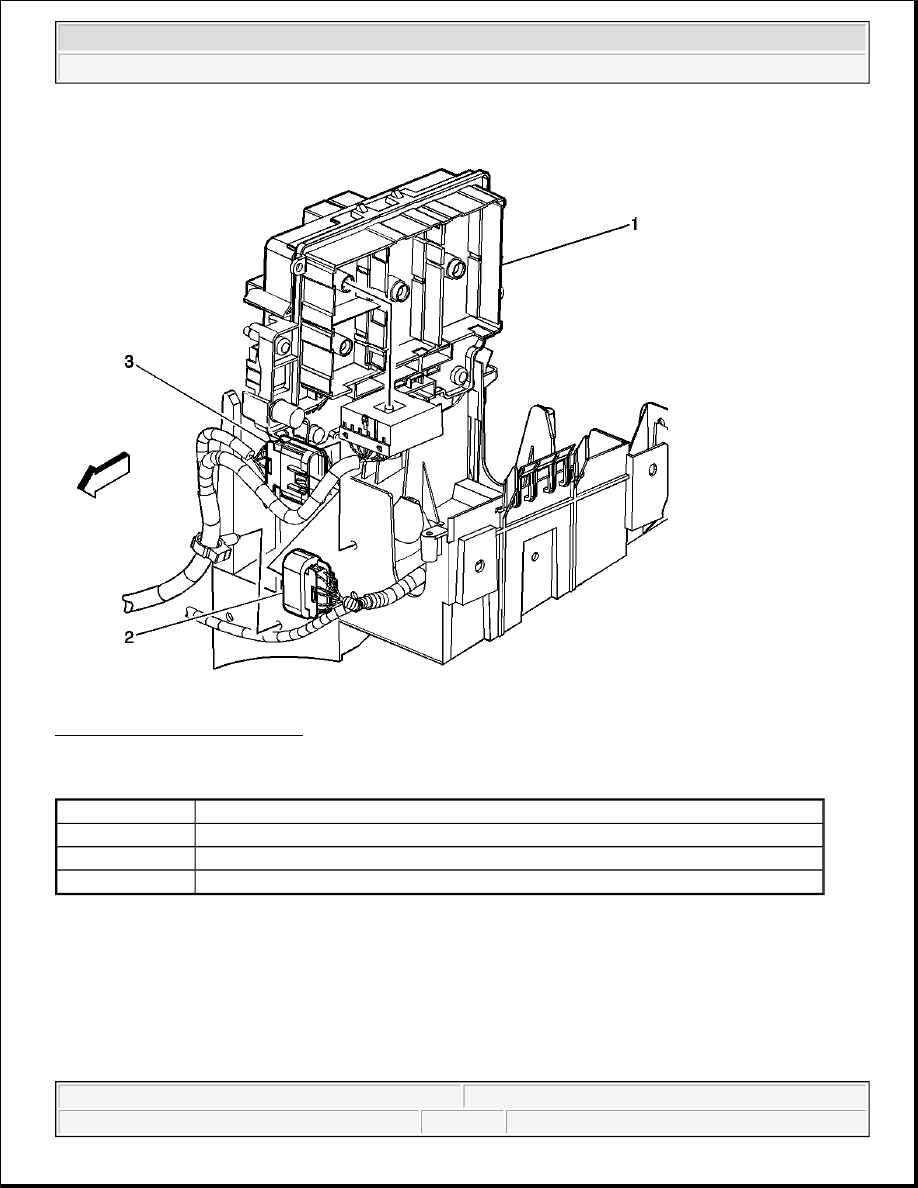

Fig. 78: C103 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 78

Callout

Component Name

1

Fuse Block - Underhood Center Block

2

C103 - I/P Harness Side

3

C103 - Forward Lamp Harness Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 79: C105 and C106 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 79

Callout

Component Name

1

Fuse Block - Underhood Bracket

2

C106 - Chassis to Engine

3

Engine Harness

4

Chassis Harness

5

C105 - Chassis to I/P



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 80: C115 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 80

Callout

Component Name

1

MAP Sensor

2

Knock Sensor Pigtail

3

C115-Knock Sensors Inline

4

Engine Harness
