Hummer H2. Manual - part 1373

Fig. 105: S304 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 105

1

S302

2

S305

3

S301

4

Headliner Harness

5

Sunroof Relay

Callout

Component Name

1

S304

2

G300

3

Chassis Harness

4

Electronically Controlled Air Suspension Relay



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



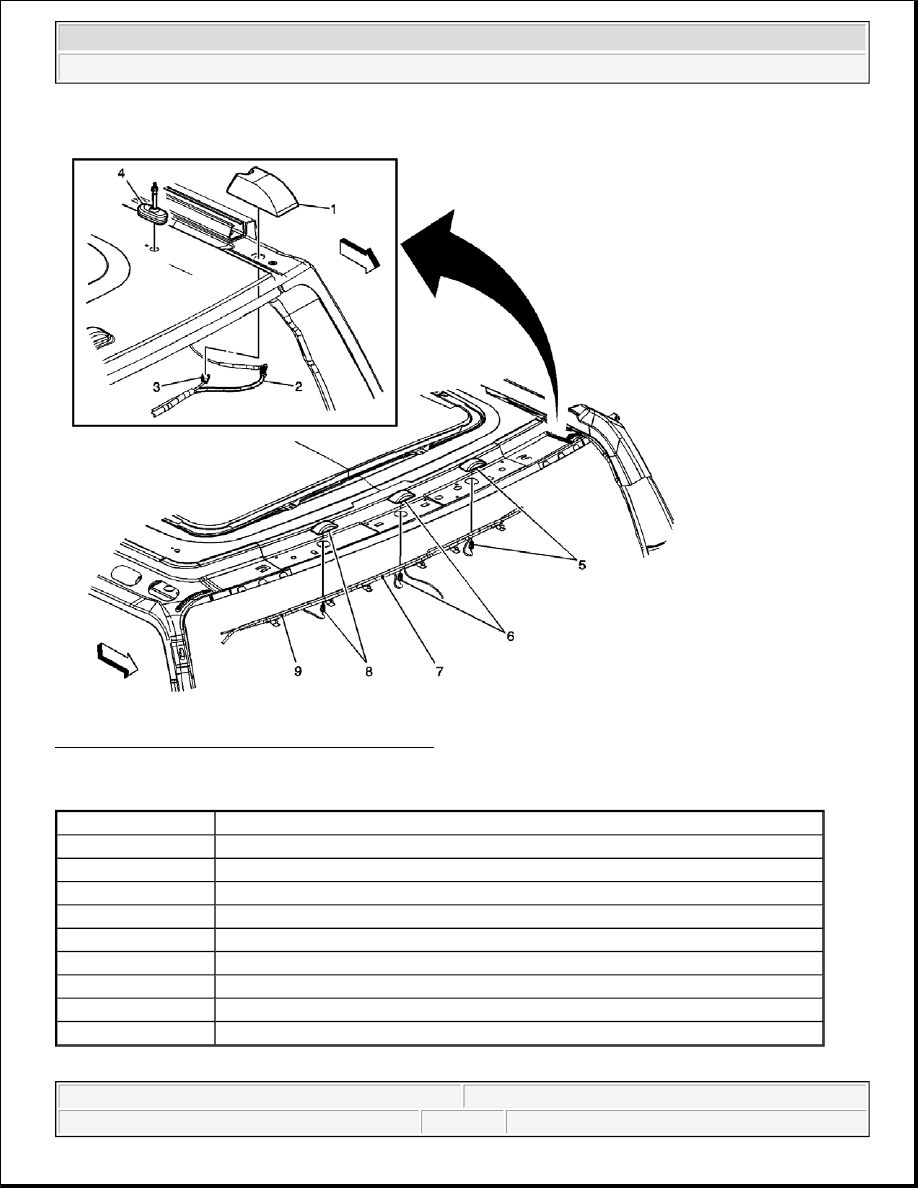

Fig. 106: Splice S303 and S345 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 106

Callout

Component Name

1

Clearance Lamp - LF

2

Roof Marker Lamp Harness

3

Clearance Lamp Connector - LF

4

Cell Phone/GPS Antenna

5

Roof Lamp - Center Front

6

Roof Lamp - Center Front

7

Splice S345

8

Roof Lamp - Center Front

9

Splice S303



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 107: Splices S350 and S351 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 107

Callout

Component Name

1

Console Harness

2

Floor Shifter

3

S350

4

S351



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 108: S391 and S392 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 108

Callout

Component Name

1

Fuel Tank Pressure (FTP) Sensor Connector

2

Air Suspension Sensor Connector - RR

3

G308

4

S391

5

S392



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
