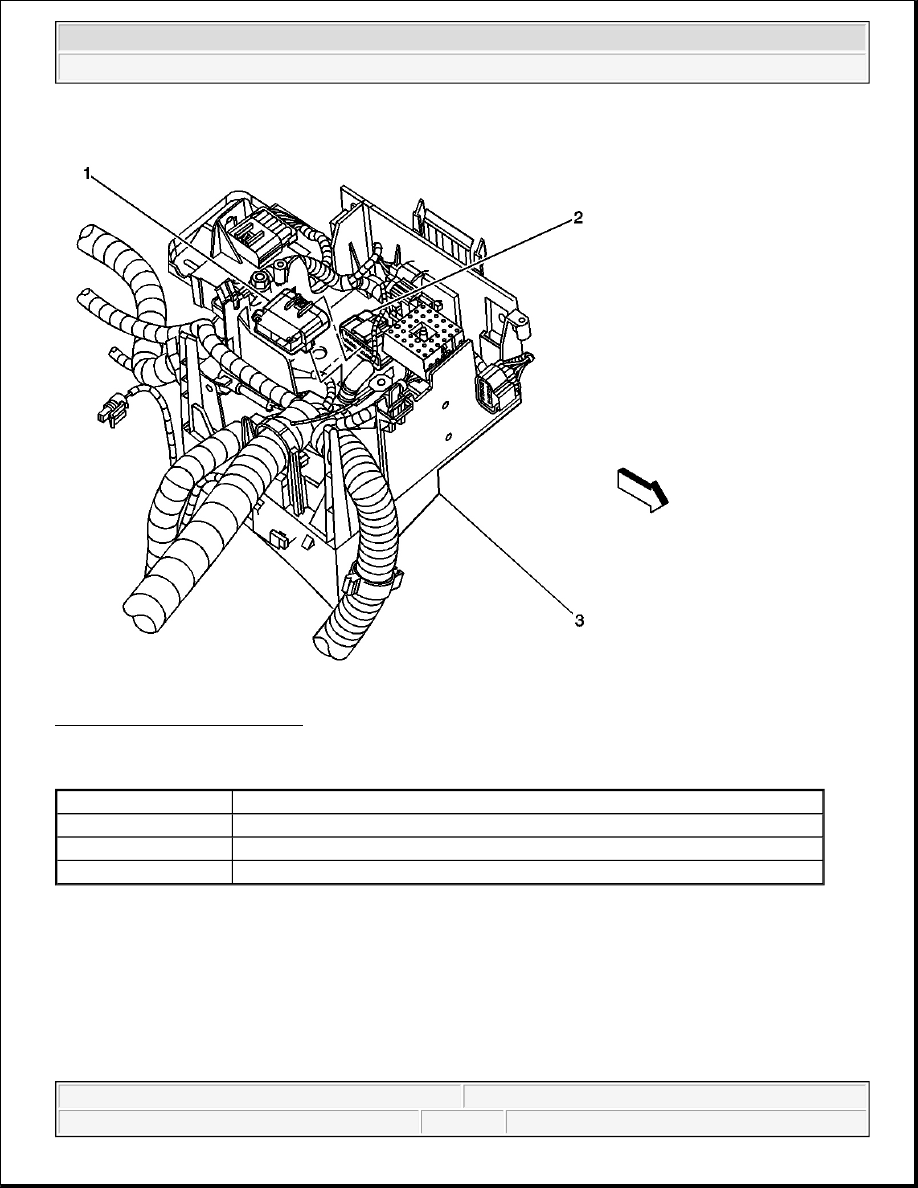

Fig. 75: C100 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 75

Callout

Component Name

1

C100 - Engine Harness Side

2

C100 - IP Harness Side

3

Fuse Block - Underhood



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



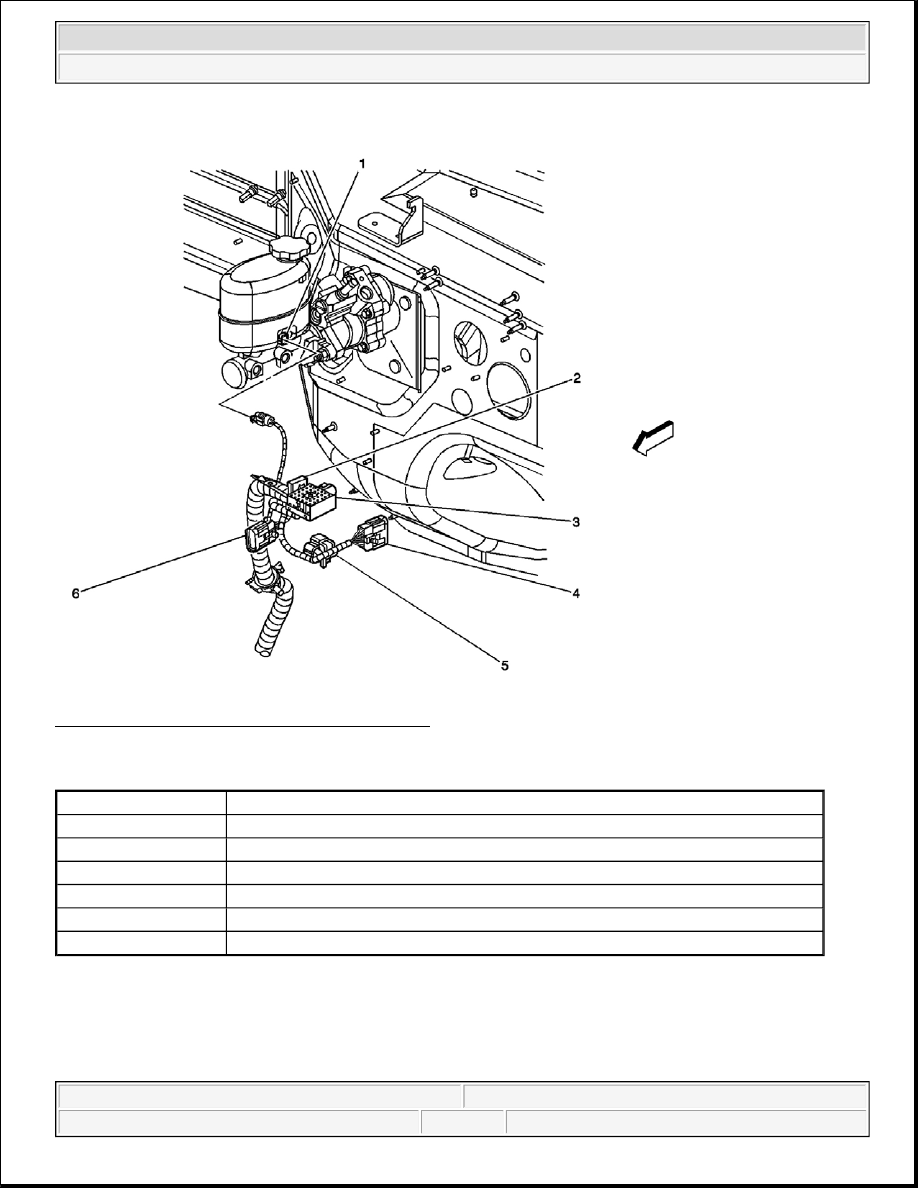

Fig. 76: C101, C104 and C106 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 76

Callout

Component Name

1

Brake Fluid Level Switch

2

Fuse Block - Underhood - C9

3

Fuse Block - Underhood - C3

4

C101 - Chassis Harness Side

5

C106 - Chassis Harness Side

6

C104 - Chassis Harness Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



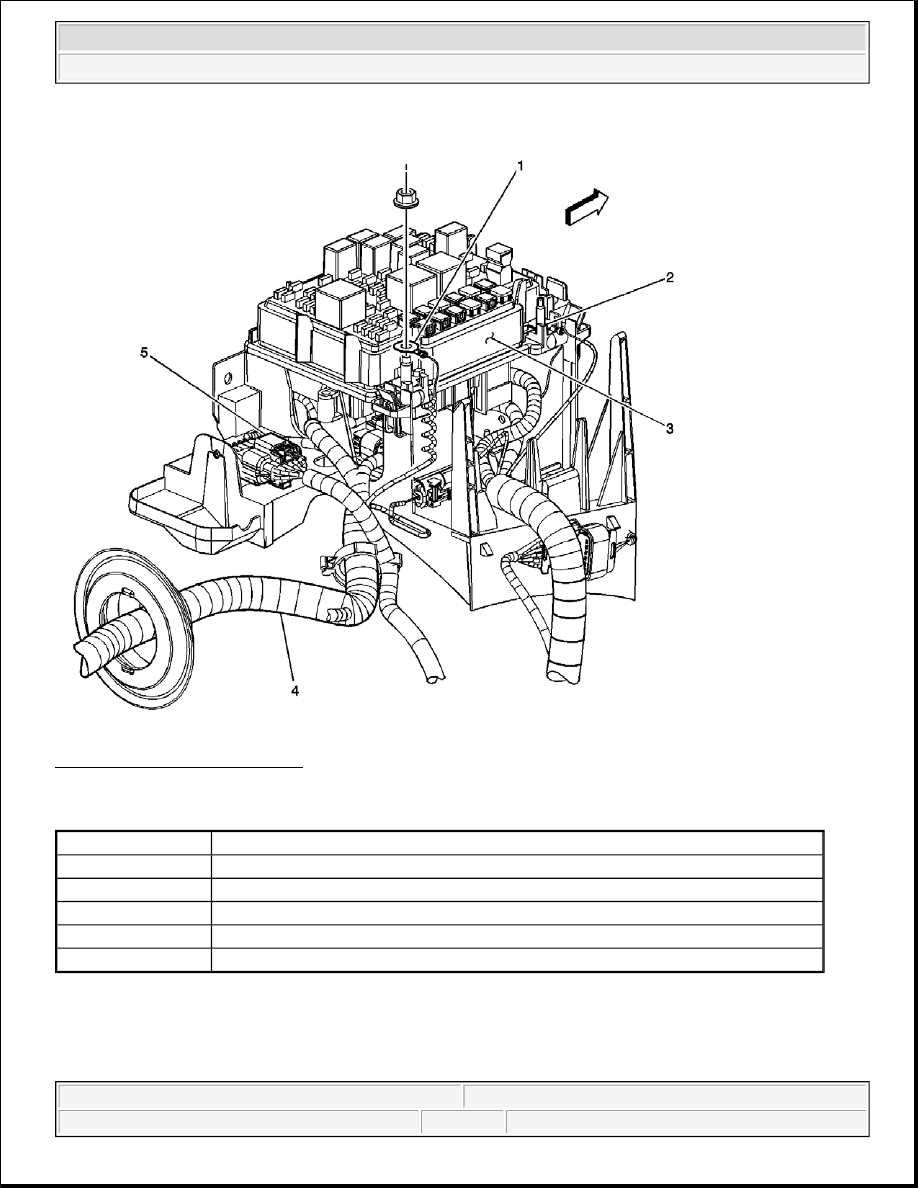

Fig. 77: C102 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 77

Callout

Component Name

1

Stud 2 - Trailer Lead Power Feed

2

Stud 1

3

Fuse Block - Underhood

4

IP Harness

5

C102



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



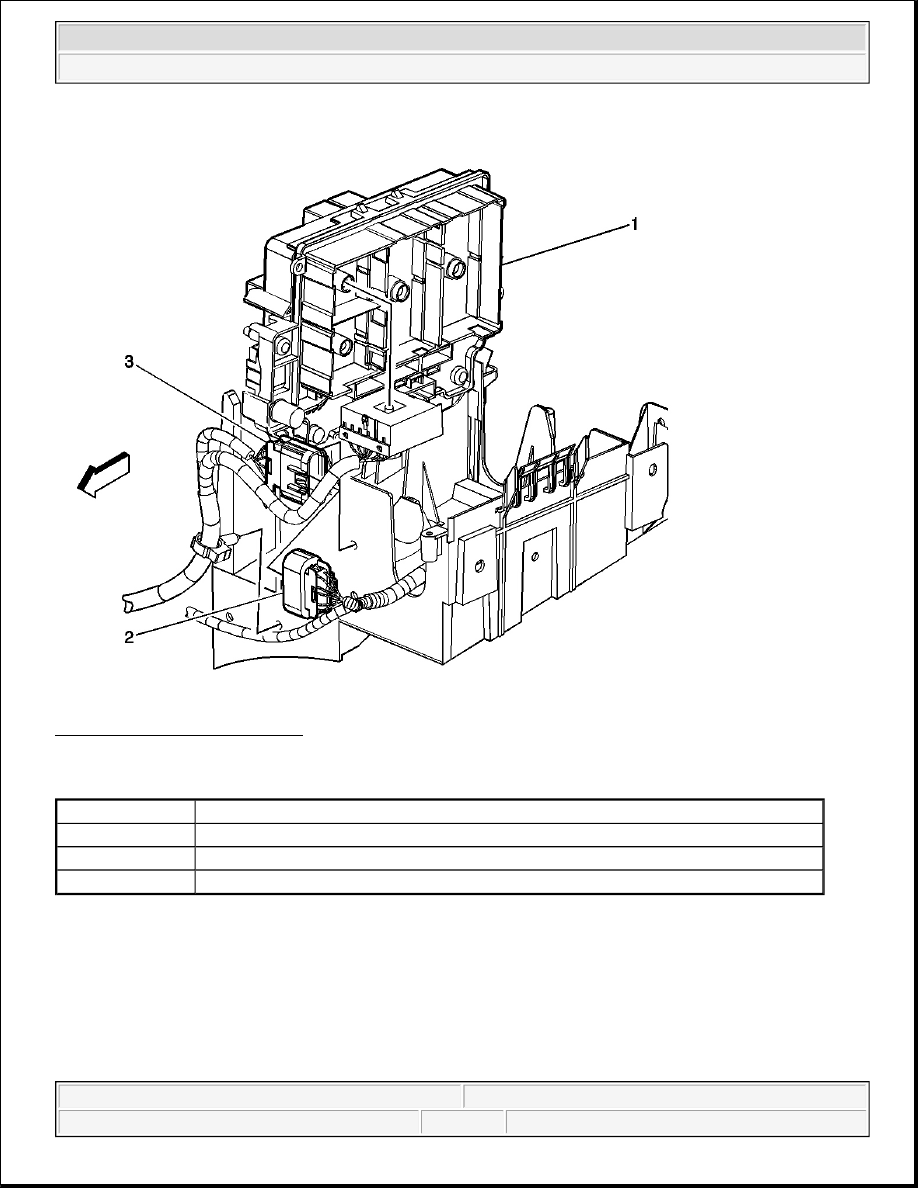

Fig. 78: C103 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 78

Callout

Component Name

1

Fuse Block - Underhood Center Block

2

C103 - I/P Harness Side

3

C103 - Forward Lamp Harness Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
