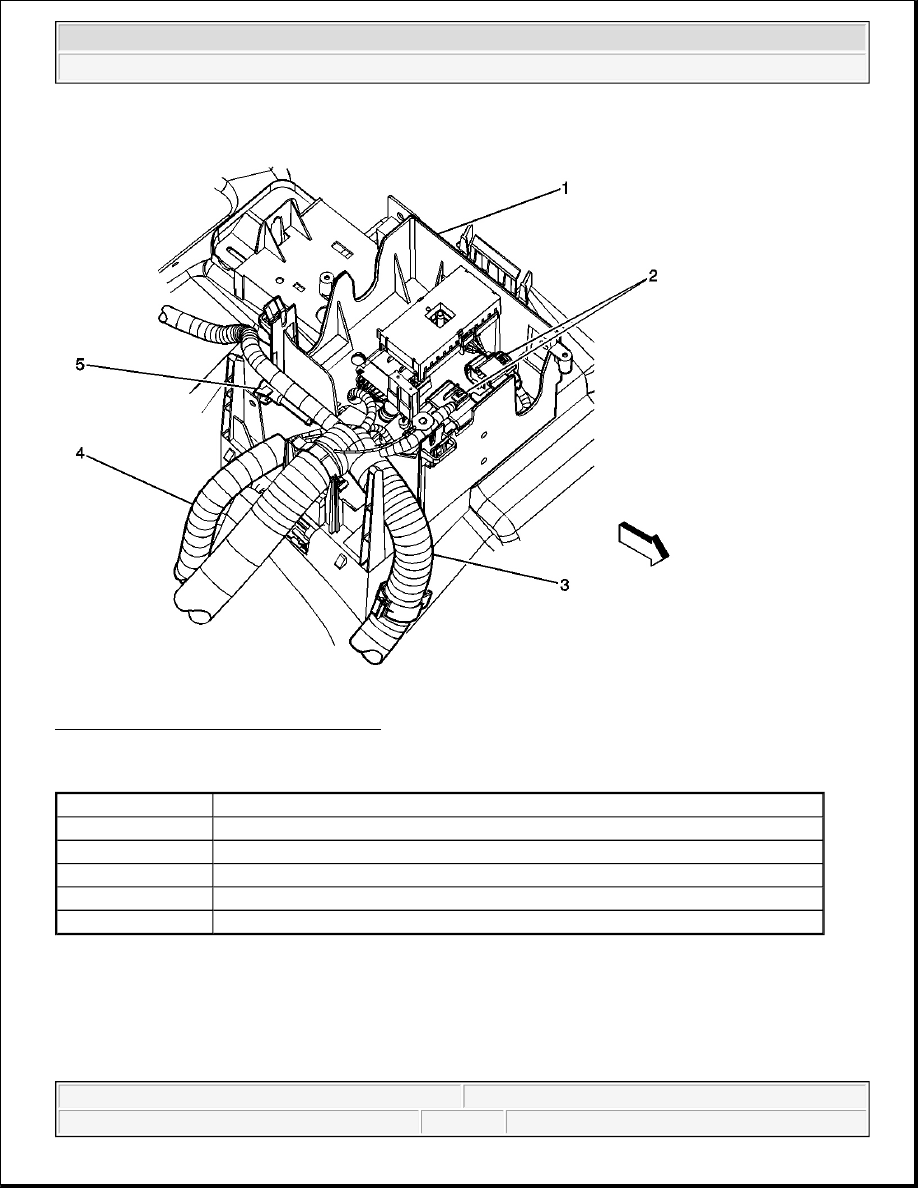

Fig. 79: C105 and C106 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 79

Callout

Component Name

1

Fuse Block - Underhood Bracket

2

C106 - Chassis to Engine

3

Engine Harness

4

Chassis Harness

5

C105 - Chassis to I/P



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



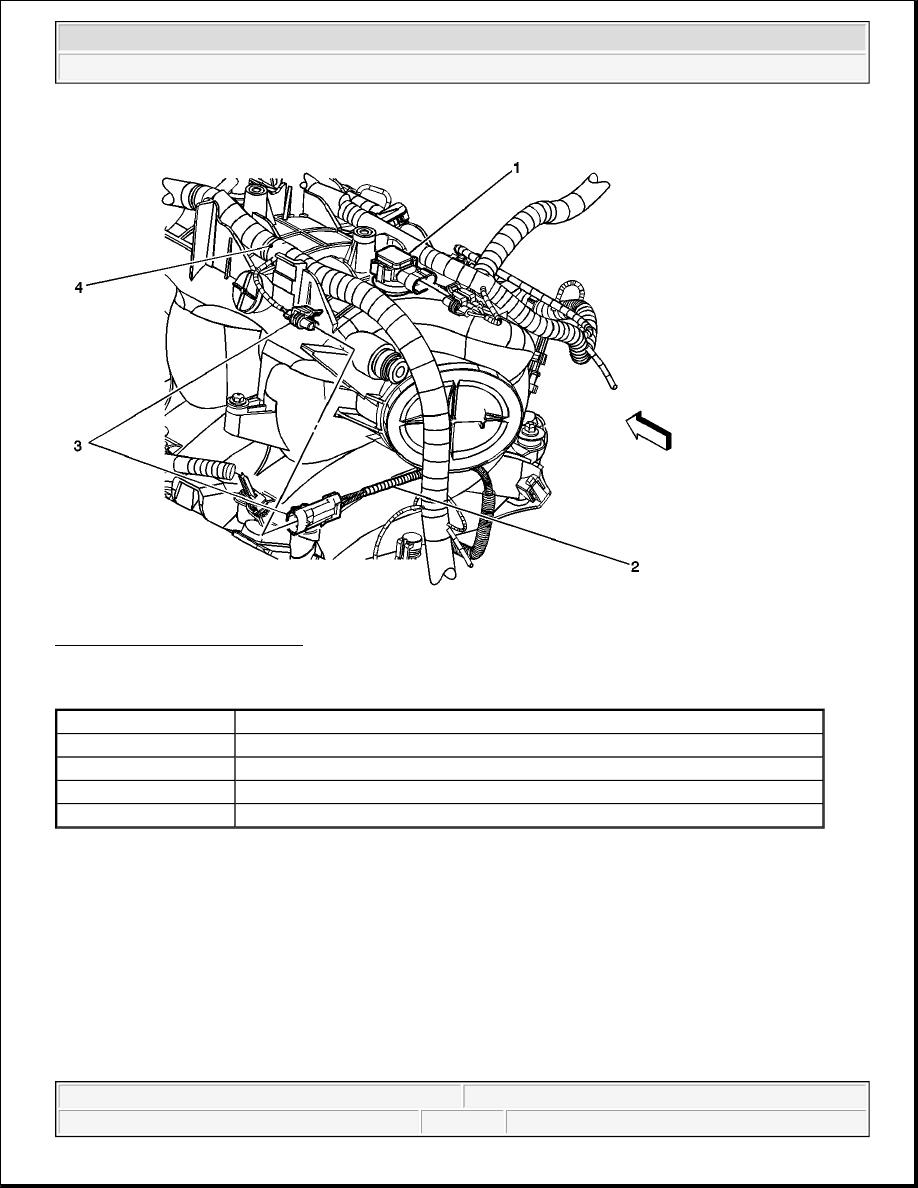

Fig. 80: C115 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 80

Callout

Component Name

1

MAP Sensor

2

Knock Sensor Pigtail

3

C115-Knock Sensors Inline

4

Engine Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



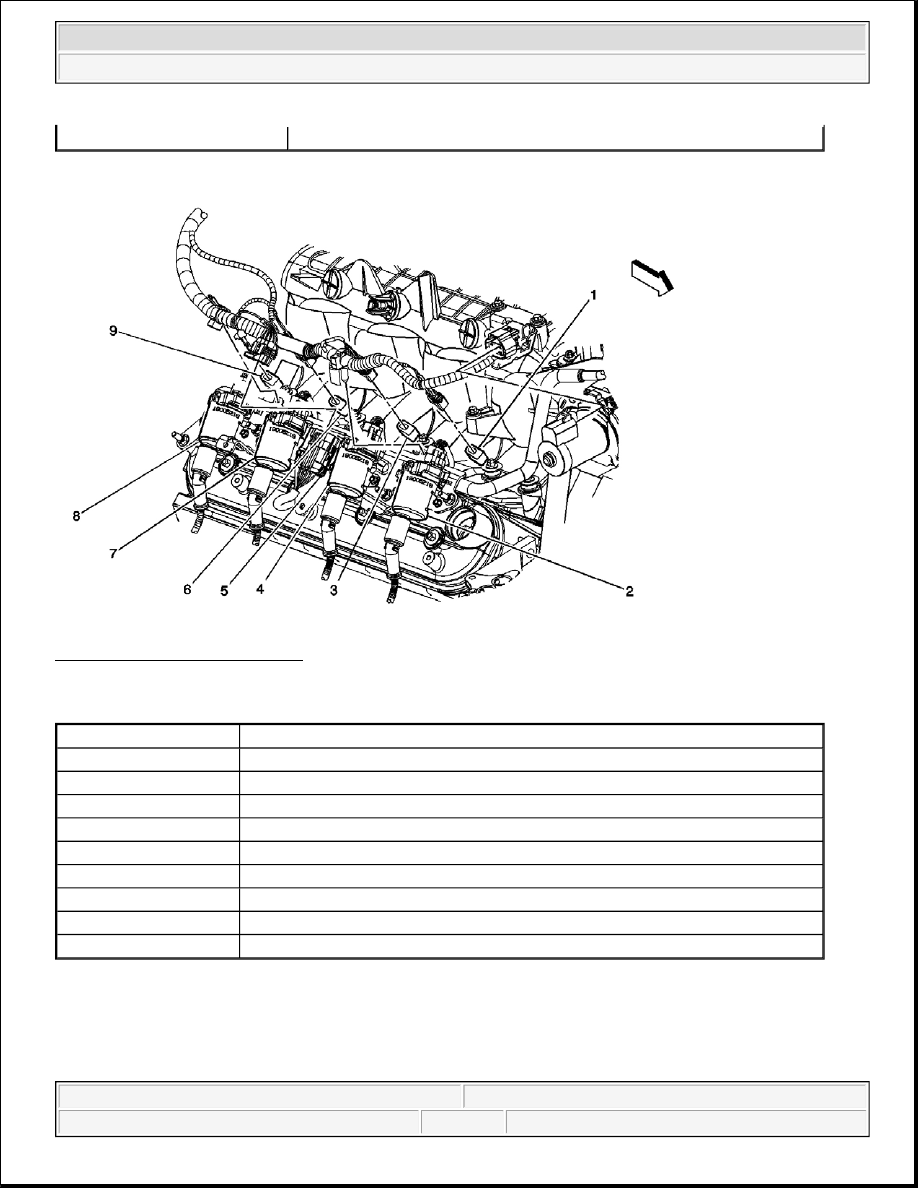

Fig. 81: C148 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 81

Callout

Component Name

1

Ignition Coil 7

2

Fuel Injector 7

3

Fuel Injector 5

4

Ignition Coil 5

5

Inline C148

6

Ignition Coil 3

7

Fuel Injector 3

8

Ignition Coil 1

9

Fuel Injector 1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



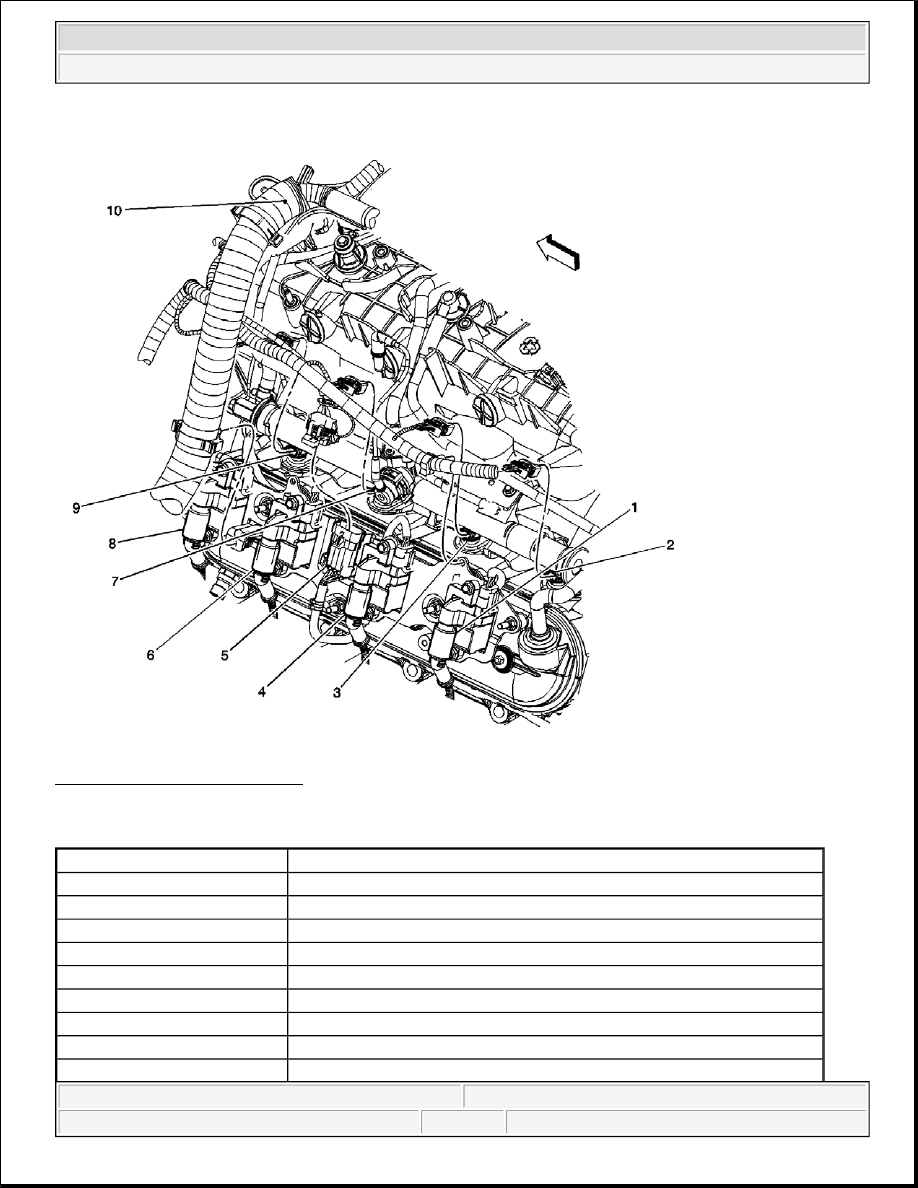

Fig. 82: C158 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 82

10

Engine Harness

Callout

Component Name

1

Fuel Injector 2

2

Ignition Coil 2

3

Fuel Injector 4

4

Ignition Coil 4

5

C158 - Ignition Coil Inline

6

Fuel Injector 6

7

Ignition Coil 6

8

Ignition Coil 8

9

Fuel Injector 8
