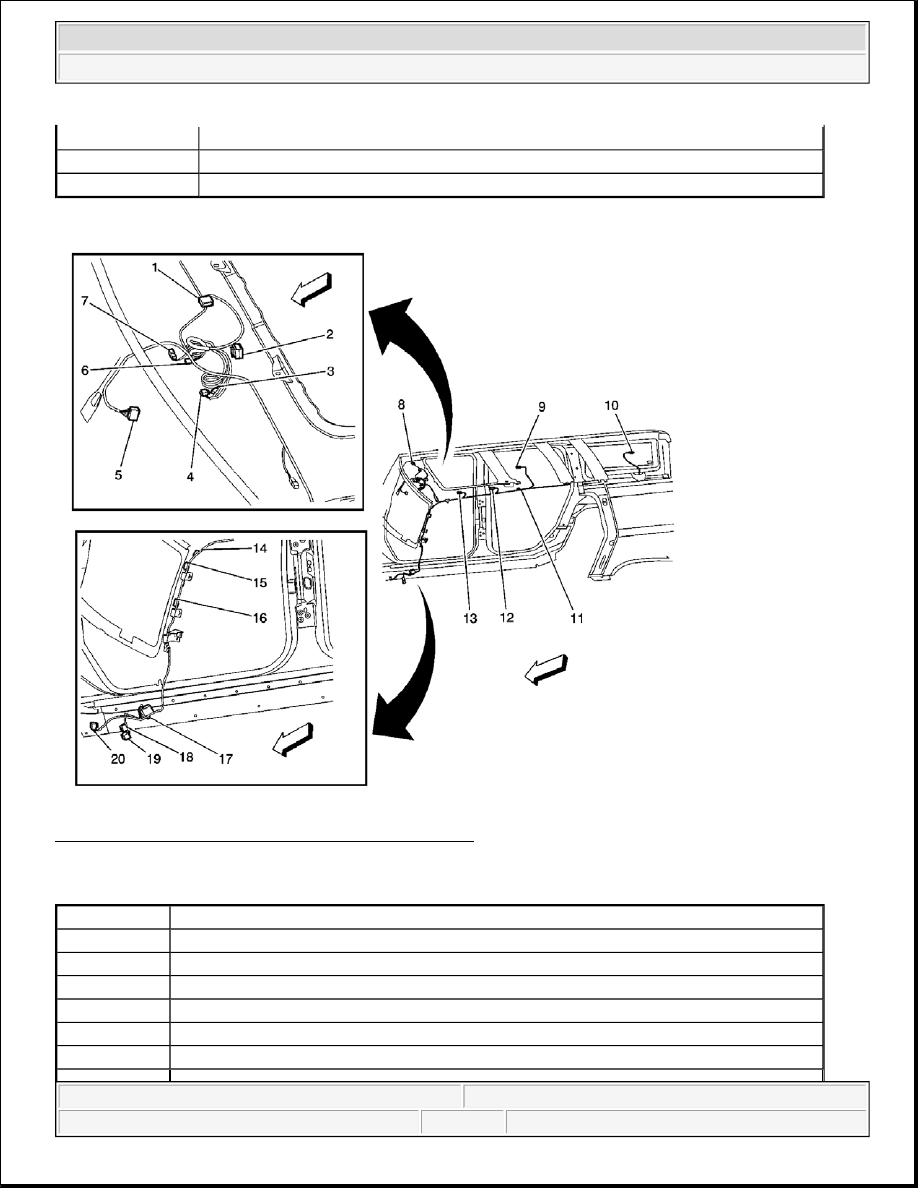

Fig. 72: Roof Marker Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 72

Callout

Component Name

1

Cellular Telephone Antenna

2

GPS Antenna

3

Clearance Lamp Connector - LF

4

Roof Lamp Connector - Front Center

5

Roof Lamp Connector - Front Center

6

S345

7

Roof Lamp Connector - Front Center

8

Clearance Lamp Connector - RF

9

S303



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



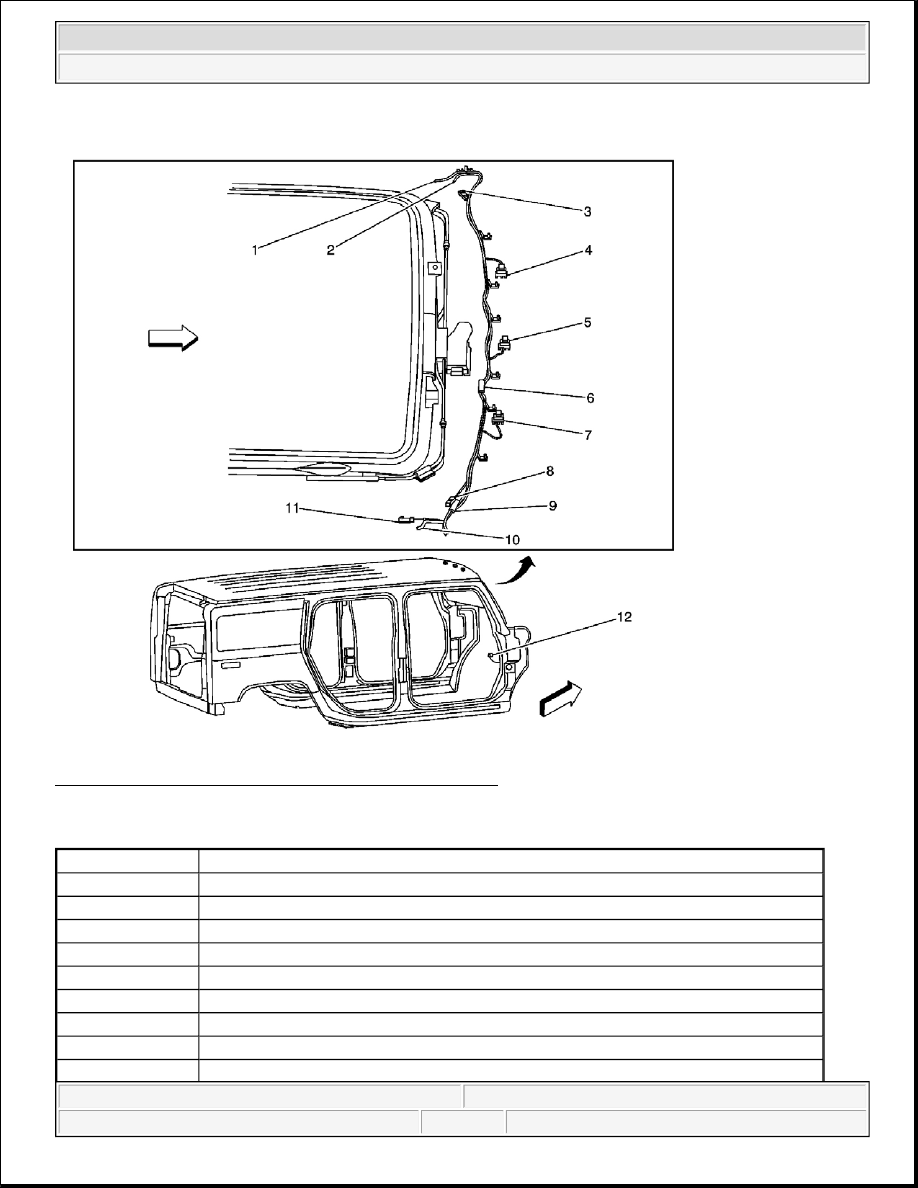

Fig. 73: Headliner Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 73

10

Radio Antenna

11

Antenna Preamplifier Connector

12

Junction Block - I/P C6

Callout

Component Name

1

Sunroof Module Connector

2

Sunroof Switch Connector

3

Courtesy/Reading Lamp - Left Front Connector

4

Garage Door Opener Connector

5

Inside Rearview Mirror Connector

6

Courtesy/Reading Lamp - Right Front Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



7

Noise Cancellation Microphone Connector

8

Vanity Mirror - Right Connector

9

Courtesy Reading Lamp - Center

10

Courtesy Reading Lamp - Rear

11

S300

12

Ambient Air Temperature Sensor Connector

13

Cellular Telephone Microphone Connector

14

S305

15

S301

16

S302 (CF5)

17

Sunroof Relay

18

Relay Block - I/P C4

19

Relay Block - I/P C3

20

C210



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



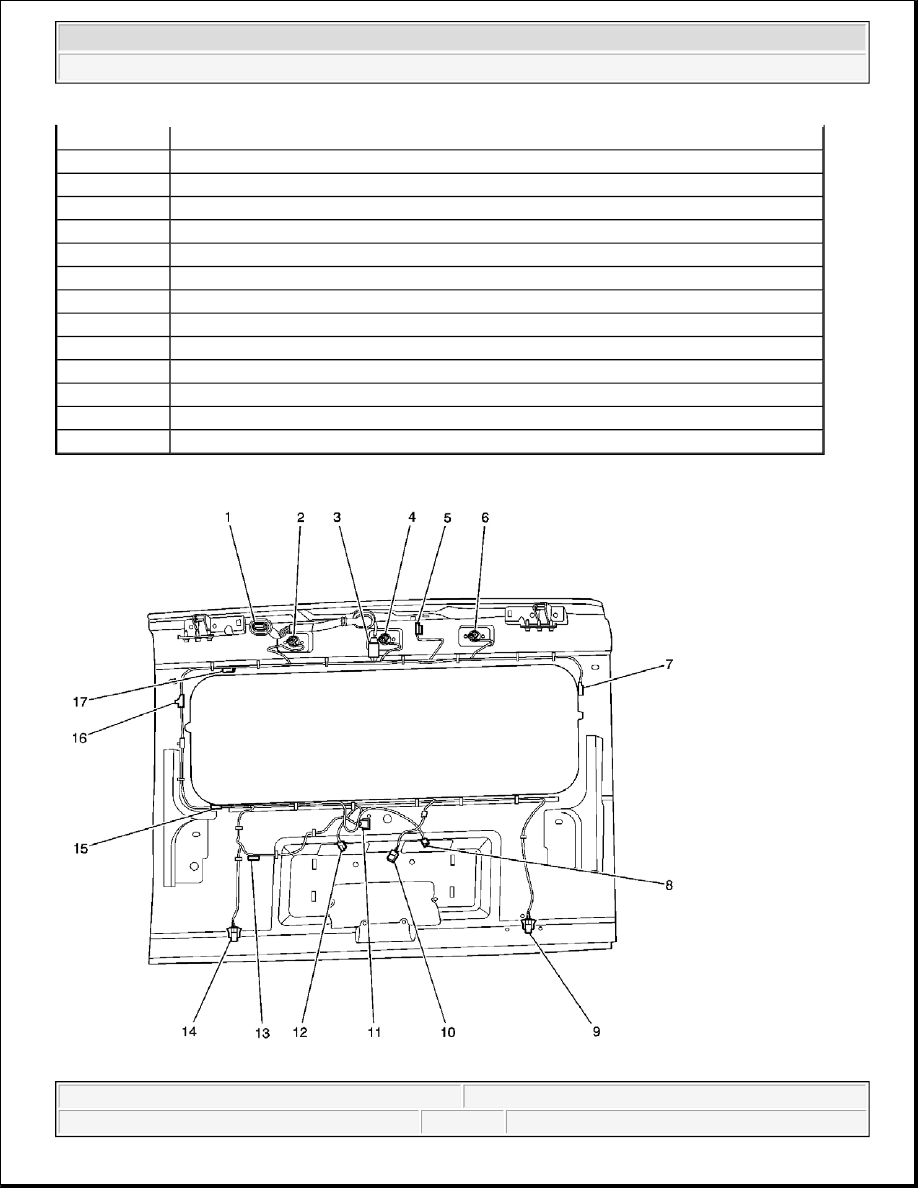

Fig. 74: Liftgate Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 74

Callout

Component Name

1

C420

2

Roof Lamp - Right Rear Connector

3

C900

4

Roof Lamp - Center Connector

5

CHMSL

6

Roof Lamp - Left Rear Connector

7

Rear Window Defogger Grid - Left Connector

8

License Lamp Connector

9

Liftgate Ajar Switch - Left Connector

10

Door Lock Actuator - Liftgate Connector

11

Rear Window Wiper Motor Connector

12

License Lamp Connector

13

S902

14

Liftgate Ajar Switch - Right Connector

15

S901

16

Defogger Grid - Right Connector

17

S900
