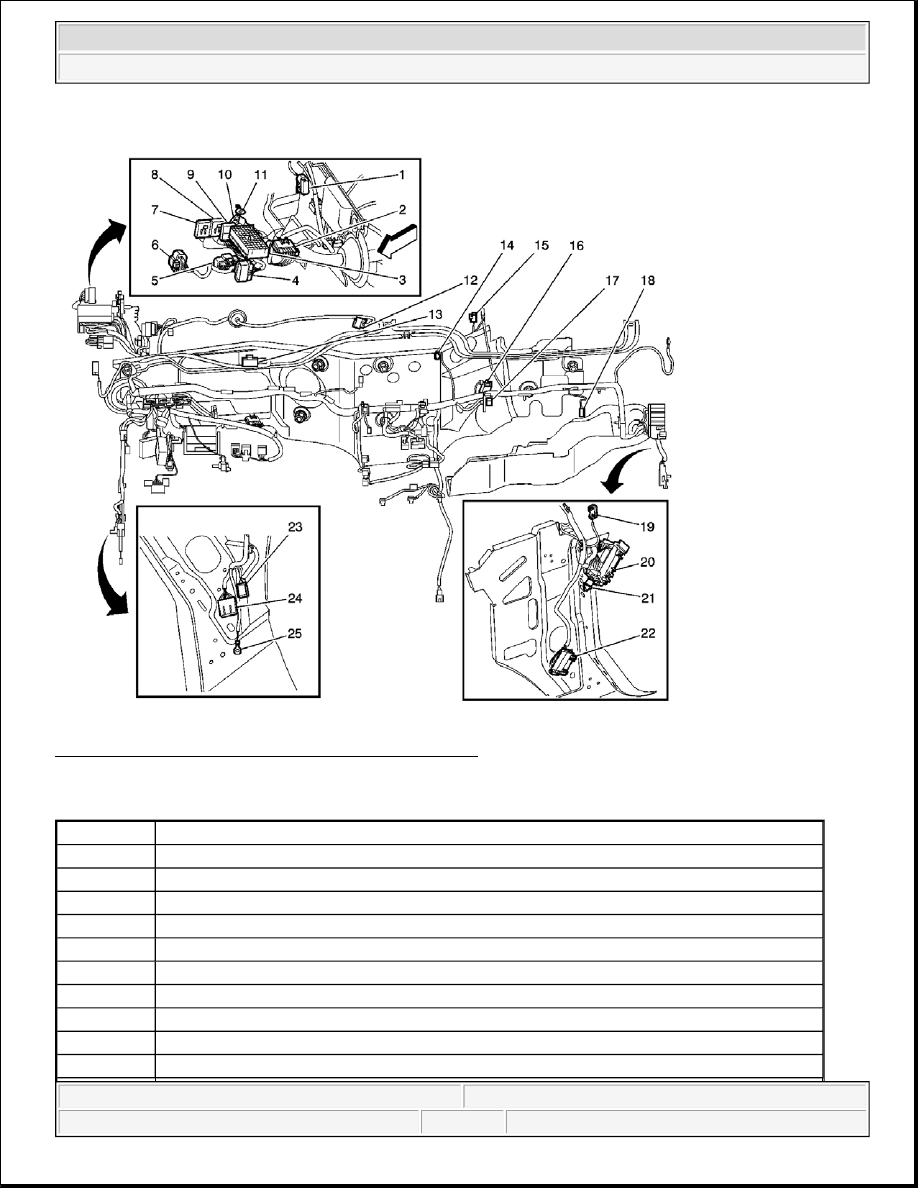

Fig. 68: I/P Harness Routing Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 68

Callout

Component Name

1

Throttle Actuator Control (TAC) Module Connector - C2

2

C102 I/P to Chassis Harness

3

Fuse Block - Underhood C1

4

C101 I/P to Chassis Harness

5

C100 I/P to Engine Harness

6

C103 I/P to Forward Lamp Harness

7

Fuse Block - Underhood C6

8

Fuse Block - Underhood C5

9

Fuse Block - Underhood C7

10

C104 I/P to Chassis Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Trailer Harness Feed

12

Windshield Wiper Motor and Module Connector

13

Instrument Panel Cluster (IPC) Connector

14

Air Temperature Sensor - Upper Right Connector

15

Ambient Light/Sunload Sensor Assembly Connector

16

Inflatable Restraint I/P Module Connector

17

Inflatable Restraint I/P Module Disable Switch Connector

18

I/P Compartment Lamp Connector

19

Speaker - RF Tweeter Connector

20

Junction Block - I/P

21

Courtesy Lamp - Right Footwell Connector

22

C298 I/P to Body Harness

23

C201 I/P to Body Harness

24

C200 I/P to Body Harness

25

G200



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



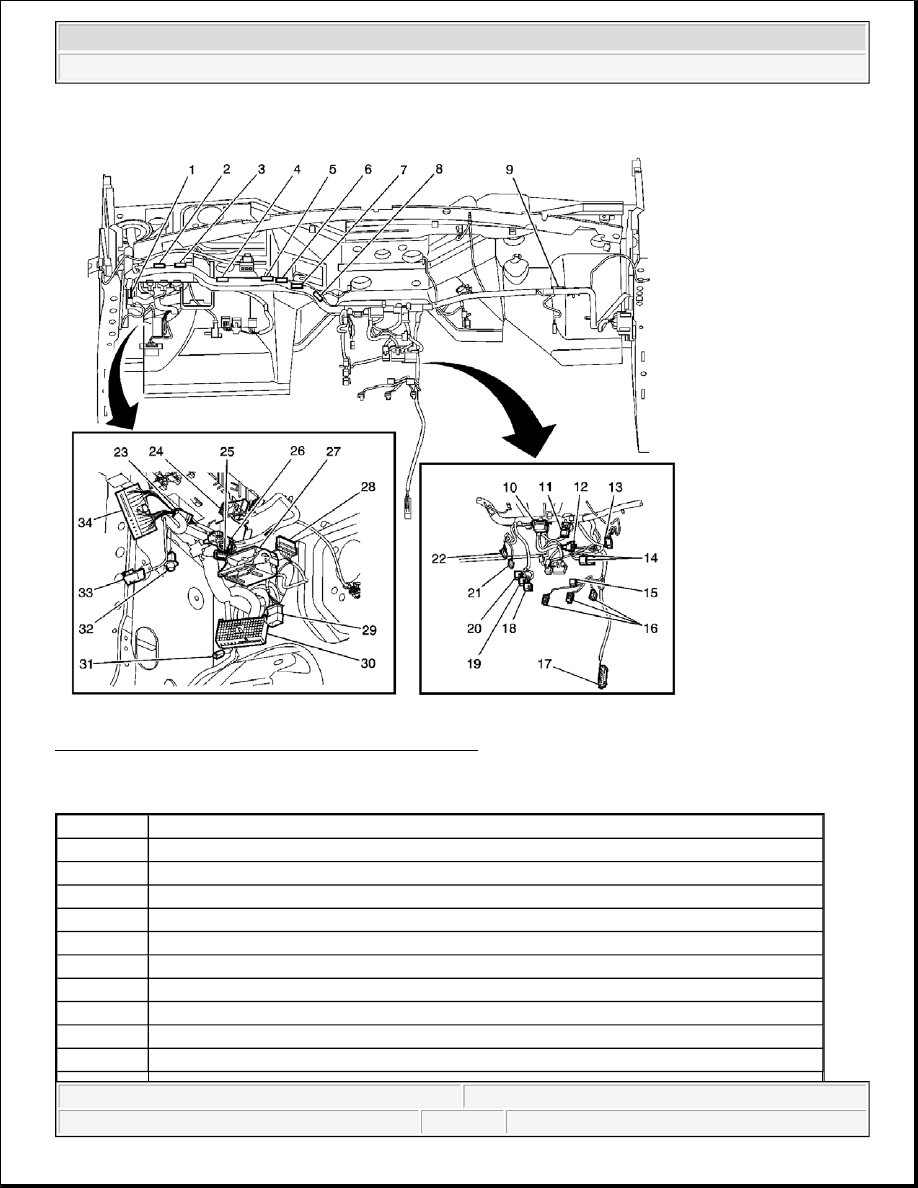

Fig. 69: I/P Harness Routing Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 69

Callout

Component Name

1

Splice S217

2

Splice S210

3

Splice S211

4

Splice S212

5

Splice S213

6

Splice S214

7

Splice S216

8

Splice S215

9

Splice S290

10

Radio C1 Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Radio C2 Connector

12

Longitudinal Accelerometer Connector

13

Inflatable Restraint I/P Module Disable Switch Connector

14

Vehicle Communication Interface Module (VCIM) Connectors

15

OnStar(R) Button Assembly Connector

16

Accessory Power Outlet/Cigar Lighter Connectors

17

C298 I/P to Body Harness

18

Ride Height Switch Connector

19

Tow/Haul Switch Connector

20

Traction Control Switch Connector

21

Transfer Case Shift Control Switch C2 Connector

22

Transfer Case Shift Control Switch C1 Connector

23

Splice Pack SP205

24

Transfer Case Shift Control Module Connectors

25

C203 I/P to Steering Column Harness

26

Splice Pack SP206

27

C202 I/P to Steering Column Harness

28

Stop Lamp Switch Connector

29

C210 I/P to Headliner Harness

30

Relay Block I/P C1

31

Park Brake Switch Connector

32

Footwell Courtesy Lamp - Left

33

Data Link Connector (DLC)

34

Fuse Block - I/P C1
