Hummer H2. Manual - part 1286

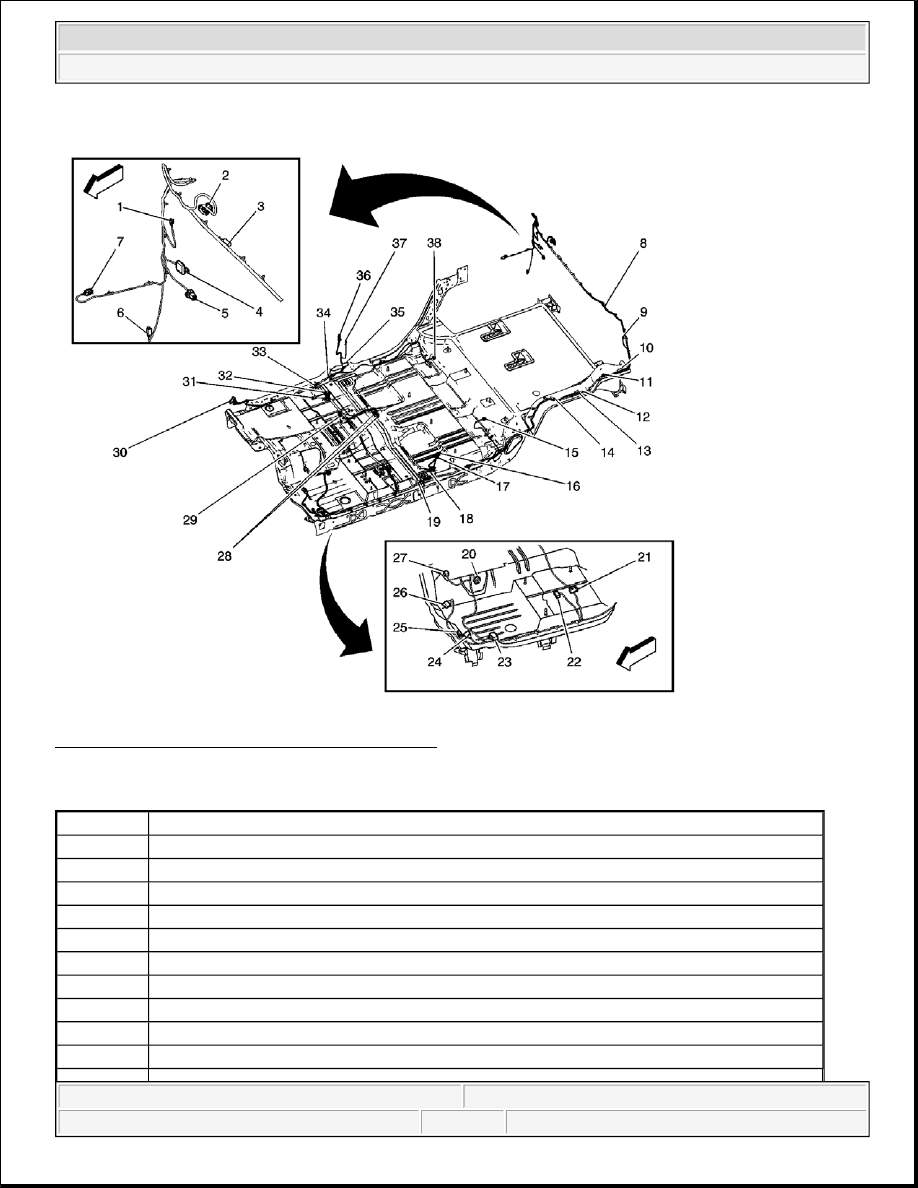

Fig. 70: Body Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 70

Callout

Component Name

1

Speaker Right D Pillar Twiddler Connector

2

C420

3

S480

4

Splice Pack SP410

5

Door Lock Switch Rear Cargo Connector

6

Accessory Power Outlet - Rear Connector

7

Marker Lamp-RR Connector

8

Clearance Lamp - RR Connector

9

Speaker - Left D Pillar Twiddler Connector

10

S411



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Marker Lamp - LR Connector

12

S412

13

C312 (C69)

14

S307 (C69)

15

C320 (ZM6)

16

G302

17

C310

18

Courtesy Lamp Right B Pillar Connector

19

S390

20

Fuse Block - I/P C4

21

C325 (ZM6)

22

Inflatable Restraint Sensing and Diagnostic Module Connector

23

Splice Pack SP207

24

C200

25

C201

26

Relay Block - I/P C10

27

Body Control Module (BCM) - C6

28

Audio Amplifier Connectors

29

C355

30

C298

31

G304

32

C375

33

Liftgate Door Lock Relay

34

S310

35

Courtesy Lamp Left B Pillar Connector

36

C390

37

G306

38

C380



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



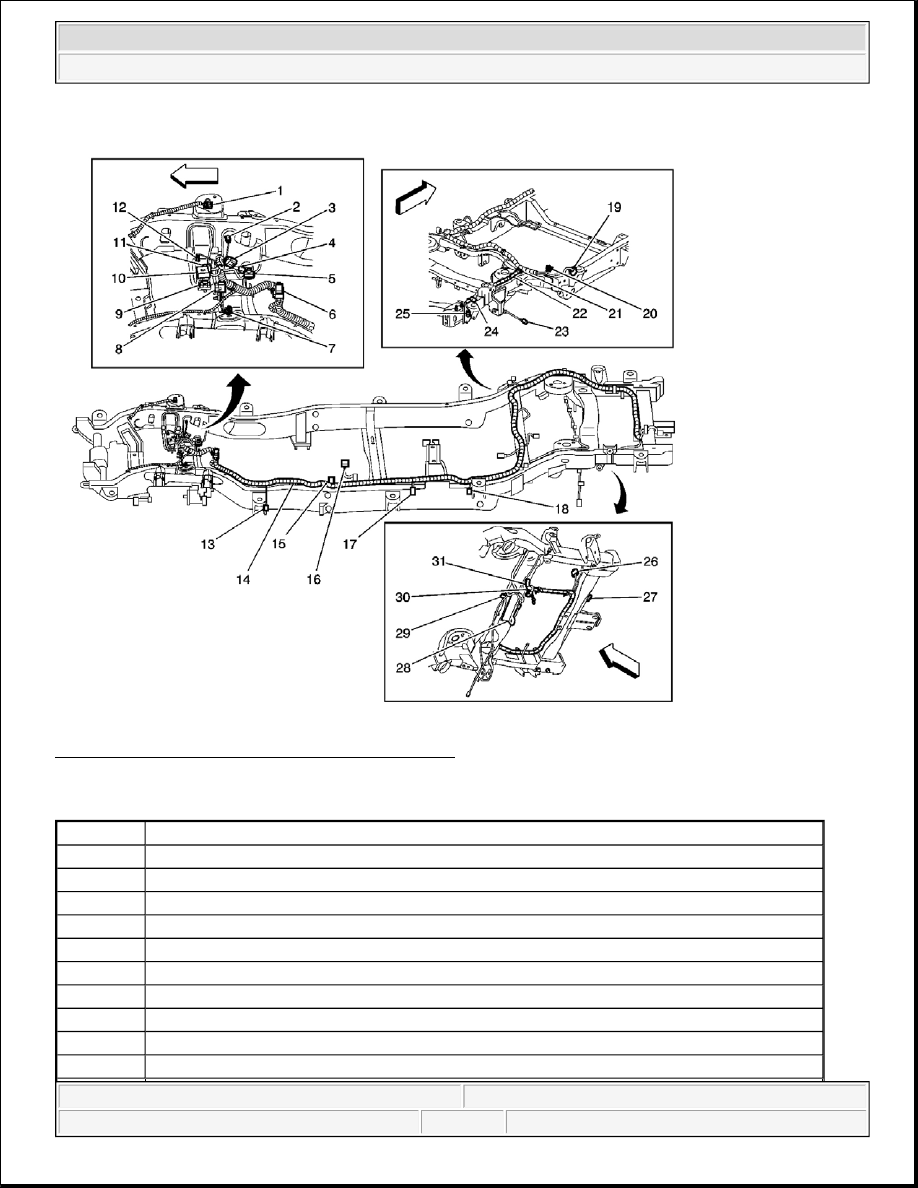

Fig. 71: Chassis Harness Routing Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 71

Callout

Component Name

1

Wheel Speed Sensor (WSS) - RF Connector

2

Brake Fluid Level Switch Connector

3

C104

4

C105

5

C102

6

Electronically Controlled Air Suspension Relay (ZM6)

7

Wheel Speed Sensor (WSS) - LF Connector

8

C101

9

C106

10

Fuse Block - Underhood C3



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



11

Fuse Block - Underhood C9

12

Stud 1

13

G300

14

S304

15

Electronic Brake Control Module (EBCM) Connector

16

Transfer Case Connector

17

Evaporative Emission (EVAP) Canister Vent Solenoid Connector

18

G310

19

G308

20

Air Suspension Sensor - RR Connector (ZM6)

21

S391

22

S392

23

Wheel Speed Sensor (WSS) - RR Connector

24

Air Suspension Inflator Switch Connector (ZM6)

25

G405

26

Junction Block - Rear C1

27

Trailer Connector

28

G402

29

Rear Differential Lock Actuator Connector

30

C450 (ZM6)

31

C451 (ZM6)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
