12-188

Electrical System

______________________________________________________

SPEEDO MODULE

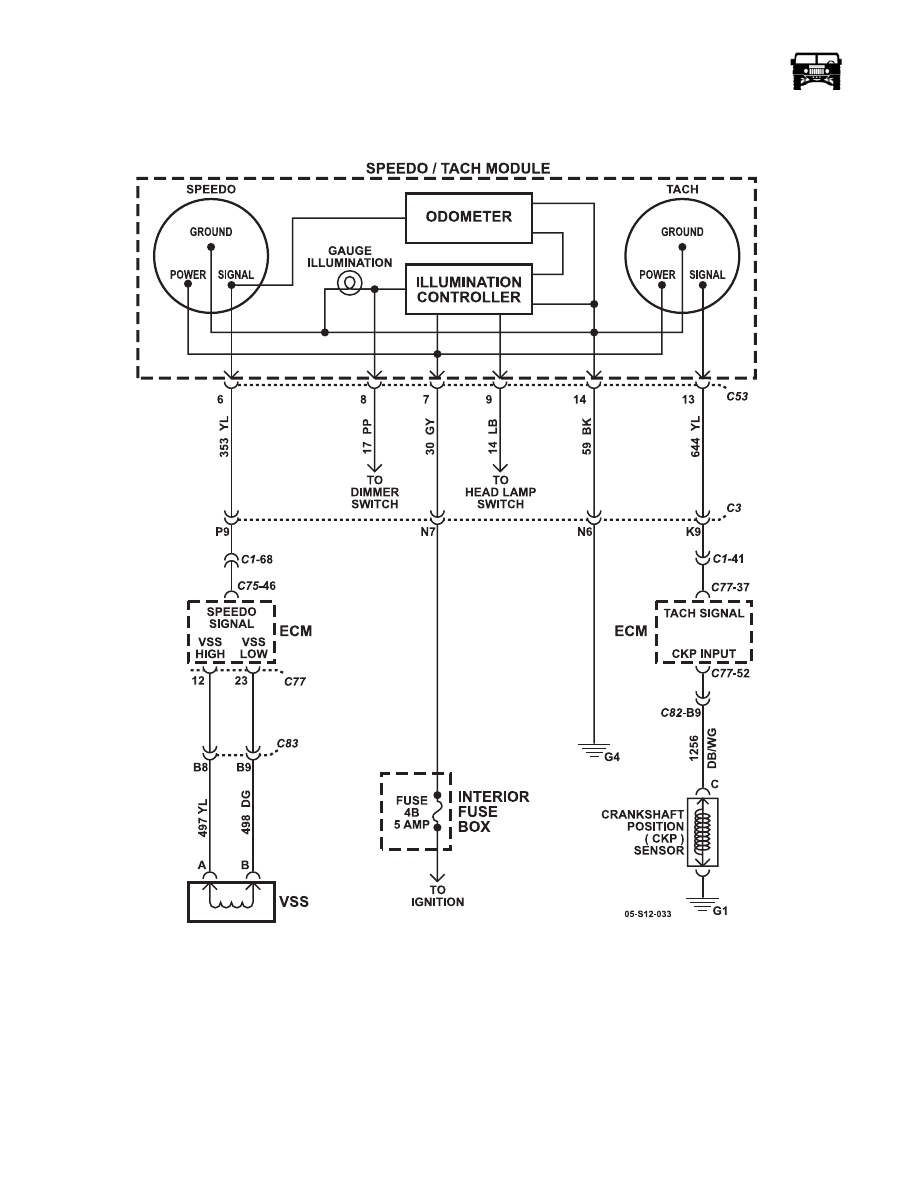

Figure 12-144:   Speedo Module Wiring Schematic

_____________________________________________________

 Electrical System  12-189

STARTER SYSTEM

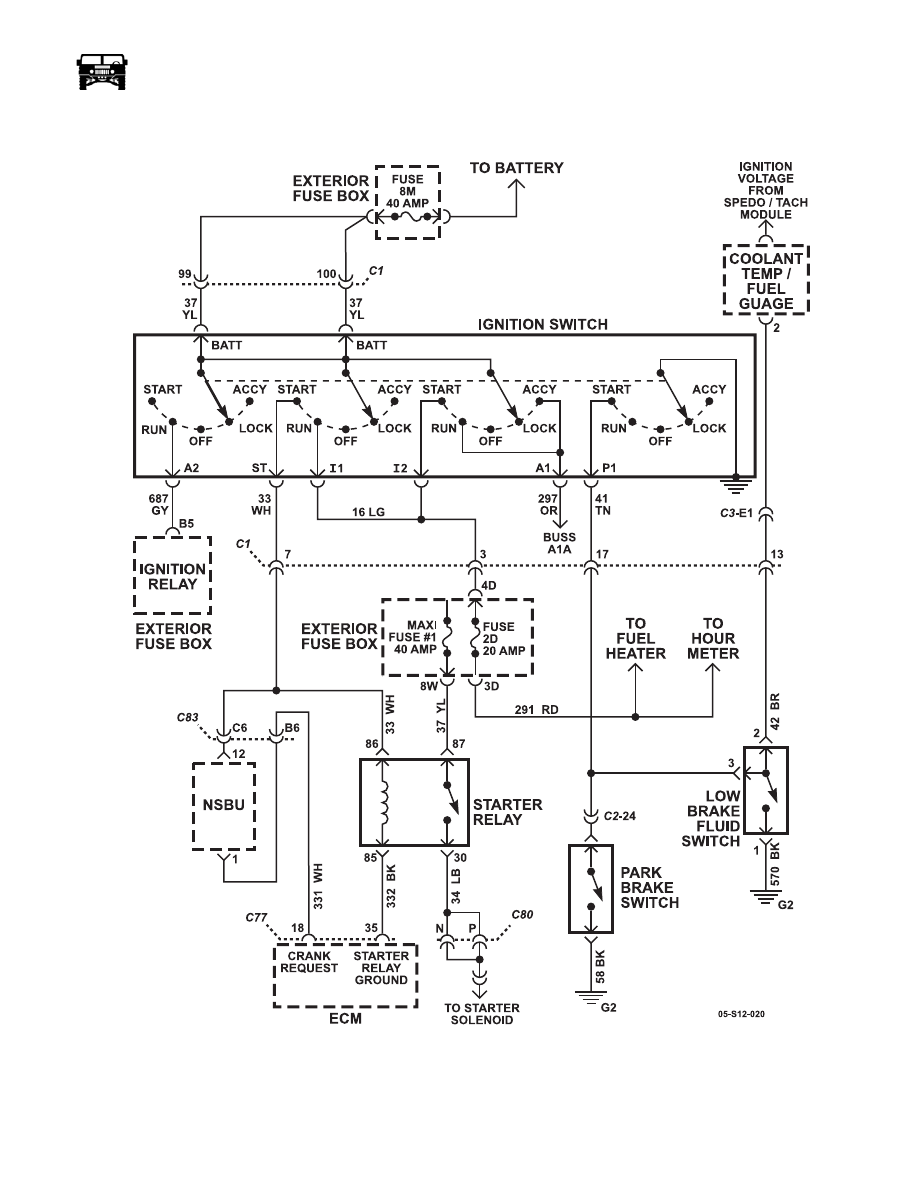

Figure 12-145:   Starter System Wiring Schematic

12-190

Electrical System

______________________________________________________

TACHOMETER MODULE

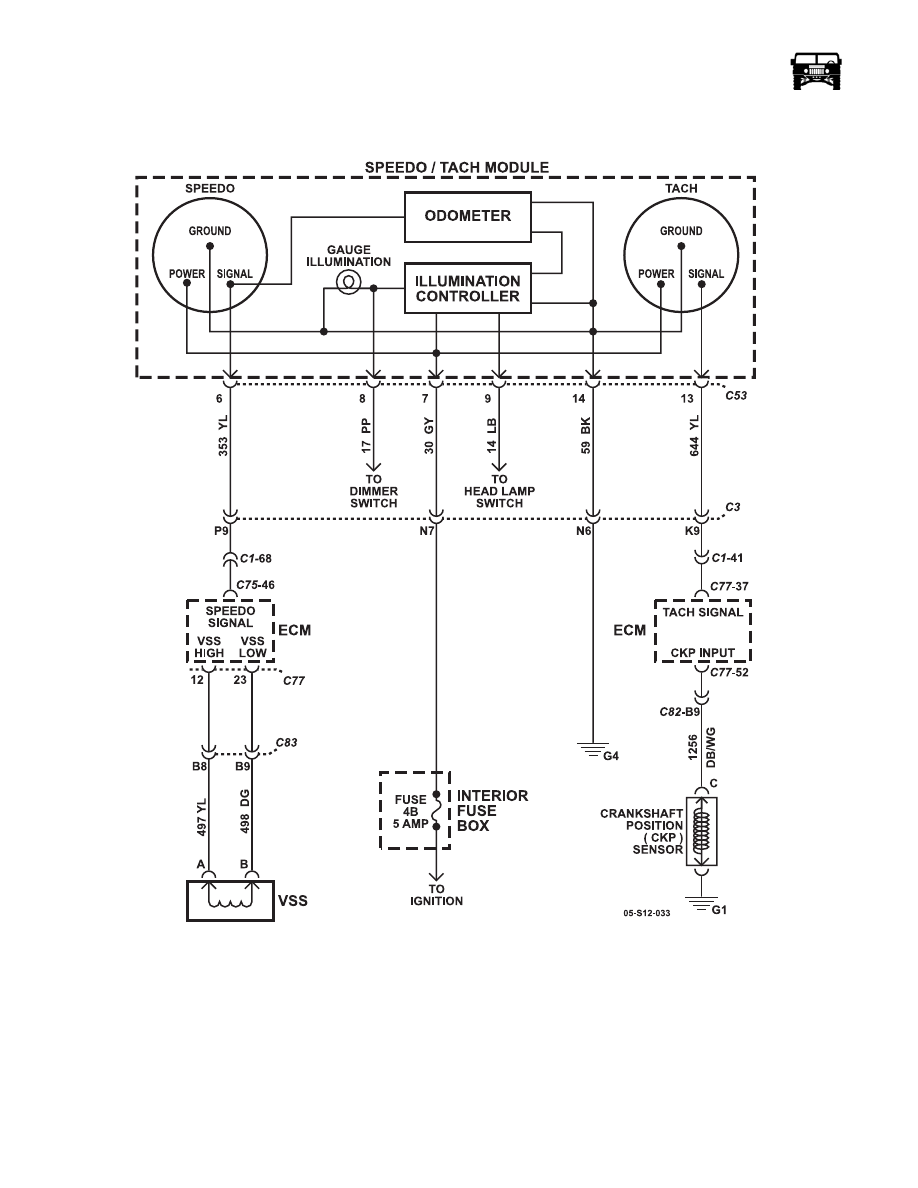

Figure 12-146:   TACH Module Wiring Schematic

_____________________________________________________

 Electrical System  12-191

TACHOMETER MODULE INDICATOR LIGHTS

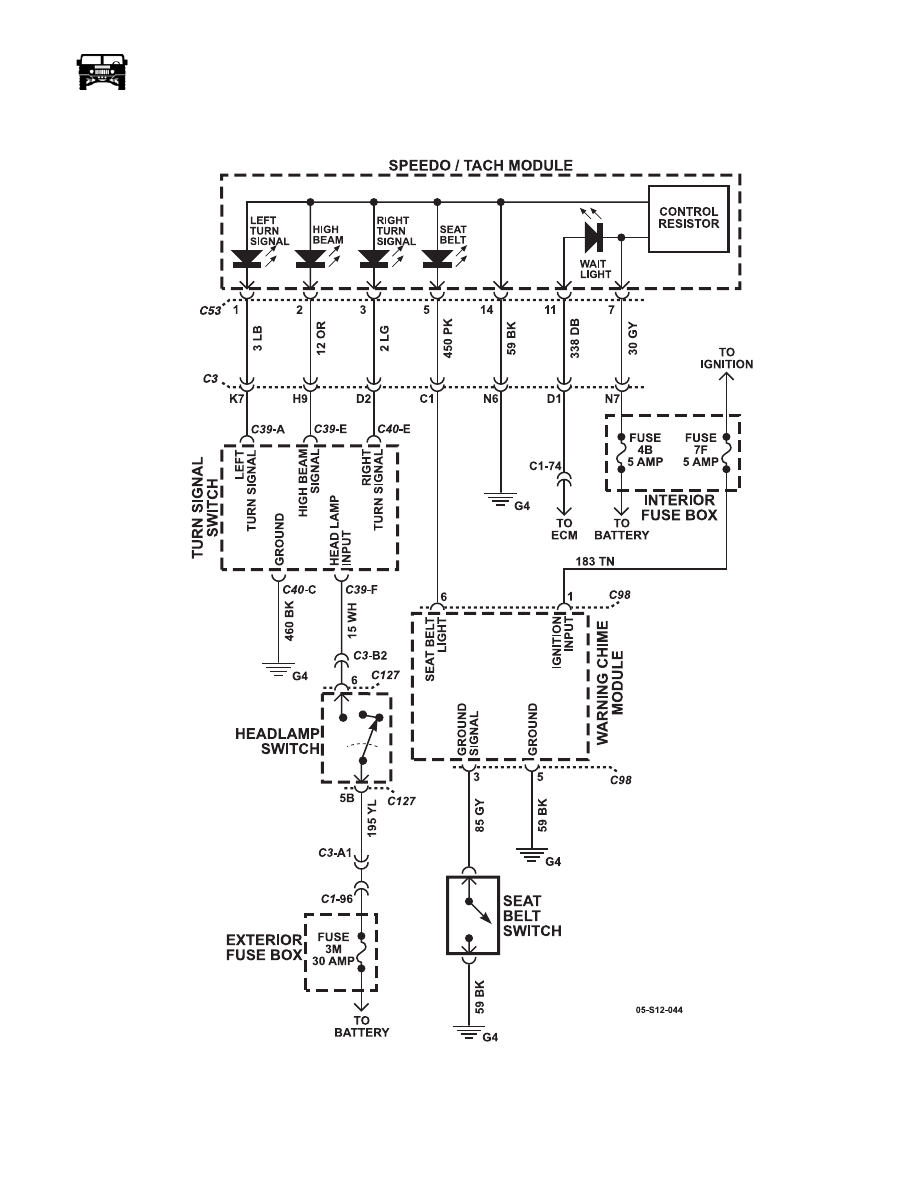

Figure 12-147:   TACH Module Indicator Lights Wiring Schematic
