SEAT PASSENGER HEATED

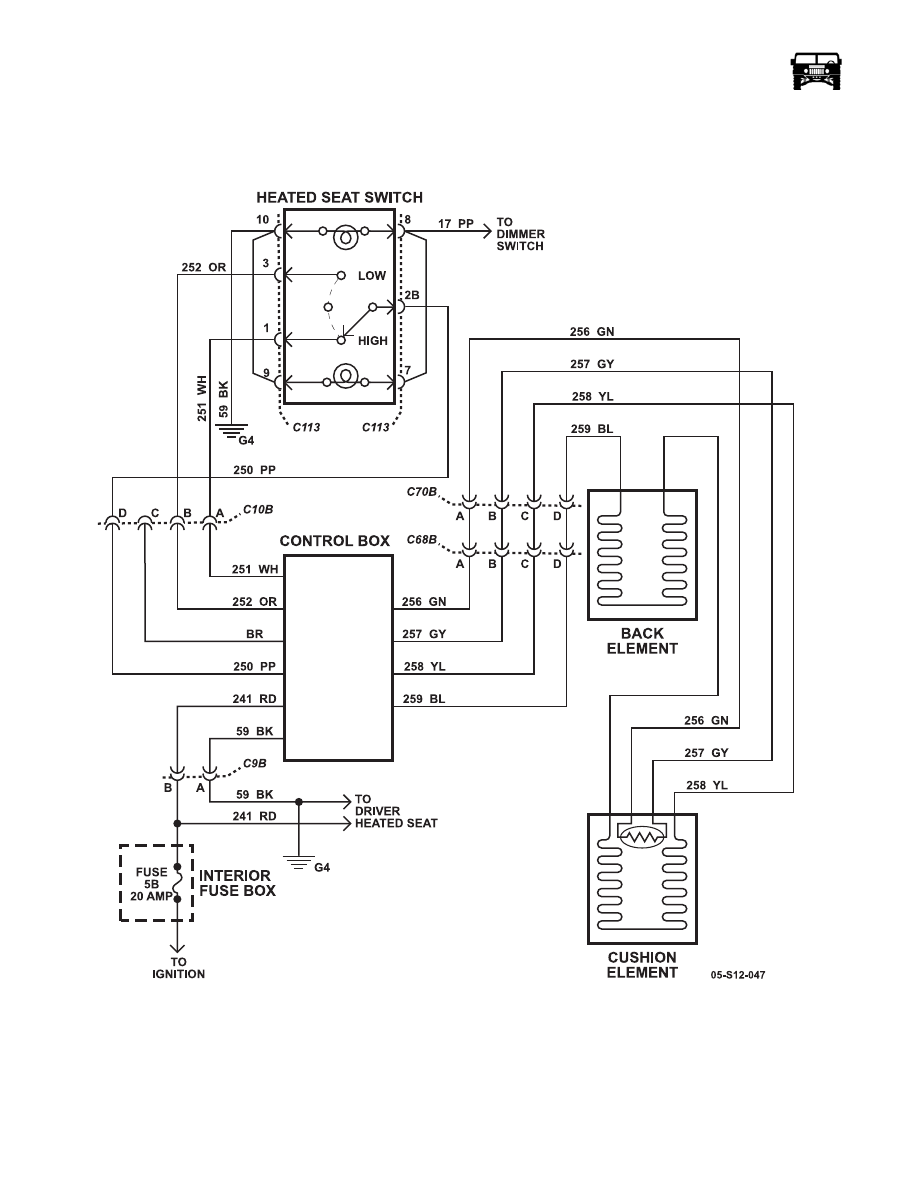

Figure 12-140:   Seat Drivers Heated Wiring Schematic

_____________________________________________________

 Electrical System  12-185

SHIFTER/ SHIFT INTERLOCK

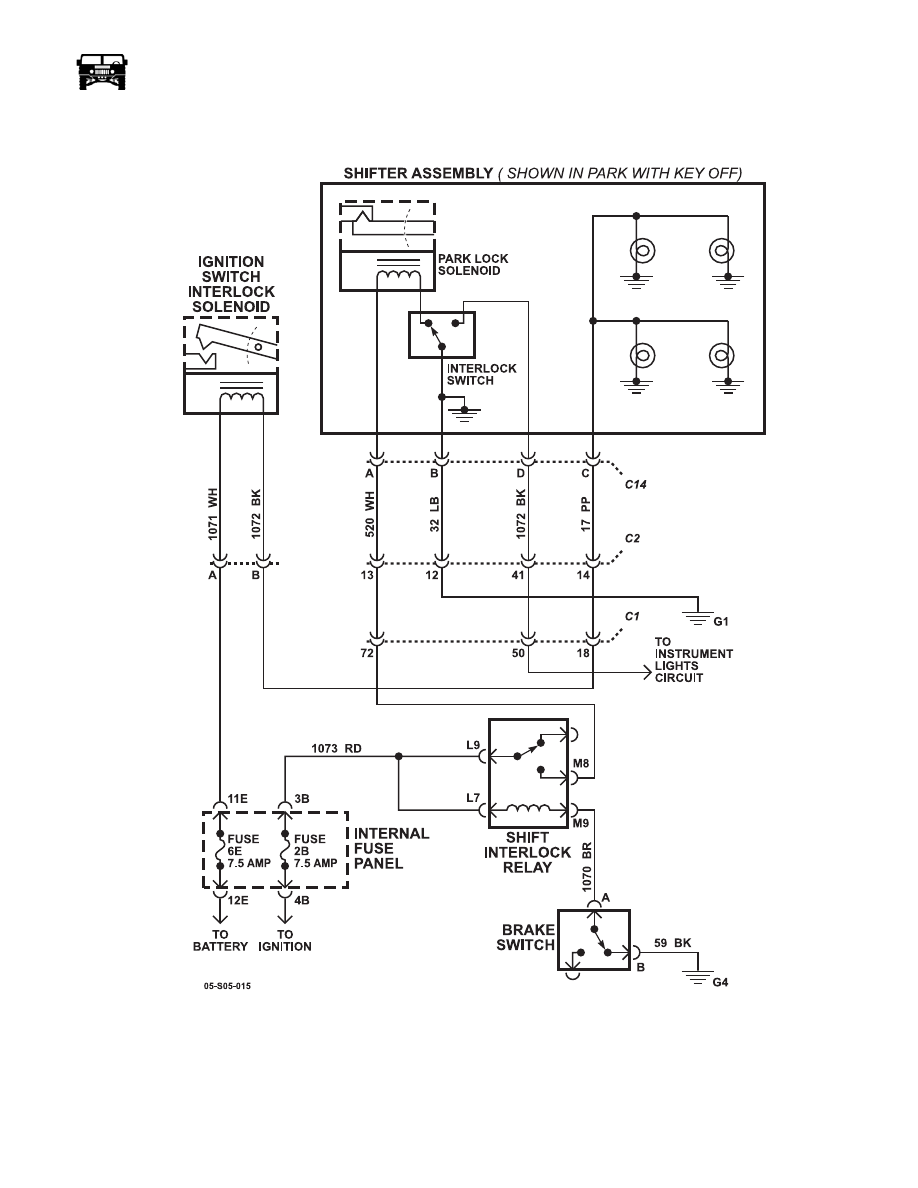

Figure 12-141:   Shifter/ Shift InterLock Wiring Schematic

12-186

Electrical System

______________________________________________________

SPEED SENSORS

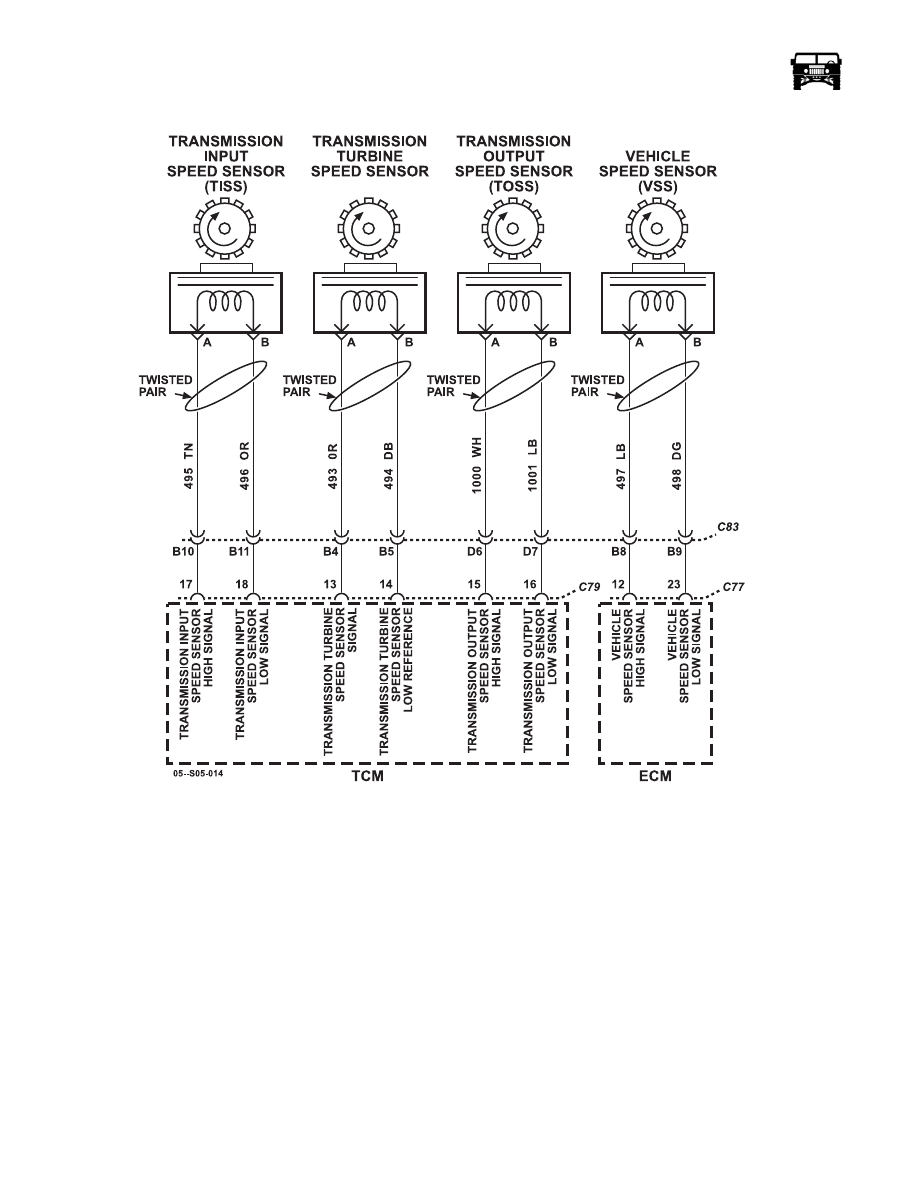

Figure 12-142:   Speed Sensors Wiring Schematic

_____________________________________________________

 Electrical System  12-187

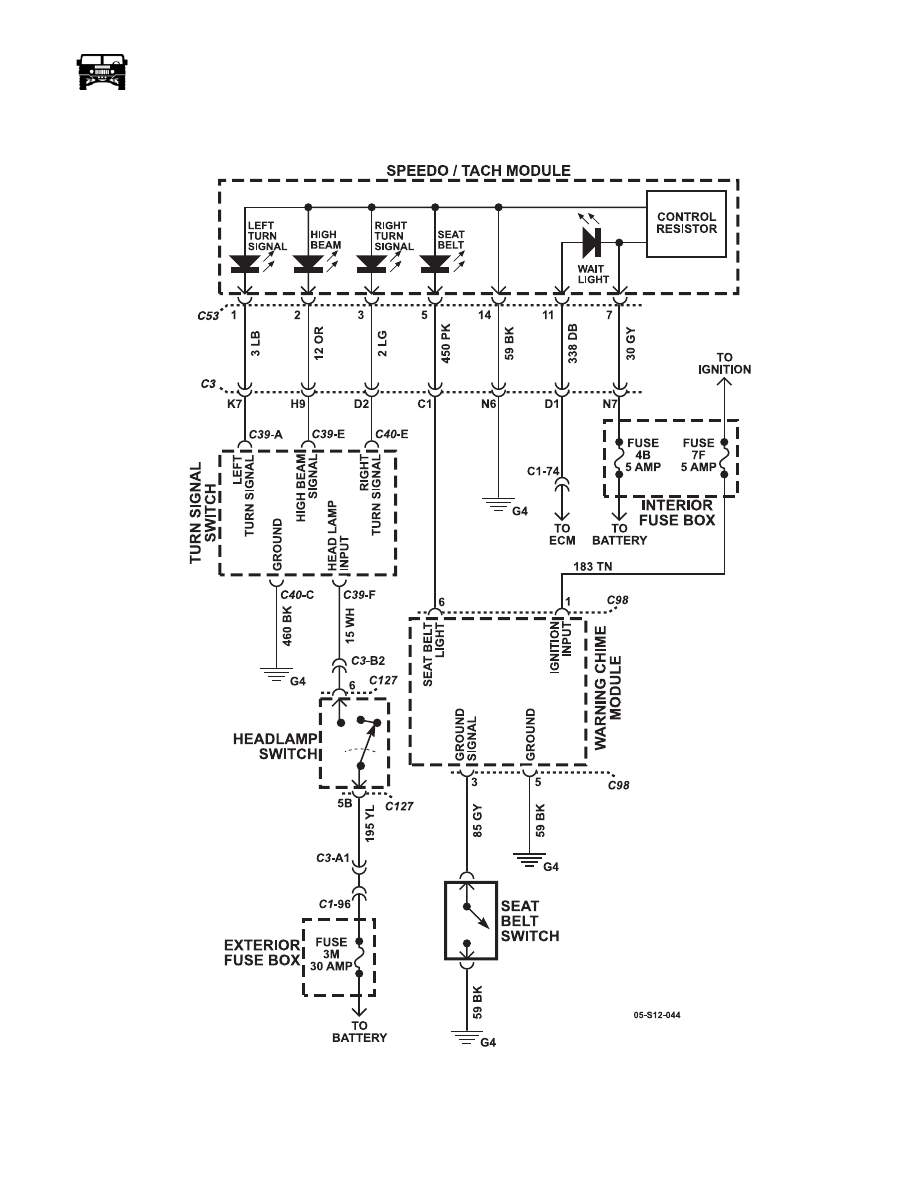

SPEEDO MODULE INDICATOR LIGHTS

Figure 12-143:   Speedo Module Indicator Lights Wiring Schematic
