Hummer H1 (2006+). Manual - part 375

12-176

Electrical System

______________________________________________________

MIRROR POWER HEATED

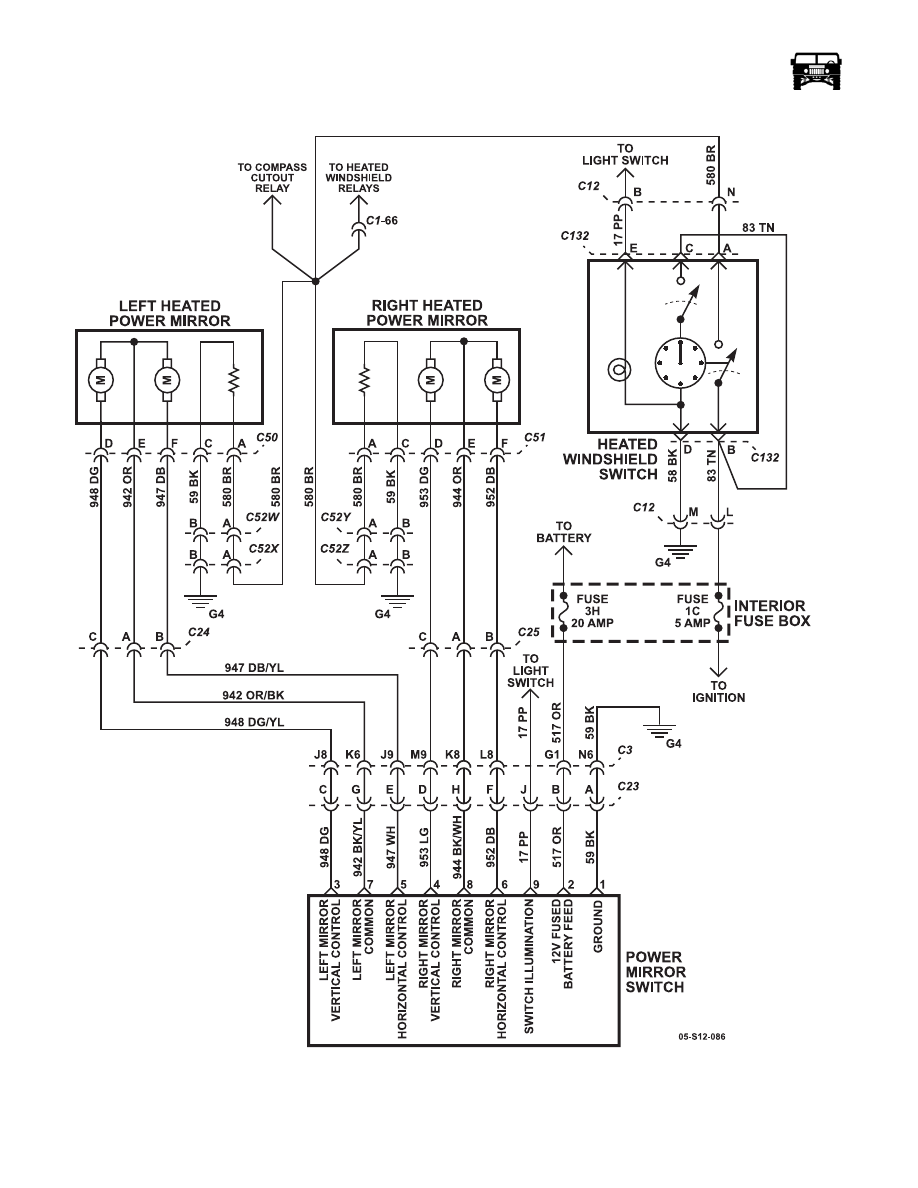

Figure 12-132:   Mirror Power Heated Wiring Schematic

_____________________________________________________

 Electrical System  12-177

NEUTRAL SAFETY BACK UP (NSBU) SWITCH

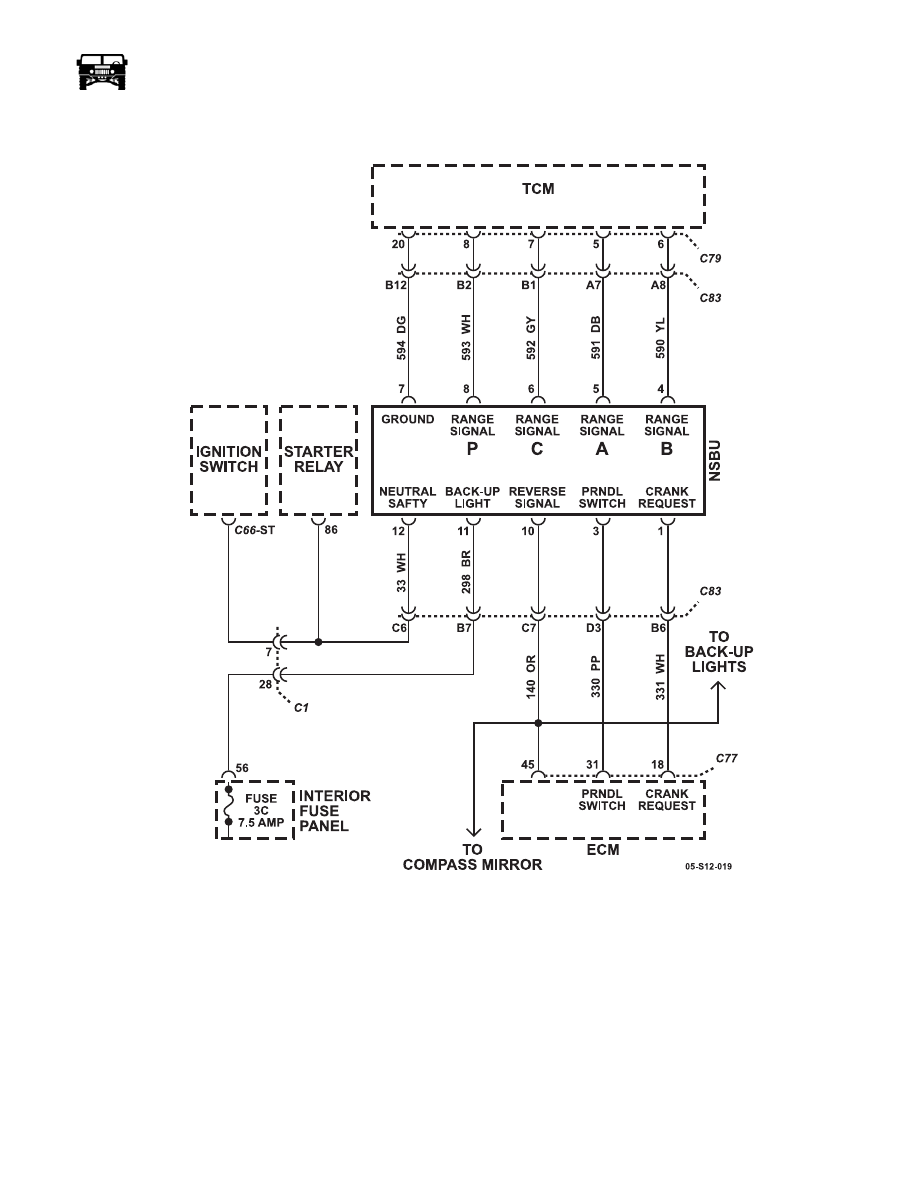

Figure 12-133:   Neutral Safety Back Up Switch Wiring Schematic

12-178

Electrical System

______________________________________________________

OIL PRESSURE MODULE

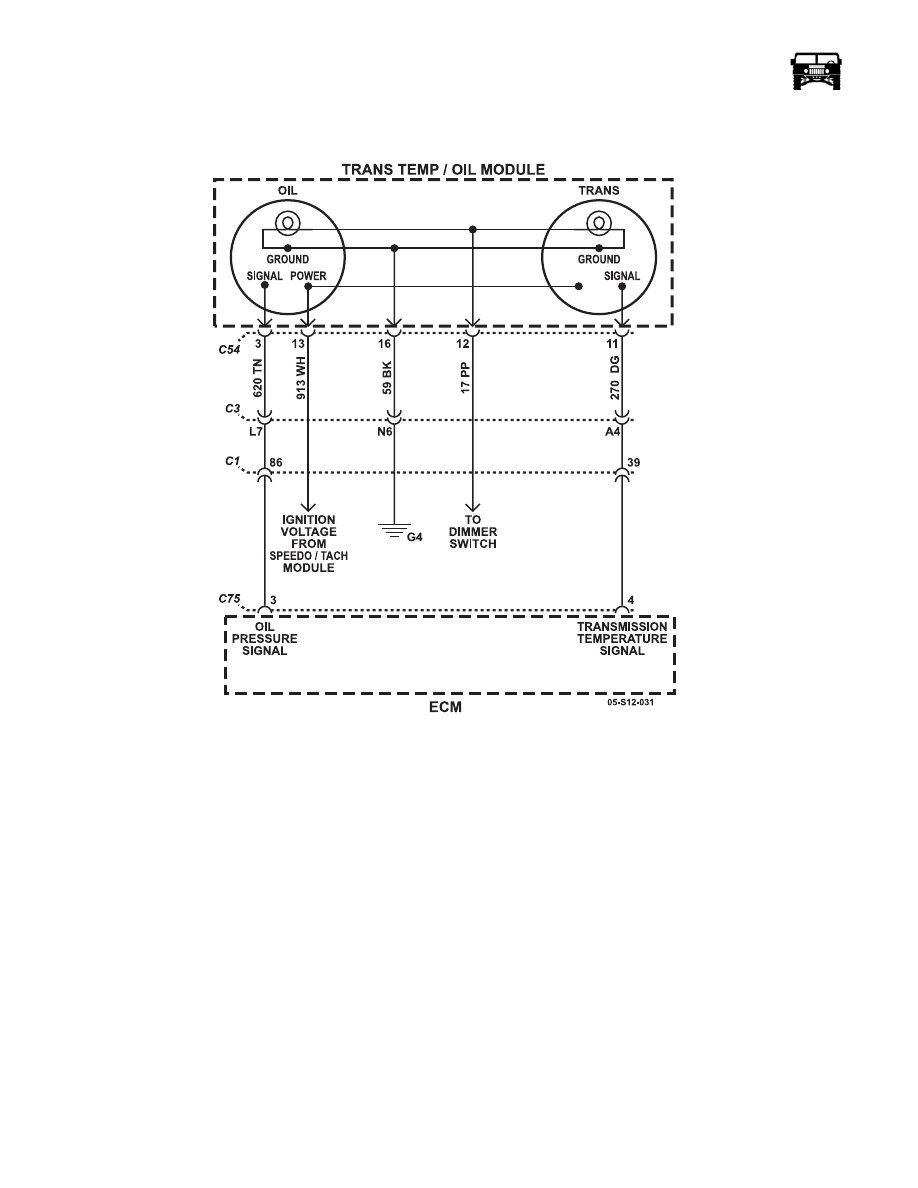

Figure 12-134:   Oil Pressure Module Wiring Schematic

_____________________________________________________

 Electrical System  12-179

OIL PRESSURE SENDING UNIT/ OIL PRESSURE MODULE WARNING LIGHTS

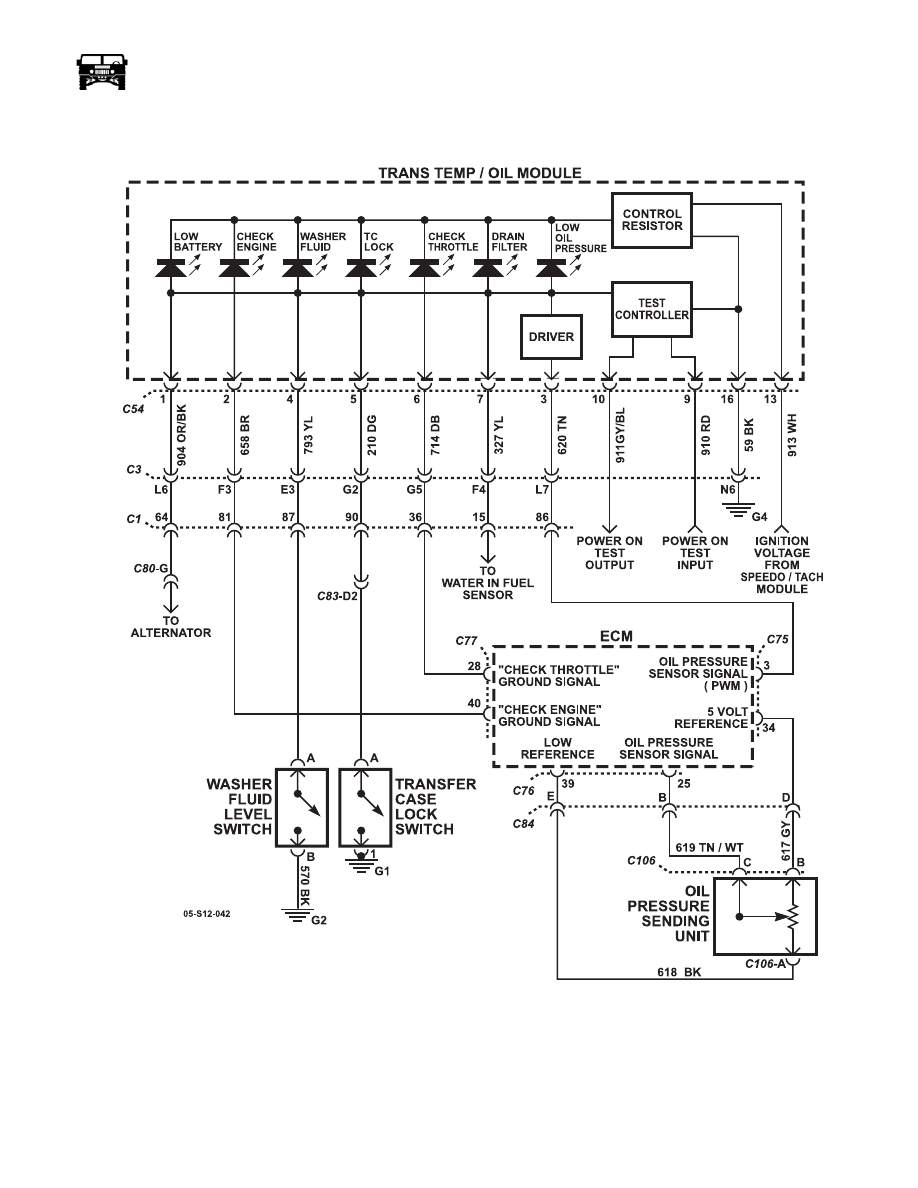

Figure 12-135:   Oil Pressure Sending Unit Wiring Schematic
