Hummer H1 (2006+). Manual - part 374

12-172

Electrical System

______________________________________________________

LOCKS POWER HMCS W/ LED BULBS FROM VIN 226861

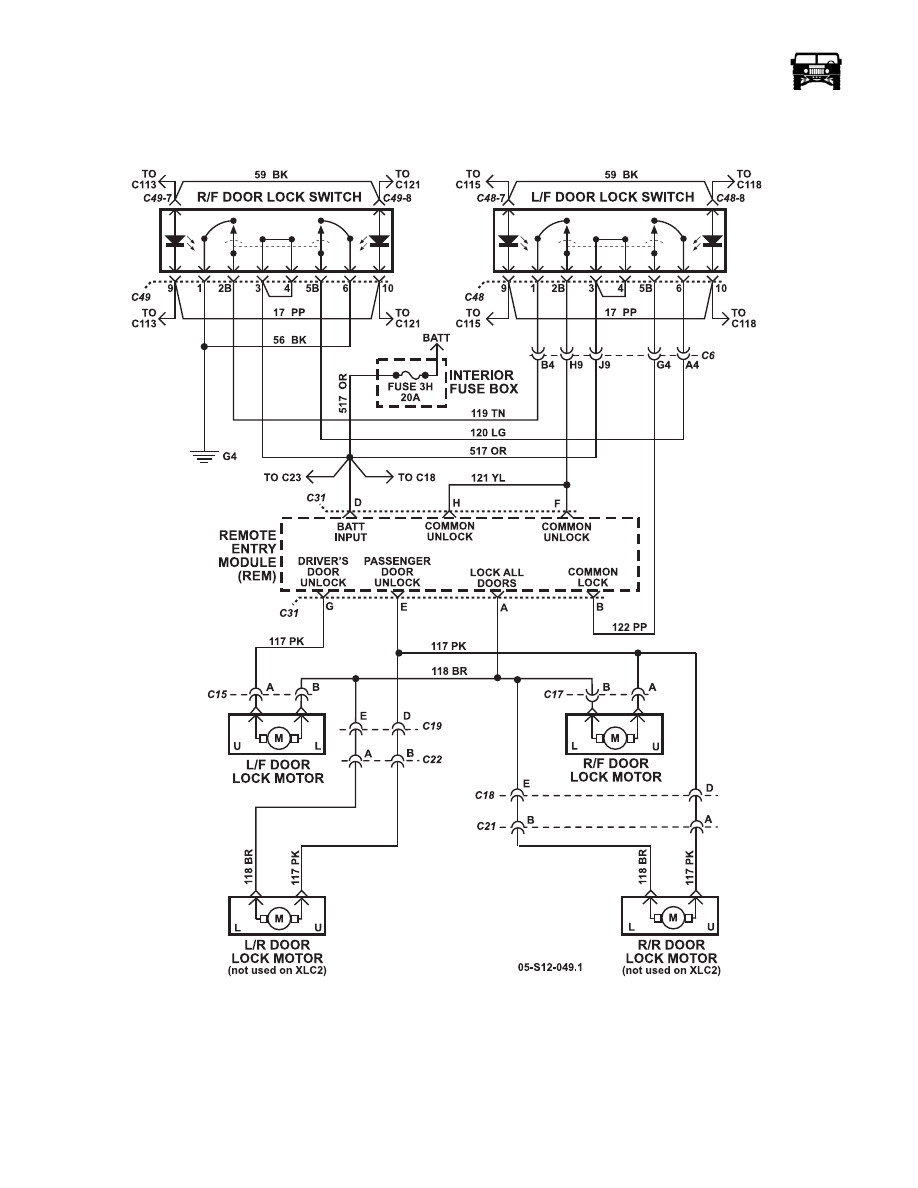

Figure 12-128:   Locks power With LED Bulbs Wiring Schematic

_____________________________________________________

 Electrical System  12-173

LOCKS POWER HMCO W/ INCANDESCENT BULBS THROUGH VIN 226860

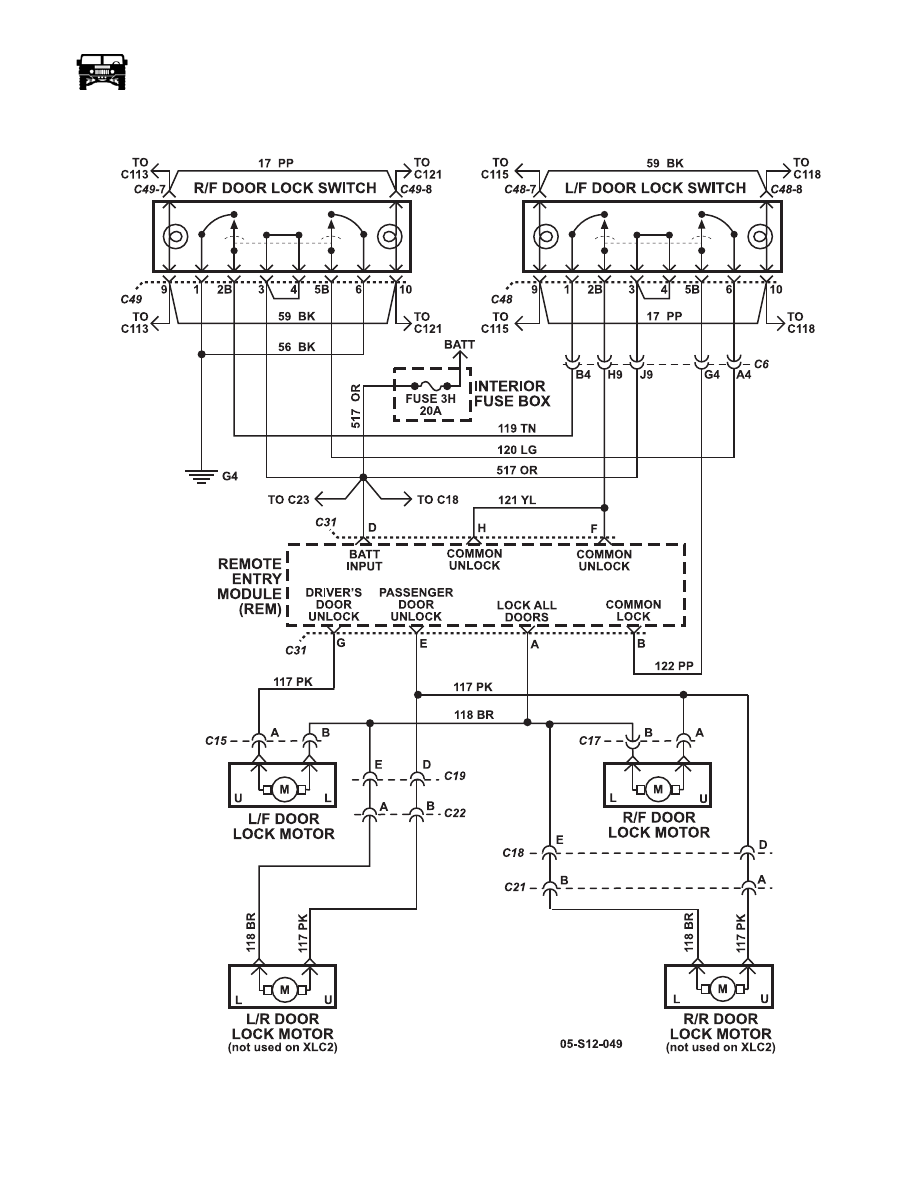

Figure 12-129:   Locks Power With Incandescent Bulbs Wiring Schematic

12-174

Electrical System

______________________________________________________

LOCKS POWER HMCO W/ LED BULBS FROM VIN 226861

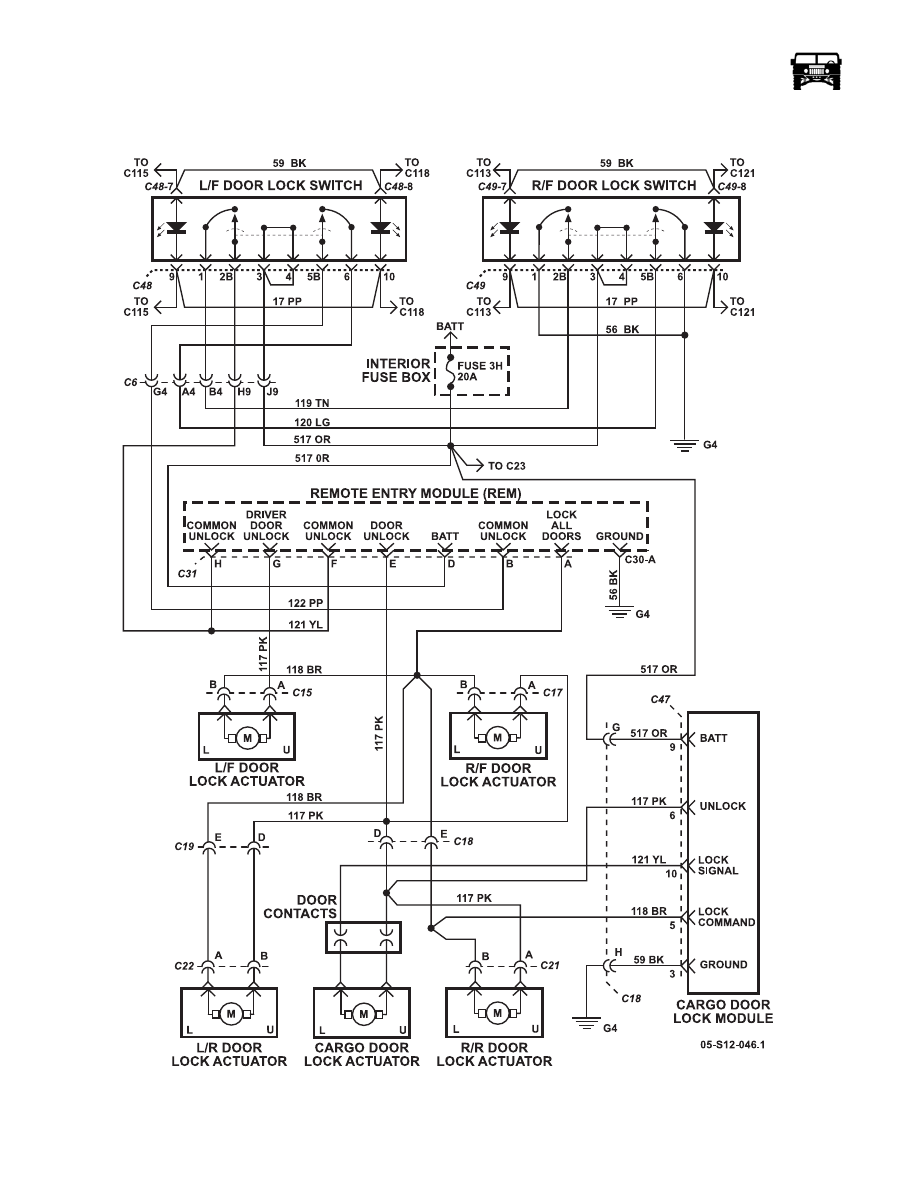

Figure 12-130:   Locks Power With LED Wiring Schematic

_____________________________________________________

 Electrical System  12-175

MASS AIR FLOW SENSOR (MAF)

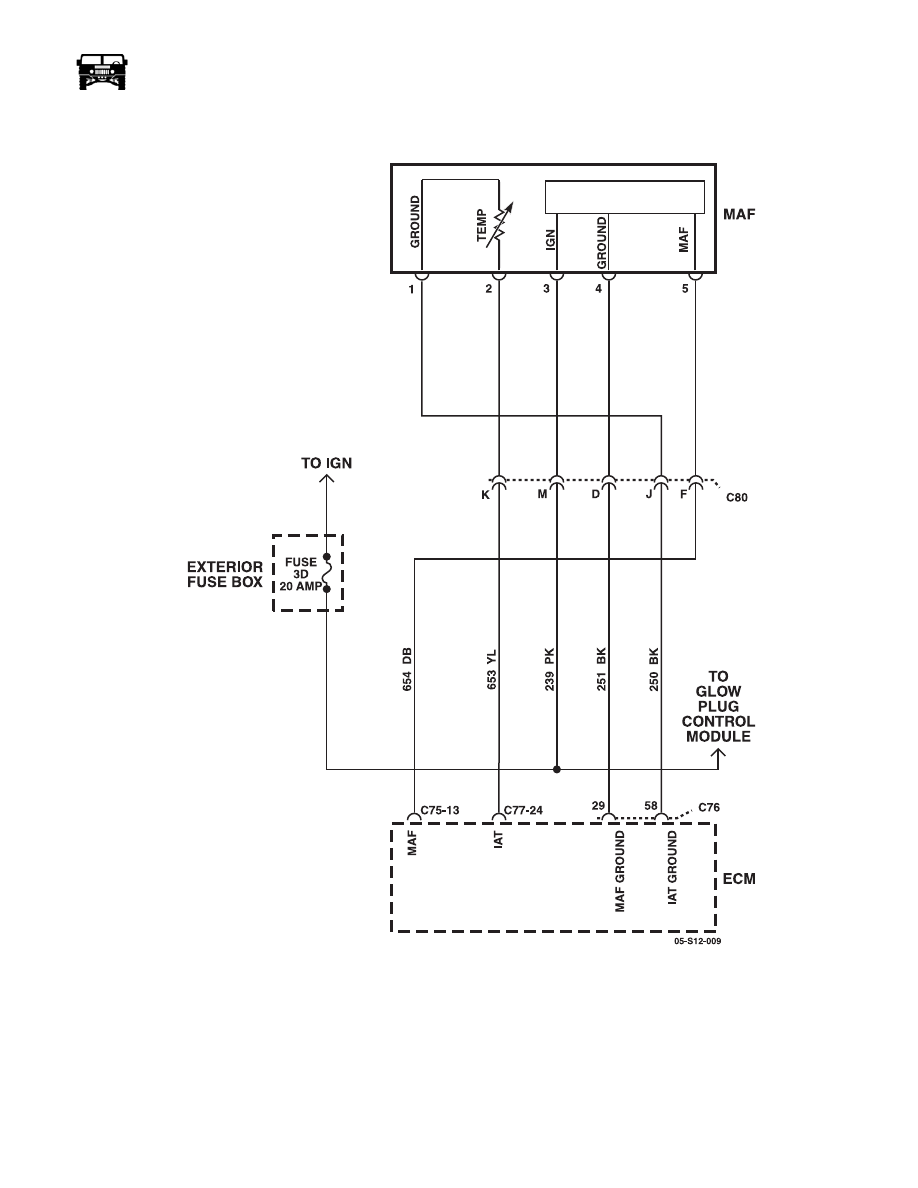

Figure 12-131:   Mass Air Flow Sensor Wiring Schematic
