12-164

Electrical System

______________________________________________________

HORN

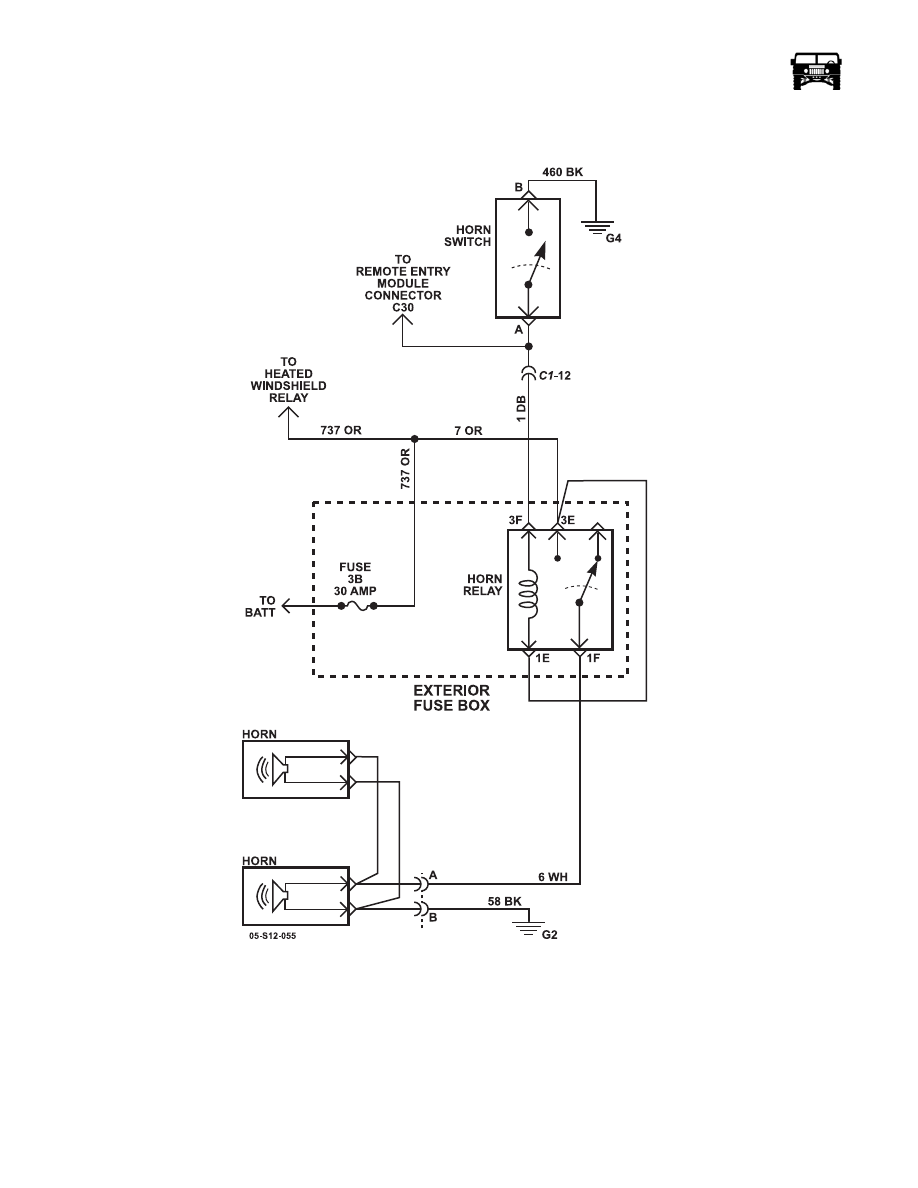

Figure 12-120:   Horn Wiring Schematic

_____________________________________________________

 Electrical System  12-165

HVAC

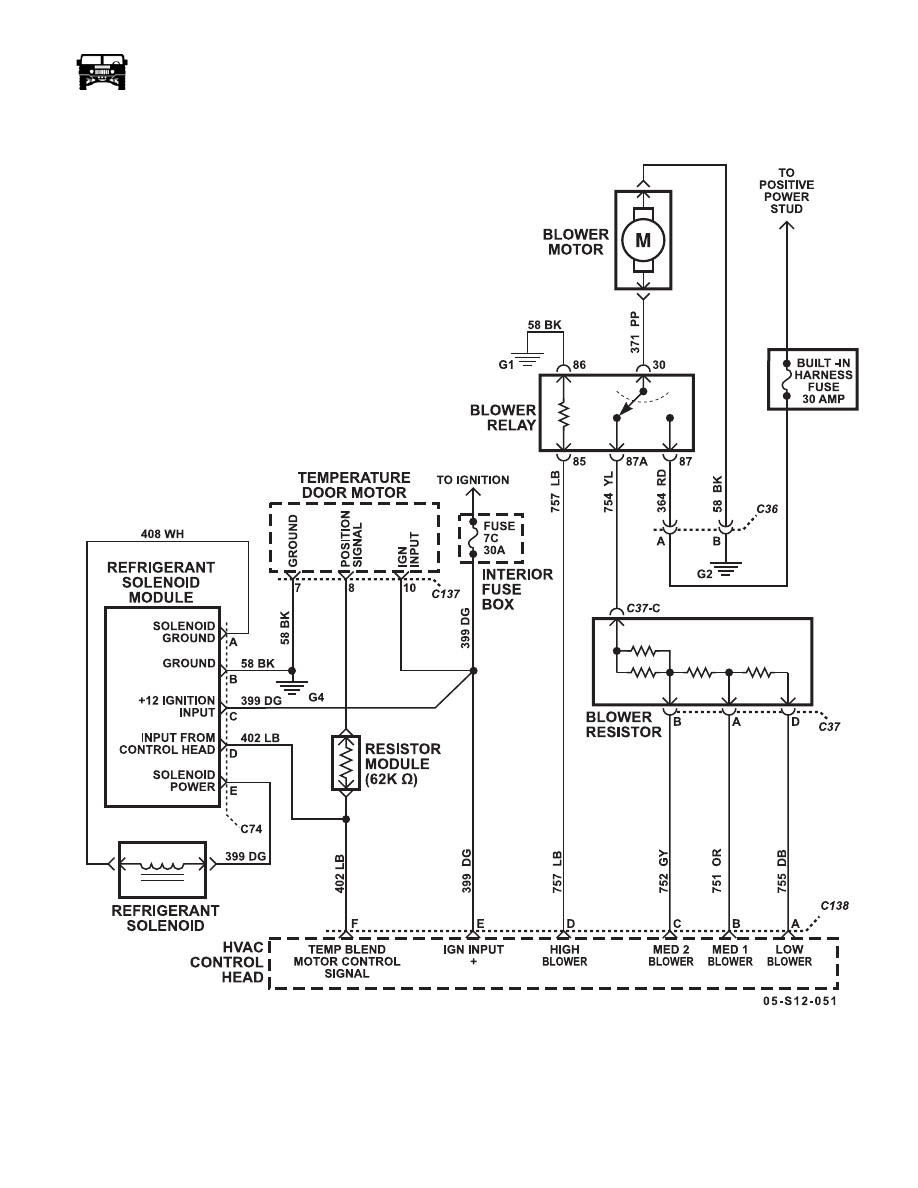

Figure 12-121:   HVAC Wiring Schematic

12-166

Electrical System

______________________________________________________

HVAC (AUXILLARY)

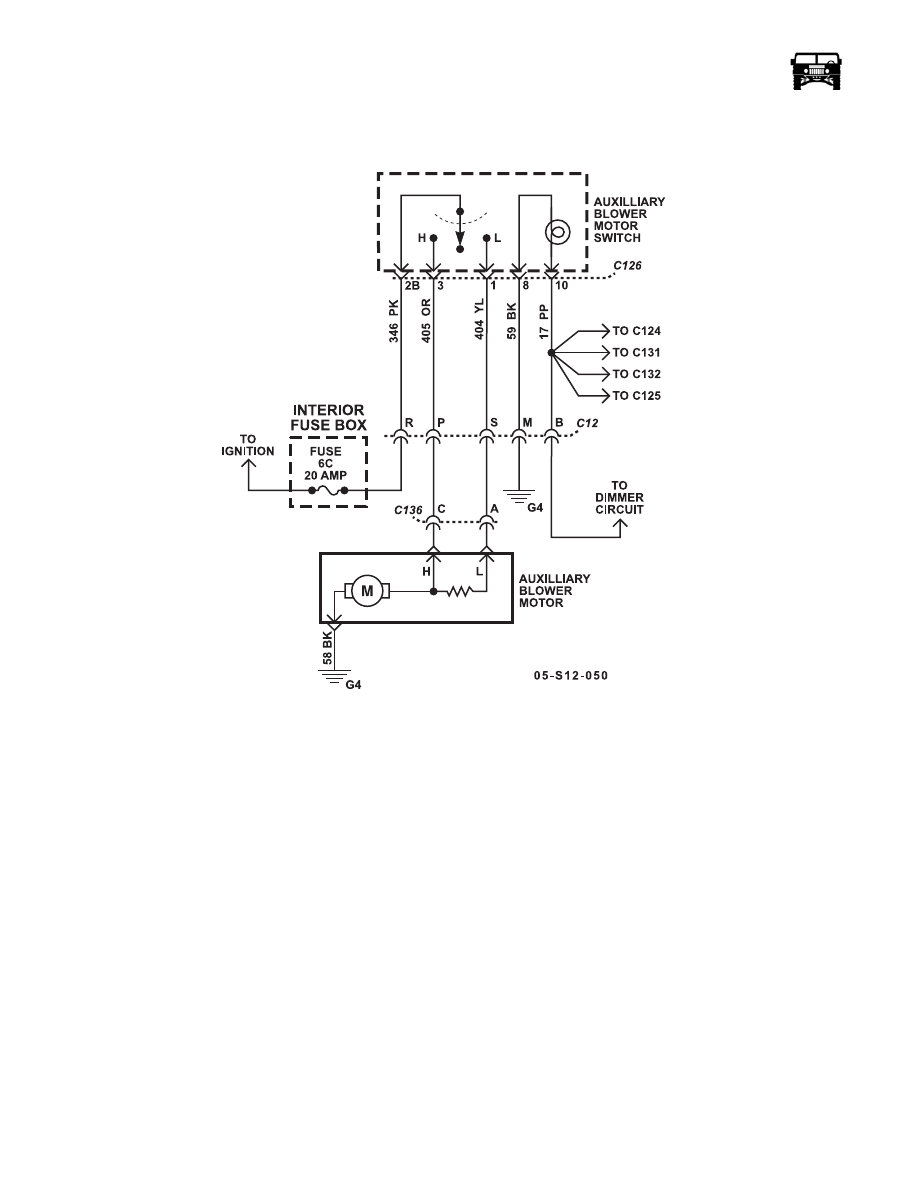

Figure 12-122:   Auxiliary HVAC Wiring Schematic

_____________________________________________________

 Electrical System  12-167

HVAC COMPRESSOR

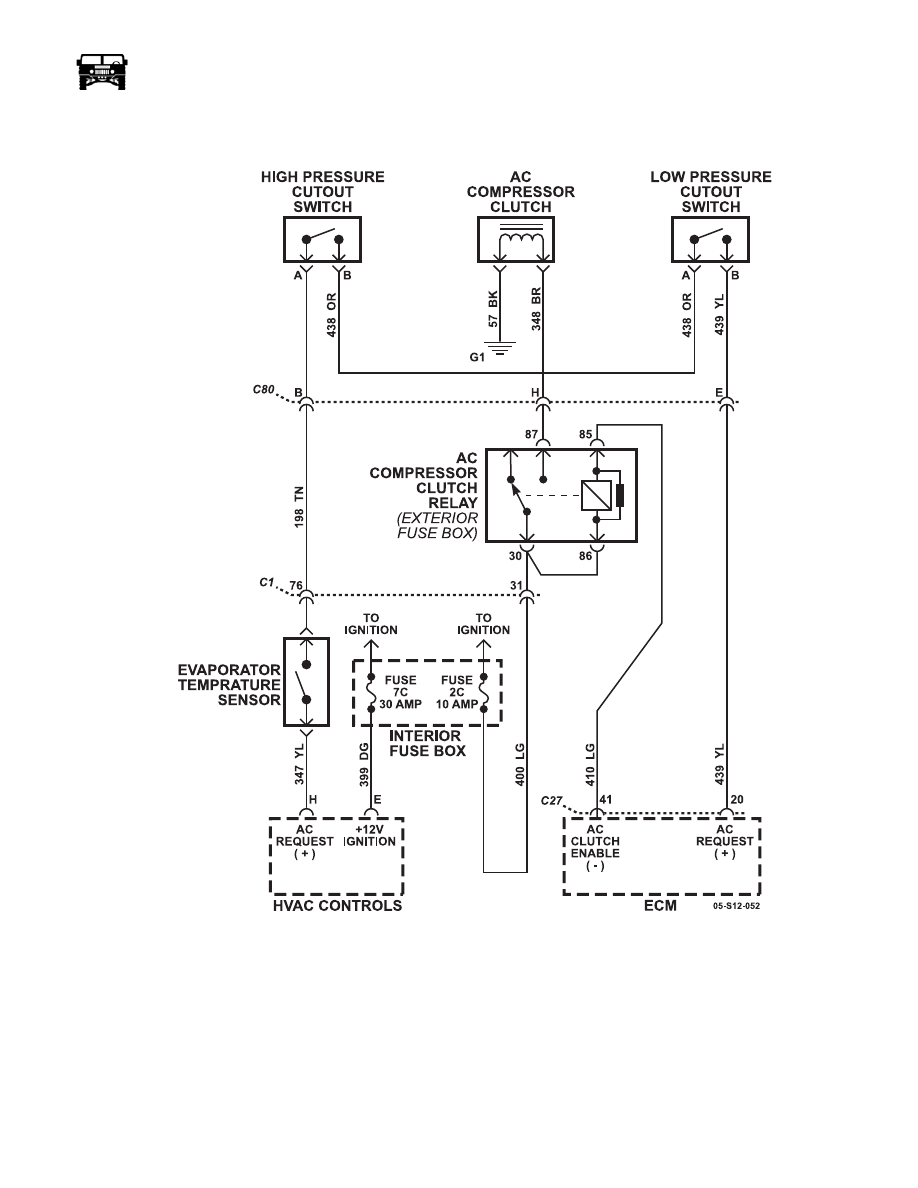

Figure 12-123:   HVAC Compressor Wiring Schematic
