12-156

Electrical System

______________________________________________________

FUEL MODULE WARNING LIGHTS

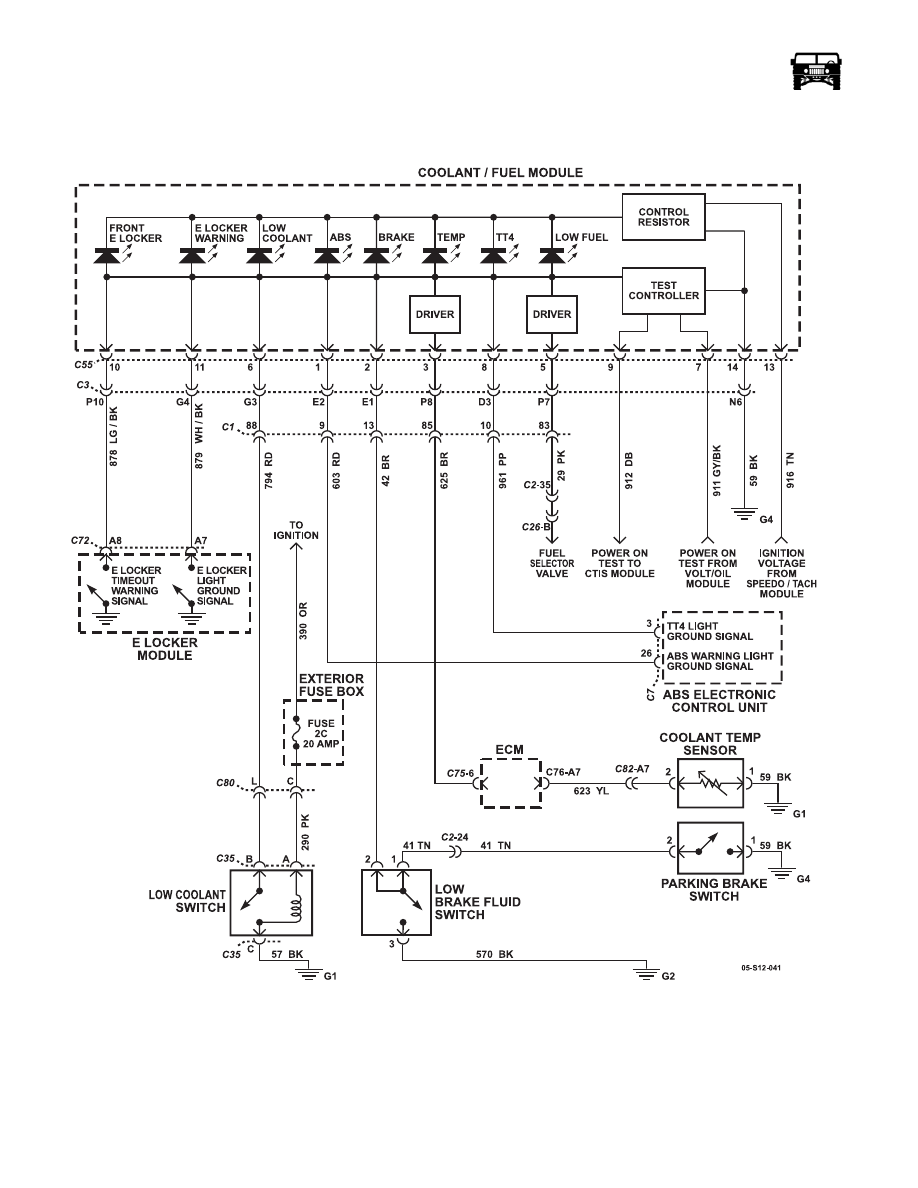

Figure 12-112:   Fuel Module Warning Lights Wiring Schematic

_____________________________________________________

 Electrical System  12-157

FUEL PRESSURE REGULATOR/ FUEL RAIL PRESSURE SENSOR

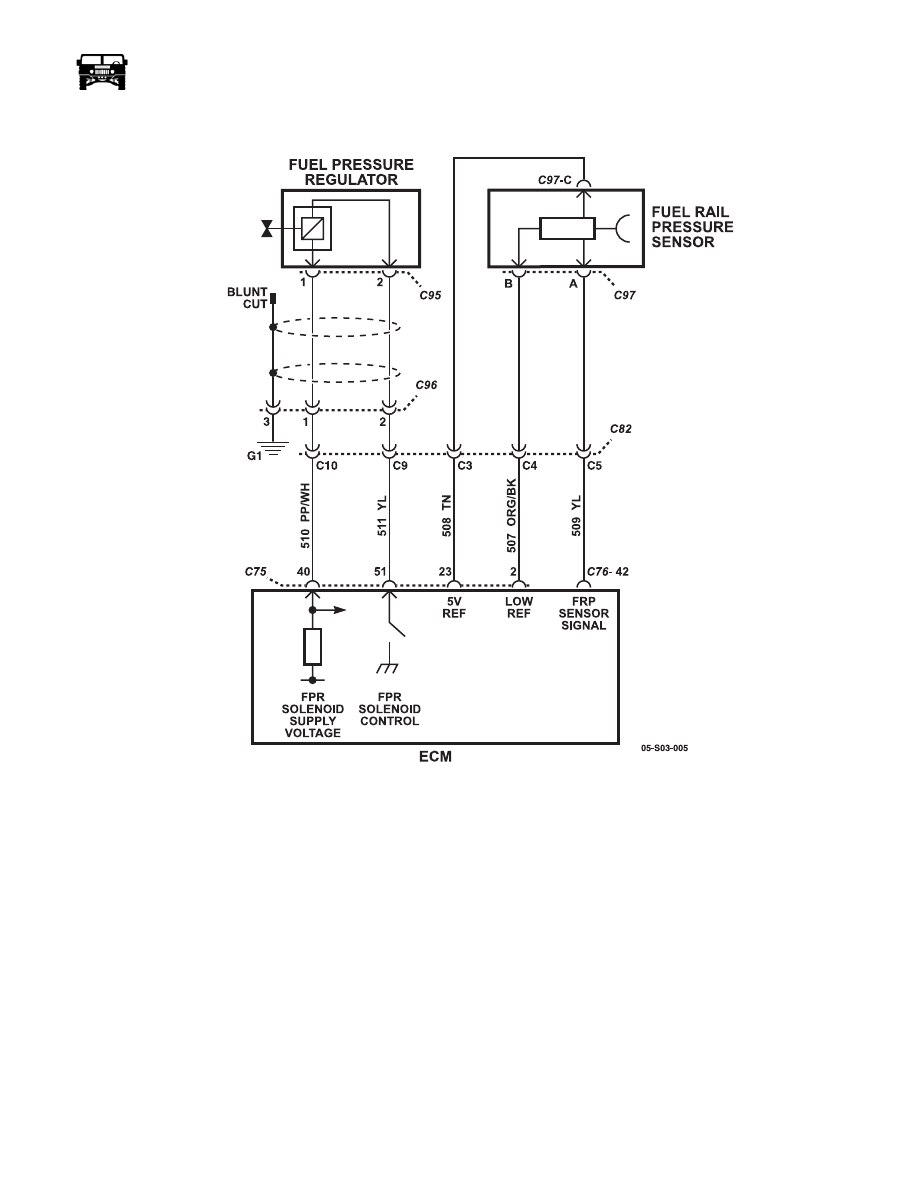

Figure 12-113:   Fuel Pressure Sensor/ Fuel Pressure Sensor Wiring Schematic

12-158

Electrical System

______________________________________________________

FUEL SELECTOR/ SENDING UNIT

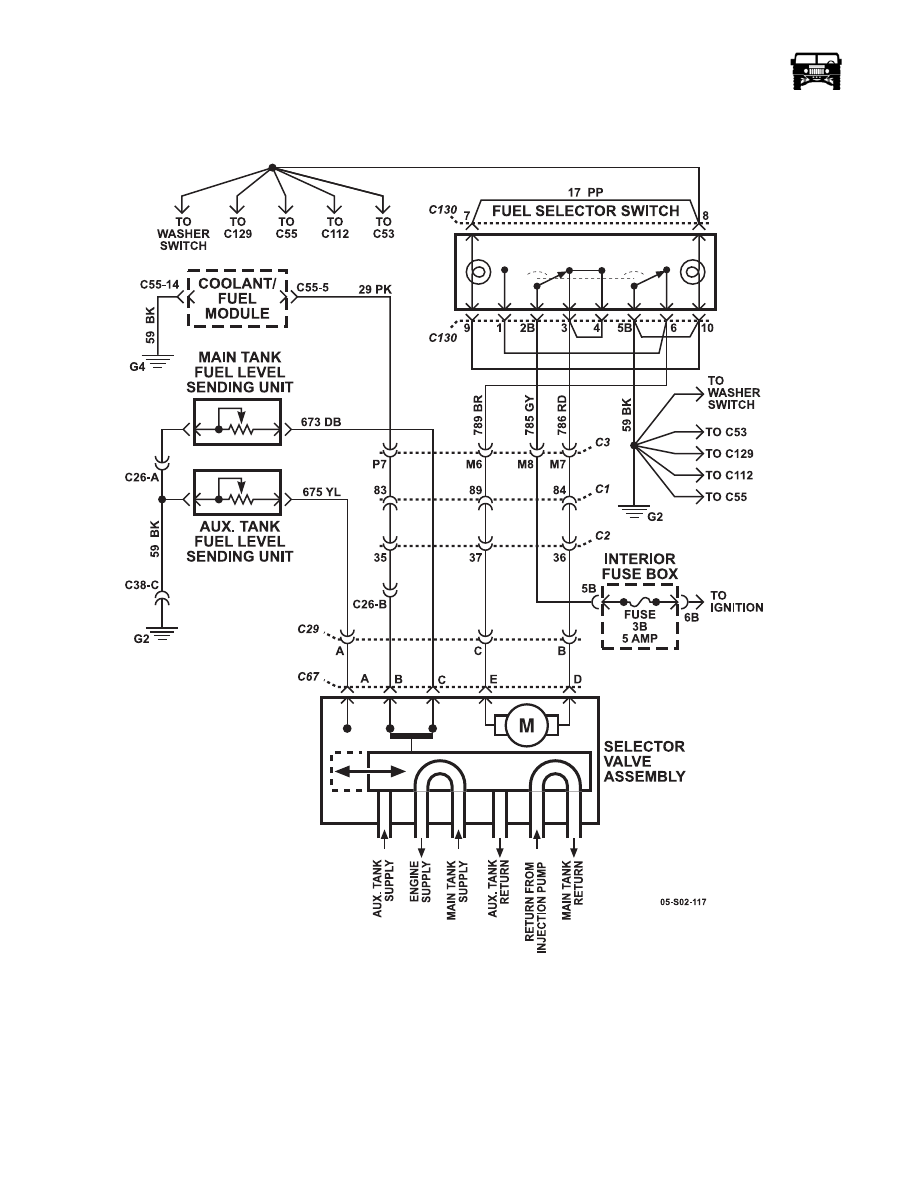

Figure 12-114:   Fuel Selector/ Sending Unit Wiring Schematic

_____________________________________________________

 Electrical System  12-159

FUEL TEMPERATURE SENSOR

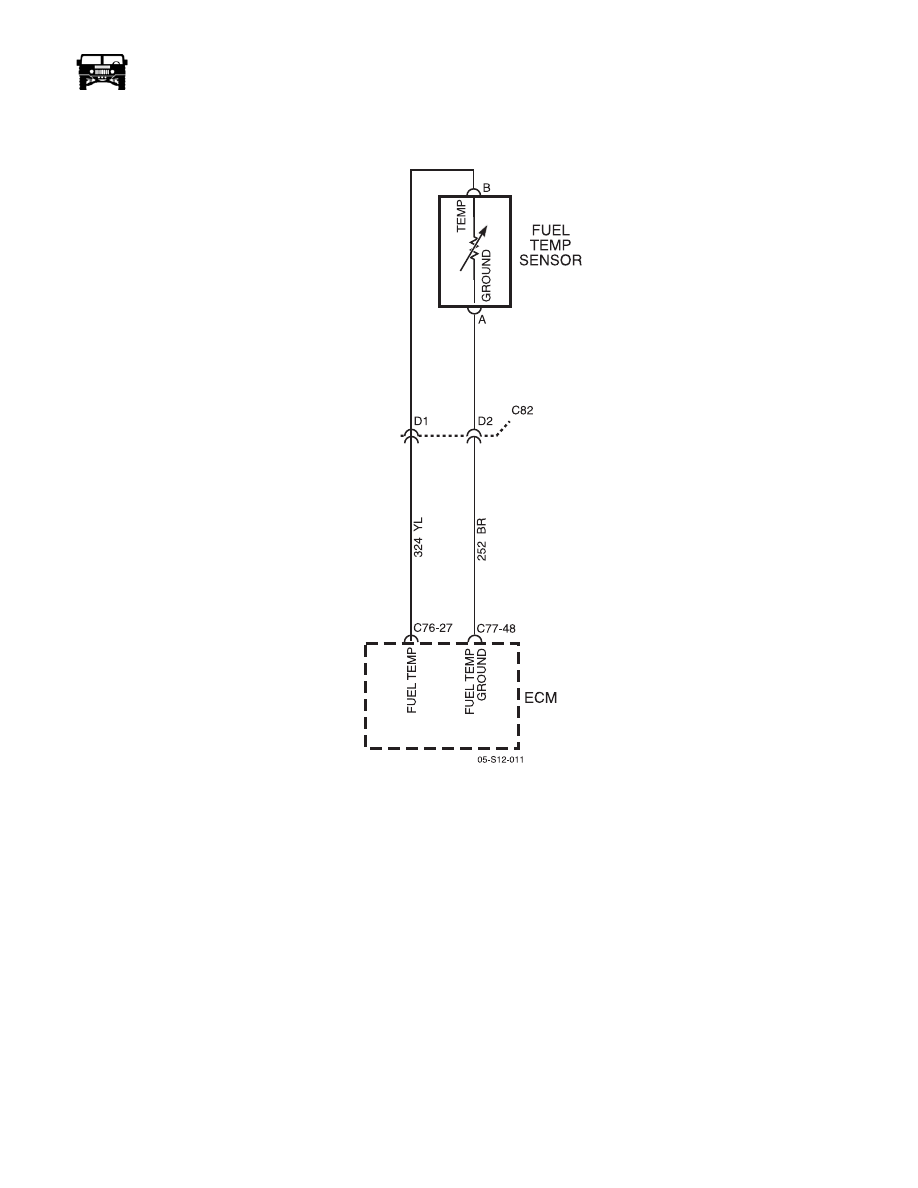

Figure 12-115:   Fuel Temperature Sensor Wiring Schematic
