Hummer H1 (2006+). Manual - part 368

12-148

Electrical System

______________________________________________________

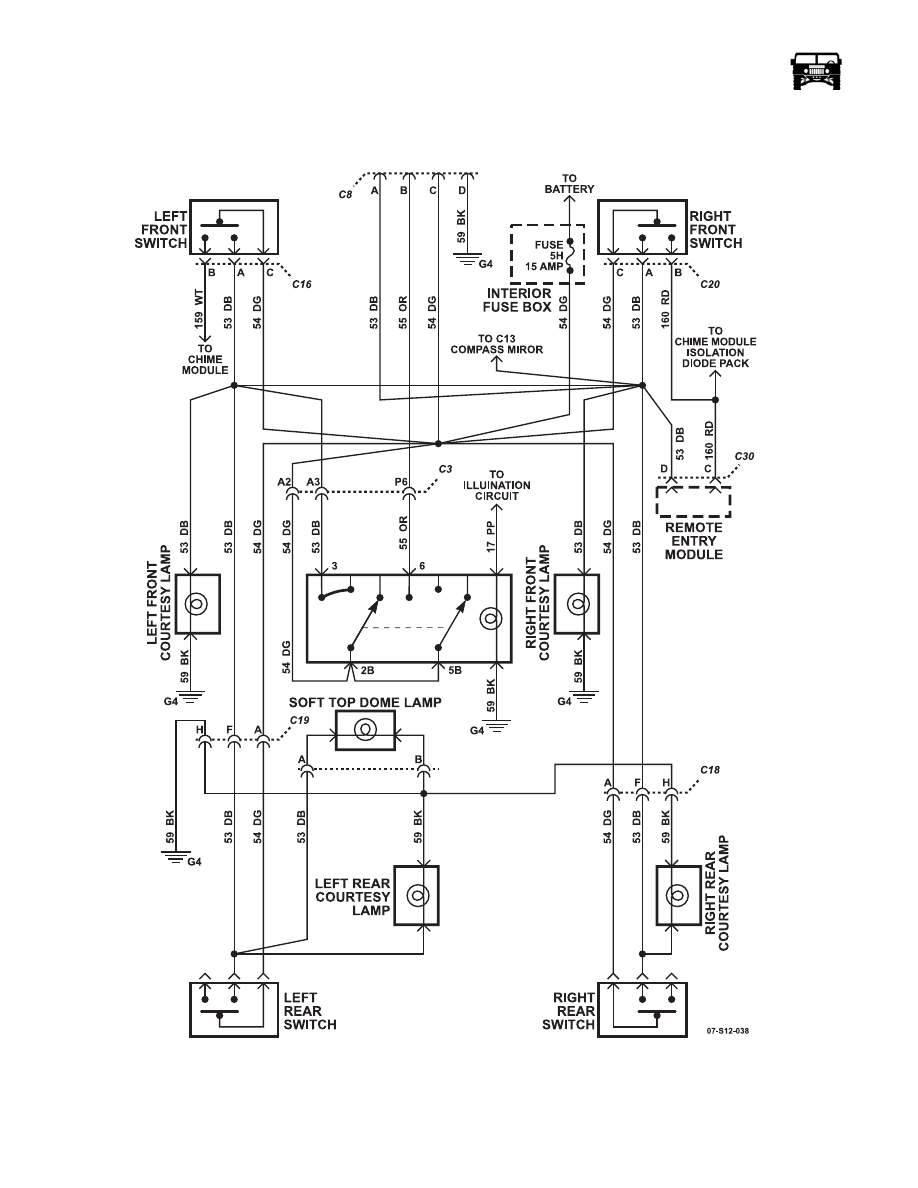

DOME/ COURTESY LIGHTS (OPEN TOP)

Figure 12-104:   Dome/ Courtesy Lights (Open Top) Wiring Schematic

_____________________________________________________

 Electrical System  12-149

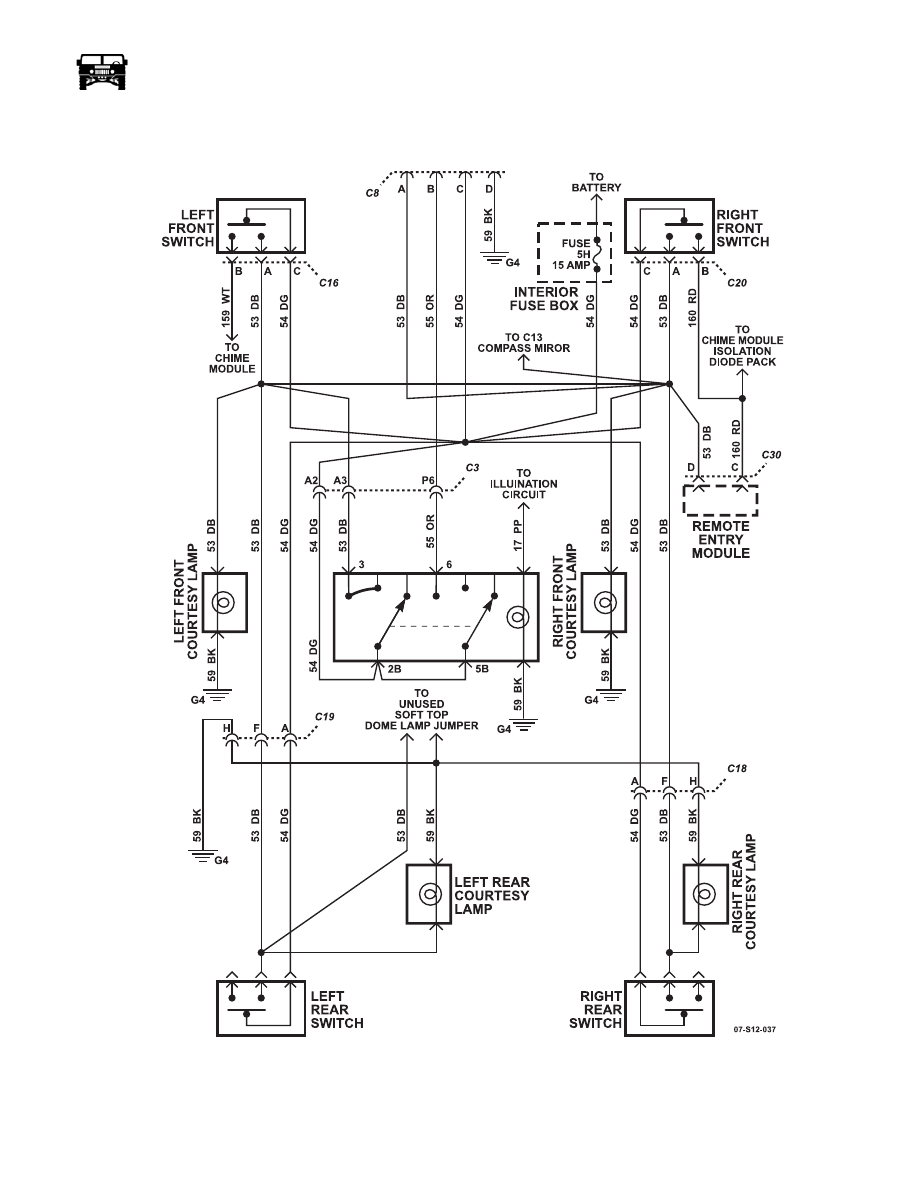

DOME/ COURTESY LIGHTS (WAGON)

Figure 12-105:   Dome/ Courtesy Lights (Wagon) Wiring Schematic

12-150

Electrical System

______________________________________________________

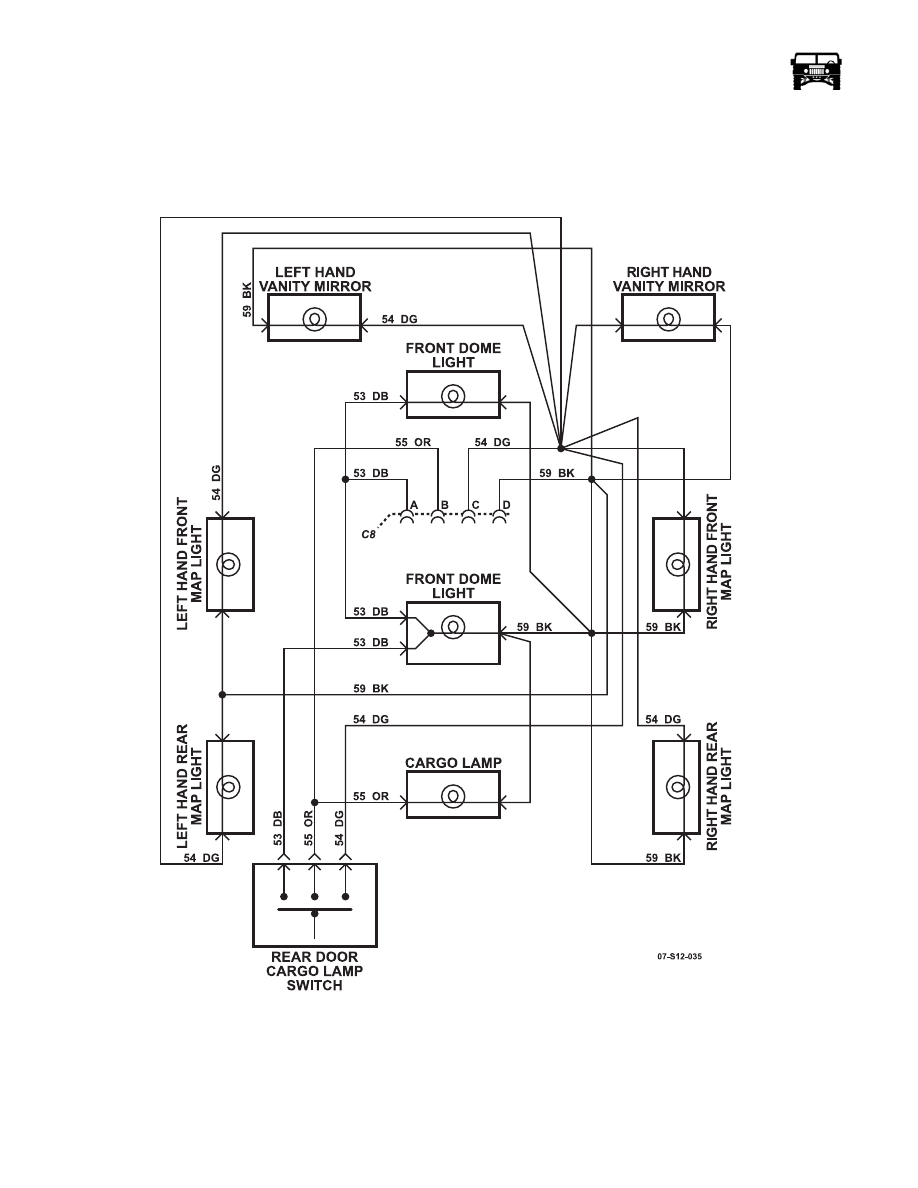

DOME/ MAP/ VANITY LIGHTS (WAGON)

Figure 12-106:   Dome/ Map/ Vanity Lights (Wagon) Wiring Schematic

_____________________________________________________

 Electrical System  12-151

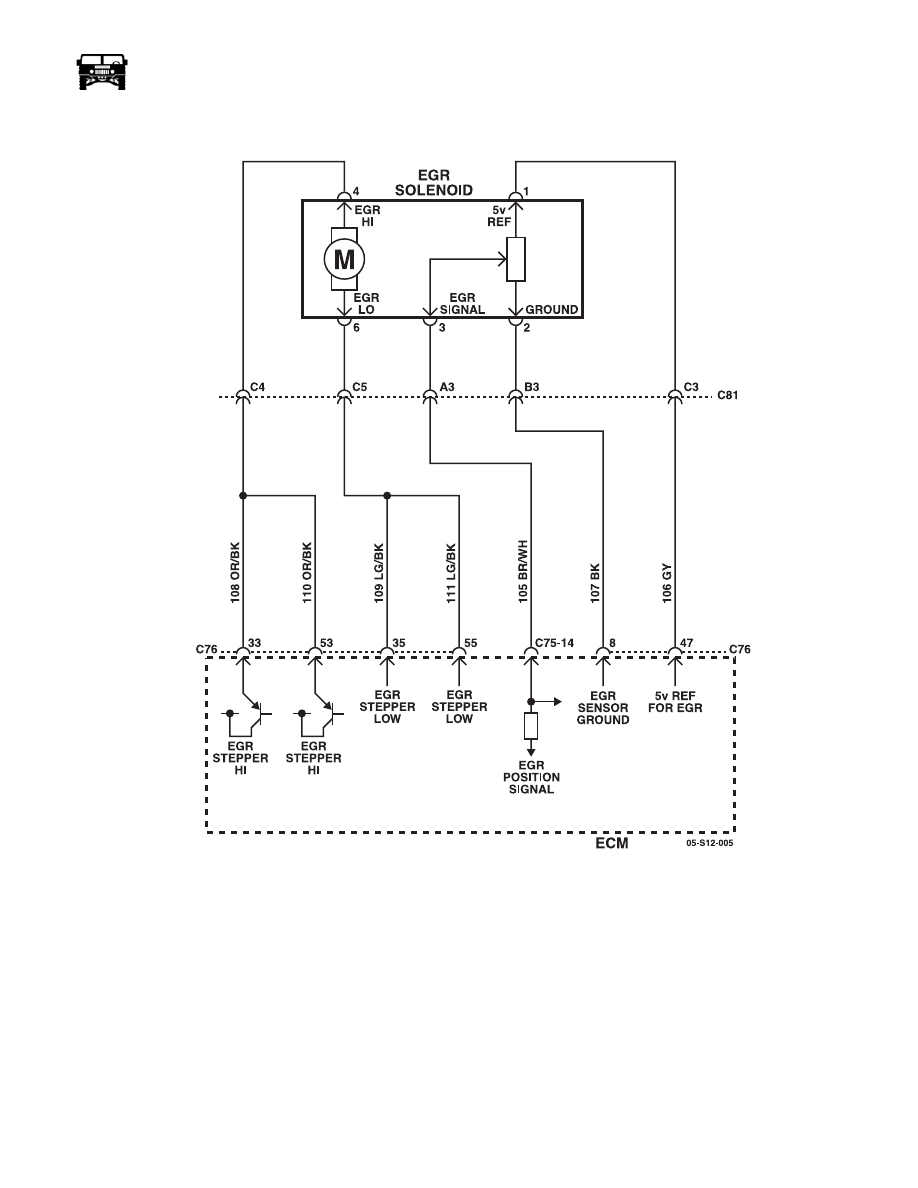

EGR SOLENOID

Figure 12-107:   EGR Solenoid Wiring Schematic
