12-140

Electrical System

______________________________________________________

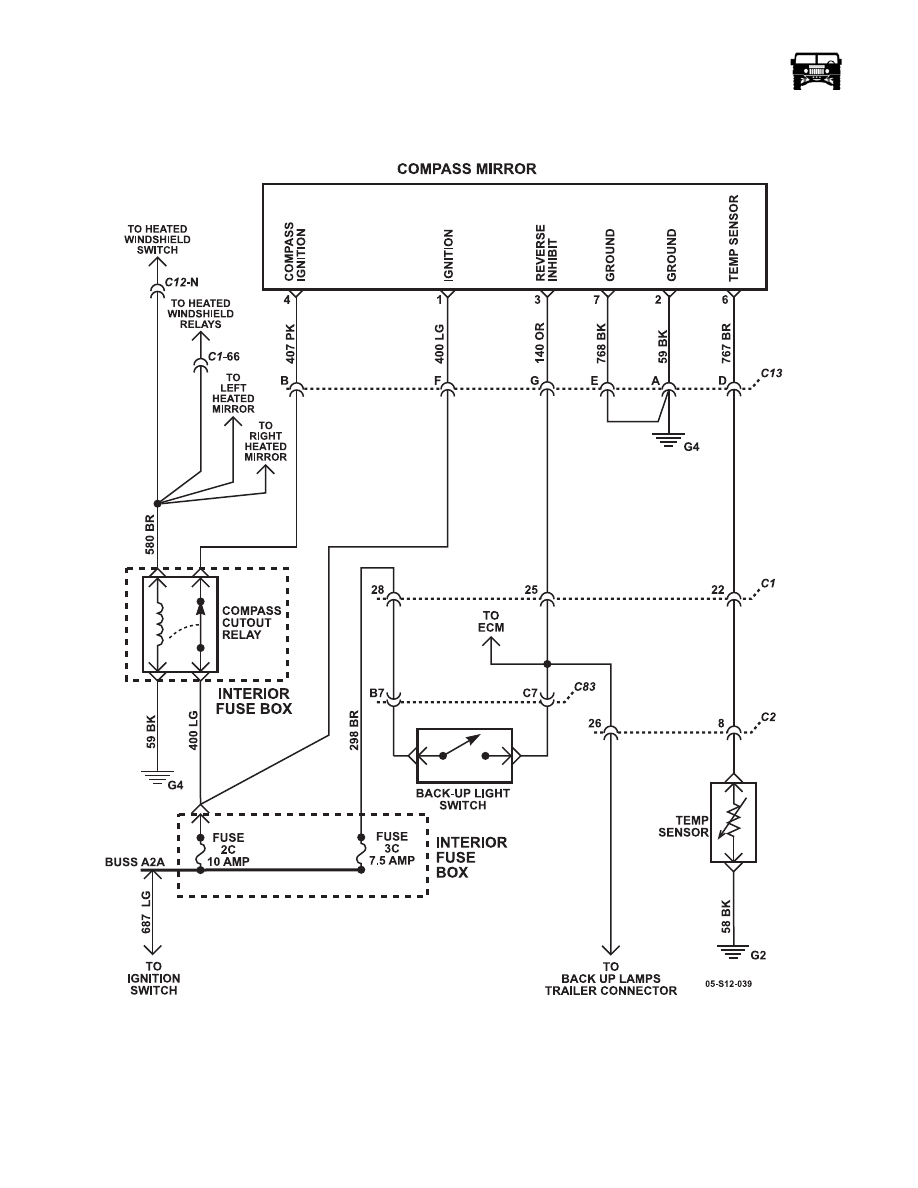

COMPASS MIRROR

Figure 12-96:   Compass Mirror Wiring Schematic

_____________________________________________________

 Electrical System  12-141

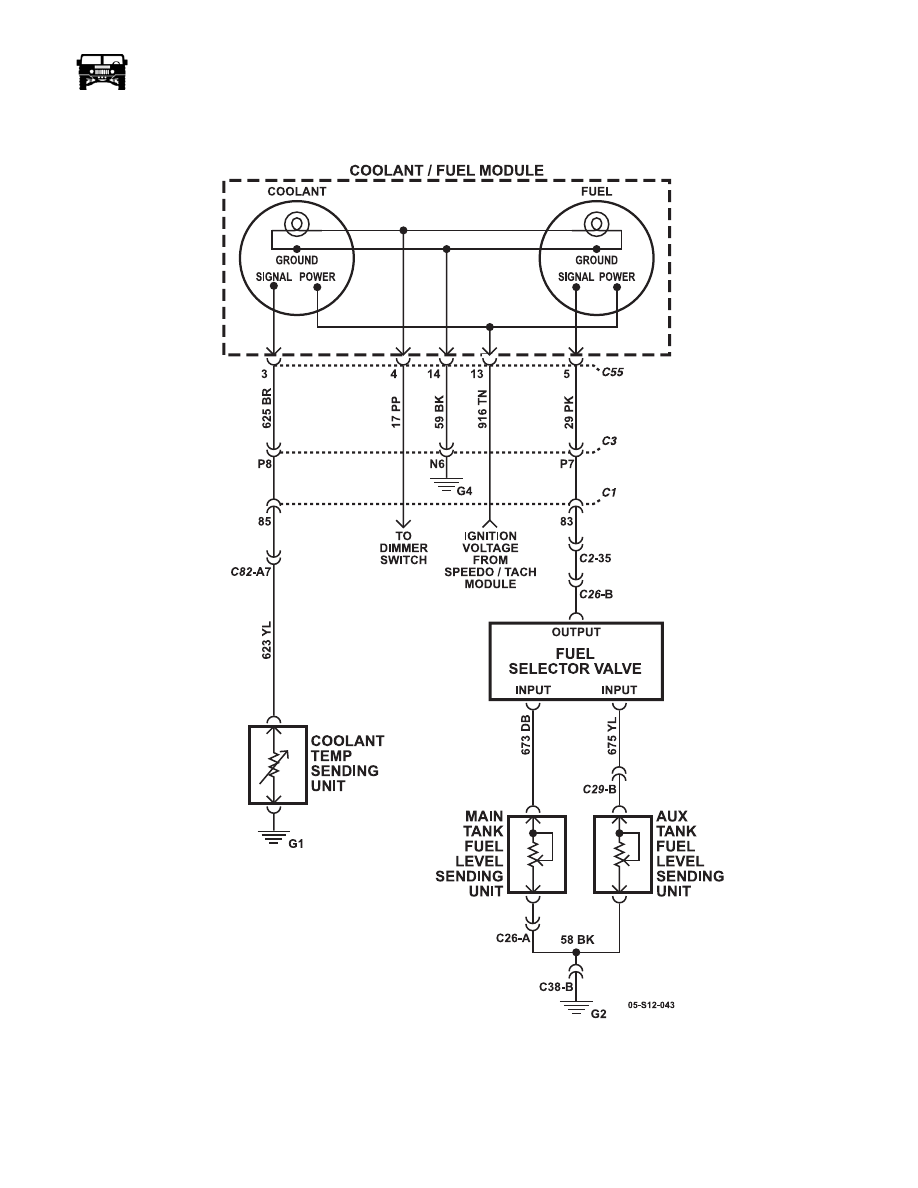

COOLANT GAUGE

Figure 12-97:   Coolant Gauge Wiring Schematic

12-142

Electrical System

______________________________________________________

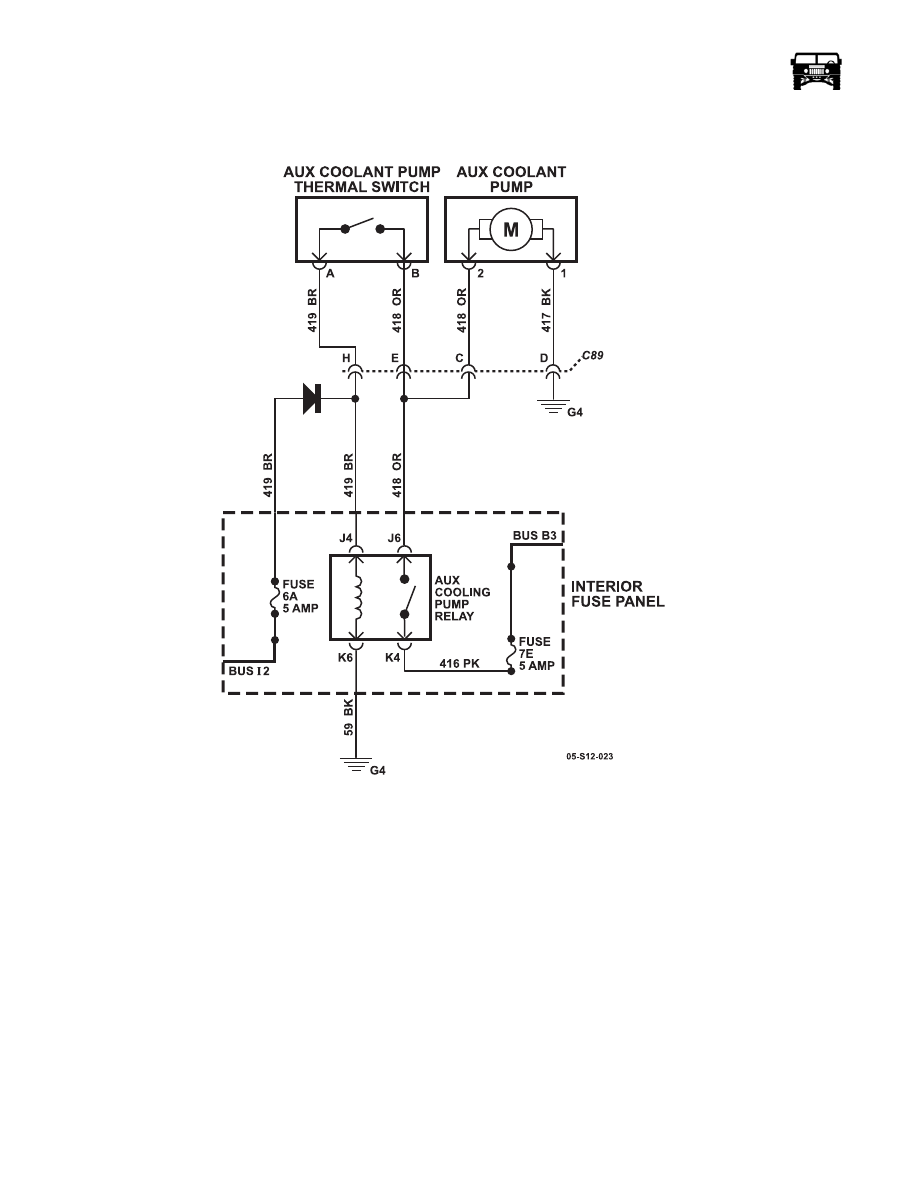

COOLANT PUMP AUXILIARY

Figure 12-98:   Auxiliary Coolant Pump Wiring Schematic

_____________________________________________________

 Electrical System  12-143

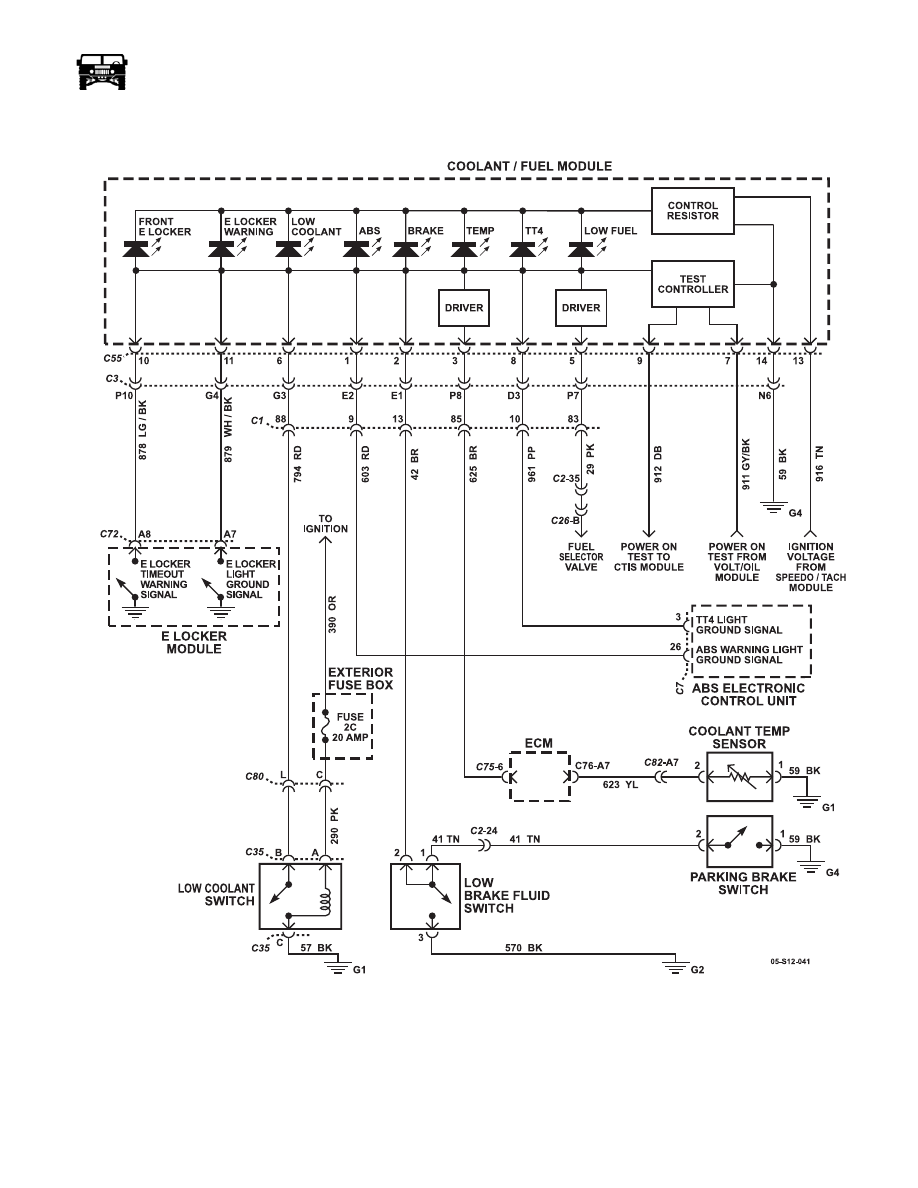

COOLANT TEMP SENSOR/ LOW COOLANT SWITCH/ COOLANT MODULE WARNING LIGHTS

Figure 12-99:   Coolant Module Warning Lights Wiring Schematic
