12-136

Electrical System

______________________________________________________

BACK UP LIGHTS

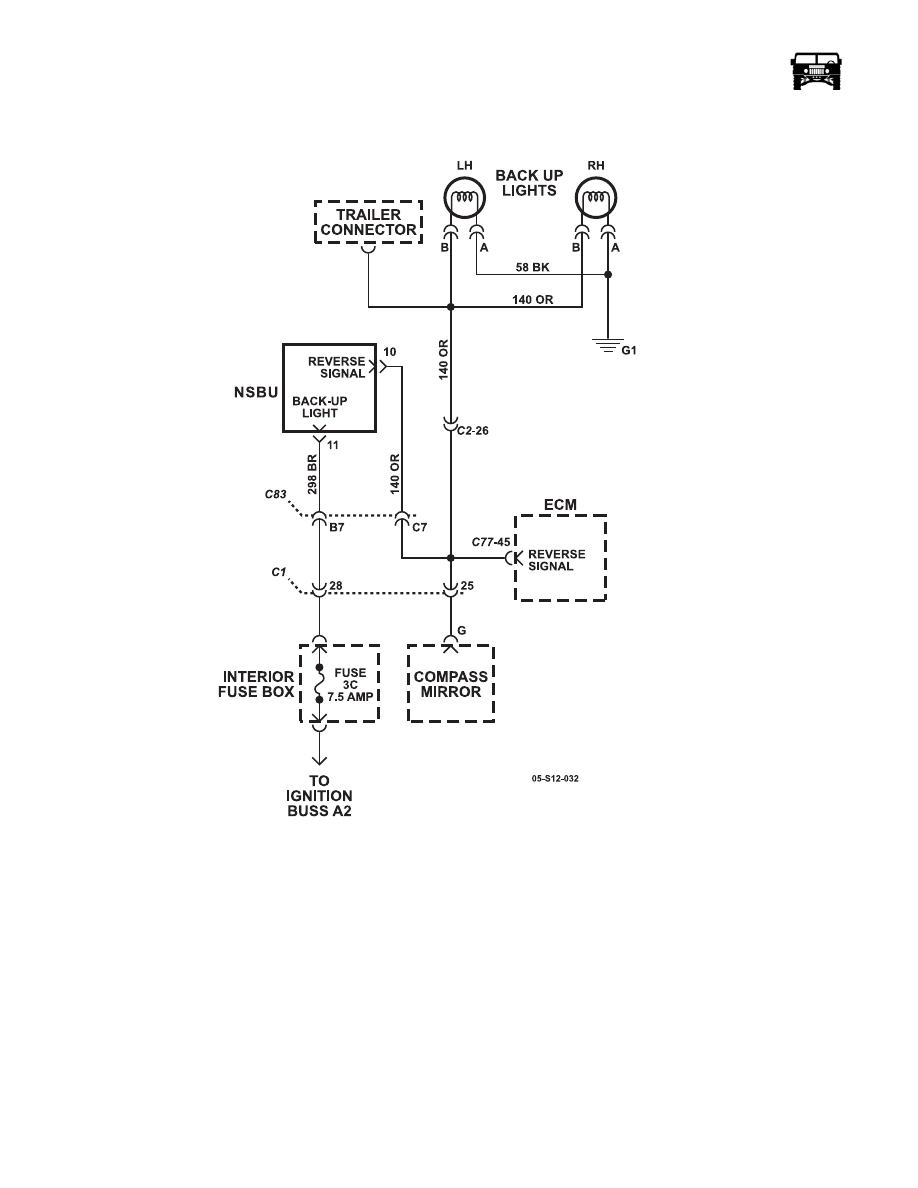

Figure 12-92:   Back Up Lights Wiring Schematic

_____________________________________________________

 Electrical System  12-137

BRAKE LIGHTS

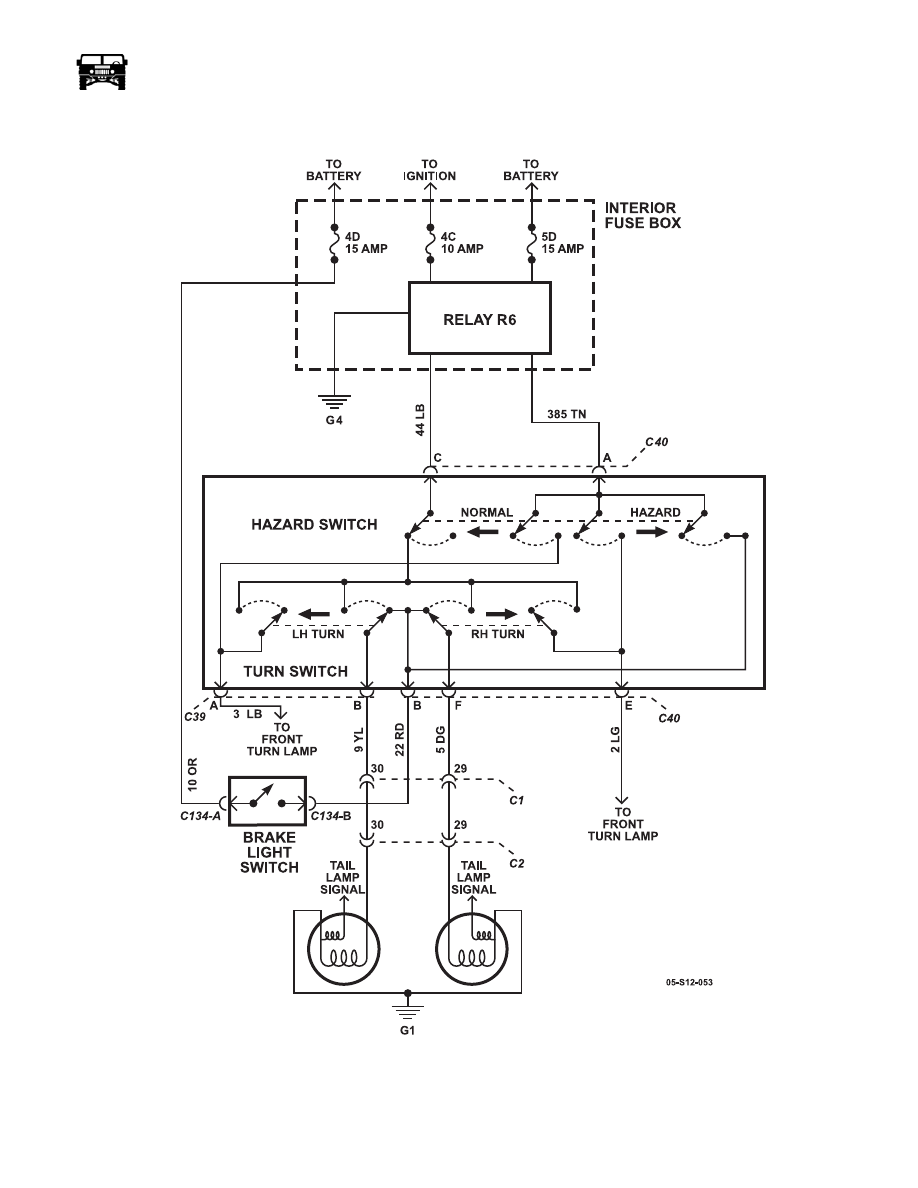

Figure 12-93:   Brake Lights Wiring Schematic

12-138

Electrical System

______________________________________________________

CAM SENSOR/ CRANK SENSOR

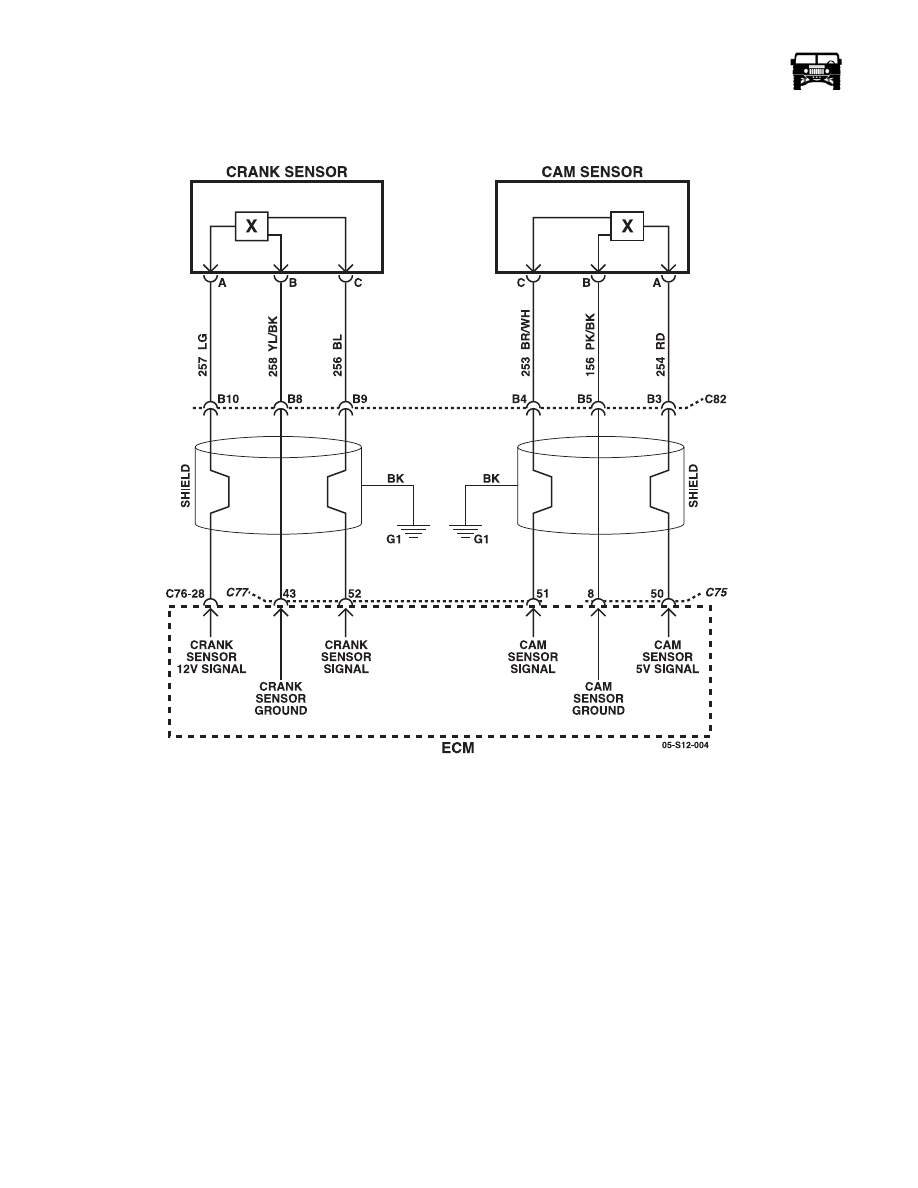

Figure 12-94:   Cam/ Crank Sensor Wiring Schematics

_____________________________________________________

 Electrical System  12-139

CHIME MODULE

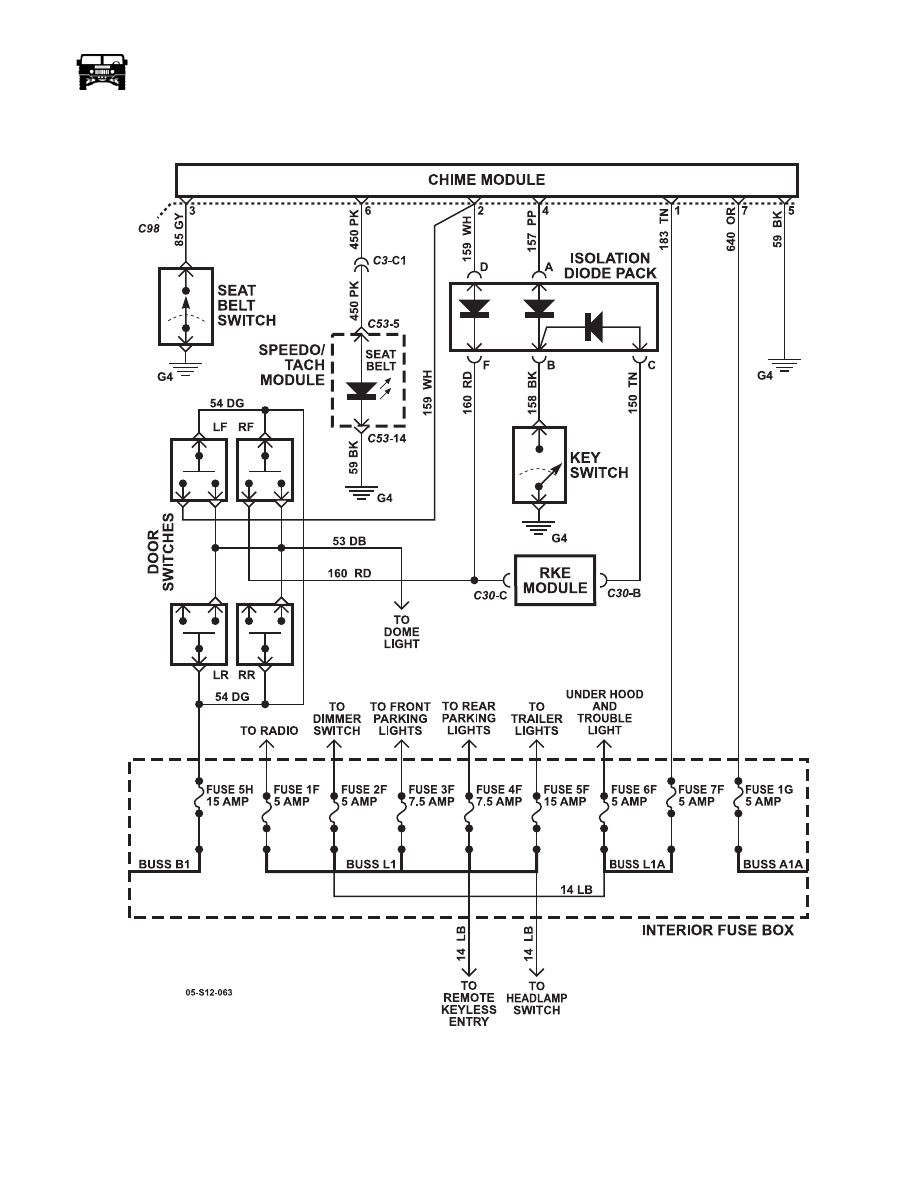

Figure 12-95:   Chime Module Wiring Schematic
