12-128

Electrical System

______________________________________________________

ABS/ TT4 MAIN SYSTEM DIAGRAM

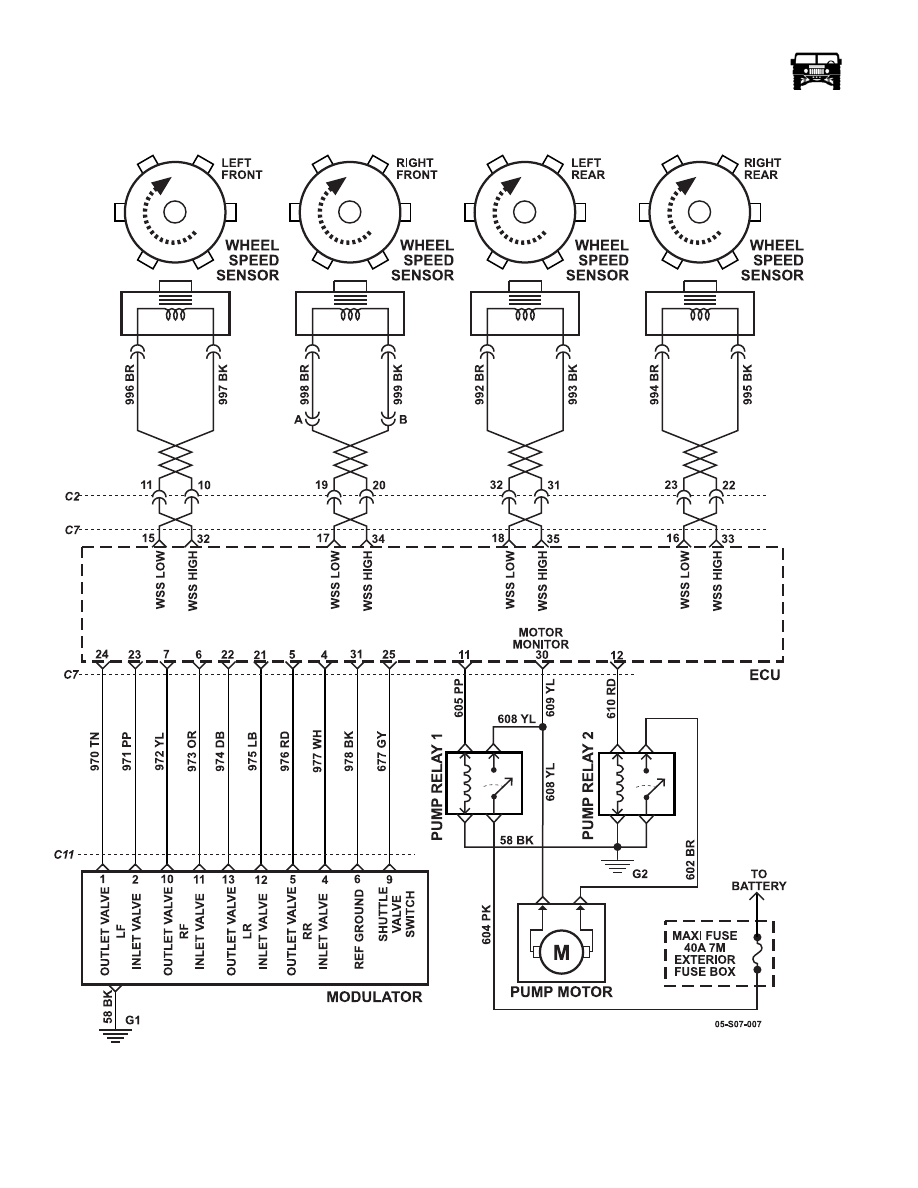

Figure 12-84:   ABS/ TT4 Wiring Schematic

_____________________________________________________

 Electrical System  12-129

ACCELERATOR PEDAL POSITION (APP) CIRCUIT

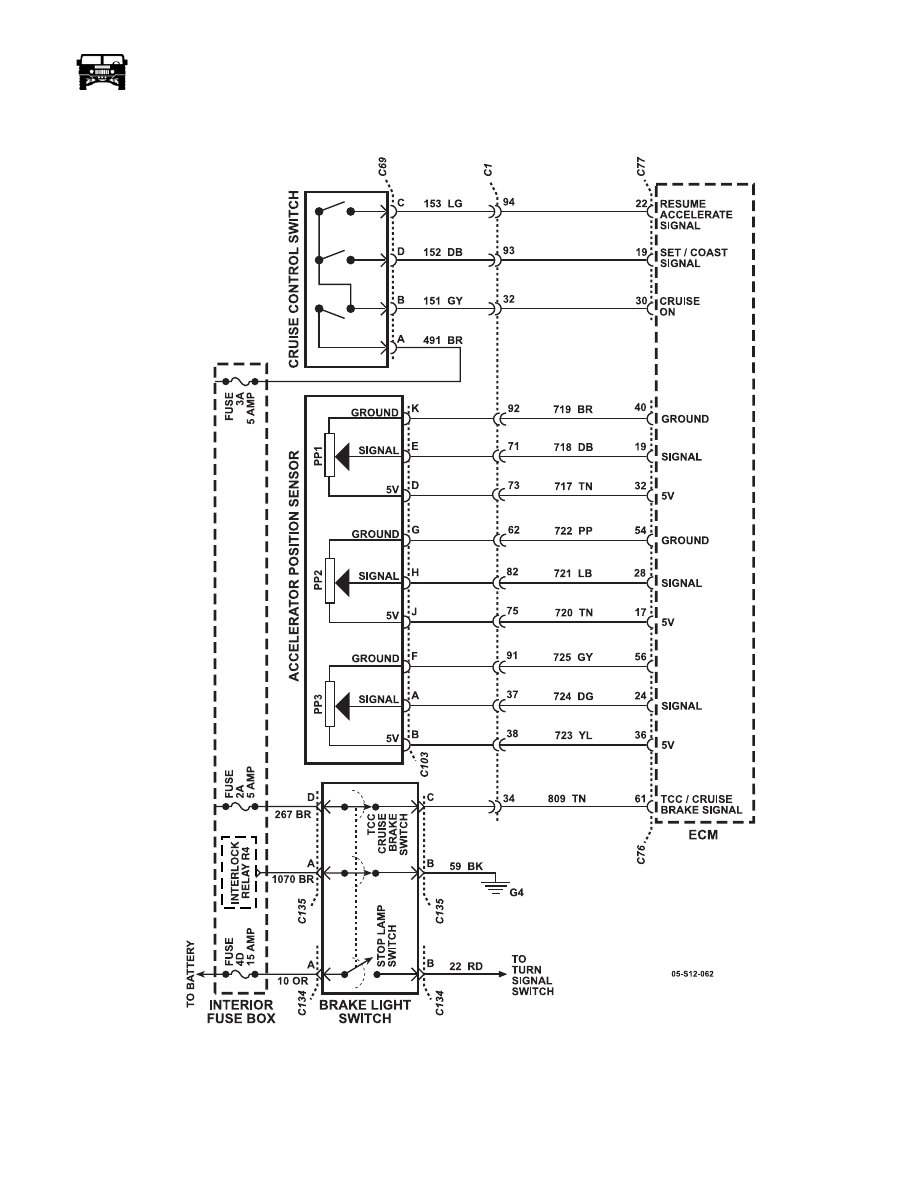

Figure 12-85:   Accelerator Pedal Position Wiring Schematic

12-130

Electrical System

______________________________________________________

ALTERNATOR

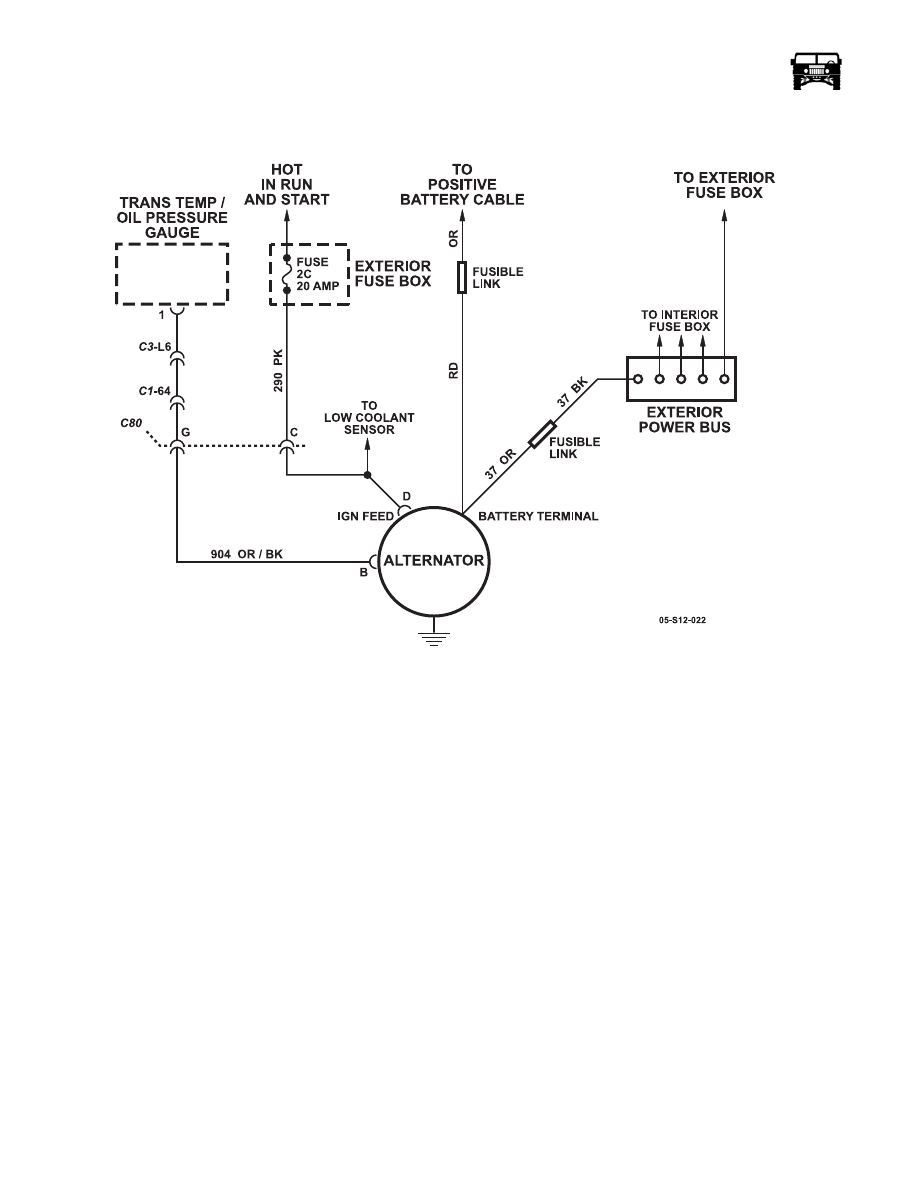

Figure 12-86:   Alternator Wiring Schematic

_____________________________________________________

 Electrical System  12-131

AUDIO

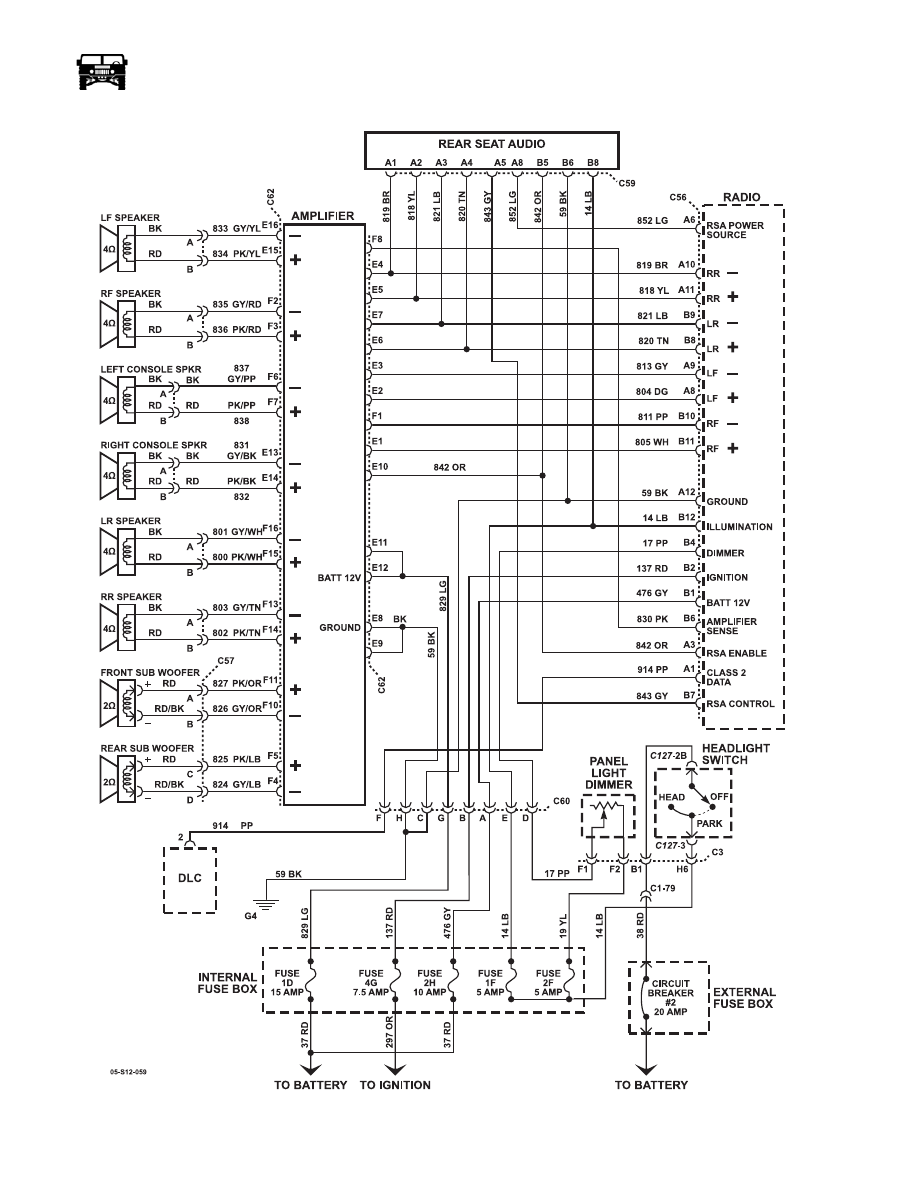

Figure 12-87:   Audio Wiring Schematic
