12-132

Electrical System

______________________________________________________

BAROMETRIC PRESSURE (BARO) SENSOR

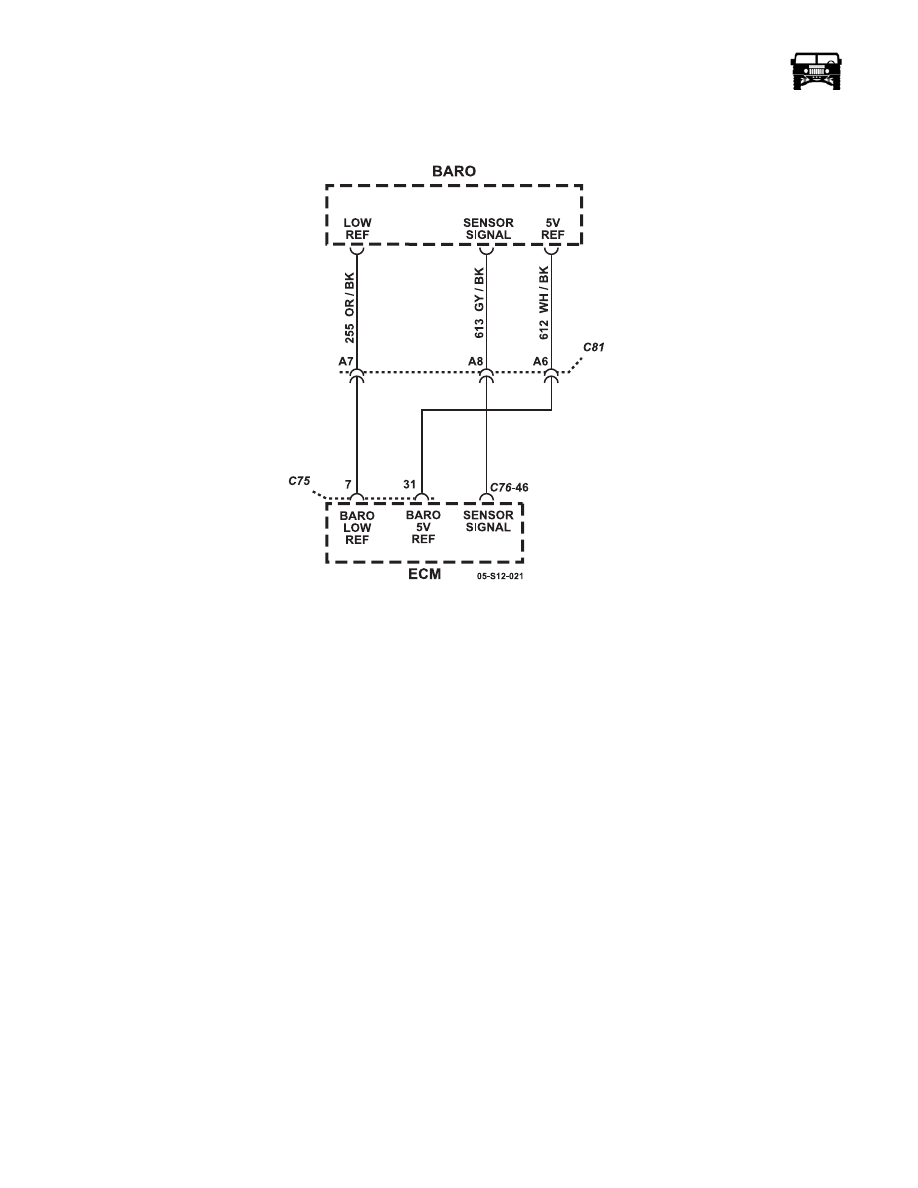

Figure 12-88:   Barometric Pressure Sensor Wiring Schematic

_____________________________________________________

 Electrical System  12-133

BLOWER MOTOR (AUXILIARY)

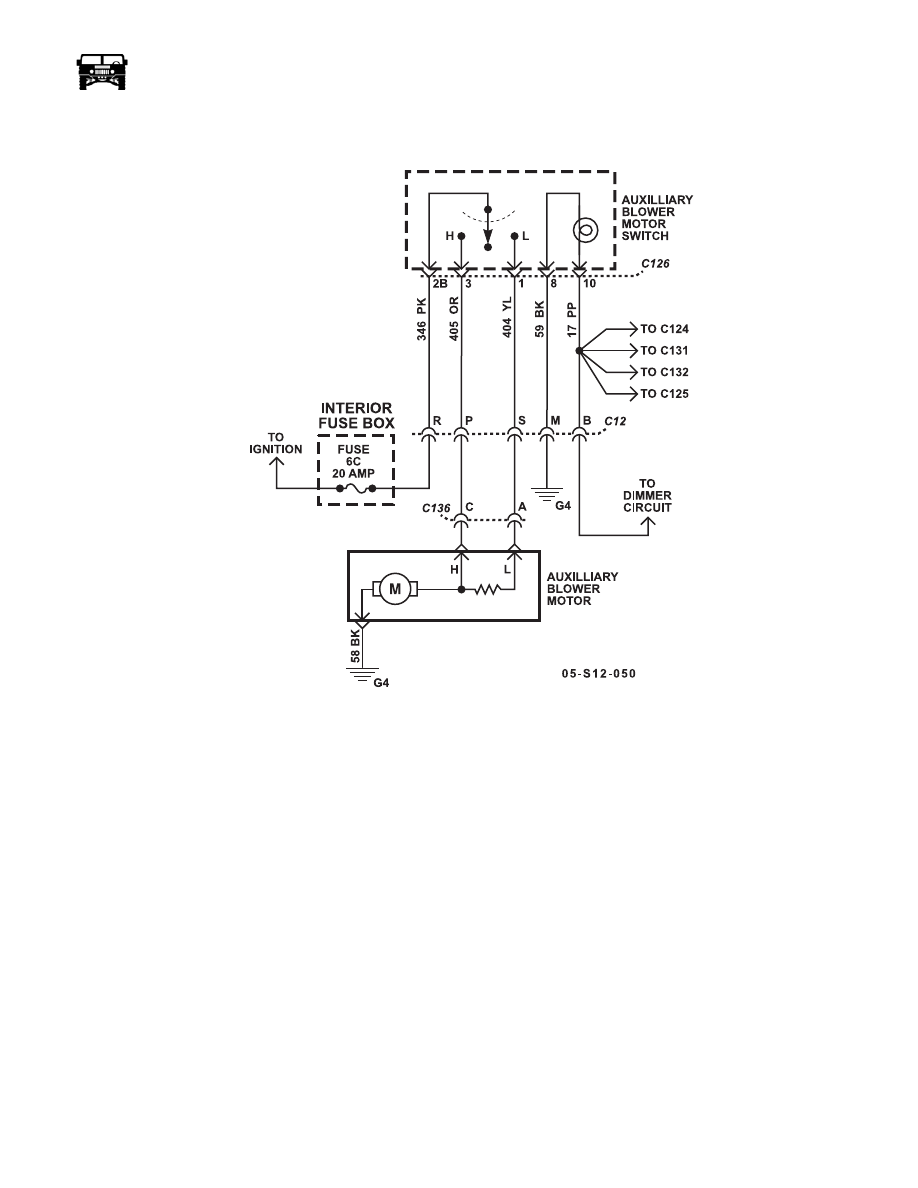

Figure 12-89:   Auxiliary Blower Motor Wiring Schematic

12-134

Electrical System

______________________________________________________

BLOWER MOTOR (MAIN)

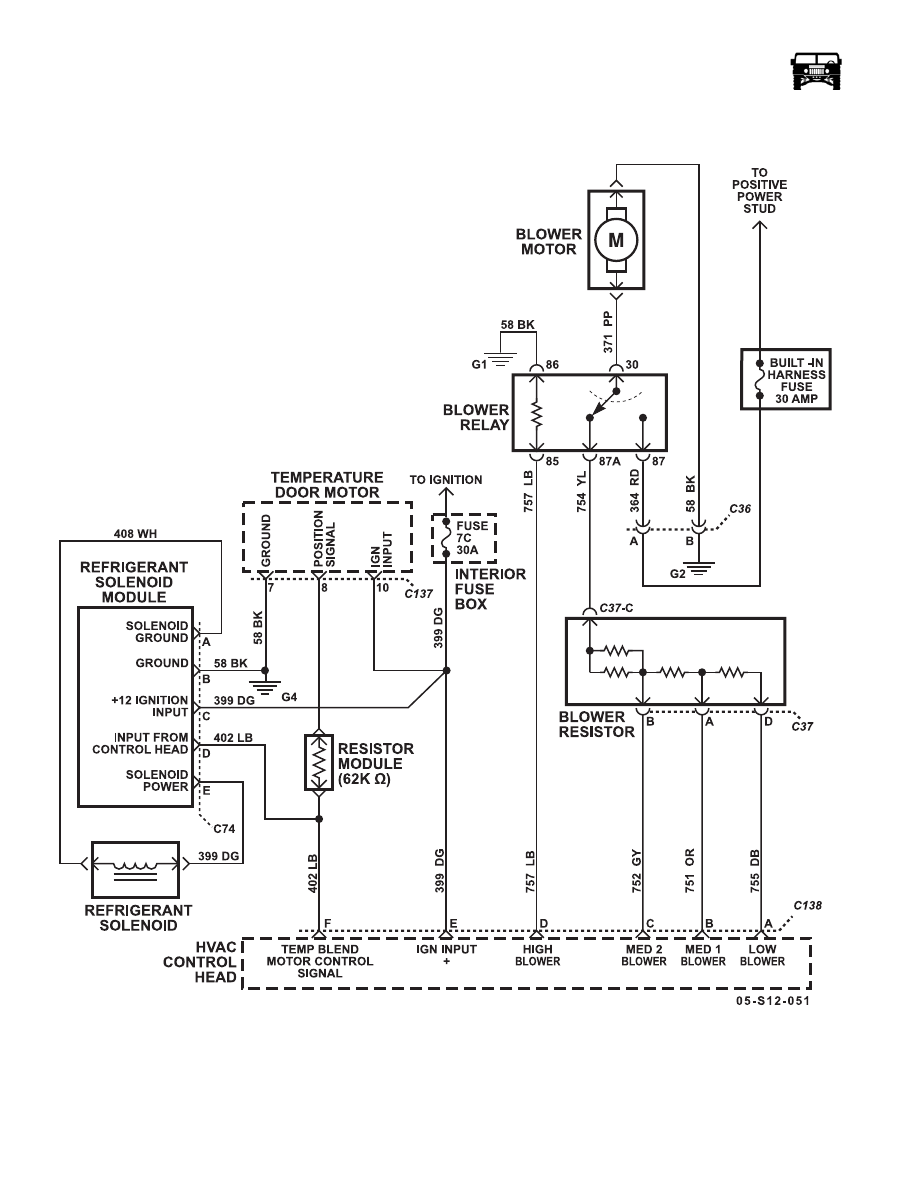

Figure 12-90:   Blower Motor Wiring Schematic

_____________________________________________________

 Electrical System  12-135

BOOST SENSOR

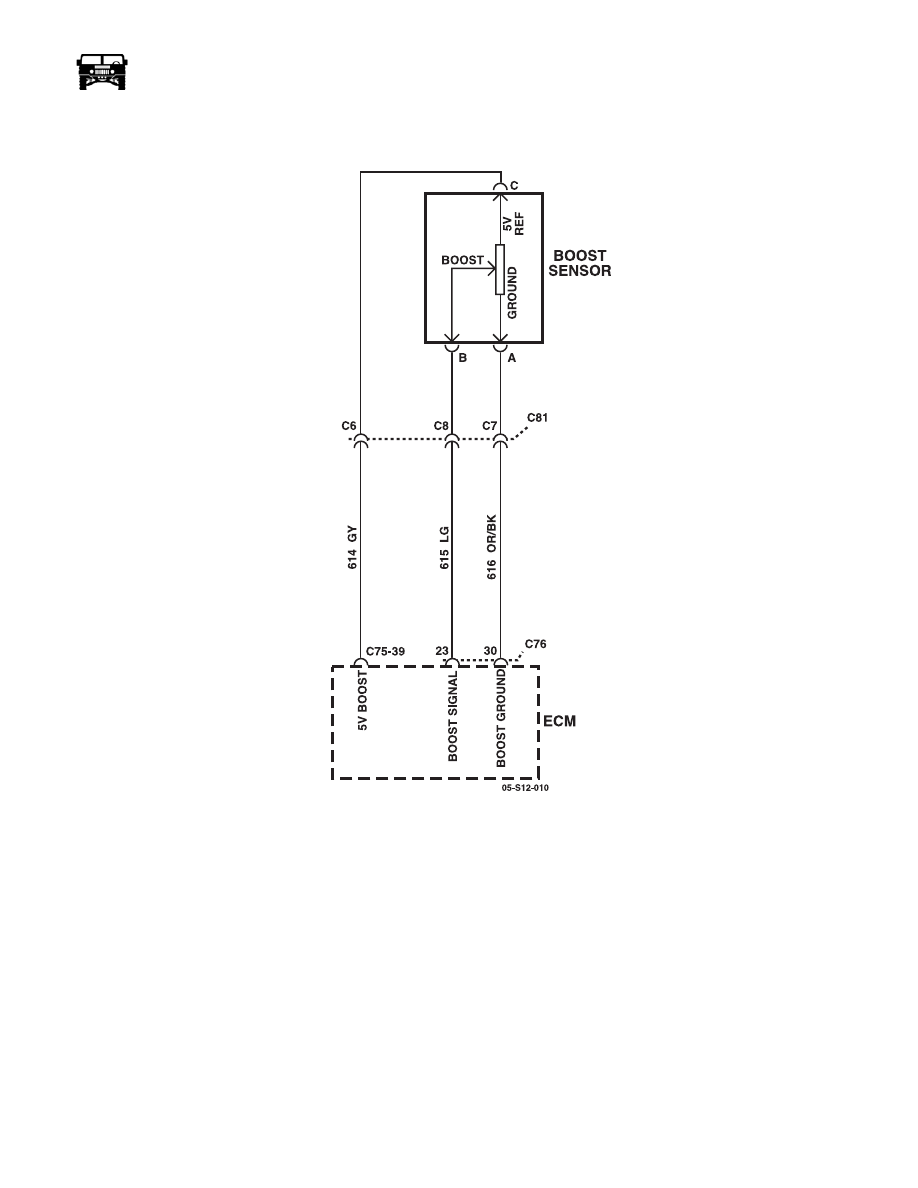

Figure 12-91:   Boost Sensor Wiring Schematic
