OIL PRESSURE SENSOR

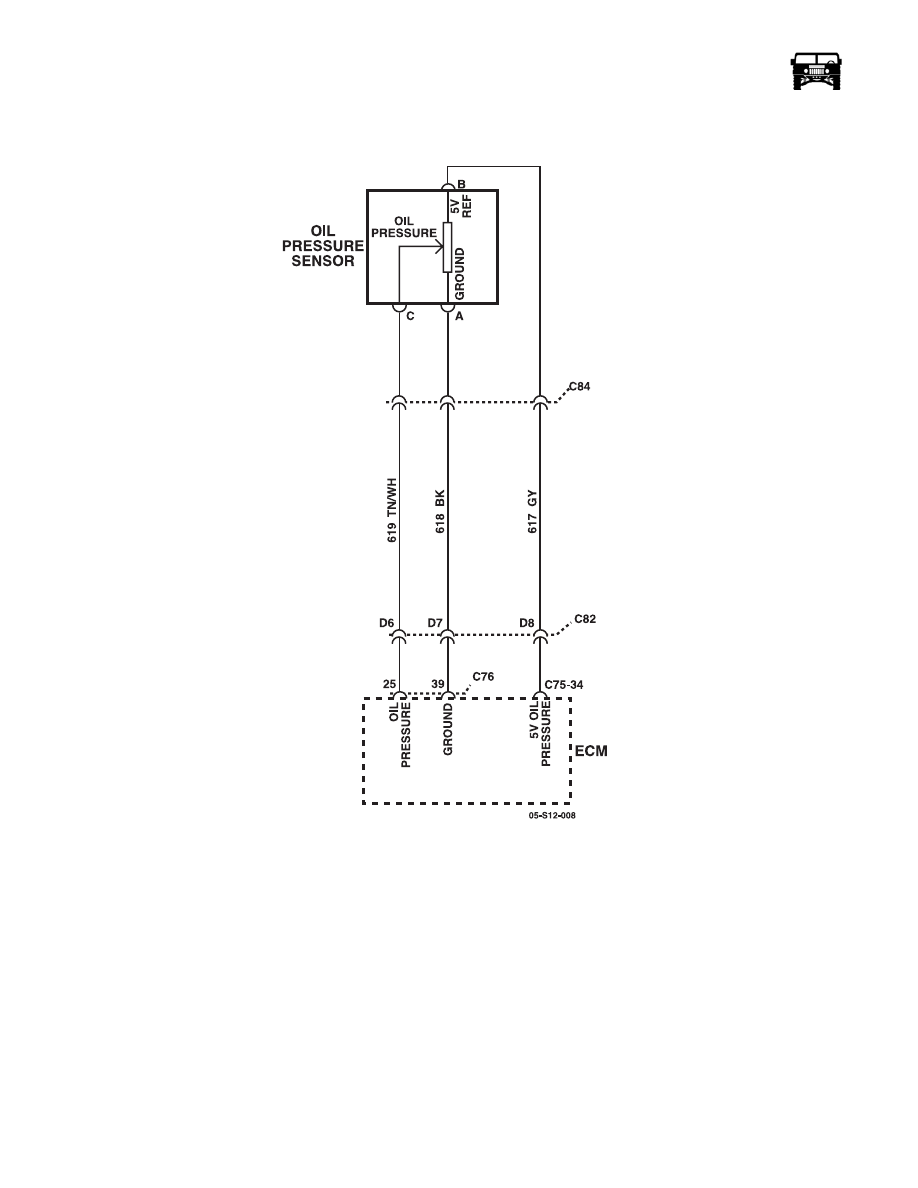

Figure 12-136:   Oil Pressure Sensor Wiring Schematic

_____________________________________________________

 Electrical System  12-181

OVER DRIVE SWITCH

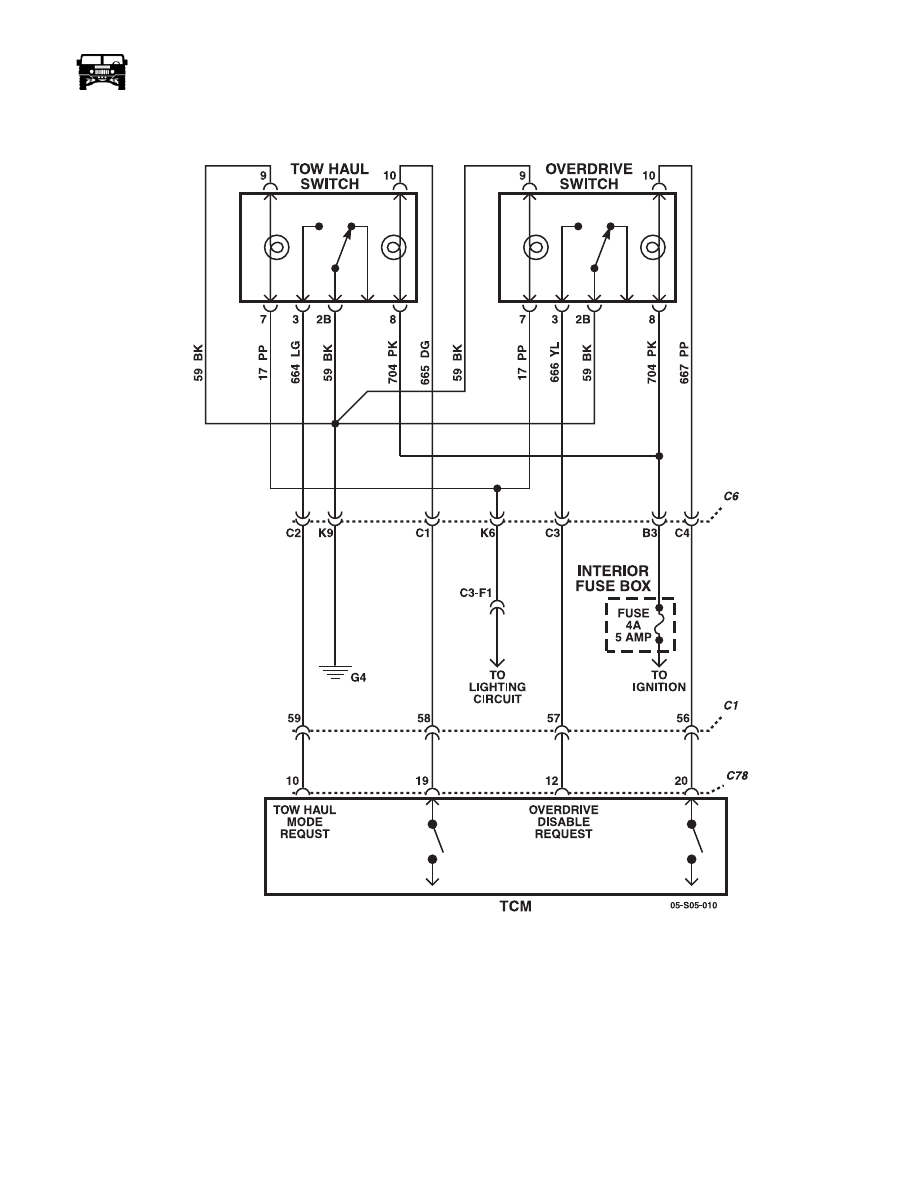

Figure 12-137:   Over Drive Switch Wiring Schematic

12-182

Electrical System

______________________________________________________

REMOTE ENTRY

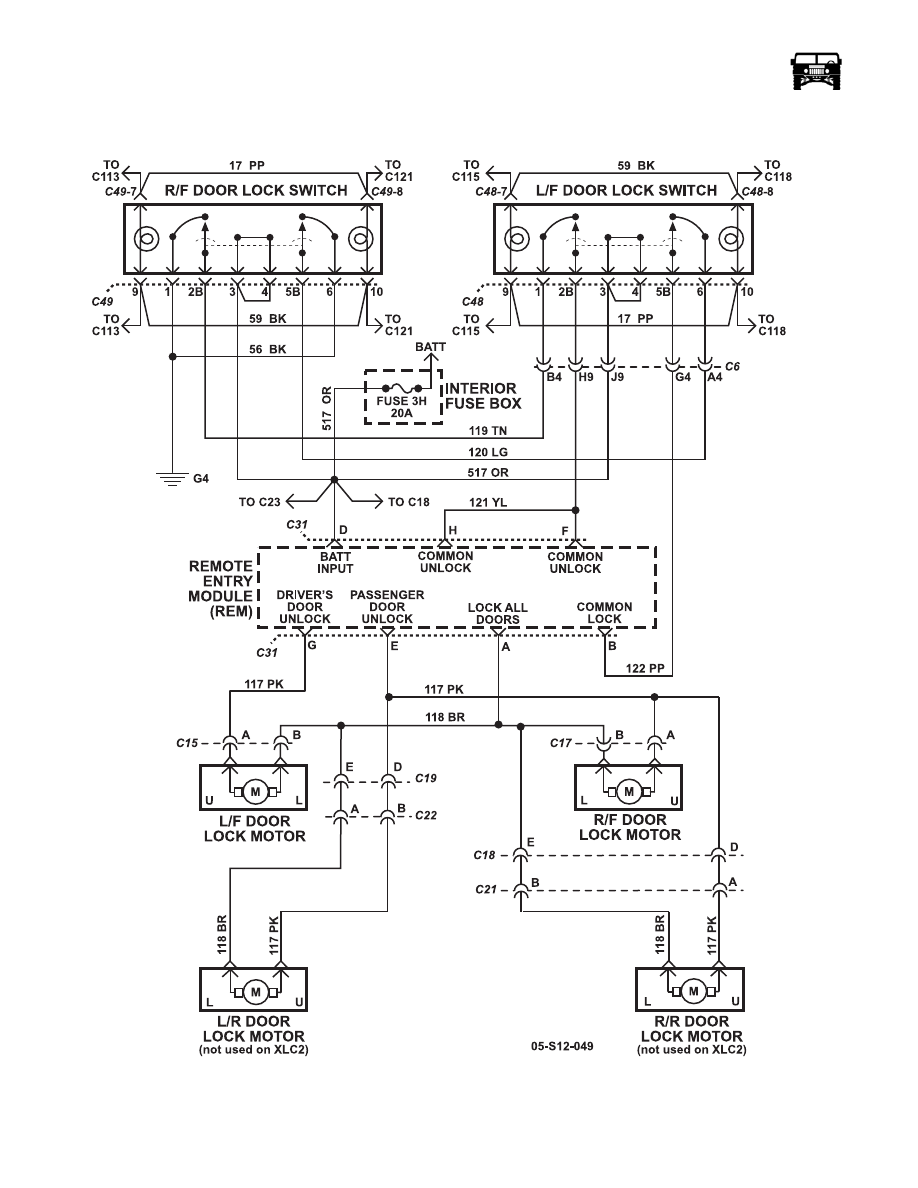

Figure 12-138:   Remote Entry Wiring Schematic

_____________________________________________________

 Electrical System  12-183

SEAT DRIVERS HEATED

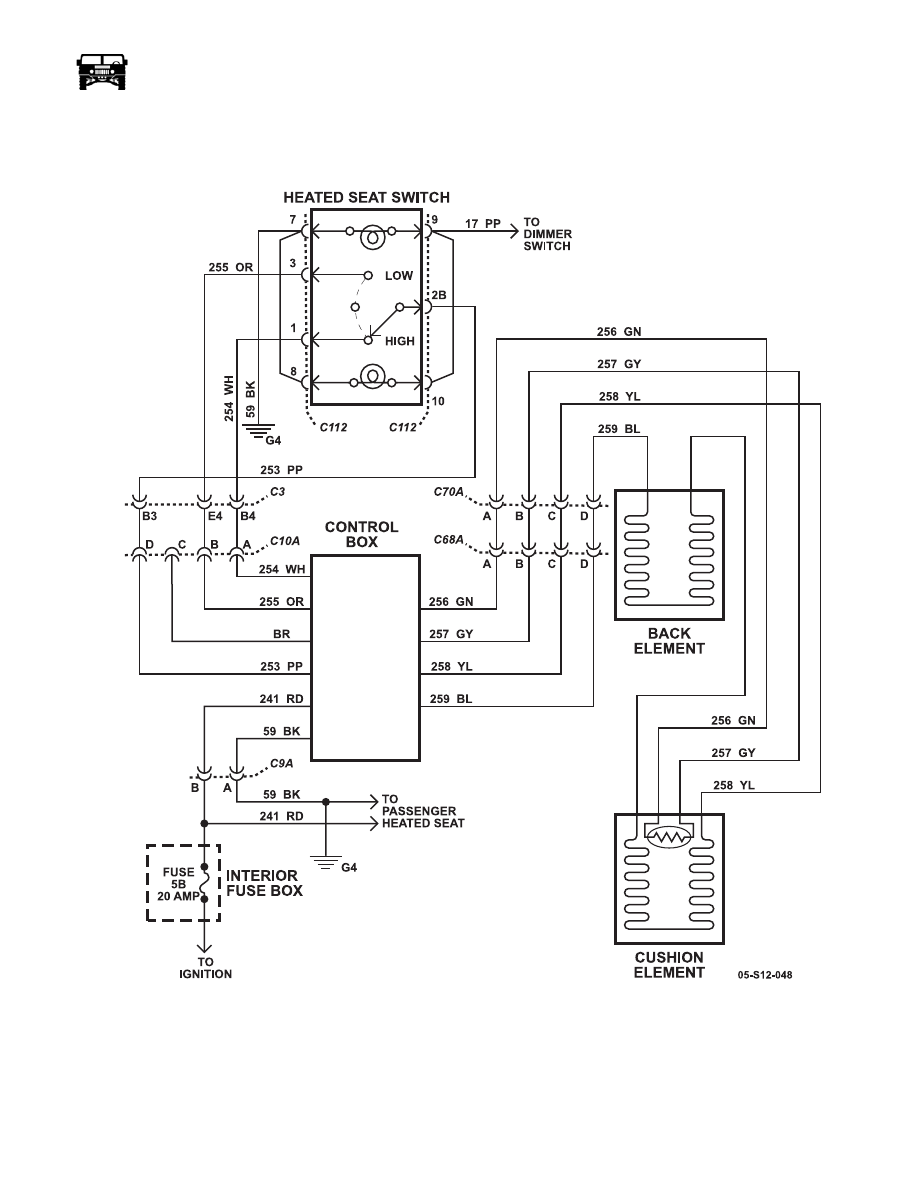

Figure 12-139:   Seat Drivers Heated Wiring Schematic
