Hummer H1 (2006+). Manual - part 379

12-192

Electrical System

______________________________________________________

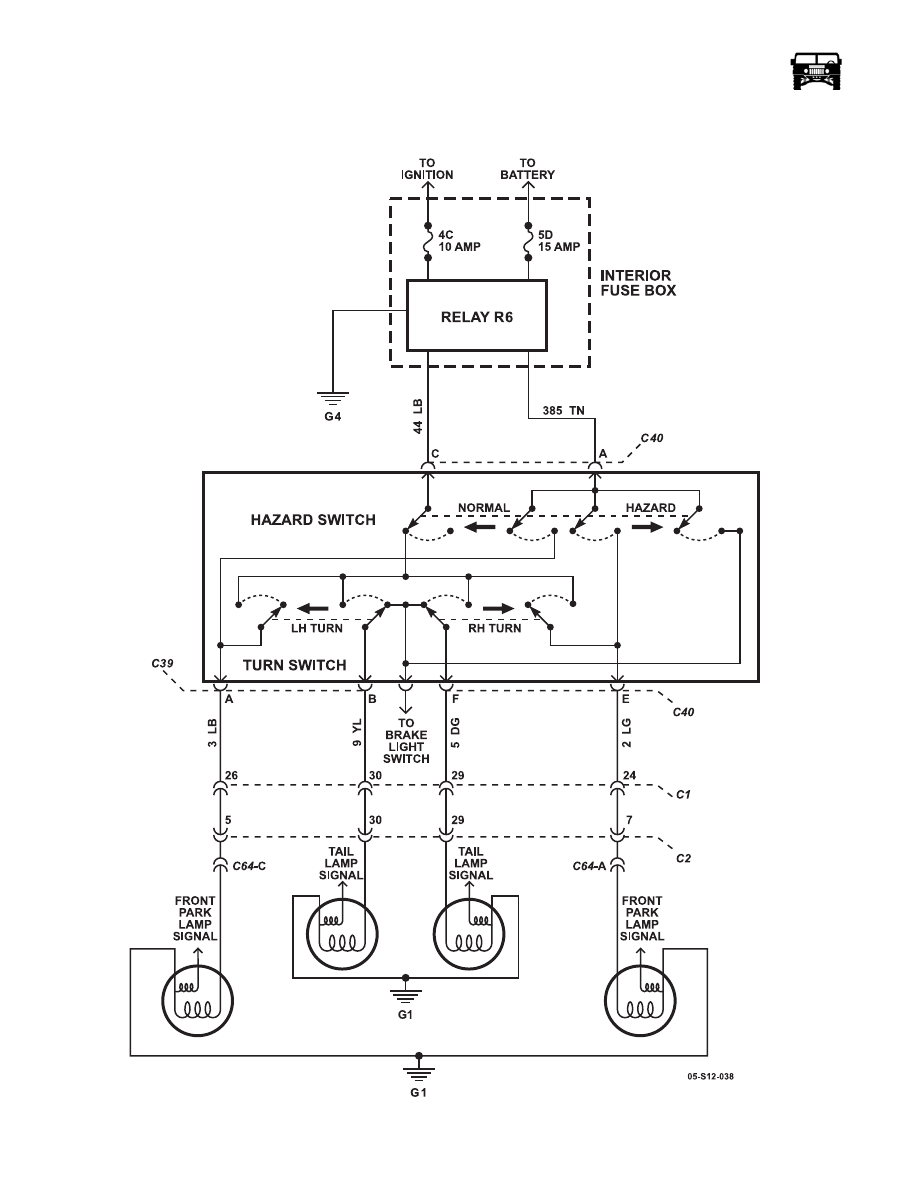

TURN SIGNAL SWITCH

Figure 12-148:   Turn Signal Switch Wiring Schematic

_____________________________________________________

 Electrical System  12-193

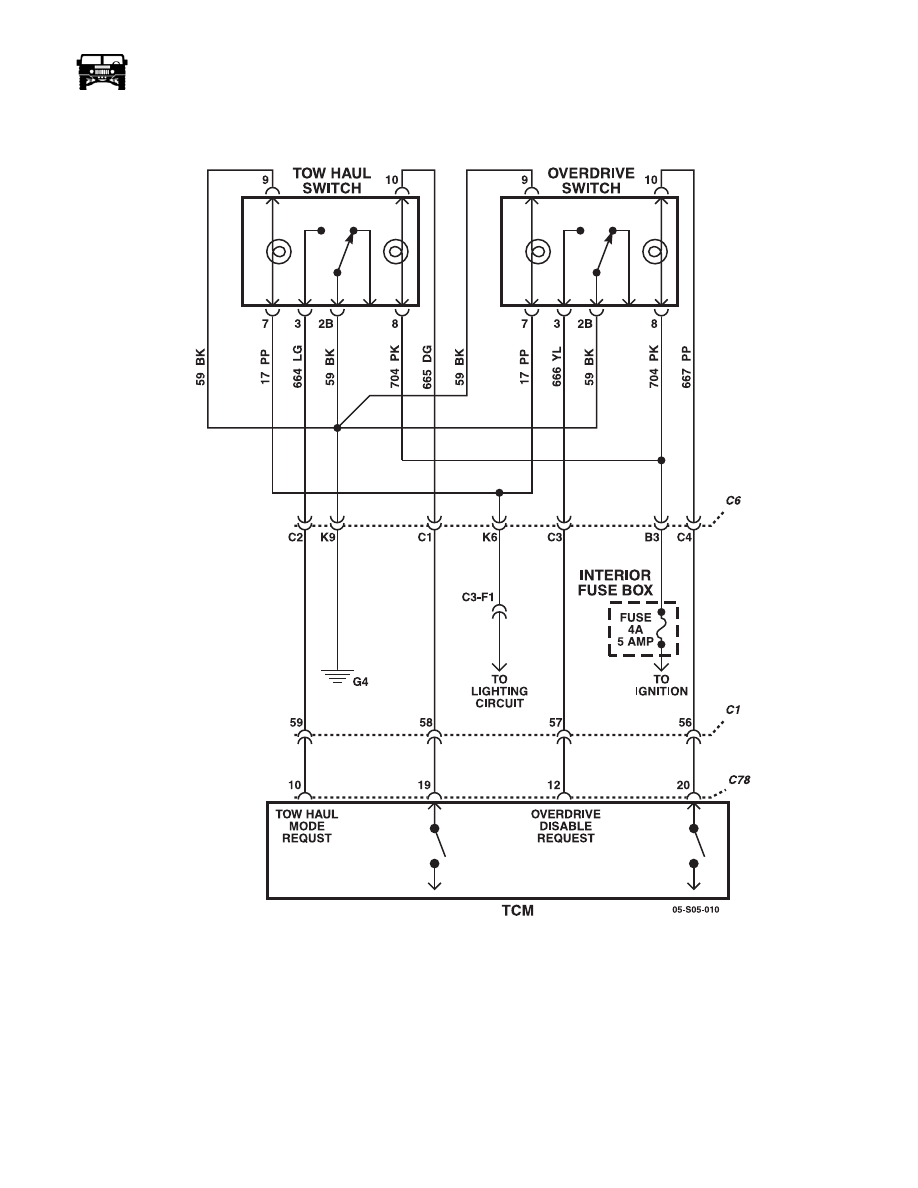

TOW HAUL SWITCH

Figure 12-149:   Tow Haul Switch Wiring Schematic

12-194

Electrical System

______________________________________________________

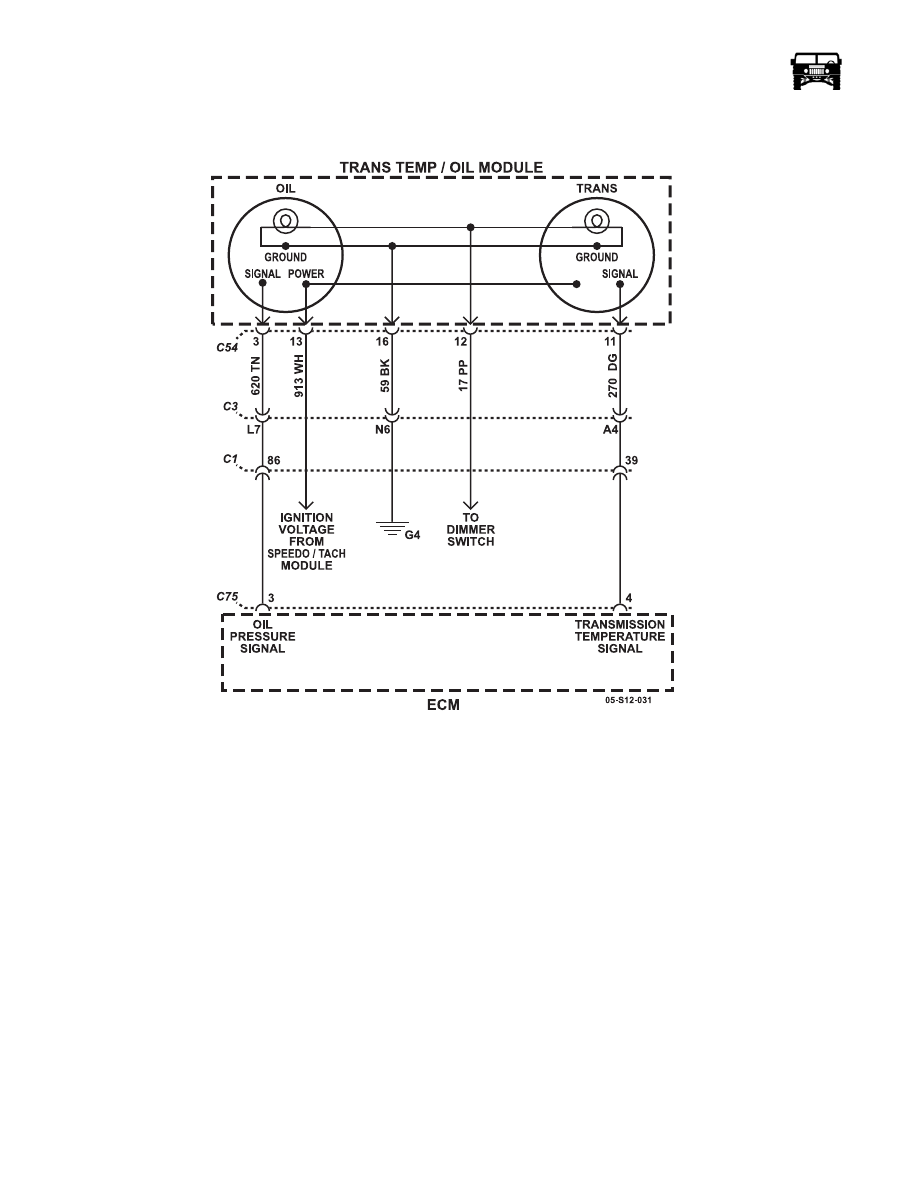

TRANSMISSION TEMPERATURE MODULE

Figure 12-150:   Transmission Temperature Module Wiring Schematic

_____________________________________________________

 Electrical System  12-195

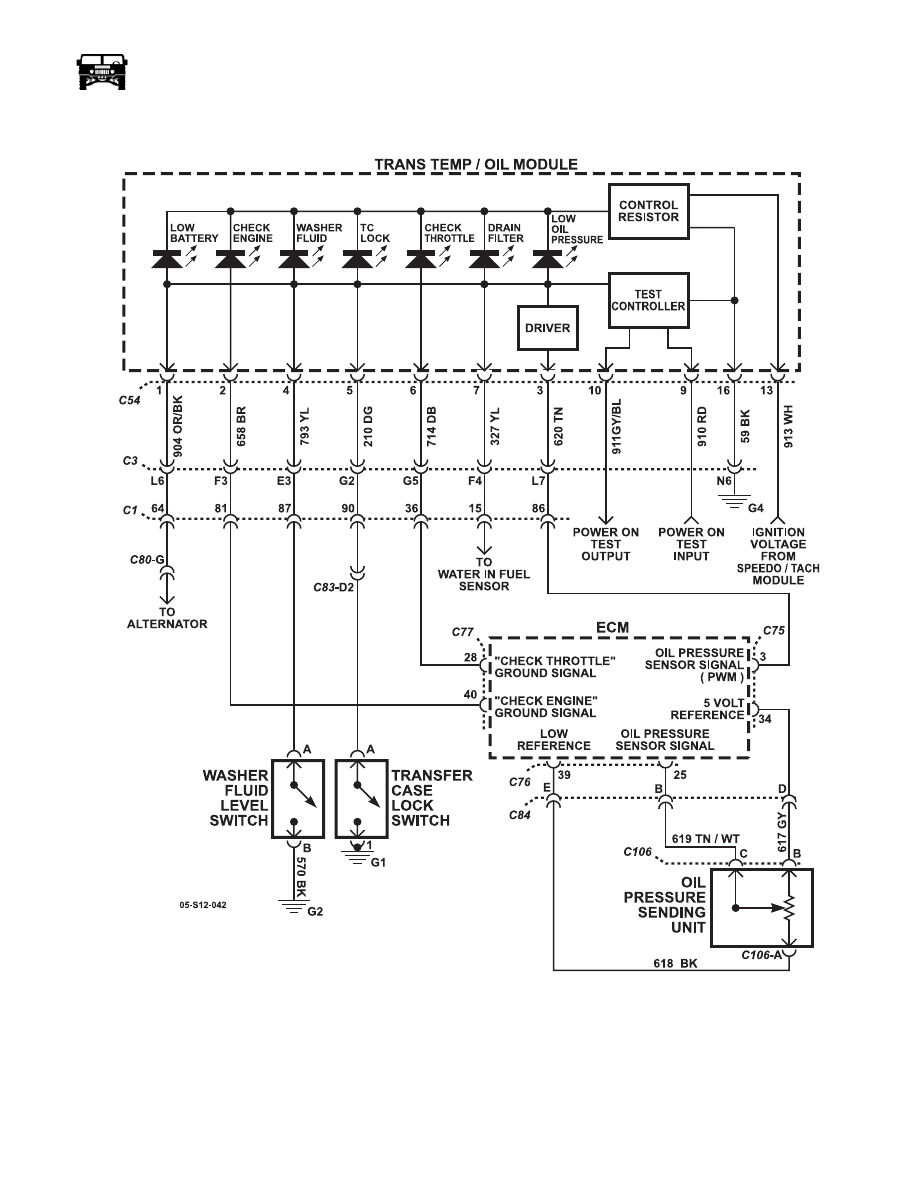

TRANSMISSION TEMPERATURE/ OIL MODULE WARNING LIGHTS

Figure 12-151:   Transmission Temperature Module Warning Lights Wiring Schematic
