Honda Pilot (2024 year). Manual in english

613

Honda Sensing

Lane Keeping Assist System (LKAS)

Continued

Driving

■

How to activate the system

Press the LKAS button.

LKAS indicator (white) appears on the
gauge.
The system is standby.

If traffic lane lines are detected, white
lines appear on the gauge.

LKAS
indicator
(white)

LKAS Button

Models with A-type meter

LKAS
indicator
(white)

LKAS Button

Models with B-type meter

614

Honda Sensing

Lane Keeping Assist System (LKAS)

Driving

Keep your vehicle near the center of the
lane while driving.

The LKAS indicator changes from white
to green, and white lines change to
green once the system starts operating
after detecting the left and right lane
markings.

LKAS indicator
(green)

Green lines

Models with A-type meter

Models with B-type meter

LKAS indicator
(green)

Green lines

615

Honda Sensing

Lane Keeping Assist System (LKAS)

Continued

Driving

Press the LKAS button.

The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.

■

To Cancel

LKAS Button

Models with A-type meter

LKAS Button

Models with B-type meter

Honda Sensing

Lane Keeping Assist System (LKAS)

616

Driving

■

The system operation is suspended if
you:

•

Decrease the vehicle speed to about 40 mph
(64 km/h) or less.

Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.

•

Depress the brake pedal.

The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.

•

Your vehicle is driving to the right or the left
of the lane.

The system operation is suspended if you:

You can change the setting for the LKAS.
LKAS suspended beep on and off can be selected.

Settings

P. 140

Customized Features

P. 426

When the LKAS is suspended,
green lines on the gauge
change to white lines or
disappear, and the beeper
sounds (if activated).

LKAS indicator
(white)

White lines

Models with A-type meter

LKAS indicator
(white)

White lines

Models with B-type meter

* Not available on all models

617

Honda Sensing

Lane Keeping Assist System (LKAS)

Continued

Driving

■

The LKAS may be automatically suspended when:

•

The system fails to detect lane lines.

•

The steering wheel is turned quickly.

•

You fail to steer the vehicle.

•

Driving through a sharp curve.

•

Driving at a speed in excess of approximately 94 mph (150 km/h).

•

The ABS or VSA

system engages.

Once these conditions no longer exist, the LKAS automatically resumes.

■

The LKAS may be automatically canceled when:

In the following cases, traffic lane lines may disappear on the gauge, the beeper may
sound, and the LKAS may be automatically canceled:

•

The camera temperature gets extremely high.

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

618

Honda Sensing

Lane Keeping Assist System (LKAS)

Driving

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of the lane under certain conditions, including the following:

■

Environmental conditions

•

There is little contrast between lane lines and the roadway surface.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving on a snowy or wet roadway.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white (or yellow) lines.

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines or the road surface may not be illuminated).

•

The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.

•

Strong light is reflected onto the roadway.

■

LKAS Conditions and Limitations

619

Honda Sensing

Lane Keeping Assist System (LKAS)

Continued

Driving

■

Roadway conditions

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.

•

The lane markings are extremely narrow, wide, or changing.

•

Part of the lane markings are hidden by an object, such as a vehicle.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Your vehicle is strongly shaken on uneven road surfaces.

Faded lines

Duplicate lines

Tire tracks

Very wide or narrow traffic lane

620

Honda Sensing

Lane Keeping Assist System (LKAS)

Driving

•

When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
(or yellow) lines.

•

Driving on rough or unpaved roads, or over bumpy surfaces.

•

Driving on roads with double lane lines.

•

Driving on snowy or slippery roads.

•

The pavement is only partially visible due to snow or puddles on the road.

•

There is a film of water or puddles on the road surface.

•

White (or yellow) lines are not recognized correctly due to road conditions such as
curves, twists, or hills.

•

Driving on unpaved or rutted roads.

•

Passing through an exit or an interchange.

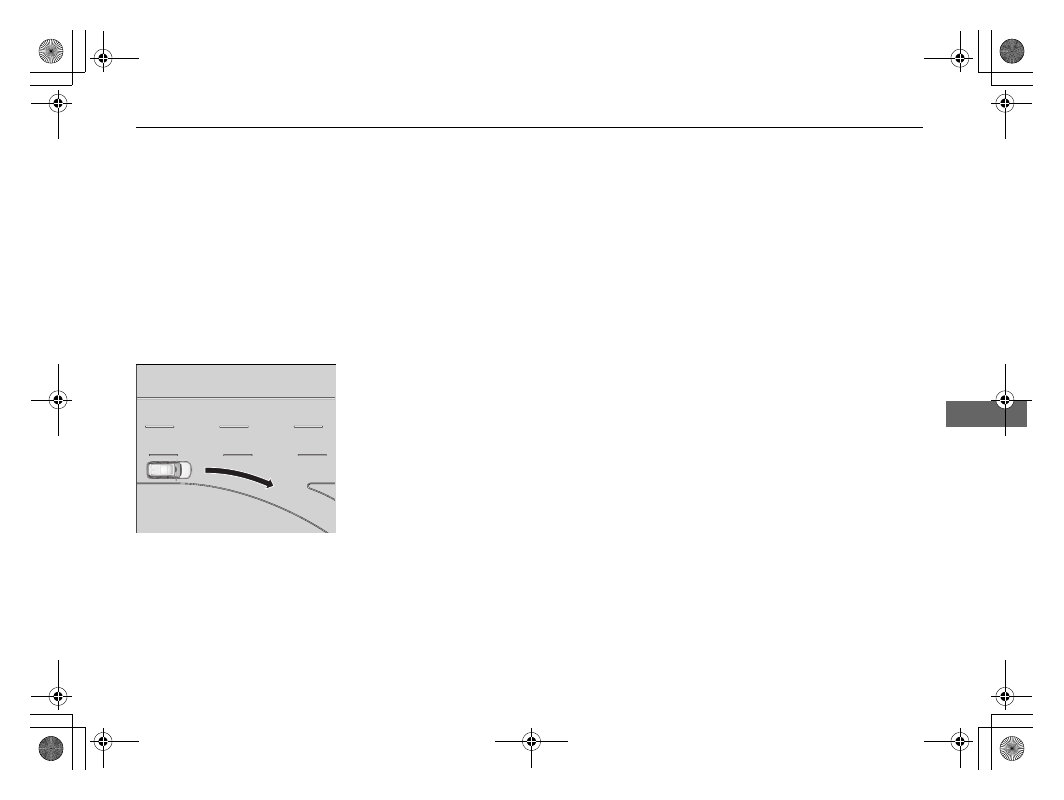

Lane void of lines at exit or
interchange

621

Honda Sensing

Lane Keeping Assist System (LKAS)

Driving

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windshield.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

There is residue on the windshield from the windshield wipers.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire

, etc.).

•

The vehicle is tilted due to a heavy load in the cargo area or rear seats.

•

The suspension has been modified.

•

Tire chains are installed.

•

The vehicle is towing a trailer.

* Not available on all models

622

Honda Sensing

Traffic Jam Assist

Driving

Traffic Jam Assist

The Traffic Jam Assist system uses a camera mounted to the upper portion of the
windshield to detect and monitor left and right white (or yellow) traffic lane lines.
Based on inputs from the camera, the system can apply steering torque to keep your
vehicle in the center of the detected lane.

■

How Traffic Jam Assist works

When you are in heavy traffic and Lane Keeping Assist System (LKAS) is active, the
Traffic Jam Assist system, upon detecting the traffic lane lines, will apply steering
torque to help keep your vehicle in the center of the lane.

When the driver takes full control of the steering, the steering assist function is
temporarily canceled.
The torque applied to the steering may not be noticeable when the driver has full
control of the steering, or when the surface of the road is rough or uneven.

Traffic Jam Assist

Important Safety Reminders

Traffic Jam Assist is for your convenience only. It is
not an autonomous driving system and always
requires driver attention and control. The system
does not work if you take your hands off the steering
wheel or fail to steer the vehicle.

Traffic Jam Assist is convenient when it is used on
expressways or freeways.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 637

The Traffic Jam Assist only alerts you when lane drift
is detected without a turn signal in use. The Traffic
Jam Assist may not detect all lane markings or lane
departures; accuracy will vary based on weather,
speed, and lane marker condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.

Traffic Jam Assist may not work properly under
certain conditions:

Traffic Jam Assist: Conditions and
Limitations

P. 627

Front Sensor Camera

When you use the turn signal to indicate a lane change, Traffic Jam Assist is
temporarily deactivated. It is reactivated once the vehicle is traveling in the
center of the lane and the system has detected the traffic lane lines.

Detects left and right white
(or yellow) traffic lane lines

623

Honda Sensing

Traffic Jam Assist

Continued

Driving

When the vehicle enters the warning area, Traffic Jam Assist alerts you with an
audible alert as well as a warning display.

■

Lane Departure Warning Function

LKAS indicator (green)

Amber line

Warning Area

Models with A-type meter

Models with B-type meter

Honda Sensing

Traffic Jam Assist

624

Driving

Traffic Jam Assist is activated when all of the following conditions exist:

•

LKAS is activated.

•

The lane in which you are driving has detectable lane markers on both sides, and
your vehicle is in the center of the lane.

•

The vehicle is traveling between about 0 and 45 mph (0 and 72 km/h).

•

You are driving on a straight or slightly curved road.

•

The driver is gripping the steering wheel.

•

The shift position is in

(

Do not use Traffic Jam Assist in any of the following situations:

•

You are traveling on a road with sharp curves.

The system may not allow your vehicle to respond in a manner best suited for
the road conditions.

•

You are entering a toll booth, interchange, service area, or parking area.

•

You are driving in adverse weather (rain, fog, snow, etc.).

•

The surface of the road is slippery; for example, it is icy or covered with snow.

The tire may slip, causing you to lose control of the vehicle.

■

Traffic Jam Assist Activation

Traffic Jam Assist Activation

Refer to the following page for proper handling of
the Lane Keeping Assist System (LKAS):

Lane Keeping Assist System (LKAS)

P. 609

Refer to the following page for steering buttons and
displays:

Operation Switches for the Adaptive
Cruise Control (ACC) with Low Speed
Follow/Lane Keeping Assist System
(LKAS)/Traffic Jam Assist

P. 557

Gauge Content

P. 559

Continued

625

Honda Sensing

Traffic Jam Assist

Driving

Keep your vehicle near the center of the lane
while driving.

The LKAS indicator changes from white
to green, and white lines change to
green once the system starts operating
after detecting the left and right lane
markings.

■

How Traffic Jam Assist Works

How Traffic Jam Assist Works

If your vehicle veers too far to the right or the left of
the white (or yellow) traffic lane lines while Traffic
Jam Assist is active, deactivate Traffic Jam Assist and
have your vehicle checked by a dealer.

In some cases the system cannot properly detect the
traffic lane lines and, as a result, will not provide
steering assistance.

Traffic Jam Assist: Conditions and
Limitations

P. 627

If the driver takes their hands off the steering wheel
or does not adequately maintain control of steering,
the warning below will appear.

If the driver does not grip the steering wheel after the
warning above has repeatedly appeared, a warning
buzzer will sound and Traffic Jam Assist will be
canceled.

LKAS indicator
(green)

Green lines

Models with A-type meter

Models with B-type meter

LKAS indicator
(green)

Green lines

Honda Sensing

Traffic Jam Assist

626

Driving

Press the LKAS button to cancel Traffic Jam Assist.

■

Traffic Jam Assist may be automatically suspended when:

The system is automatically temporarily canceled under the following circumstances.

•

The system fails to detect lane lines.

•

The steering wheel is turned sharply.

•

You fail to steer the vehicle.

•

You are driving through a sharp curve.

•

The brake pedal is depressed.

Once these conditions no longer exist, Traffic Jam Assist automatically resumes.

■

Traffic Jam Assist may be automatically canceled when:

The traffic lane lines will disappear from the screen, the beeper may sound, and
Traffic Jam Assist will be canceled under the following circumstances:

•

The temperature of the camera is too high.

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, is dirty.

■

Canceling Traffic Jam Assist

Traffic Jam Assist may be automatically suspended when:

You are traveling over 45 mph (72 km/h).

When the speed of the vehicle reaches 45 mph

(72 km/h), Traffic Jam Assist is deactivated. Once
the speed of the vehicle drops to under 40 mph
(64 km/h), Traffic Jam Assist is reactivated.

You can change the setting for the Traffic Jam Assist.
Traffic Jam Assist suspended beep on and off when
you select the

Lane keeping assist suspend beep

Lane Keeping Assist Suspend Beep

on the driver

information interface

or audio/information screen

Settings

P. 140

Customized Features

P. 426

* Not available on all models

627

Honda Sensing

Traffic Jam Assist

Continued

Driving

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of the lane under certain conditions, including the following:

■

Environmental conditions

•

There is little contrast between lane lines and the roadway surface.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving on a snowy or wet roadway.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white (or yellow) lines.

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines or the road surface may not be illuminated).

•

When the lane lines or road surface are not visible, such as when the distance to
the vehicle in front of you is extremely short or when at an intersection.

•

Strong light is reflected onto the roadway.

■

Traffic Jam Assist: Conditions and Limitations

628

Honda Sensing

Traffic Jam Assist

Driving

■

Roadway conditions

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.

•

The lane markings are extremely narrow, wide, or changing.

•

Part of the lane markings are hidden by an object, such as a vehicle.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Your vehicle is strongly shaken on uneven road surfaces.

Faded lines

Duplicate lines

Tire tracks

Very wide or narrow traffic lane

629

Honda Sensing

Traffic Jam Assist

Continued

Driving

•

When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
(or yellow) lines.

•

Driving on rough or unpaved roads, or over bumpy surfaces.

•

Driving on roads with double lane lines.

•

Driving on snowy or slippery roads.

•

The pavement is only partially visible due to snow or puddles on the road.

•

There is a film of water or puddles on the road surface.

•

White (or yellow) lines are not recognized correctly due to road conditions such as
curves, twists, or hills.

•

Driving on unpaved or rutted roads.

•

Passing through an exit or an interchange.

Lane void of lines at exit or
interchange

630

Honda Sensing

Traffic Jam Assist

Driving

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windshield.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

There is residue on the windshield from the windshield wipers.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire

etc.).

•

The vehicle is tilted due to a heavy load in the cargo area or rear seats.

•

The suspension has been modified.

•

Tire chains are installed.

•

The vehicle is towing a trailer.

* Not available on all models

631

Honda Sensing

Traffic Sign Recognition System

Continued

Driving

Traffic Sign Recognition System

Reminds you of speed limit sign your vehicle has just passed through, showing it on
the gauge and the head-up display

Traffic Sign Recognition System

Not all signs may be displayed, but any signs posted
on roadsides should not be ignored. The system does
not work on the designated traffic signs of all the
countries you travel, nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate for the road conditions.

Never apply a film or attach any objects to the
windshield that could obstruct the camera’s field of
vision and cause the system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making even
minor repairs within the camera’s field of vision or
installing an aftermarket replacement windshield may
also cause the system to operate abnormally. After
replacing the windshield, have a dealer recalibrate the
camera. Proper calibration of the camera is necessary
for the system to operate properly.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing system to
shut off, when parking, find a shady area or face the front
of the vehicle away from the sun. If you use a reflective sun
shade, do not allow it to cover the camera housing.
Covering the camera can concentrate heat on it.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 637

* Not available on all models

Honda Sensing

Traffic Sign Recognition System

632

Driving

When the camera located behind the rearview mirror captures traffic signs while
driving, the system displays the ones that are recognized as designated for your
vehicle. If speed limit warning is activated, the sign icon blinks when the maximum
speed of the traffic sign detected is exceeded by a threshold, when compared with
the vehicle speed. The sign icon will be displayed until the vehicle reaches a
predetermined time and distance.
If the system does not detect any traffic signs while you are driving, the sign icon will
not be displayed.

The sign icon also may switch to another one or disappear when:

•

The end of speed limit or other designated limit is detected.

•

You make a turn with a turn signal at an intersection.

■

How the System Works

Traffic Sign Recognition System

You can turn on or off the speed limit information.

Settings

P. 140

Customized Features

P. 426

The default speed limit warning threshold is the
maximum speed of the traffic sign detected.
You can adjust the threshold for speed limit warning.

Settings

P. 140

Customized Features

P. 426

The system’s ability to accurately notify the driver of
the speed limit is dependent on certain conditions
such as the units displayed on the traffic sign as well
as the speed and direction of travel of the vehicle. In
some cases, the system may display false warnings or
other inaccurate information.

Traffic Sign Recognition System Conditions
and Limitations

P. 633

The unit for speed limits (mph or km/h) varies from
country to country. Just after entering a country
whose unit differs to the one of the country from
which you came, The Traffic Sign Recognition System
may not work correctly.

Settings

P. 140

Speed/Distance Units

P. 138, 166

Customized Features

P. 426

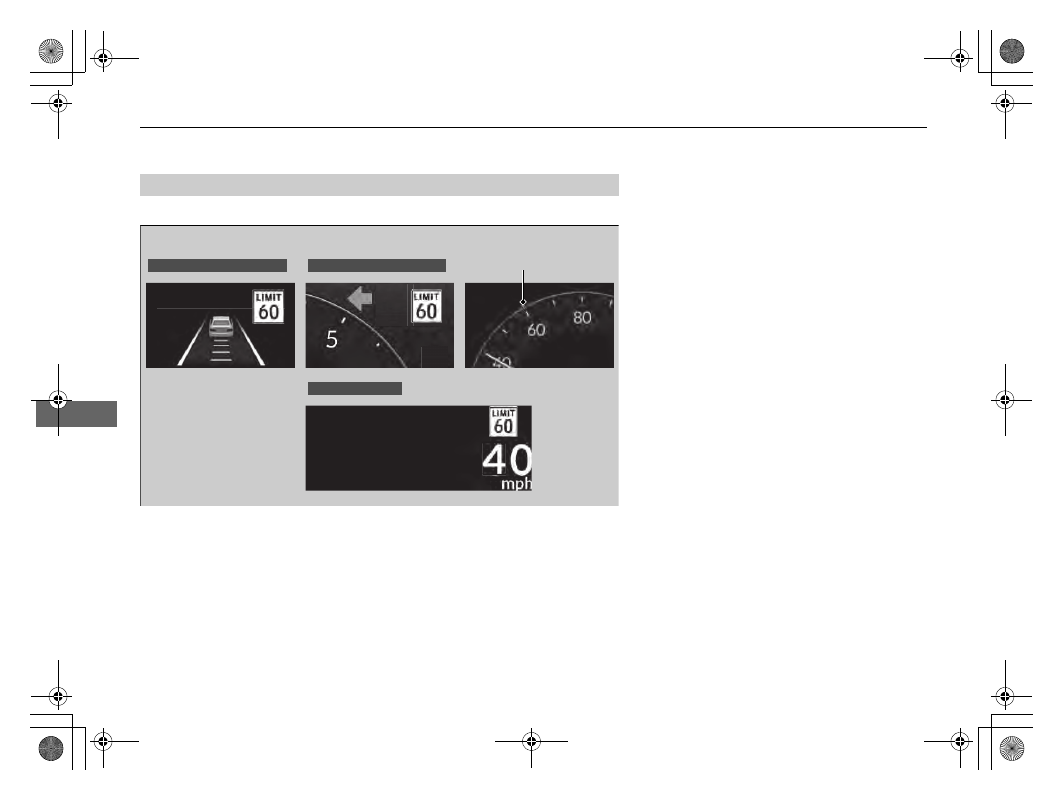

Models with A-type meter

Models with B-type meter

Head-up display

Speed Limit Sign

* Not available on all models

Continued

633

Honda Sensing

Traffic Sign Recognition System

Driving

The Traffic Sign Recognition system may incorrectly recognize, be slow to identify,
or fail to recognize the traffic sign in the following cases.

■

Environmental conditions

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Driving at night, in dark areas such as long tunnels.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Water is sprayed by or snow blown from a vehicle ahead.

■

Roadway conditions

•

Your vehicle is strongly shaken on uneven road surfaces.

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windshield.

•

There is residue on the windshield from the windshield wipers.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire

, etc.).

•

The vehicle is tilted due to heavy load in the cargo area or rear seats.

•

The suspension has been modified.

•

Tire chains are installed.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

The vehicle is towing a trailer.

■

Traffic Sign Recognition System Conditions and Limitations

Traffic Sign Recognition System Conditions and Limitations

When the traffic sign recognition system
malfunctions,

appears on the gauge. If this

message does not disappear, have your vehicle
checked by a dealer.

Models with A-type meter

Models with B-type meter

Head-up display

* Not available on all models

634

Honda Sensing

Traffic Sign Recognition System

Driving

■

The position or the condition of the traffic sign

•

The sign is in a place that makes it hard to find.

•

The sign is located far away from your vehicle.

•

The sign is located where it is hard for headlight beams to reach.

•

The sign is on a corner or bend in the road.

•

The sign is faded or bent.

•

The sign is rotated or damaged.

•

The sign is covered with mud, snow, or frost.

•

Part of the sign is hidden by the trees, or is in the shadow of a vehicle or other
object.

•

Light (such as a streetlight) is reflected on the surface of the sign, or it is hidden
in shadow.

•

The sign is too bright or too dark (electric signs).

•

Small signs (auxiliary signs, etc.).

■

Other conditions

•

When you are driving at a high speed.

635

Honda Sensing

Traffic Sign Recognition System

Continued

Driving

The traffic sign recognition system may not operate correctly, such as displaying
signs that do not adhere to the actual regulations for the roadway or do not exist at
all in the following cases.

A speed limit sign may display at a higher or lower speed than the actual speed
limit.

•

There is a supplementary sign with further information such as weather, time,
vehicle type, school zone, etc.

•

Figures on the sign are hard to read (electric signs, numbers on the sign are
blurred, etc.).

•

The sign is in the vicinity of the lane you are driving in, even though it is not for
the lane, such as a speed limit sign situated at an exit or an intersection between
the side road and the main road.

•

There are things that look similar in color or shape to recognized objects (similar
sign, electric sign, signboard, structure, etc.).

636

Honda Sensing

Traffic Sign Recognition System

Driving

The speed limit sign icon is displayed on the gauge and head-up display

■

Signs Displayed on the Gauge and Head-up Display

Models with A-type meter

Models with B-type meter

Head-up display

Speed Limit Sign

* Not available on all models

637

Honda Sensing

Front Sensor Camera

Continued

Driving

Front Sensor Camera

The camera, used in systems such as Collision Mitigation Braking System

(CMBS

), Road Departure Mitigation system, Adaptive Cruise Control (ACC) with

Low Speed Follow, Lane Keeping Assist System (LKAS), Traffic Jam Assist, Traffic
Sign Recognition system and Auto High-Beam is designed to detect an object that
triggers any of the systems to operate its functions.

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

■

Camera Location and Handling Tips

Front Sensor Camera

Never apply a film or attach any objects to the
windshield, the hood, or the front grille that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor
Camera

Honda Sensing

Front Sensor Camera

638

Driving

Front Sensor Camera

If the

Some driver assist systems cannot operate:

Camera temperature too high

message appears:

•

Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed toward the camera.

•

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the

Some driver assist systems cannot operate:

Clean front windshield or poor viewing
condition.

message appears:

•

Park your vehicle in a safe place, and make sure the
windshield is clean. Clean the windshield if it is
dirty. If the message does not disappear after
driven for a while, have your vehicle checked by a
dealer.

639

Honda Sensing

Radar Sensor

Driving

Radar Sensor

The radar sensor is behind the Honda emblem
on the front grille.

Radar Sensor

For the system to work properly, observe the
following precautions.

•

Always keep the emblem and front grille clean.

•

Never use chemical solvents or polishing powder
for cleaning the emblem and front grille. Clean it
with water or a mild detergent.

•

Do not put any stickers or paint on the emblem or
front grille.

•

Do not scratch or damage the emblem or front
grille.

•

Do not replace the emblem, front grille, or bumper.

•

Do not remove or disassemble the radar sensor.

Consult a dealer if:

•

The radar sensor cover is strongly impacted.

•

The front grille or bumper needs to be repaired.

If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:

•

Your vehicle is involved in a frontal collision.

•

Your vehicle drives through deep water or is
submerged in deep water.

•

Your vehicle strongly strikes a bump, curb, chock,
slope, or embankment that could jar the radar
sensor.

Radar Sensor

640

Honda Sensing

Sonar Sensors

Driving

Sonar Sensors

■

Location and range of sensors

The sonar sensors are situated in the front and rear bumpers.

Sonar Sensors

For the sonar sensors to work properly, do not:

•

Place stickers or other objects on or around the
sensors.

•

Hit the area around the sensors.

•

Attempt to take apart any sensor.

•

Put any accessories on or around the sensors.

Consult with a dealer if:

•

A sensor has been subjected to shock.

•

Work needs to be done to the area around a
sensor.

In the following cases, the sonar sensors may not
work properly. Have your vehicle checked by a dealer.

•

The front or rear bumper has made contact with a
hill, parking block, curb, embankment, etc.

•

The vehicle has been involved in frontal or rear
collision.

•

The vehicle has been driven through a deep
puddle.

Sonar Sensors

Sensor Range

* Not available on all models

641

Continued

Driving

Braking

Brake System

Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manually or automatically release it.

■

To apply

The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.

Pull the electric parking brake switch up gently
and securely.

The indicator in the switch comes on.

The parking brake and brake system
indicator (red) comes on.

■

To release

The power mode must be in ON in order to
release the electric parking brake.

Depress the brake pedal.

Press the electric parking brake switch.

The indicator in the switch goes off.

The parking brake and brake system
indicator (red) goes off.

Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing downhill on steep hills.

■

Parking Brake

Brake System

When you depress the brake pedal, you may hear a
whirring sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.

Electric Parking
Brake Switch

Parking Brake

You may hear the electric parking brake system
motor operating from the rear wheel area when you
apply or release the parking brake. This is normal.

The brake pedal may slightly move due to the electric
parking brake system operation when you apply or
release the parking brake. This is normal.

You cannot apply or release the parking brake if the
battery goes dead.

If the Battery Is Dead

P. 755

If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the VSA

system until the

vehicle comes to a stop. The electric parking
brake then applies, and the switch should be
released.

Braking

Brake System

642

Driving

■

Automatic parking brake feature operation

If the automatic parking brake feature has been activated:

•

The parking brake is applied automatically when you set the power mode to
VEHICLE OFF.

•

To confirm that the parking brake is applied, check if the parking brake and brake
system indicator (red) is on.

Activating and deactivating the automatic parking brake feature

P. 643

■

To release automatically

Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release the brake when you are starting the vehicle
facing uphill, or in a traffic jam.

Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.

The parking brake and brake system
indicator (red) goes off.

You can release the parking brake
automatically when:

•

You are wearing the driver’s seat belt.

•

The engine is running.

•

The transmission is not in

(

Parking Brake

In the following situations, the parking brake
automatically operates.

•

When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.

•

When the driver’s seat belt is unfastened while
your vehicle is stopped automatically by ACC with
Low Speed Follow.

•

When the engine is turned off, except by Auto Idle
Stop system, while ACC with Low Speed Follow is
activated.

•

When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.

•

When the driver’s seat belt is unfastened while
your vehicle is stopped and the brake hold is
applied.

•

When the engine is turned off, except by Auto Idle
Stop system, while the brake hold is applied.

•

When there is a problem with the Brake Hold
System while brake hold is applied.

If the parking brake cannot be released
automatically, release it manually.

When the vehicle is traveling uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.

The parking brake cannot be released automatically
while the following indicators are on:

•

Malfunction indicator lamp

•

Transmission system indicator

Accelerator Pedal

Continued

643

Braking

Brake System

Driving

■

Activating and deactivating the automatic parking brake feature

With the power mode is in ON, carry out the following steps to either activate or
deactivate the automatic parking brake feature.

Put the transmission into

(

Without depressing the brake pedal, pull up the electric parking brake switch.

Check that the parking brake and brake system indicator (red) has come on.

Pull up and hold the electric parking brake switch. When you hear a beeping sound,
release the switch and within three seconds pull up and hold the switch again.

When you hear a sound indicating that the procedure is completed, release the
switch.

Two beeps indicates that the feature has been activated.

One beep indicates that the feature has been deactivated.

When you have completed activating the feature, the parking brake will
remain applied after you turn off the engine.

To confirm that the parking brake is applied, check if the parking brake and
brake system indicator (red) is on.

If you need to temporarily deactivate the feature while putting your vehicle through
a conveyor type car wash or when having your vehicle towed, follow the procedure
explained below.

Depress the brake pedal and bring the vehicle to a stop.

Set the power mode to VEHICLE OFF and then within two seconds push down the
electric parking brake switch.

Activation and deactivation settings for the feature will not be affected.

Before temporarily deactivating the feature, make sure to first turn off both
Adaptive Cruise Control (ACC) with Low Speed Follow and the automatic
brake hold system.

To confirm that the parking brake is applied, check if the parking brake and
brake system indicator (red) is on.

Parking Brake

The parking brake may not be released automatically
while the following indicators are on:

•

Parking brake and brake system indicator (amber)

•

VSA

system indicator

•

ABS

indicator

•

Supplemental restraint system indicator

Activating and deactivating the automatic parking brake feature

In cold climates, the parking brake may freeze in
place if applied.
When parking the vehicle, chock the wheels and
make sure the automatic parking brake feature is
deactivated.
Also, when putting your vehicle through a conveyor-
type car wash or when having your vehicle towed,
deactivate the automatic parking brake feature and
leave the parking brake released.

Braking

Brake System

644

Driving

Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The anti-lock brake system (ABS) helps you retain steering
control when braking very hard.

Brake Assist System

P. 649

Anti-lock Brake System (ABS)

P. 648

■

Foot Brake

Foot Brake

Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.

If you hear a continuous metallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a dealer. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibration of the brake pads against
the rotating brake disc.

Constantly using the brake pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply engine braking by taking your
foot off the accelerator pedal and downshifting to a
lower gear.

Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.

Whenever the brakes are activated by CMBS

another system that automatically controls braking,
the brake pedal is depressed and released in
accordance with braking function.

Honda Pilot (2024 year). Manual in english - page 19
