P. 140

Adaptive Cruise Control (ACC) with Low Speed Follow

P. 426

The Vehicle Stability Assist

(VSA

) system, Adaptive

Cruise Control (ACC) with Low Speed Follow, brake
system (amber), and safety support indicators may
come on in amber along with a message in the driver
information interface when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

* Not available on all models

583

Honda Sensing

Road Departure Mitigation System

Continued

Driving

The system may not properly detect lane markings (in white or yellow), the outer
edge of the pavement (into grass or gravel border) or an oncoming vehicle under
certain conditions. Some examples of these conditions are listed below.

■

Environmental conditions

•

There is little contrast between lane lines and the roadway surface.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving on a snowy or wet roadway.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white (or yellow) lines.

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Strong light is reflected onto the roadway.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines, the road surface, or oncoming vehicles may not be illuminated).

•

The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.

•

The outer edge of the road is bordered by objects, materials, etc. other than grass
or gravel.

■

Road Departure Mitigation system Conditions and

Limitations

584

Honda Sensing

Road Departure Mitigation System

Driving

■

Roadway conditions

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.

•

The lane markings are extremely narrow, wide, or changing.

•

Part of the lane markings are hidden by an object, such as a vehicle.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Your vehicle is strongly shaken on uneven road surfaces.

•

When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
(or yellow) lines.

•

Driving on rough or unpaved roads, or over bumpy surfaces.

•

Driving on roads with double lane lines.

•

Driving on snowy or slippery roads.

•

Passing through an exit or an intersection.

•

The pavement is only partially visible due to snow or puddles on the road.

•

Driving on unpaved or rutted roads.

•

White (or yellow) lines are not recognized correctly due to road conditions such as
curves, twists, or hills.

585

Honda Sensing

Road Departure Mitigation System

Continued

Driving

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windshield.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

When the driver operates the brake pedal and steering wheel.

•

There is residue on the windshield from the windshield wipers.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire

, etc.).

•

The vehicle is tilted due to heavy load in the cargo area or rear seats.

•

Tire chains are installed.

•

The suspension has been modified.

•

The vehicle is towing a trailer.

■

Examples of limitations on detection due to the condition of oncoming
vehicles

•

The oncoming vehicle or vehicle ahead of you is sideways.

•

The oncoming vehicle jumps out in front of you.

•

When the oncoming vehicle blends in with the background, preventing the
system from recognizing it.

•

The headlights of an oncoming vehicle are lit on one side or not lit on either side
in a dark place.

•

The distance between your vehicle and the oncoming vehicle is too short.

•

Part of the oncoming vehicle is not visible due to the vehicle ahead of you.

•

There are multiple oncoming lanes or turning lanes.

•

The vehicle in the adjacent lane is parked or moving at an extremely slow speed.

* Not available on all models

586

Honda Sensing

Road Departure Mitigation System

Driving

■

Examples of other limitations on detection or system operation

•

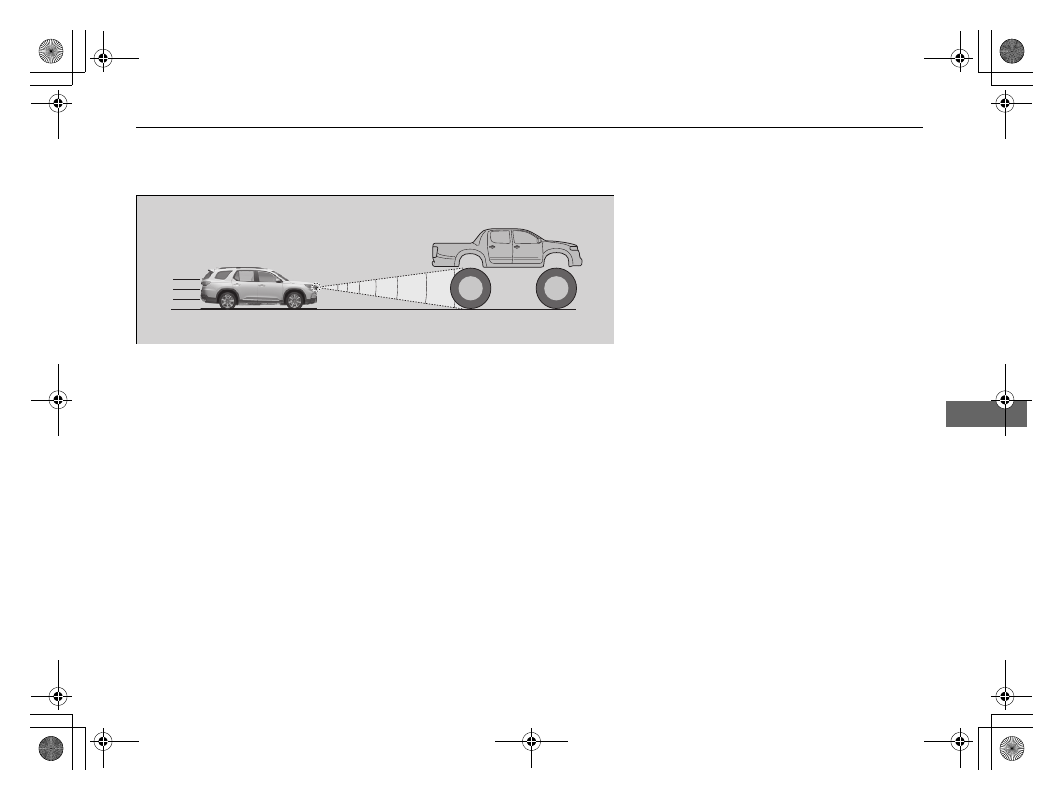

When the oncoming vehicle is specially-shaped.

•

When the camera cannot correctly identify the shape of the oncoming vehicle.

■

With Little Chance of a Collision

The Road Departure Mitigation system may activate in the below conditions.

•

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

587

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

Adaptive Cruise Control (ACC) with Low Speed Follow

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours and, if the detected vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with Low Speed Follow slows your vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.

WARNING

Improper use of ACC with Low Speed
Follow can lead to a crash.

Use ACC with Low Speed Follow only when
driving on expressways or freeways and in
good road and weather conditions.

WARNING

ACC with Low Speed Follow has limited
braking capability and may not stop your
vehicle in time to avoid a collision with a
vehicle that quickly stops in front of you.

Always be prepared to apply the brake
pedal if the conditions require.

When to use

■

Vehicle speed for ACC with Low Speed Follow:

A vehicle is detected ahead

within ACC with Low Speed Follow range

– ACC with Low Speed Follow

operates at speeds up to 90 mph (145 km/h).

No vehicle is detected within ACC with Low Speed Follow range

– ACC with

Low Speed Follow operates at the speed of 25 mph (40 km/h) or above.

■

Shift position for ACC with Low Speed Follow: In

(

A front sensor
camera is located
behind the
rearview mirror.

The radar sensor is
behind the Honda
emblem on the
front grille.

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

588

Driving

■

How to activate the system

Adaptive Cruise Control (ACC) with Low Speed Follow

Important Reminder

As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.

For directions on the proper handling of the radar
sensor, refer to the following page.

Radar Sensor

P. 639

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 637

WARNING

Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the vehicle
moving without operator control.

A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.

Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.

How to use

■

Press the

button on the

steering wheel.

(white) is on in the gauge

ACC with Low Speed Follow is ready to use.

Continued

589

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

*1 : Models with A-type meter
*2 : Models with B-type meter

When driving at about 25 mph (40 km/h) or above:

Take your foot off the

pedal and press the

RES/+

SET/−

switch up or down when you reach the desired

speed. The moment you release the switch, the set speed is fixed, and ACC with
Low Speed Follow begins.

When you use ACC with Low Speed Follow, Straight Driving Assist (a feature of the
Electric Power Steering system) is activated.
By enabling the steering system to automatically compensate for natural steering pull,
Straight Driving Assist makes it easier for you to keep your vehicle in a straight line.

■

To Set the Vehicle Speed

To Set the Vehicle Speed

The radar sensor for ACC with Low Speed Follow is shared
with the Collision Mitigation Braking System

(CMBS

Collision Mitigation Braking System

(CMBS

)

P. 561

ACC with Low Speed Follow may not work properly
under certain conditions.

ACC with Low Speed Follow Conditions
and Limitations

P. 596

When not using ACC with Low Speed Follow: Turn
off adaptive cruise by pressing the

button.

Do not use ACC with Low Speed Follow under the
following conditions:

•

On roads with frequent lane-change or continuous
stop and go traffic, ACC with Low Speed Follow
cannot keep an appropriate distance between your
vehicle and the vehicle ahead of you.

•

On roads with sharp turns.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

•

On roads with bad weather (rain, fog, snow, etc.),
ACC with Low Speed Follow may not detect the
distance between your vehicle and the vehicle
ahead of you properly.

•

On roads with slippery or icy surfaces. The wheels
may spin out and your vehicle may lose the control
on the condition.

•

On roads with steep uphill or steep downhill slopes.

•

On roads with undulating slopes.

On when ACC with Low
Speed Follow begins

RES/+

SET/−

Switch

(green)

Up or down

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

590

Driving

When driving slower than about 25 mph (40 km/h):

If the vehicle is moving

and the brake pedal is not depressed, pressing the switch fixes the set speed to
about 25 mph (40 km/h) regardless of current vehicle speed. If your vehicle is
stationary, you can set the vehicle speed even with the brake pedal depressed.

When ACC with Low Speed Follow starts
operating, the vehicle icon, interval bars and
set speed appear on the gauge.

To Set the Vehicle Speed

The Vehicle Stability Assist

(VSA

) system, Adaptive

You can switch the displayed set speed
measurements on the gauge or audio/information
screen between mph and km/h.

P. 140

To Set or Change Following-interval

P. 426

Set Vehicle Speed

Set Vehicle Interval

Models with A-type meter

Set Vehicle Speed

Set Vehicle Interval

Models with B-type meter

* Not available on all models

Continued

591

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

There is a vehicle ahead

ACC with Low Speed Follow monitors if a vehicle ahead of you enters the ACC with
Low Speed Follow range. If a vehicle is detected doing so, the ACC with Low Speed
Follow system maintains or decelerates your vehicle’s set speed in order to keep the
vehicle’s set following-interval from the vehicle ahead.

P. 601

■

When in Operation

When in Operation

If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, a beeper sounds
and a message appears on the driver information
interface.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Beep

Head-up
Warning Lights

ACC with Low Speed Follow Range: 394 ft. (120 m)

* Not available on all models

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

592

Driving

When a vehicle whose speed is slower than
your set speed comes in or cuts in front of you
and is detected by the radar and the camera,
your vehicle starts to slow down.

When in Operation

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with Low Speed
Follow may start accelerating your vehicle under the
following circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle
detected in front of you comes in and goes out of the
ACC with Low Speed Follow detecting range.
A vehicle detect beep on and off can be selected.

P. 140

ACC with Low Speed Follow Conditions
and Limitations

P. 426

Limitations

You may need to use the brake to maintain a safe
interval when using ACC with Low Speed Follow.
Additionally, ACC with Low Speed Follow may not
work properly under certain conditions.

P. 596

A vehicle icon appears on the
gauge.

Control target vehicle

Control target vehicle:
White and outlined in green
Outside of control target vehicle:
Gray

Models with A-type meter

Models with B-type meter

Control target vehicle

Outside of control target vehicle
A vehicle icon appears on the
gauge.

* Not available on all models

Continued

593

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with Low Speed Follow
accelerates your vehicle to the set speed, and
then maintains it.

While driving down steep hills, ACC with Low
Speed Follow brakes to inhibit excessive
acceleration for maintaining the set speed.
However, the vehicle speed may become
faster than the set speed.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with Low Speed Follow range.
ACC with Low Speed Follow stays on unless you cancel it. Once you release the
accelerator pedal, the system resumes an appropriate speed for keeping the
following-interval while a vehicle ahead is within the ACC with Low Speed Follow
range.

When in Operation

•

ACC with Low Speed Follow may temporarily
control the interval between your vehicle and the
vehicle in adjacent lane or surroundings of your
vehicle depending on the road conditions (e.g.,
curves) or vehicle conditions (e.g., operating the
steering wheel or the vehicle location in the lane).

•

When the vehicle ahead of you moves away, such
as when entering an interchange or rest area, ACC
with Low Speed Follow may continue to maintain
the set following-interval for a short time.

A vehicle icon with line contour
appears on the gauge.

Models with A-type meter

Models with B-type meter

A vehicle icon disappears on the
gauge.

594

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

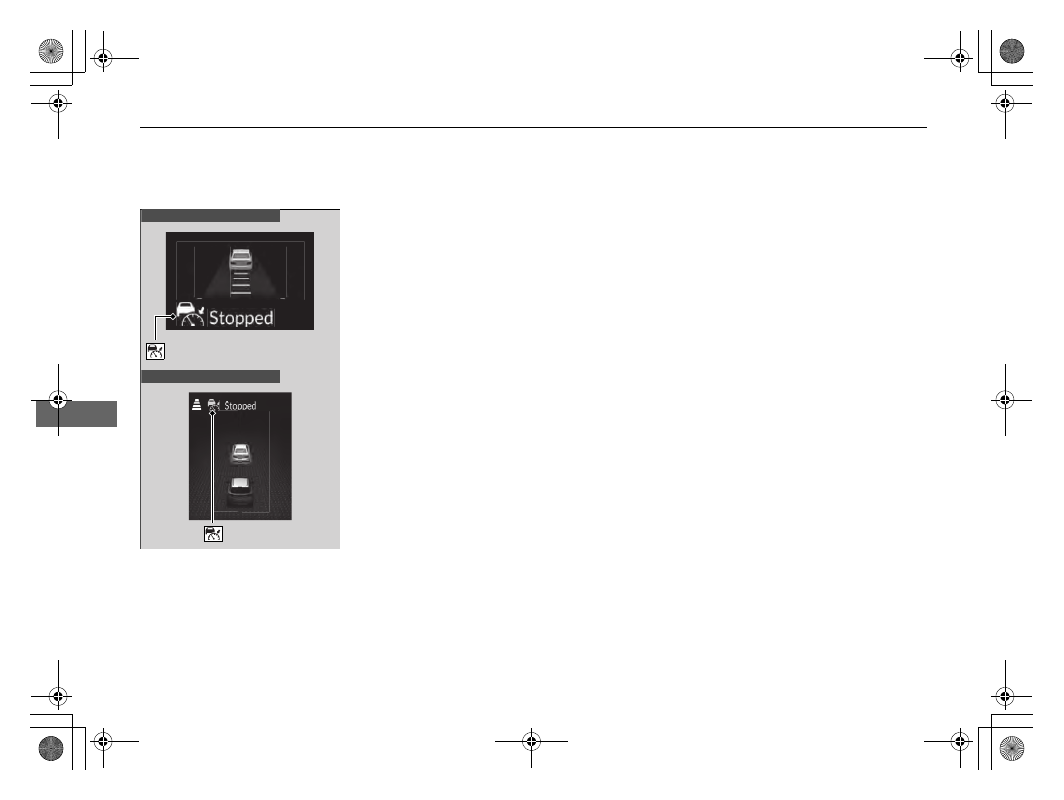

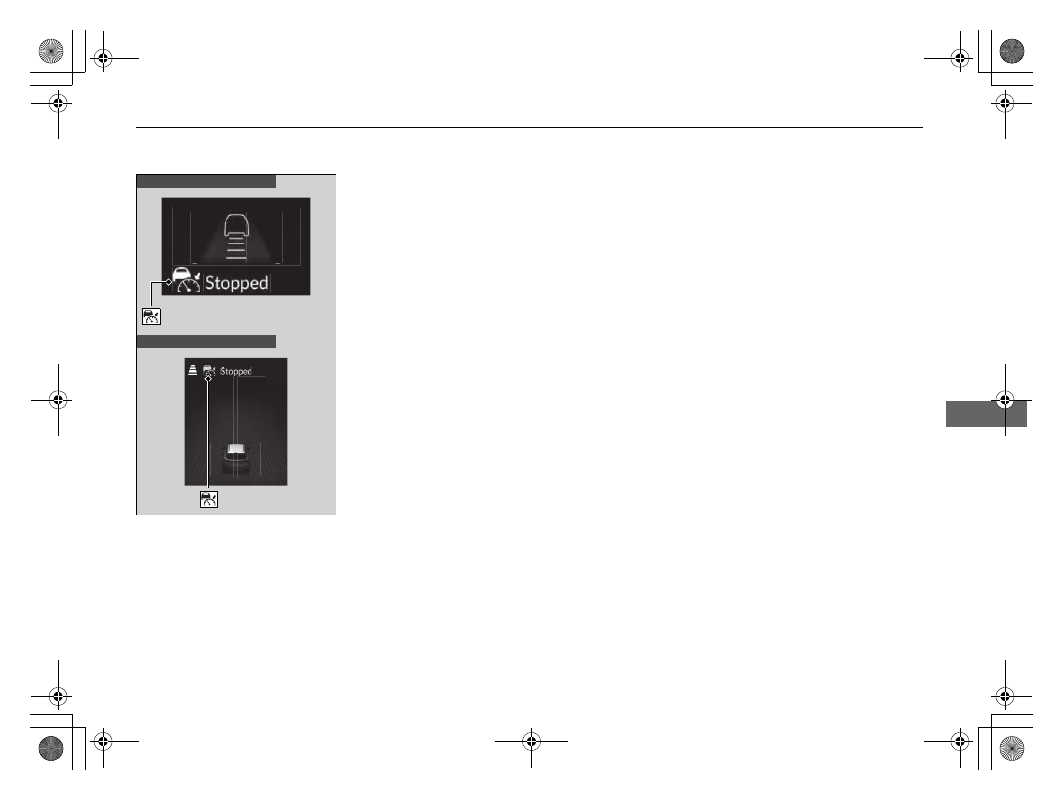

A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop

Your vehicle also stops automatically. The

Stopped

message appears on the gauge.

When the vehicle ahead of you starts again, if
you press the

RES/+

SET/−

switch up or

down, or depress the accelerator pedal, ACC
with Low Speed Follow operates again within
the prior set speed.

(green)

Models with A-type meter

Models with B-type meter

(green)

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

596

Driving

The system may automatically shut off under certain conditions. Some examples of
these conditions are listed below. Other conditions may reduce some of the ACC
with Low Speed Follow functions.

Front Sensor Camera

P. 637

Radar Sensor

P. 639

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

•

When driving for long distances on a road in a trafficless area such as a desert.

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

■

Vehicle conditions

•

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire

, etc.).

•

The camera temperature gets too high.

•

The electric parking brake is applied.

•

The front grille is dirty.

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

When tire chains are installed.

•

The vehicle is towing a trailer.

■

ACC with Low Speed Follow Conditions and Limitations

ACC with Low Speed Follow Conditions and Limitations

Always keep the radar sensor cover clean.

Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.

Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the

button and take your vehicle to a dealer.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

* Not available on all models

Continued

597

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

Detection limitations

•

A vehicle suddenly crosses in front of you.

•

The interval between your vehicle and the vehicle ahead of you is too short.

•

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

•

You accelerate rapidly and approach the vehicle ahead of you at high speed.

•

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.

•

There are animals in front of your vehicle.

•

You drive on a curved or winding or undulating road that makes it difficult for the
sensor to properly detect a vehicle in front of you.

•

A vehicle ahead of you stops and the speed difference between your vehicle and
the vehicle ahead of you is significantly large.

•

An oncoming vehicle suddenly comes in front of you.

•

Your vehicle abruptly crosses over in front of an oncoming vehicle.

ACC with Low Speed Follow Conditions and Limitations

If the front of the vehicle is impacted in any of the
following situations, the radar sensor may not work
properly. Have your vehicle checked by a dealer:

•

The vehicle mounted onto a bump, curb, chock,
embankment, etc.

•

You drive the vehicle where water is deep.

•

Your vehicle has a frontal collision.

598

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

•

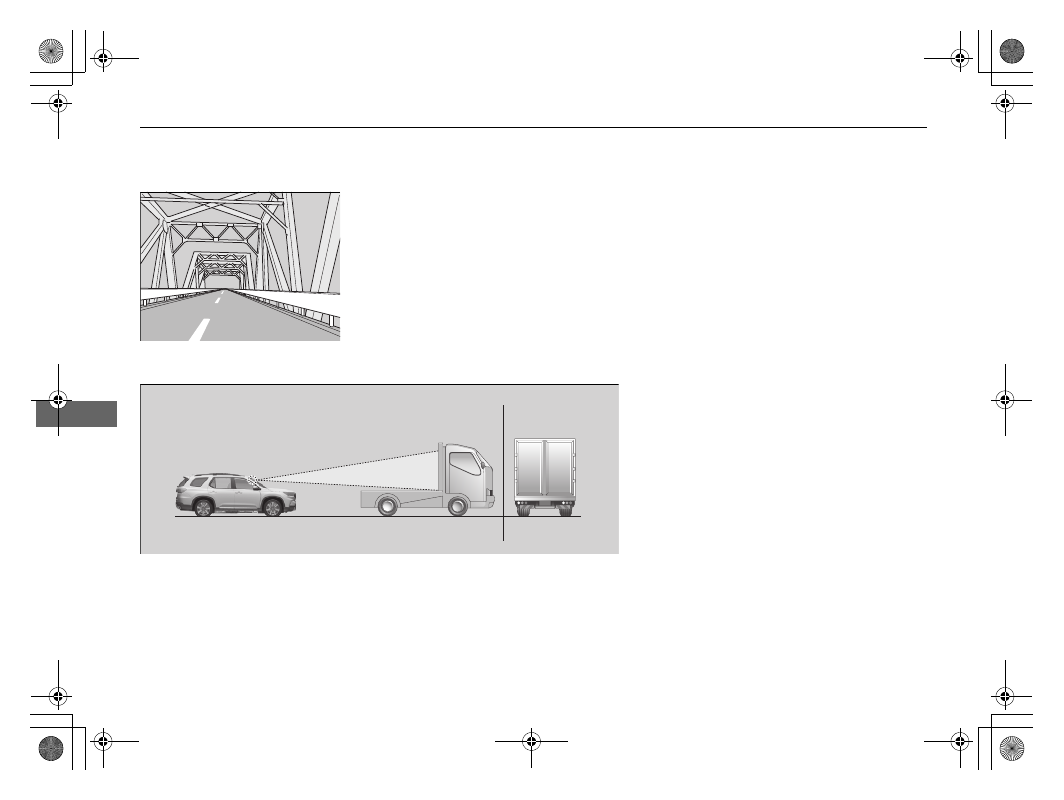

Driving through a narrow metal bridge.

•

The vehicle ahead of you brakes suddenly.

•

The vehicle ahead of you has a unique shape.

•

Your vehicle or the vehicle ahead of you is driving on one edge of the lane.

Sensor detects upper section of
an empty carrier truck.

Panel truck,
tanker truck,
etc.

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

600

Driving

Increase or decrease the vehicle speed using the

RES/+

SET/−

switch on the steering

wheel.

•

Each time you press the

RES/+

SET/−

switch up or down, the vehicle speed is

increased or decreased by about 1 mph or 1 km/h accordingly.

•

If you keep the

RES/+

SET/−

switch pressed up or down, the vehicle speed

increases or decreases by about 5 mph or 5 km/h accordingly.

■

To Adjust the Vehicle Speed

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with Low Speed
Follow may not accelerate your vehicle. This is to
maintain the set interval between your vehicle and
the vehicle ahead.

When you depress the accelerator pedal and then
press down and release the

RES/+

SET/−

switch, the

current speed of the vehicle is set.

To increase speed

To decrease speed

601

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

Press the Interval button to change the ACC
with Low Speed Follow following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through furthest,
far, mid, and nearest following-intervals.

Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.

■

To Set or Change Following-interval

Interval Button

Models with A-type meter

Models with B-type meter

Interval Button

602

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

The higher your vehicle’s following-speed is, the longer the nearest, mid, far, or
furthest following-interval becomes. See the following examples for your reference.

When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with Low
Speed Follow interval setting.

*1 : Models with A-type meter
*2 : Models with B-type meter

Following-interval

When the Set Speed is:

50 mph (80 km/h) 65 mph (104 km/h)

Nearest

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Mid

108 feet

33 meters

1.5 sec

137 feet

42 meters

1.5 sec

Far

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Furthest

213 feet

65 meters

2.9 sec

282 feet

86 meters

2.9 sec

Continued

603

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

To cancel ACC with Low Speed Follow, do any
of the following:

•

Press the

CANCEL

button.

The

indicator (green) on the gauge

changes to the

indicator (white).

•

Press the

button.

indicator (green) goes off.

•

Depress the brake pedal while the vehicle is
moving forward.

The

indicator (green) on the gauge

changes to the

indicator (white).

■

To Cancel

Resuming the prior set speed: After you have
canceled ACC with Low Speed Follow, you can
activate the ACC with Low Speed Follow with the
prior set speed displayed on the gauge (in gray) by
pressing the

RES/+

SET/−

switch up even if the

vehicle is stopped.
When you turn the ACC with Low Speed Follow off
by pressing the

CANCEL

button or depressing the

brake pedal, the prior set speed is displayed on the
gauge in gray.
When pressing the

RES/+

SET/−

switch up, the ACC

with Low Speed Follow is activated with displayed
speed.
If the

indicator (white) is displayed and you press

the

RES/+

SET/−

switch up, but no prior set speed (in

gray) is displayed, the speed will be set to your
vehicle's current speed.

CANCEL

Button

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

604

Driving

■

Automatic cancellation

The beeper sounds and a message appears on the driver information interface when
ACC with Low Speed Follow is automatically canceled. Any of these conditions may
cause the ACC with Low Speed Follow to automatically cancel:

•

Bad weather (rain, fog, snow, etc.)

•

When the radar sensor behind the Honda emblem gets dirty.

•

The vehicle ahead of you cannot be detected.

•

An abnormal tire condition is detected, or the tires are skidding.

•

Driving on a mountainous road for extended periods, or driving off road.

•

Abrupt steering wheel movement.

•

When the ABS, VSA

, CMBS

, or Low Speed Braking Control

is activated.

•

When the ABS or VSA

system indicator comes on.

•

When the vehicle is stopped on a very steep slope.

•

When you manually apply the parking brake.

•

When the detected vehicle within the ACC with Low Speed Follow range is too
close to your vehicle.

•

When accelerating rapidly.

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

•

The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).

•

When the system doesn't detect any driving actions from the driver for a certain
amount of time while the LKAS is also activated.

•

When the Maximum Load Limit is exceeded.

•

When passing through an enclosed space, such as tunnel.

•

When the parking brake and brake system indicator (amber) comes on.

To Switch ACC with Low Speed Follow to Cruise Control

The set speed cannot be set or resumed when ACC
with Low Speed Follow has been turned off using the

button. Press the

button to activate the

system, then set the desired speed.

(white)

Prior Set Speed (gray)

Models with A-type meter

Models with B-type meter

Prior Set Speed (gray)

(white)

* Not available on all models

605

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

The ACC with Low Speed Follow automatic cancellation can be also triggered by the
following causes. In these cases, the parking brake will be automatically applied.

•

The driver’s seat belt is unfastened when the vehicle is stationary.

•

The vehicle stops for more than 10 minutes.

•

The engine is turned off.

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

606

Driving

Press and hold the interval button for one
second.

Cruise mode selected

appears on

the driver information interface for two
seconds, and then the mode switches to
Cruise.
The

comes on.

•

Green: The system is on.

•

White: The system is standby.

To switch back to ACC with Low Speed
Follow, press and hold the interval button
again for one second.

Take your foot off the pedal and press the

RES/+

SET/–

switch up or down when

you reach the desired speed.
The moment you release the

RES/+

SET/–

switch, the set speed is fixed, and cruise

control begins. The color of

indicator changes from white to green and set speed

appears on the gauge.
When you use cruise control, Straight Driving Assist (a feature of the Electric Power
Steering system) is activated.
By enabling the steering system to automatically compensate for natural steering pull,
Straight Driving Assist makes it easier for you to keep your vehicle in a straight line.

■

When to use

Desired speed in a range above roughly 25 mph (40 km/h).

■

To Switch ACC with Low Speed Follow to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.

You cannot switch ACC with Low Speed Follow to
Cruise Control in the following situations:

•

When the vehicle speed is set.

•

When ACC with Low Speed Follow is not activated.

You can switch the displayed set speed
measurements on the gauge or audio/information
screen between mph and km/h.

P. 140

P. 426

(white)

ACC with Low
Speed Follow ON

Cruise Control ON

Interval Button

■

To Set the Vehicle Speed

* Not available on all models

Continued

607

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

Each time you press the

RES/+

SET/–

switch up or down, the vehicle speed is

increased or decreased by about 1 mph (1 km/h) accordingly.
If you keep the

RES/+

SET/–

switch pressed up or down, the vehicle speed increases

or decreases by about 5 mph or 5 km/h accordingly.

To cancel cruise control, do any of the following:

•

Press the

CANCEL

button.

The

indicator (green) on the gauge change to the

indicator (white).

•

Press the

button.

The

indicator (green) goes off.

•

Depress the brake pedal.

The

indicator (green) on the gauge change to the

indicator (white).

■

To Adjust the Vehicle Speed

■

To Cancel

Resuming the prior set speed:
After you have canceled cruise control, you can activate
the cruise control with the prior set speed displayed on
the gauge (in gray) by pressing the

RES/+

SET/–

switch

up while driving at a speed of at least 25 mph (40 km/h)
or more.
When you turn the cruise control off by pressing the

CANCEL

button or depressing the brake pedal, the

prior set speed is displayed on the gauge in gray.
When pressing the

RES/+

SET/–

switch up, the cruise

control is activated with displayed speed.
If the

indicator (white) is displayed and you press

the

RES/+

SET/–

switch up, but no prior set speed (in

gray) is displayed, the speed will be set to your
vehicle’s current speed.

(white)

Prior Set Speed (gray)

Models with A-type meter

Models with B-type meter

Prior Set Speed (gray)

(white)

Honda Sensing

Adaptive Cruise Control (ACC) with Low Speed Follow

608

Driving
